Shop more Strong-Drive PPHD Sheathing-To-CFS Screw
SKU: PPHD11516S0817

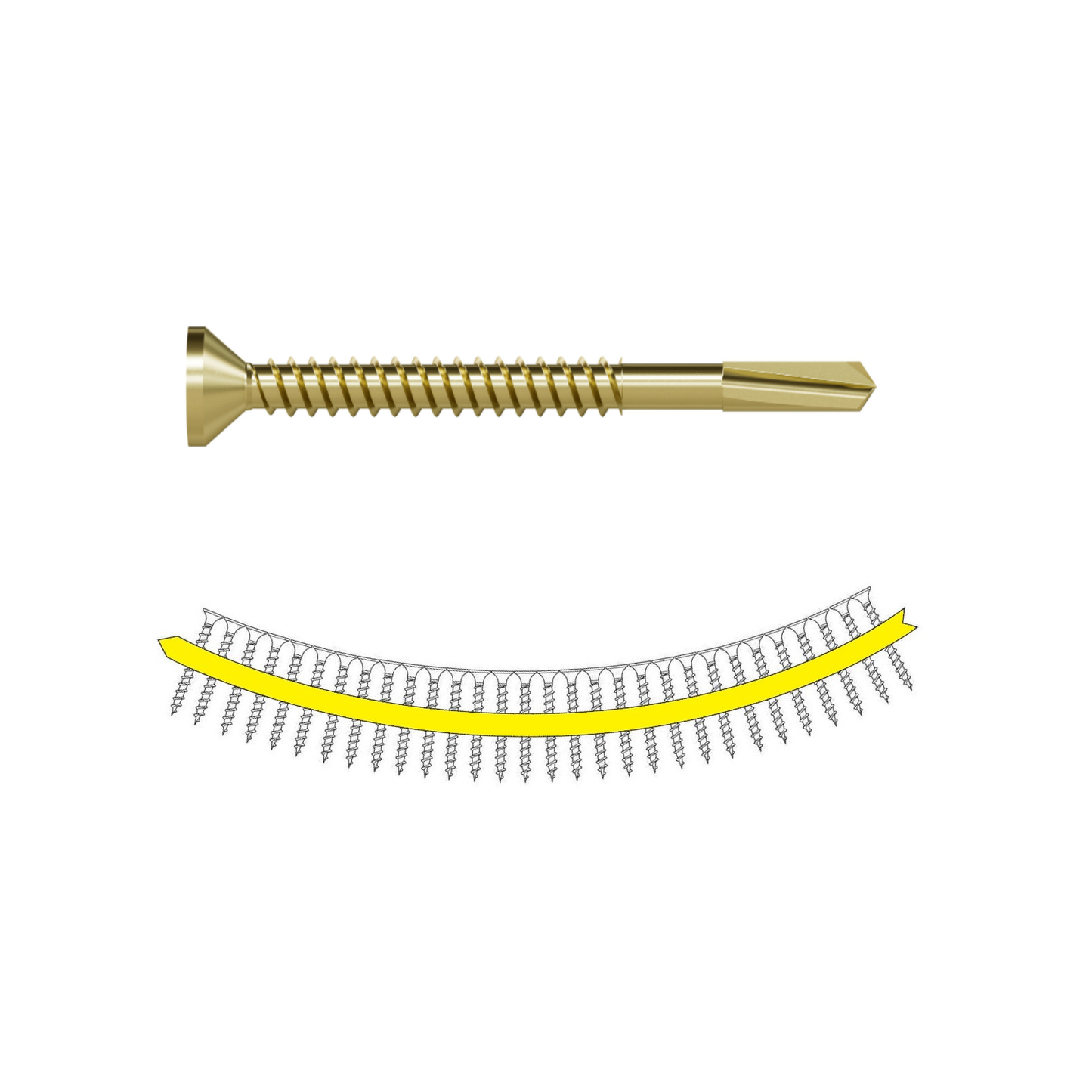

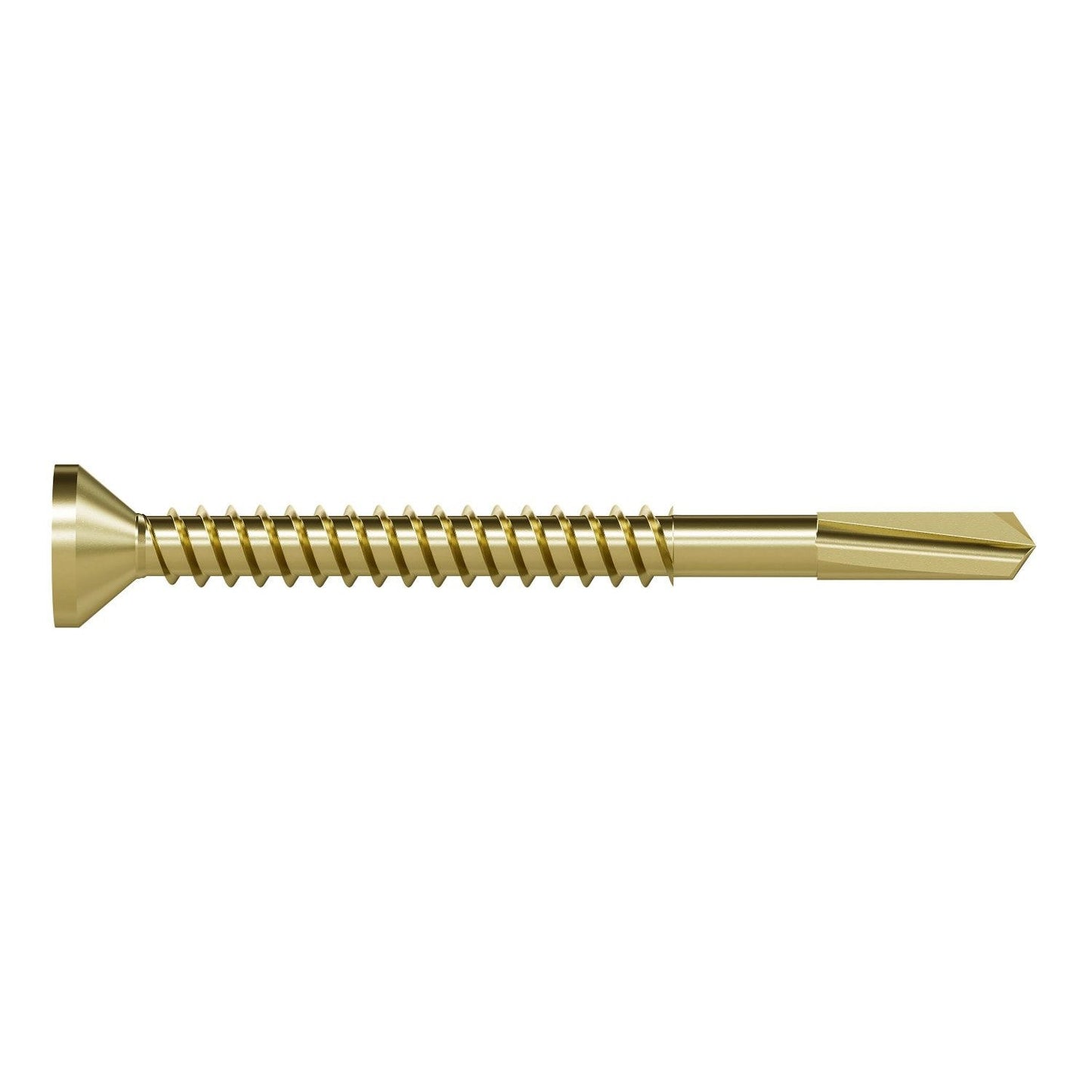

#8 x 1-15/16" Strong-Drive PPHD Sheathing-To-CFS Screw Collated, Yellow-Zinc Coated - Pkg 2000
#8 x 1-15/16" Strong-Drive PPHD Sheathing-To-CFS Screw Collated, Yellow-Zinc Coated - Pkg 2000
No reviews
Regular price
$162.57
Sale price
$162.57
Regular price
Unit price
/
per
You Save 0%
Couldn't load pickup availability

Description:
Description:
The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. The Strong-Drive PPHD Sheathing-to-CFS screw comes collated for use in Quik Drive auto-feed screw driving systems.
Product Includes:
- 1 15/16" screw in 2,000-count package includes (2) T25 6-lobe driver bits (replacement bit model QRTX25-1.5)
Key Features
- Sheathing, drywall, subfloor to CFS
- Currently available in sizes #8 x 1 15/16"; #10 x 1 3/4", 3"; #12 x 1 3/4"
- Larger #5 pilot point with longer flute
- #8 sizes have buttress threads and new dog-eared point to improve drilling through sheathing and metal
- #12 sizes have underhead nibs for easy countersinking

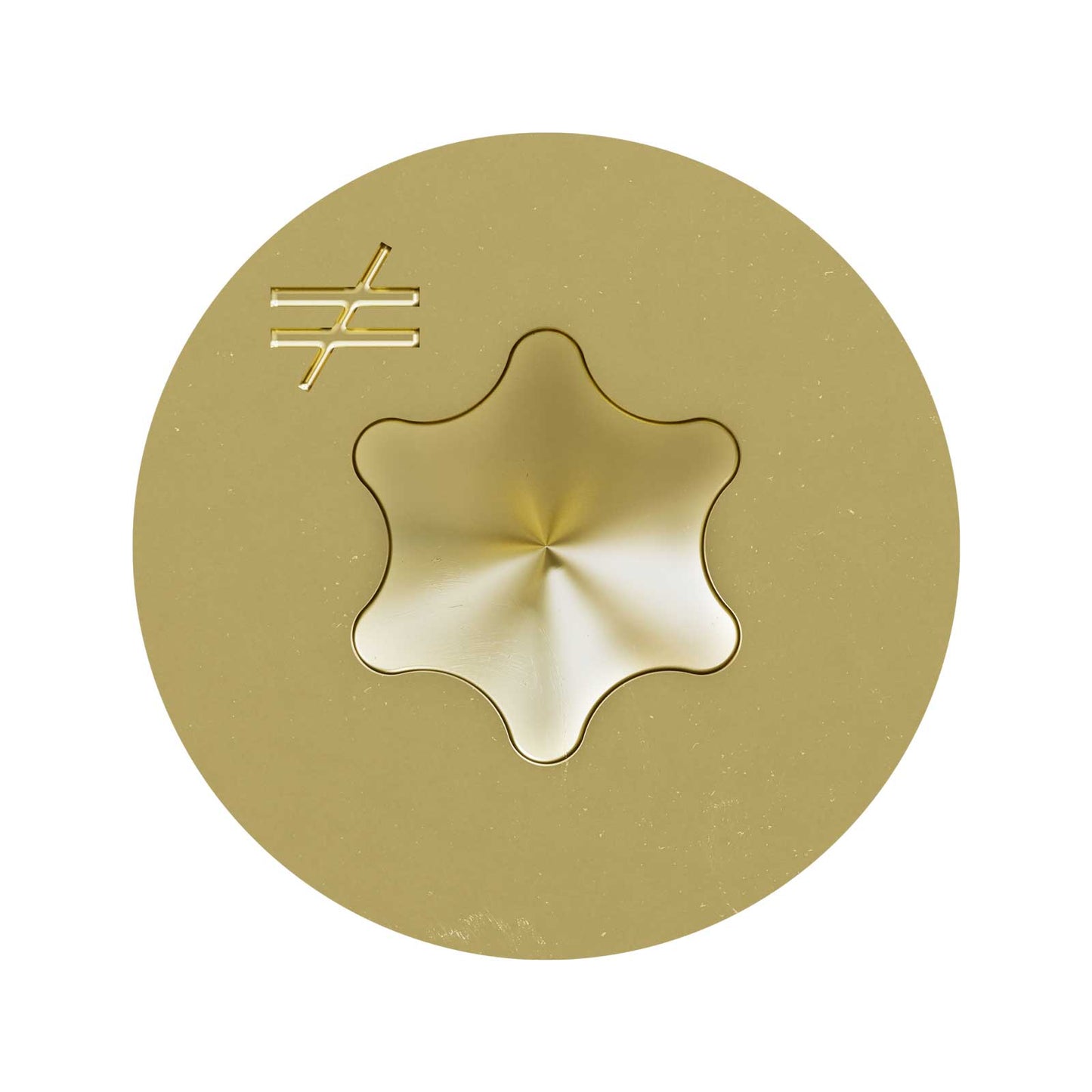

- 6-lobe recess for a more secure drive
- Yellow zinc and Quik Guard® coatings
- Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
- PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISI S400
- Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
California Residents: WARNING

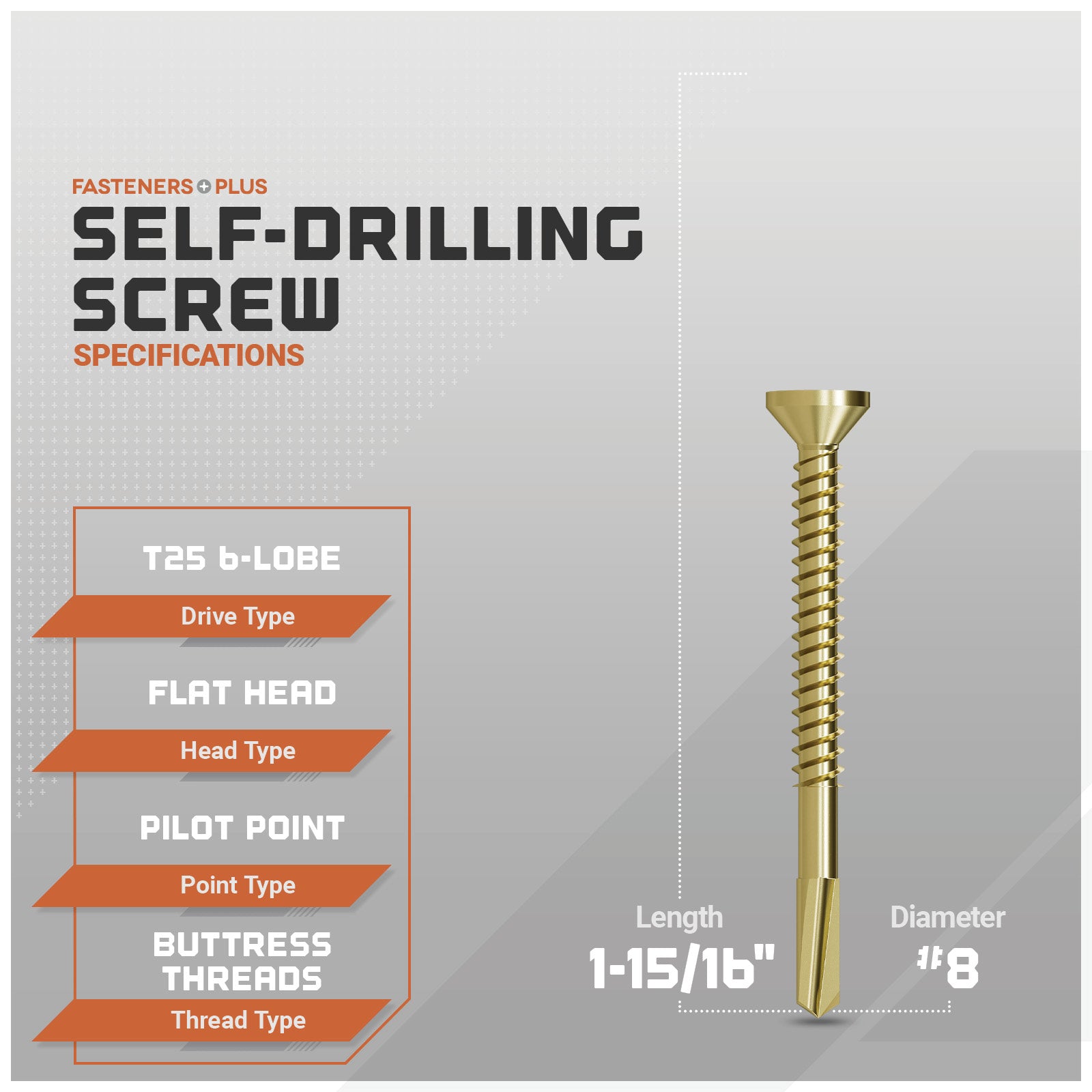

Specifications:
Specifications:
Thread type: Buttress Threads
Quantity: 2000
Head type: Flat Head
Finish: Yellow Zinc
Diameter: #8
Length: 1-15/16
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
