Strong-Drive PPHD Sheathing-To-CFS Screw

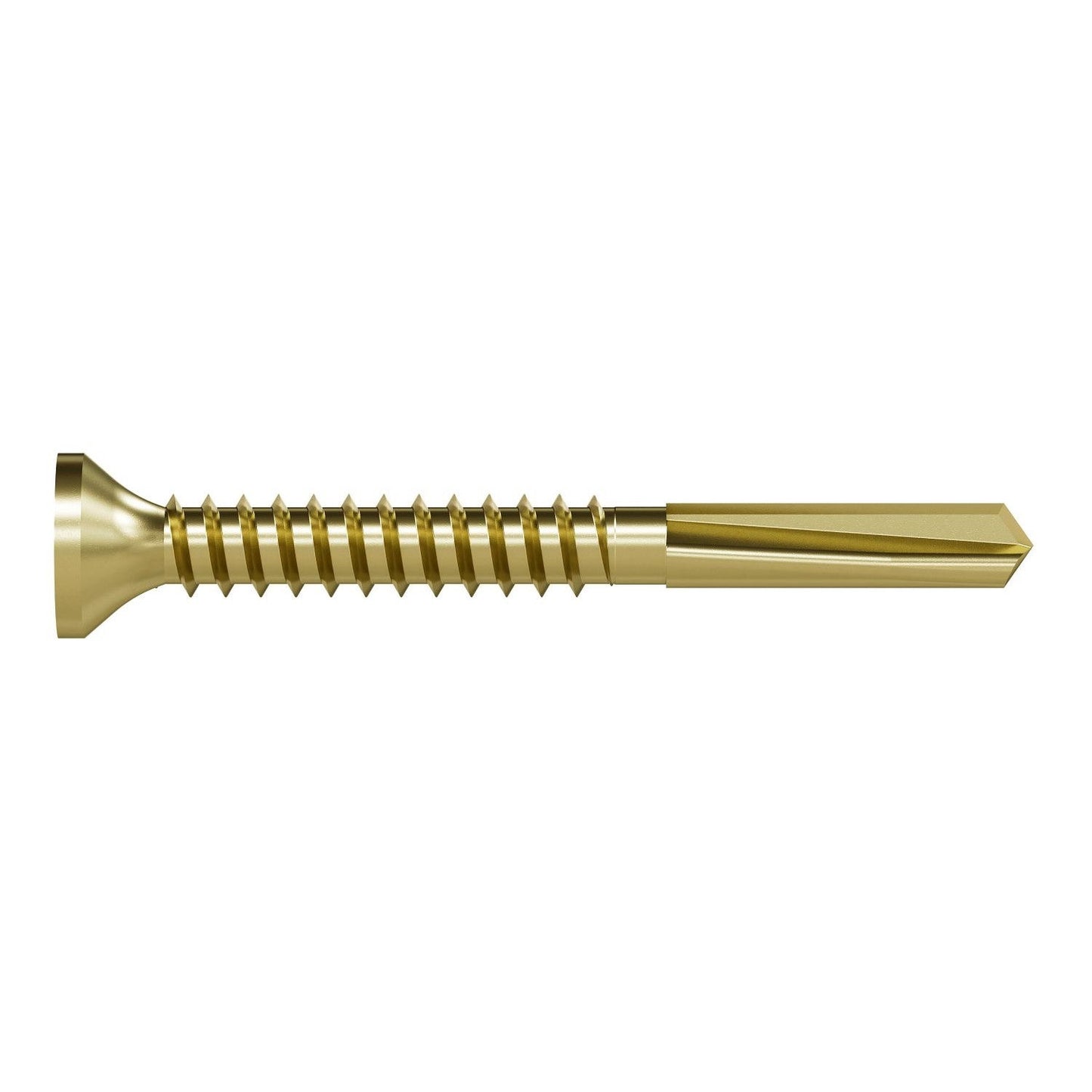

Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Qty. 4,000

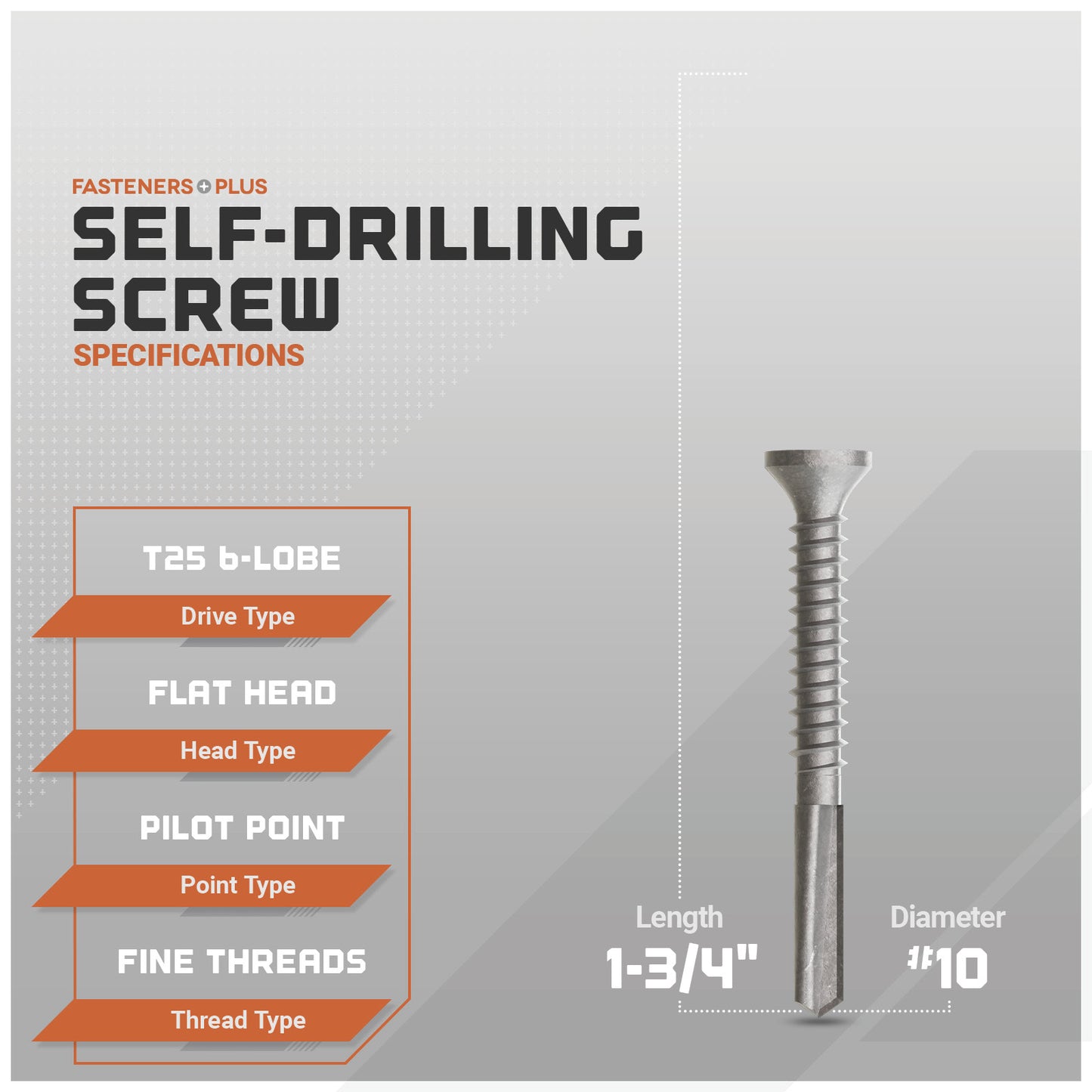

Specifications
Fast and reliable for attaching sheathing or sub-floor panels to steel framing, the Strong-Drive PPHD134B1016-4K PPHD Sheathing-to-CFS Screw is engineered to drill through panel layers and into cold-formed steel (CFS) framing without pre-drilling. With its longer #5 pilot point, fine thread design, flat head and six-lobe drive, this screw is built to deliver strong engagement, clean seating and efficient installation for professionals and DIYers alike.
Key Features
- Self-Drilling #5 Point: Easily penetrates panel materials and CFS framing without the need for pre-drilling.
- Fine Threads: Provides excellent pull-through resistance and strong retention in steel and wood substrates. Buttress threads available in #8 sizes for added holding power.
- Flat Countersunk Head with 6-Lobe Drive: Ensures flush installation with reliable tool engagement using a T25 driver bit.
- Corrosion-Resistant Coatings: Available in yellow zinc for dry interior use or Quik Guard coating for moderate exterior exposure.
- Collated and Bulk Options: Compatible with both hand-drive and auto-feed screw-driving systems to increase speed on large jobs.
Applications
- Attaching OSB, plywood, gypsum board or other sheathing to cold-formed steel framing in walls, floors or ceilings.
- Installing subfloors over steel joists in residential or commercial framing.
- Use in diaphragm-rated assemblies and structural shear walls that require fastener code compliance.
- Ideal for both new construction and renovation projects involving steel stud or track assemblies.
Installation
- Select the appropriate length and diameter based on panel thickness and steel gauge to ensure proper thread engagement.
- Use a T25 6-lobe driver bit in a screw gun or drill with clutch control to avoid overdriving the screw head.
- Align screw perpendicular to the sheathing surface and drive until the head is flush with the panel material.
- If using collated screws, confirm compatibility with auto-feed systems and adjust feed settings as required.
- Choose the correct finish for the application environment. Use yellow zinc for dry interiors and Quik Guard for exposed or humid areas.
- Follow manufacturer spacing and pattern guidelines to meet load-bearing and code-compliant installation standards.
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Qty. 4,000
My Cart:
Continue Browsing
Strong-Drive PPHD Sheathing-To-CFS Screw
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Qty. 4,000
My Cart:
-
Self-Drilling Screws for Fastening Wood to Metal
These self-drilling screws feature winged tips that bore through wood and clear the path before engaging metal, ensuring clean holes and tight connections. Designed to prevent wood splitting and eliminate the need for pre-drilling, they’re ideal for framing, decking, and other wood-to-metal applications where strength and speed matter.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
