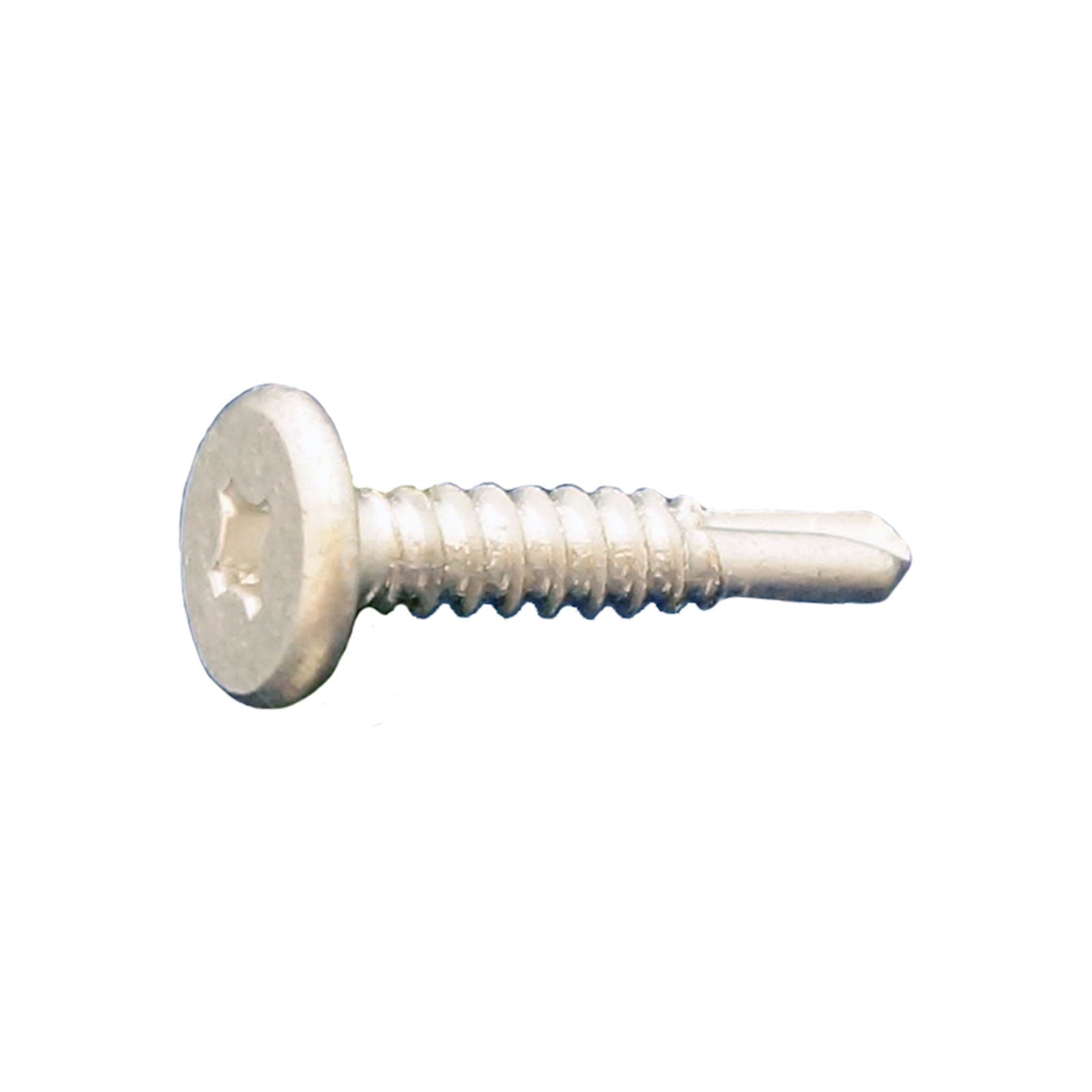

#10 x 2" Pancake Head Self-Drilling Panel Clip Screw - Dagger-Guard Coating, Pkg 2000
Specifications
When low-profile, high-performance fastening is required - especially for panel clip connections to metal or wood framing - the Daggerz Pancake Head Self-Drilling Panel Clip Screw with Wings and Dagger-Guard coating steps up. The broad pancake head ensures excellent bearing and a flush look, while the winged self-drilling point drills directly into metal, eliminating pre-drilling. With a durable Dagger-Guard finish rated for 1,000-hour salt spray resistance, this screw is designed for both interior and exterior use in demanding panel-clip and metal-to-metal or wood-to-metal installations.
Key Features
- Pancake Head Profile: Wide, low-profile head provides excellent bearing surface and sits flush under panel clips.
- Self-Drilling Point (Type #3): Drills through light-gauge steel (typically 20 to 12 gauge) without the need for pilot holes.
- Winged Design: Wings bore a clearance hole in the top material and break off when they hit metal, preventing thread engagement until desired.
- Fine Threads: Ensure strong holding power in steel and wood framing.
- Dagger-Guard Coating: Long-life corrosion-resistant finish passes 1,000-hour salt spray test, suitable for both interior and exterior environments.
- Bulk Packaged: Large quantity options (like 7,000 pcs) available for contractors and production jobs.
Applications
- Attaching panel clips to light-gauge steel or wood framing in standing seam roofing and wall systems.
- Securing soffits, fascia, or siding panels where low-head clearance is essential.
- Used in exterior and interior construction projects requiring corrosion resistance and a flush-mounted head.
- Ideal for commercial roofing, architectural panels, and retrofit framing systems.
Installation
- Select the correct length and diameter screw to fully penetrate the framing material and provide strong thread engagement.
- Use a power driver with a #2 square or Phillips bit. Set the clutch to prevent overdriving the low-profile head.
- Position the screw perpendicular to the clip or panel surface. Begin driving until the pancake head is flush beneath the clip.
- The wings will cut through the top panel and break off as the drill point reaches steel.
- Ensure the Dagger-Guard coating is appropriate for your project’s environment, especially in outdoor or high-moisture areas.
- Follow panel system manufacturer spacing and pattern recommendations to maintain proper support and load transfer.
Add the Essentials
Complete your order with these essentials, compatible with:
#10 x 2" Pancake Head Self-Drilling Panel Clip Screw - Dagger-Guard Coating, Pkg 2000
My Cart:
Continue Browsing
Bulk Loose Self-Drilling Screws
Add the Essentials
Complete your order with these essentials, compatible with:
#10 x 2" Pancake Head Self-Drilling Panel Clip Screw - Dagger-Guard Coating, Pkg 2000
My Cart:
-
Self-Drilling Screws for Efficient Fastening
By combining drilling, tapping and fastening into a single step, self-drilling screws eliminate the need for pre-drilling and increase efficiency on the job. Ideal for a wide range of applications, from attaching metal roofing and siding to fastening materials to metal substrates.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
