SKU: FS-5636-18-E/G

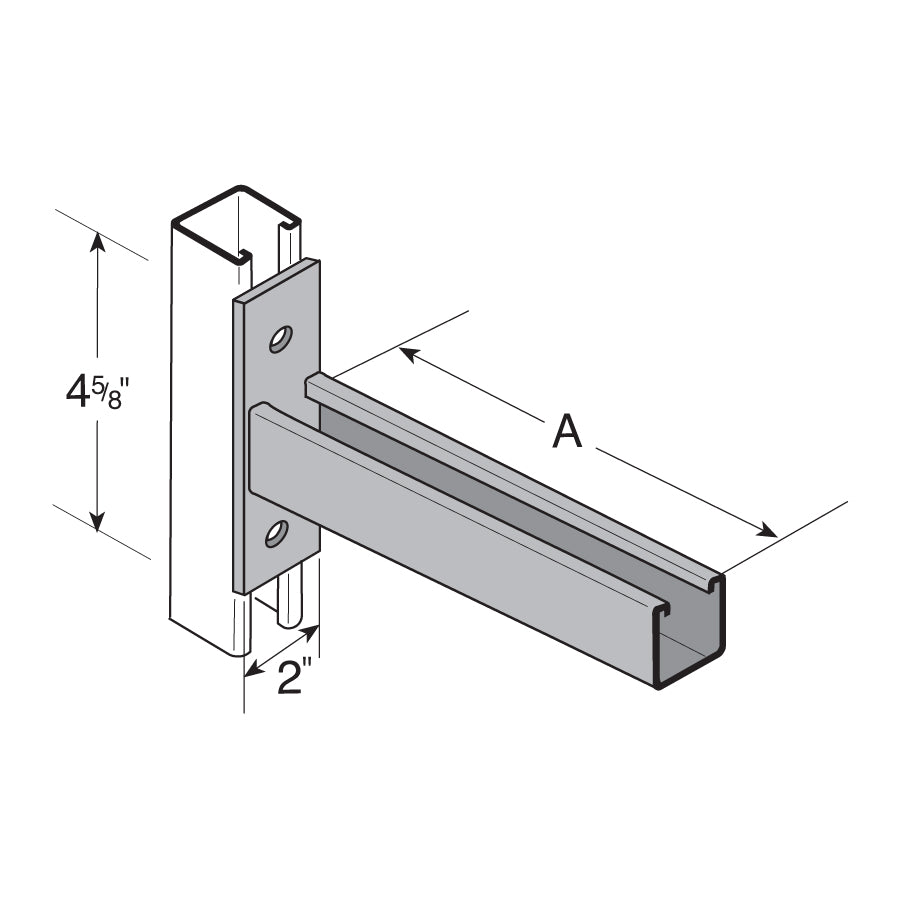

18" Channel Bracket Slot Up - Electro-Galvanized

18" Channel Bracket Slot Up - Electro-Galvanized!

Skip to product information
1 of 6

Continue Browsing

Channel Brackets

SKU: FS-5636-18-E/G
$18.55

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 16
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Length: 18"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=750#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

12" Channel Bracket Slot Up - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. With the slots of the bracket facing up, it allows for connections to be made on top of the bracket. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
