SKU: FS-5639-18-E/G

18" Flat Top Channel Bracket - Electro-Galvanized

18" Flat Top Channel Bracket - Electro-Galvanized!

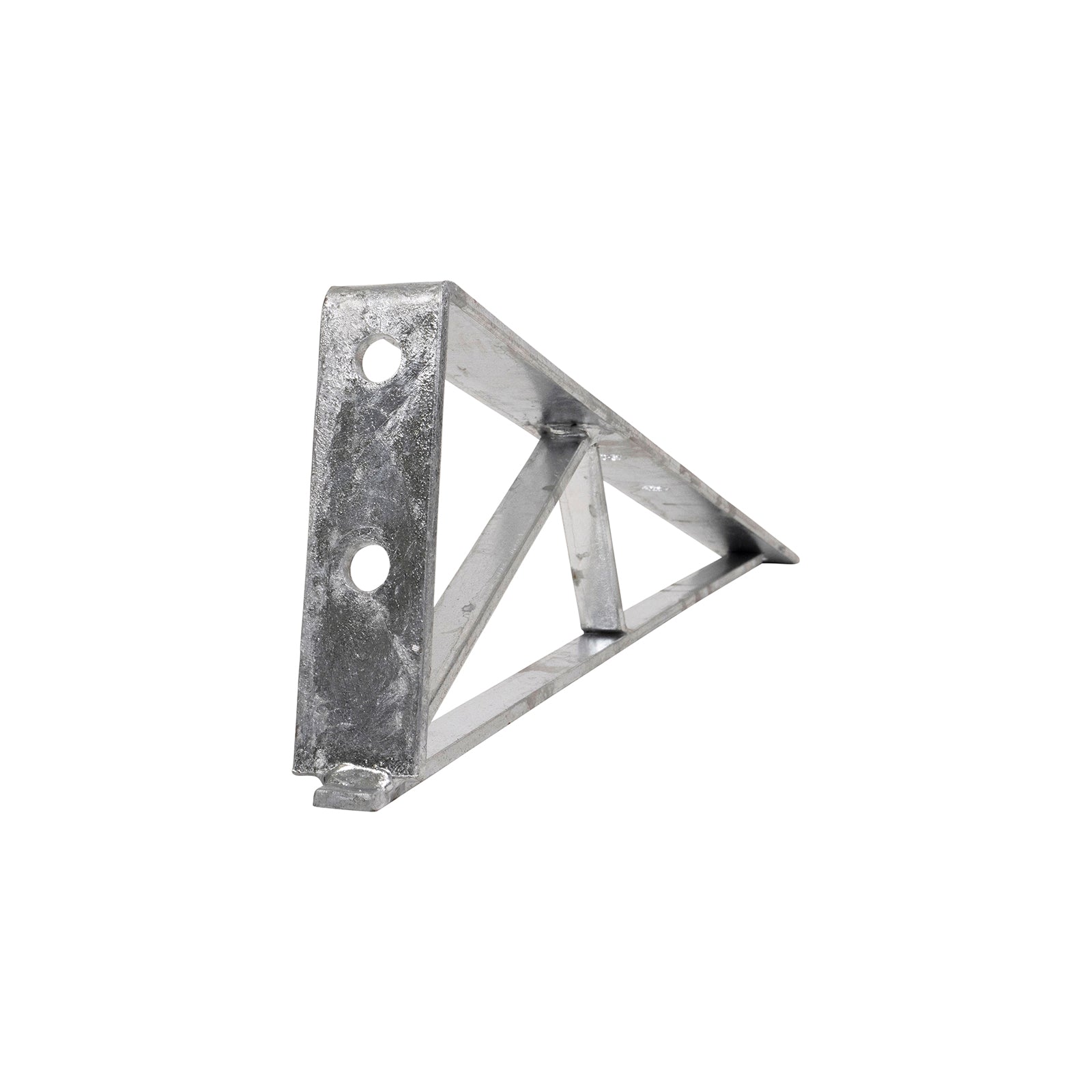

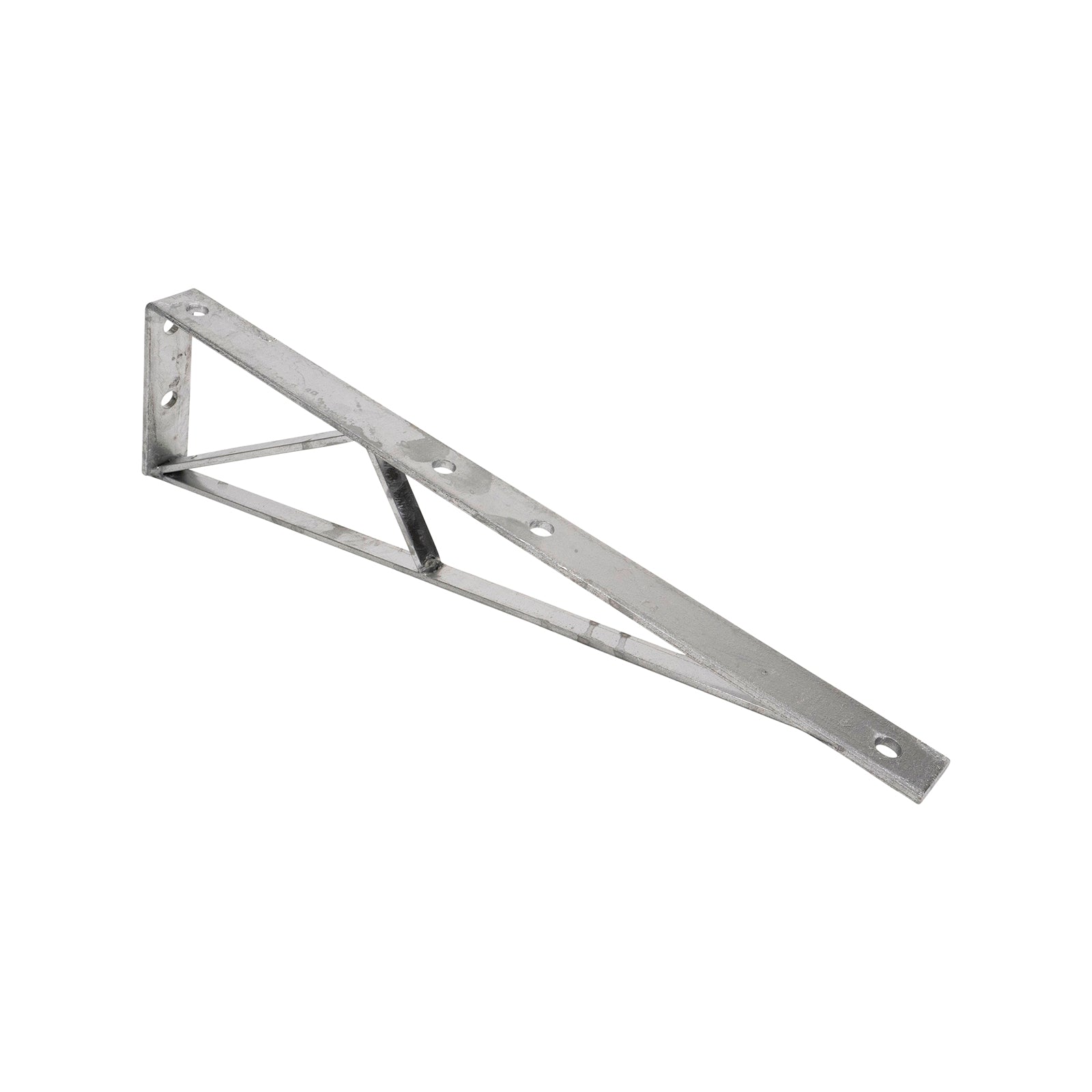

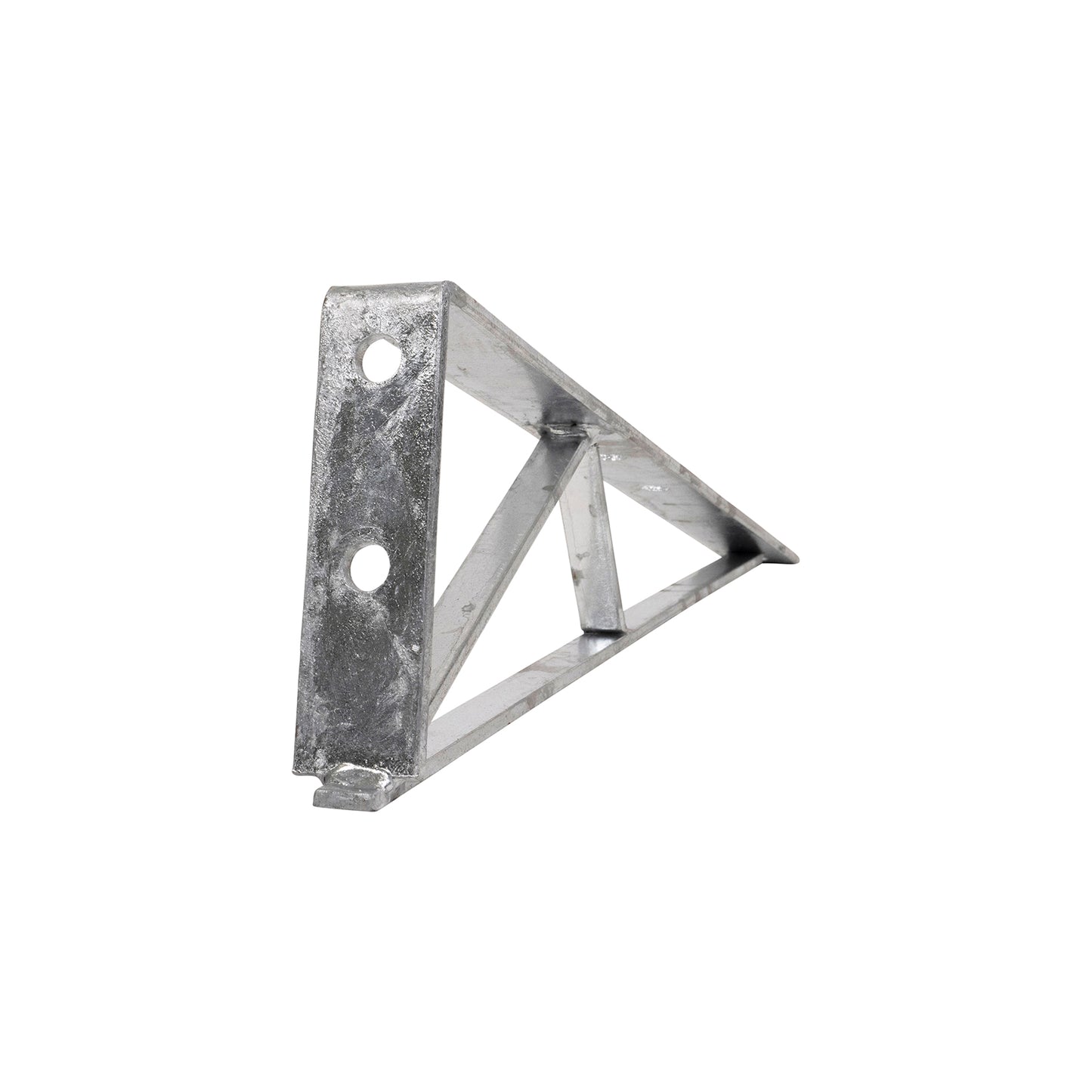

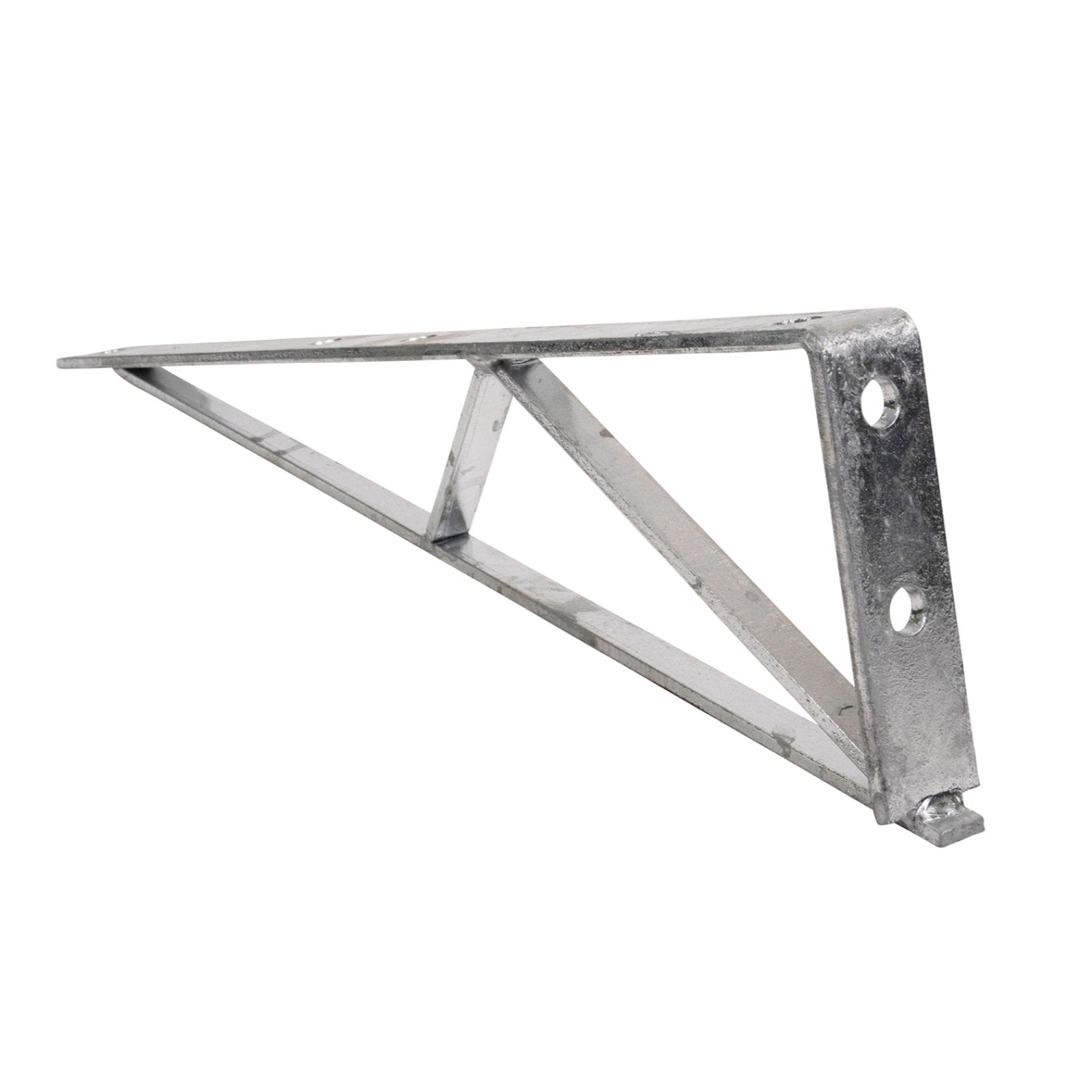

  • Flat Top Channel Bracket
  • Flat Top Channel Bracket
  • Flat Top Channel Bracket

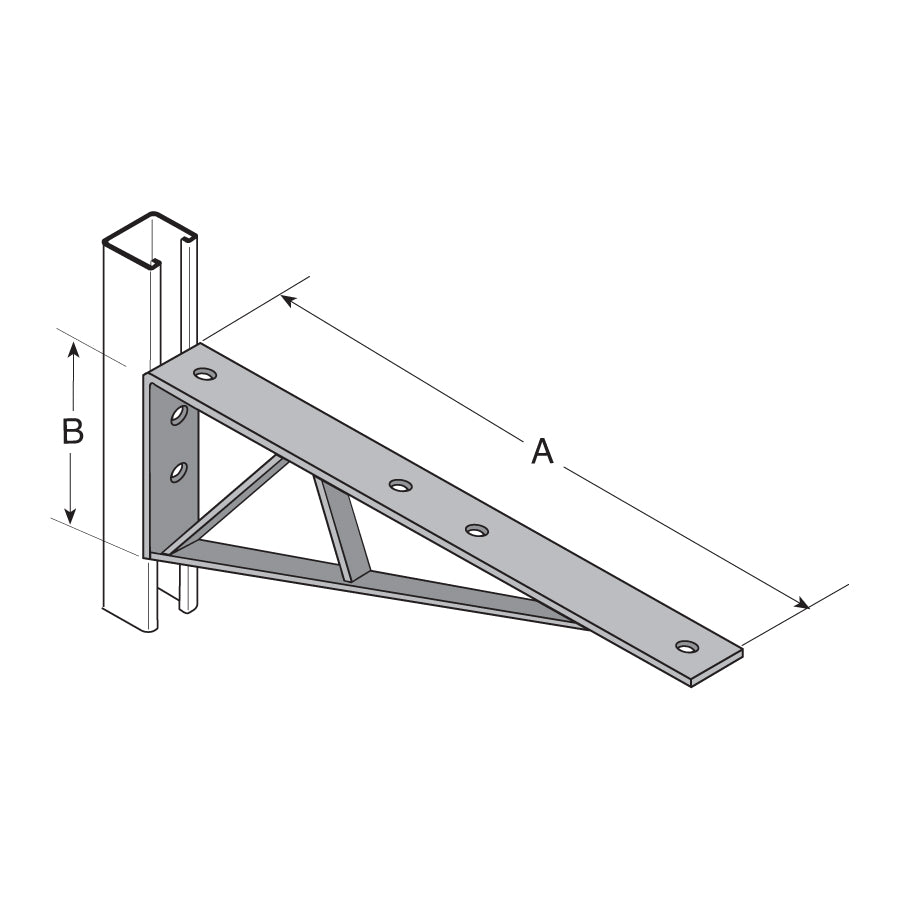

  • Flexstrut FS-5639 Flat Top Channel Bracket Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Channel Brackets
SKU: FS-5639-18-E/G

18" Flat Top Channel Bracket - Electro-Galvanized

$30.22

Request Bulk Pricing
min. order qty: 4
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Finish:

Electro-Galvanized Hot Dip Galvanized

Lengths:

10-1/2" 12" 12-1/2" 14-1/2" 16-1/2" 18" 24"

Specifications

Finish: Electro-Galvanized
Length: 18"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=1,000#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

18" Flat Top Channel Bracket - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. Used for applications like shelving, tray support, or adjustable racking. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
