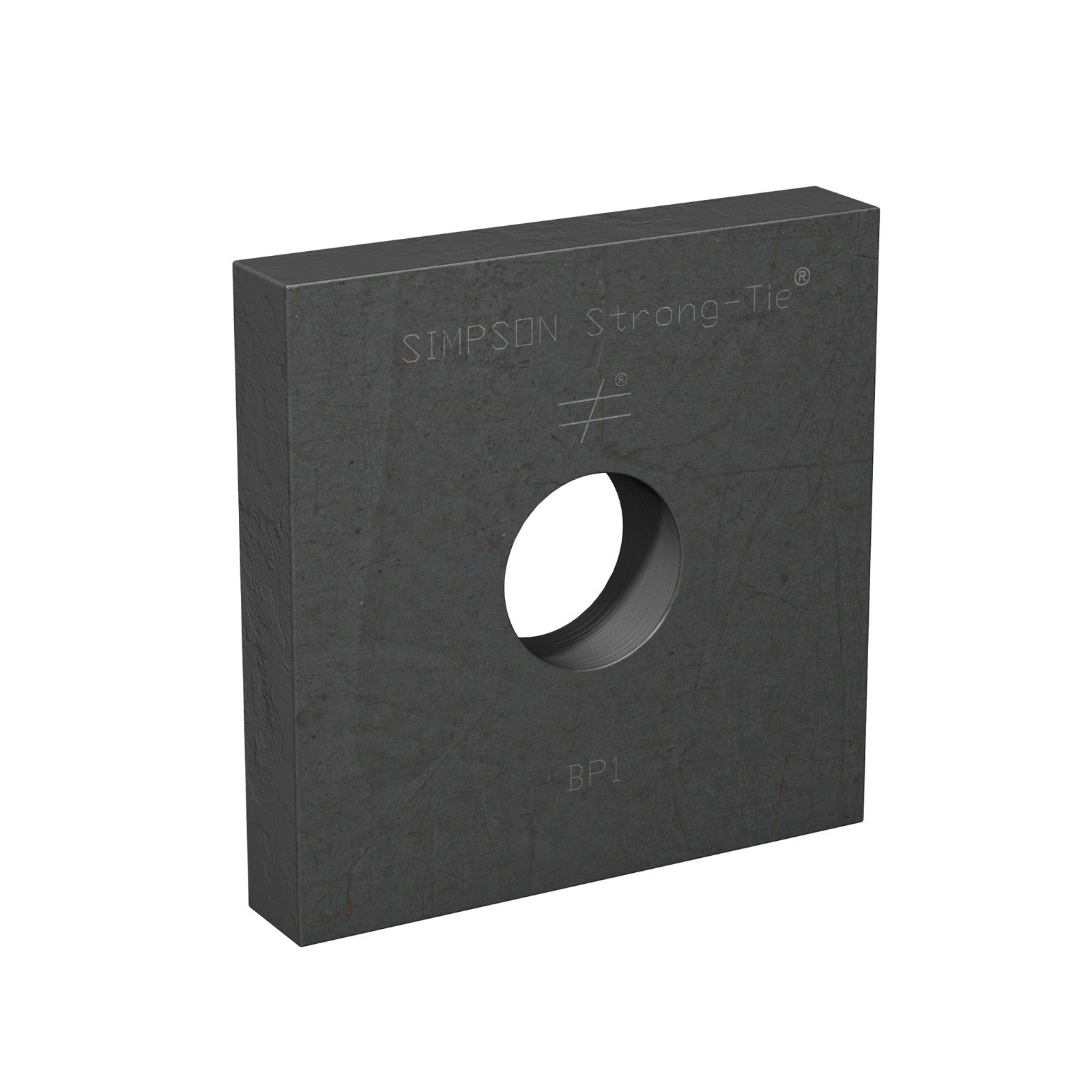

The Simpson BP Bearing Plate is engineered to provide a wider and more secure load distribution than traditional cut washers, making it a critical upgrade in structural anchoring systems. Used beneath anchor bolt nuts, this plate improves the performance of shear wall and base connections, especially in high-load or code-sensitive applications.

Key Features

• Delivers a larger bearing surface than standard washers for enhanced connection strength.

• Available in multiple bolt diameters (½" to 1") and plate sizes ranging from 2"×2" to 3½"×?3½".
• Offered in plain steel and hot-dip galvanized finishes to suit different environmental conditions.

Applications

• Strengthens anchor bolt assemblies in foundation plates and shear walls.
• Meets code requirements when placed within ½? of the bottom track edge in shear wall applications.
• Suitable for residential, commercial, and industrial builds needing durable base connections.

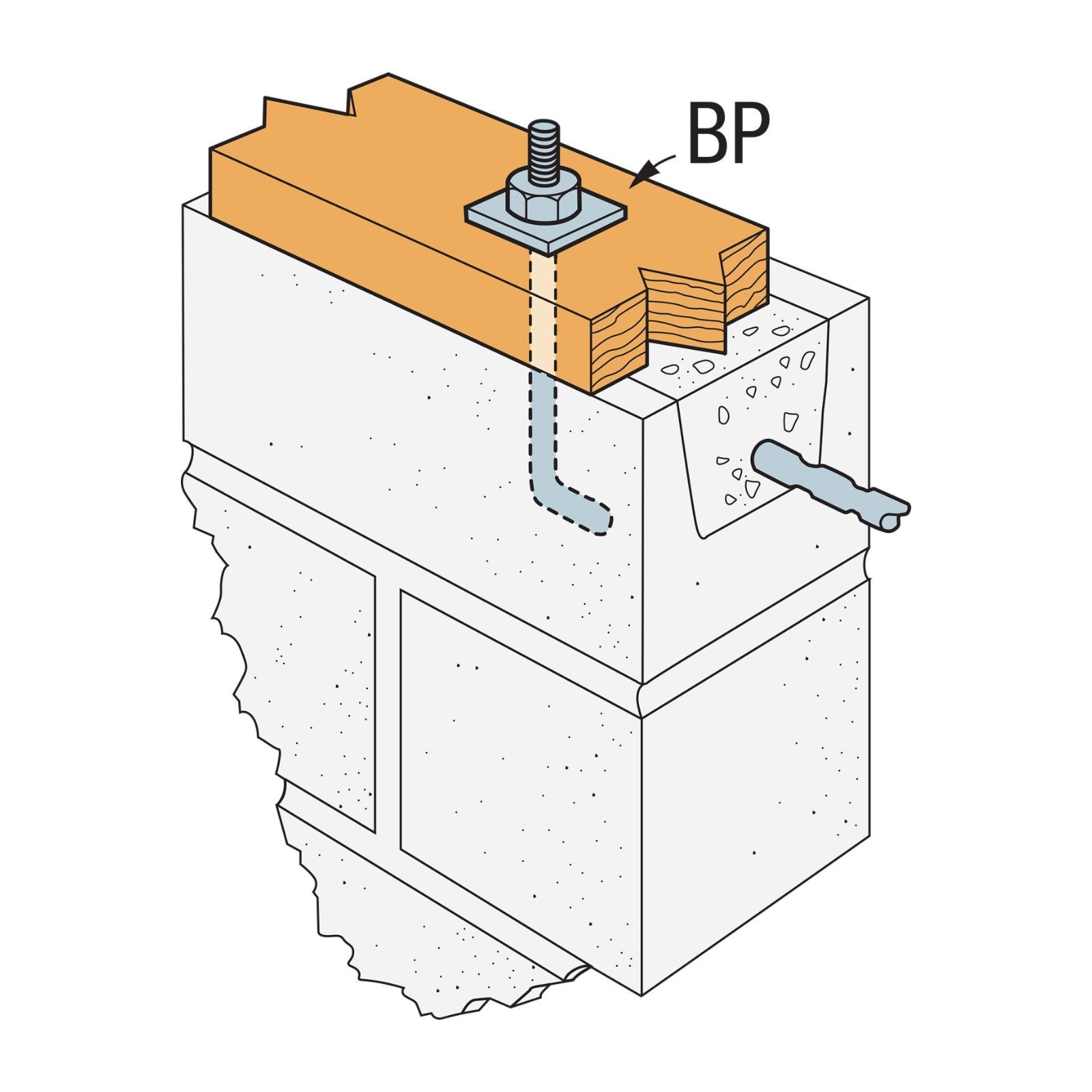

Installation

1. Select the proper plate based on anchor bolt size and structural design.
2. Position the plate under the nut, flush to the surface, replacing standard washers.
3. For code compliance in shear wall setups, align plate edge within ½? of the sheathed bottom track.
4. Tighten the nut per engineering or manufacturer specs to ensure proper load transfer.
