SKU: SF3-214

3/16" x 2-1/4" Tapcon Blue Flat Head Concrete Screw, T-25 Star Drive, Pkg 100

3/16" x 2-1/4" Tapcon Blue Flat Head Concrete Screw, T-25 Star Drive, Pkg 100!

Skip to product information
1 of 2
$21.85

Request Bulk Pricing
Ships Oct 14
Fill out the form below or give our sales consultants a call at 866-421-4854.

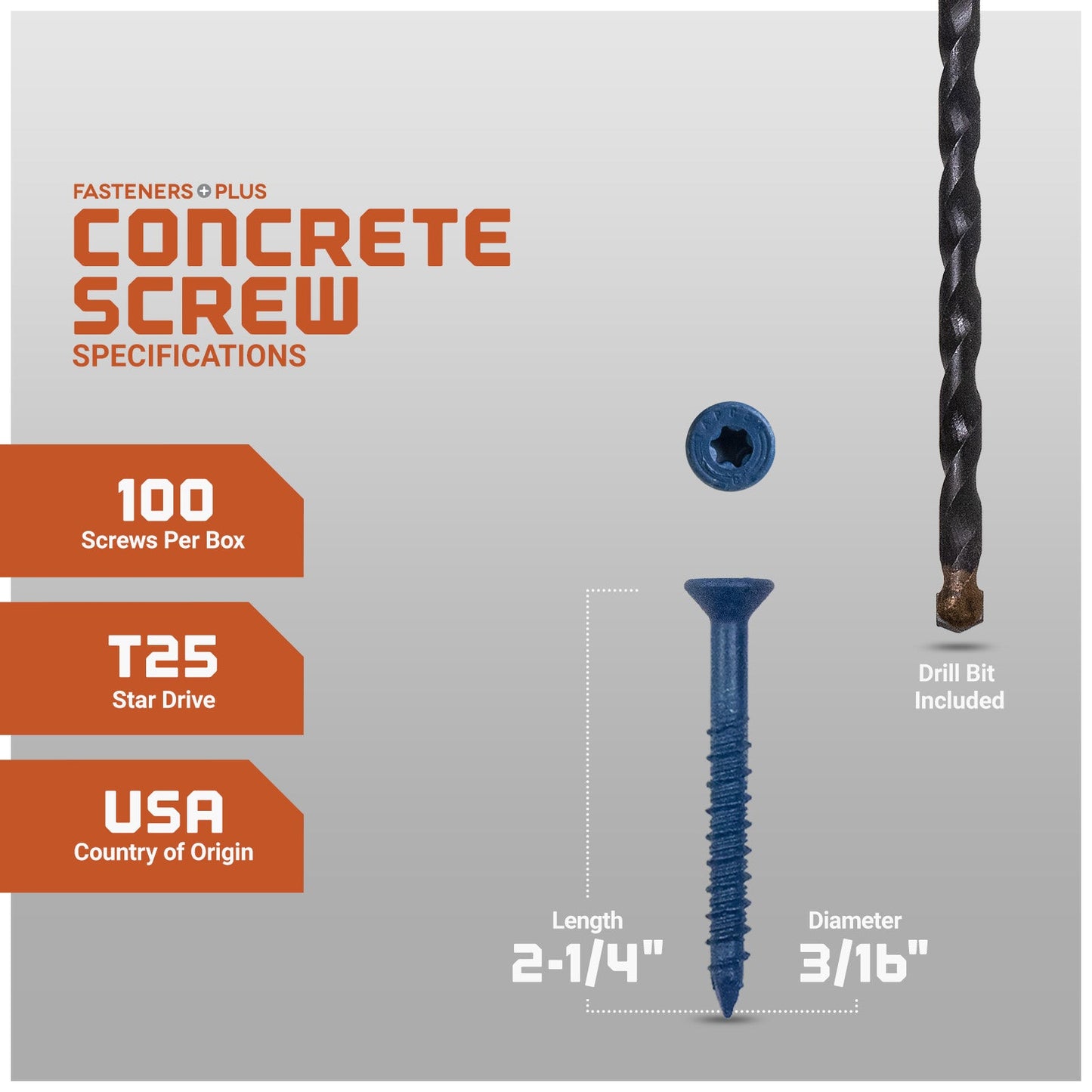

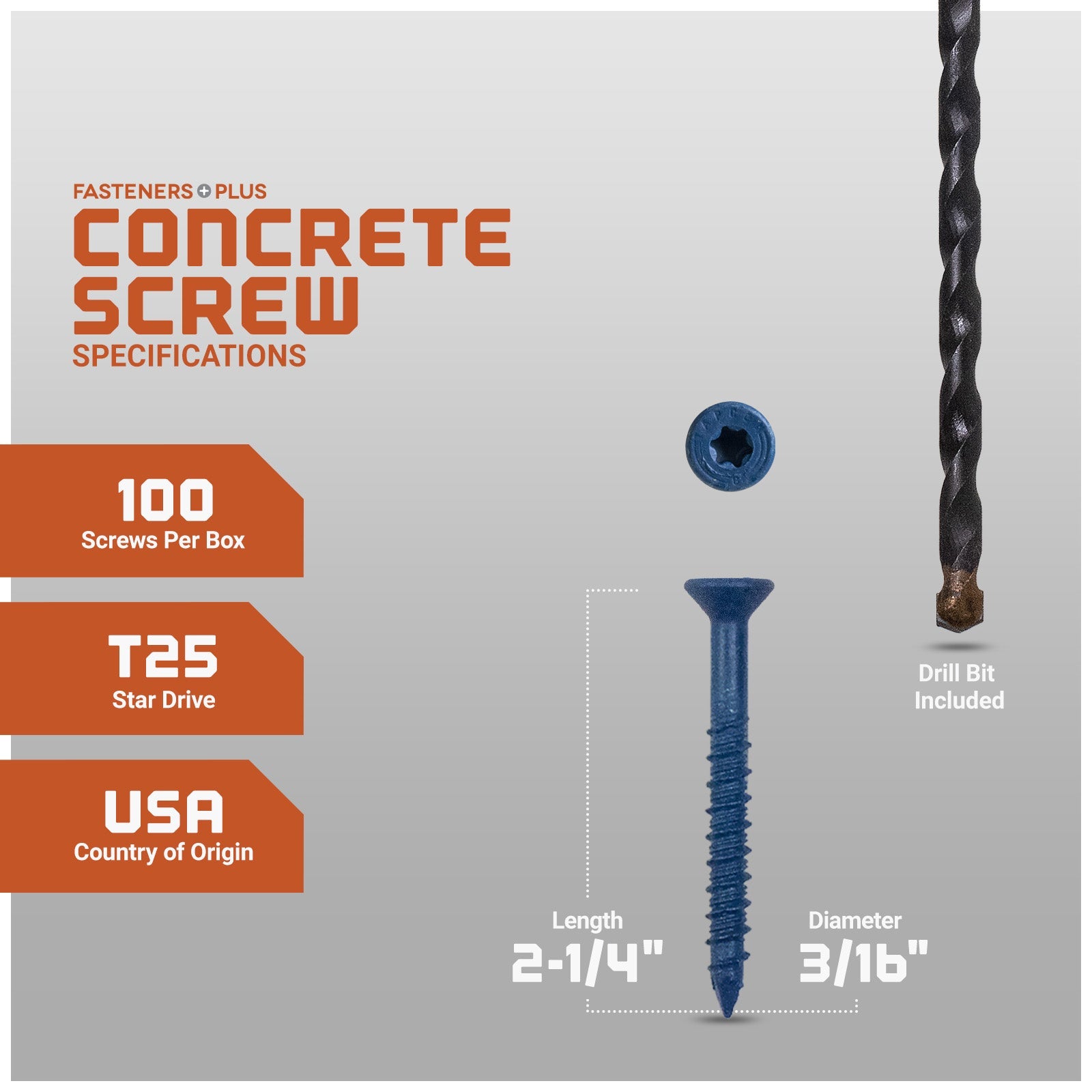

Specifications

Diameter: 3/16"
Length: 2-1/4"
Drill bit size: 5/32"
Drive type: T25 Star Drive
Manufacturer name: Tapcon
Description

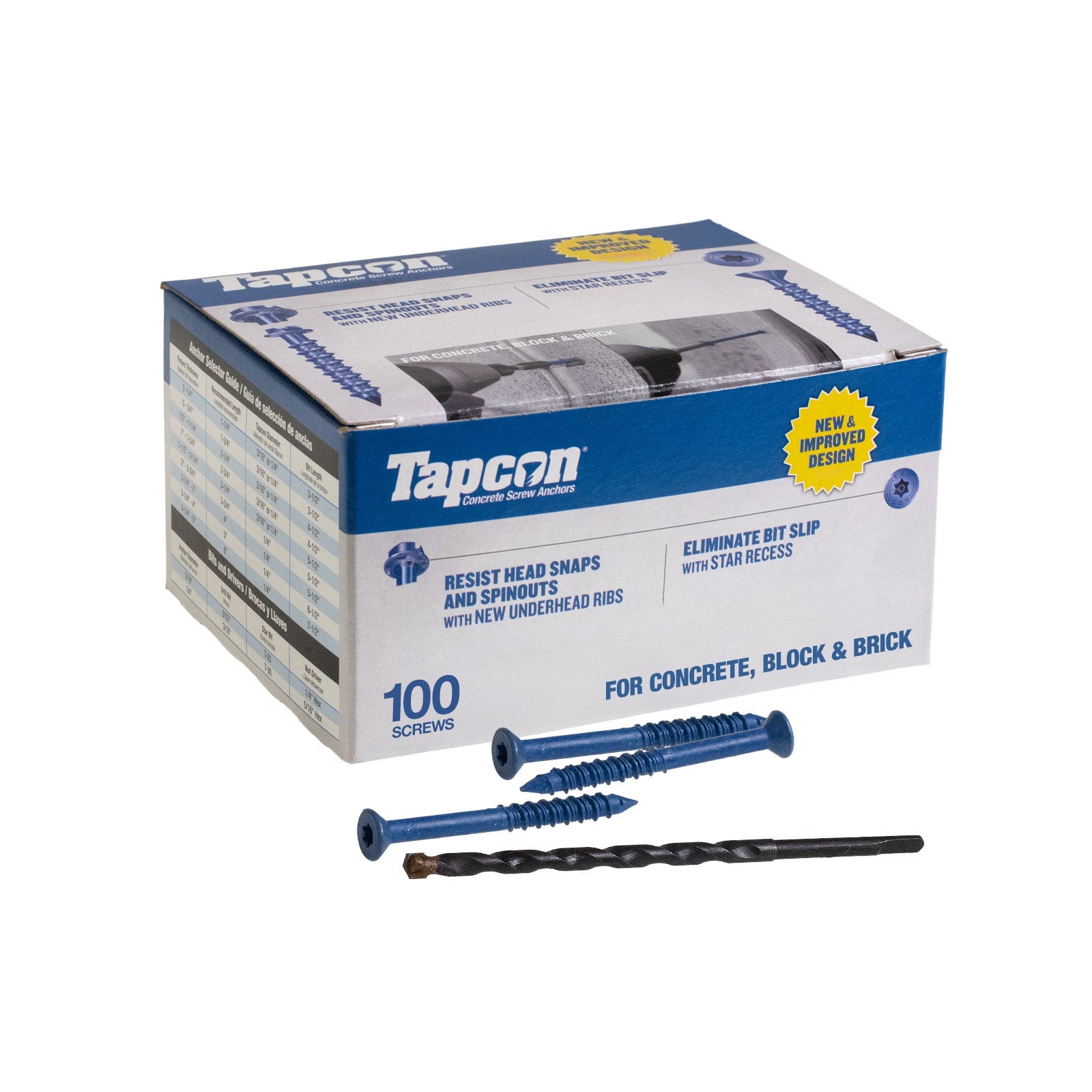

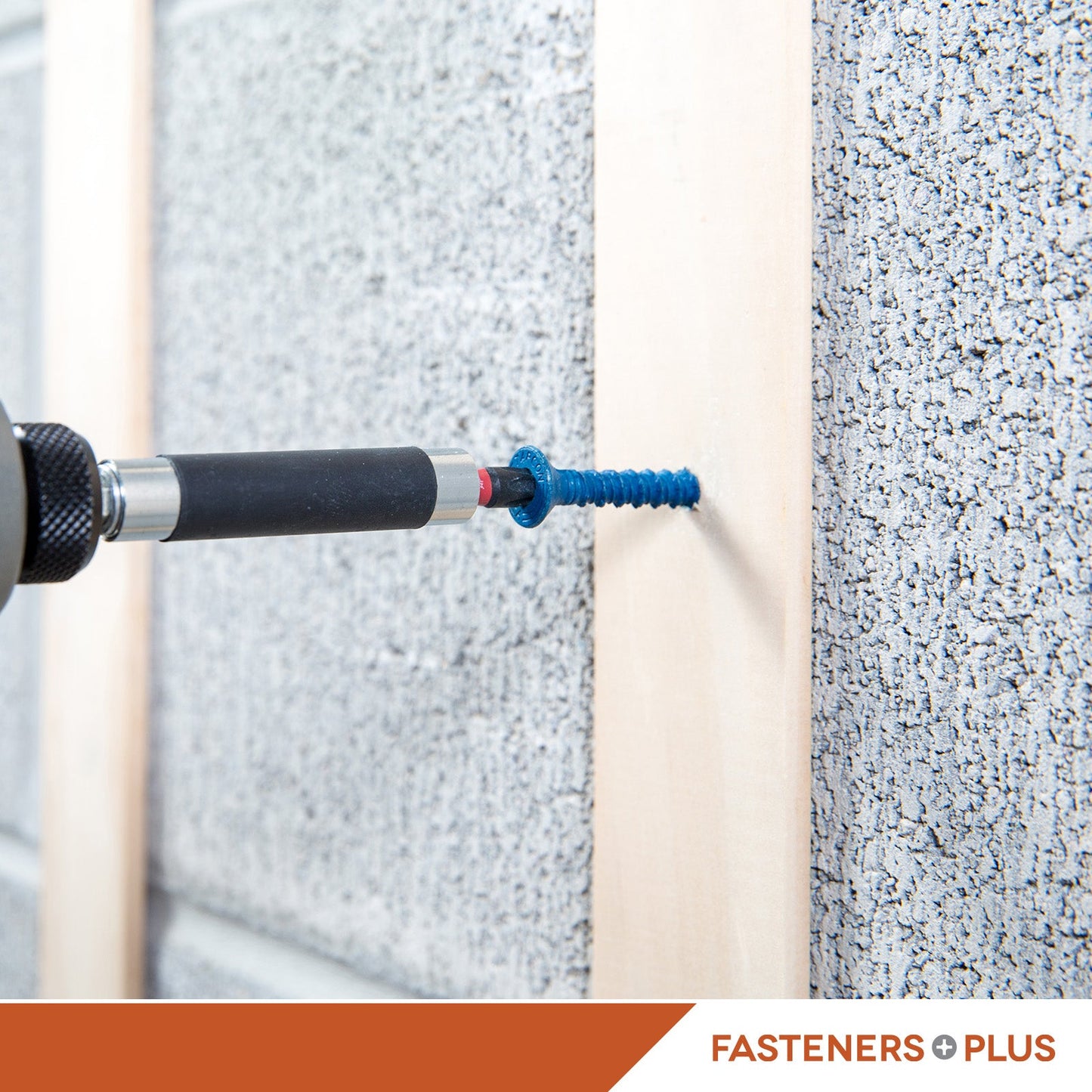

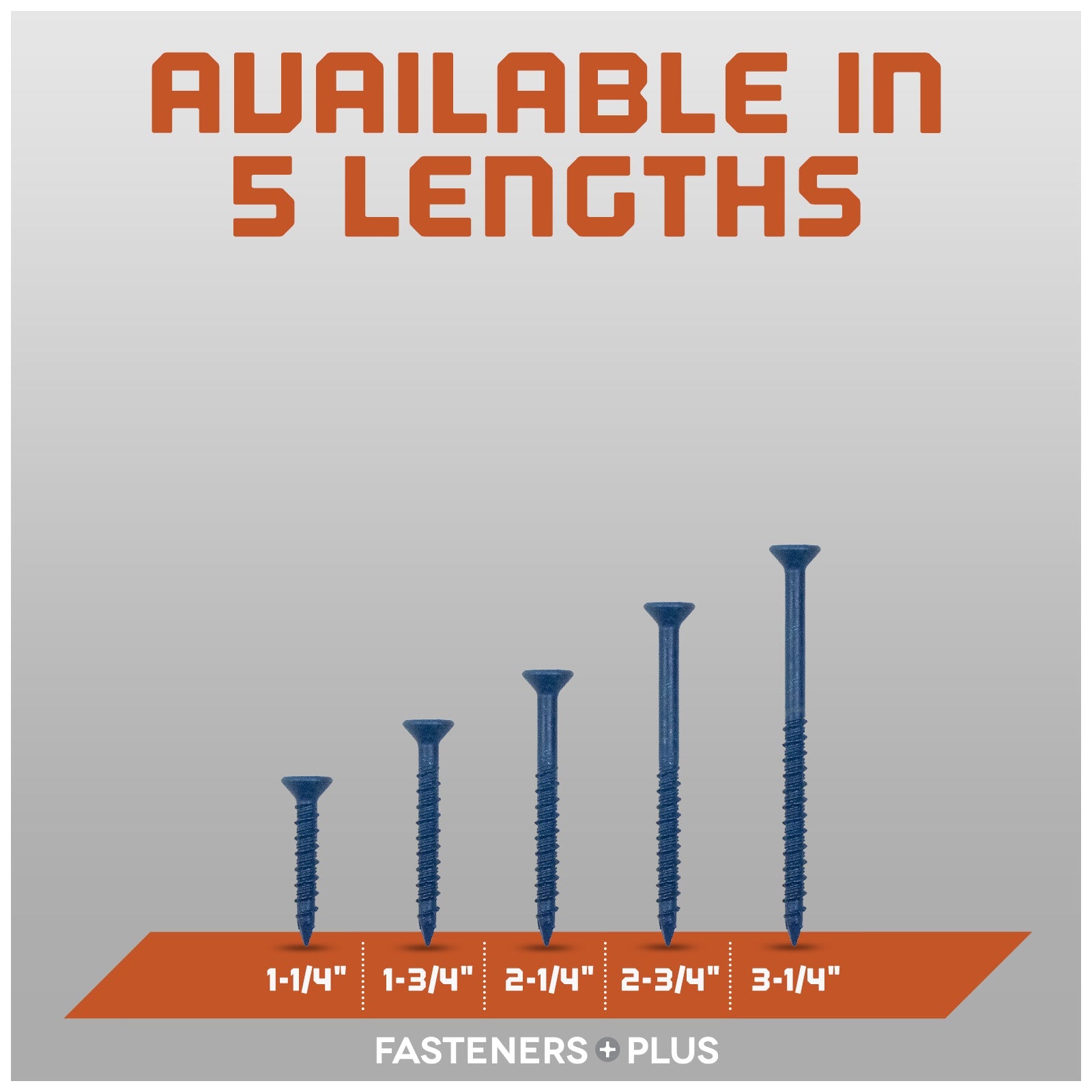

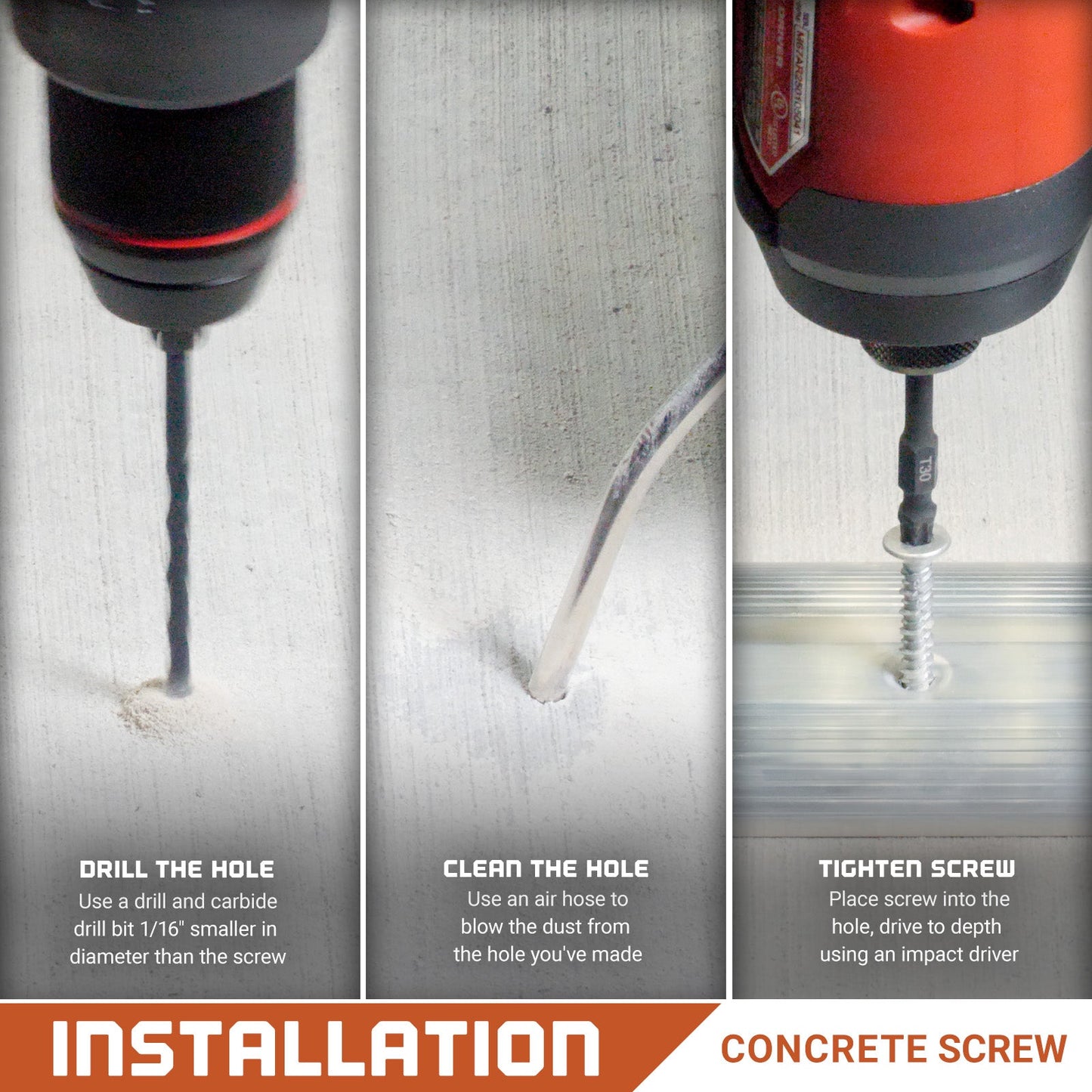

Different lengths of Tapcon screws are used for different thickness of materials being fastened. The Tapcon screw requires a minimum embedment of 1” and a maximum embedment of 1-3/4”. To determine the minimum length screw to use add the thickness of the material to the minimum embedment of 1”. This is your minimum length screw required. Adding the maximum embedment of 1-3/4” to the thickness of the material being fastened will provide the maximum length of Tapcon screw to use. Every package of Tapcon Concrete Screws includes the appropriate size drill bit for installation.

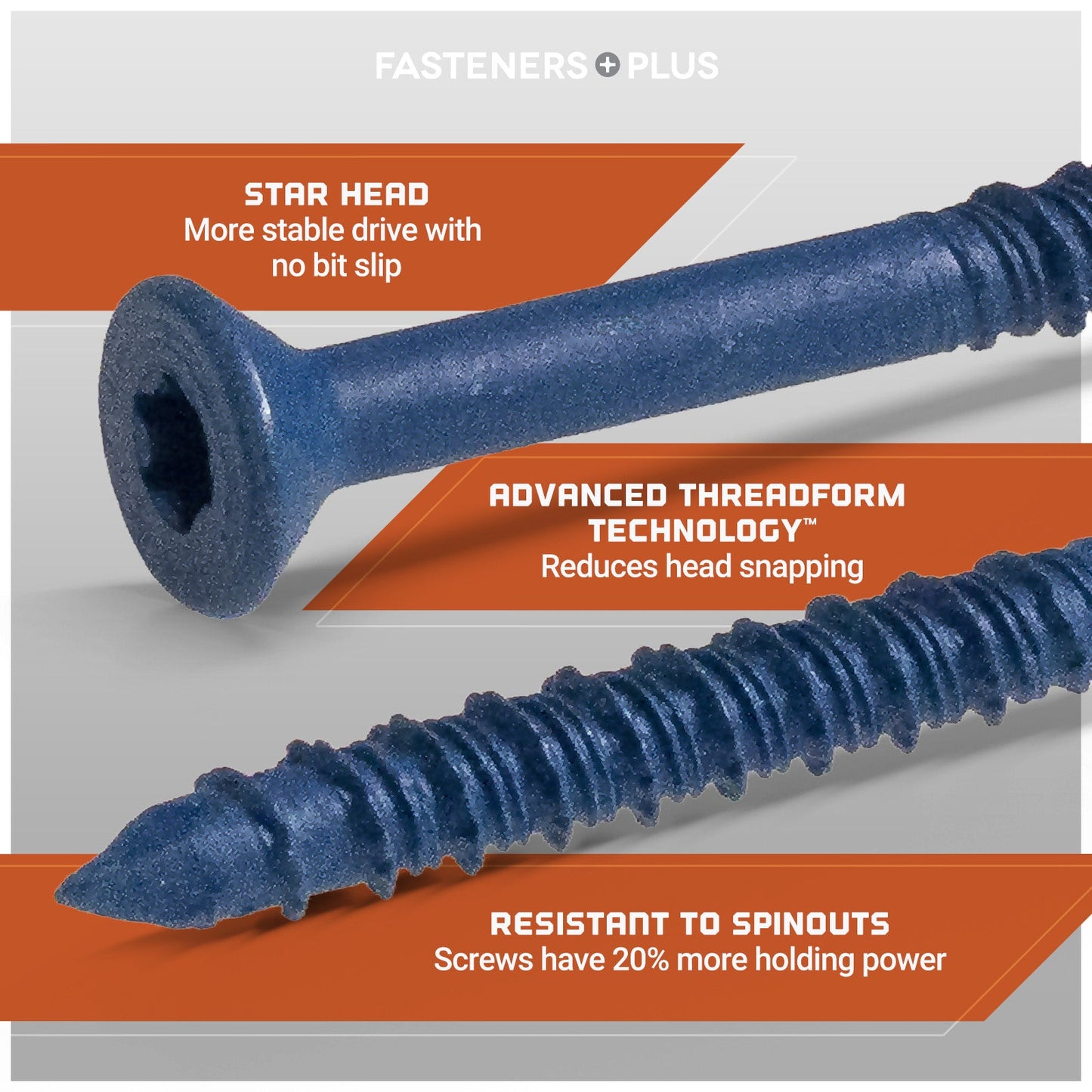

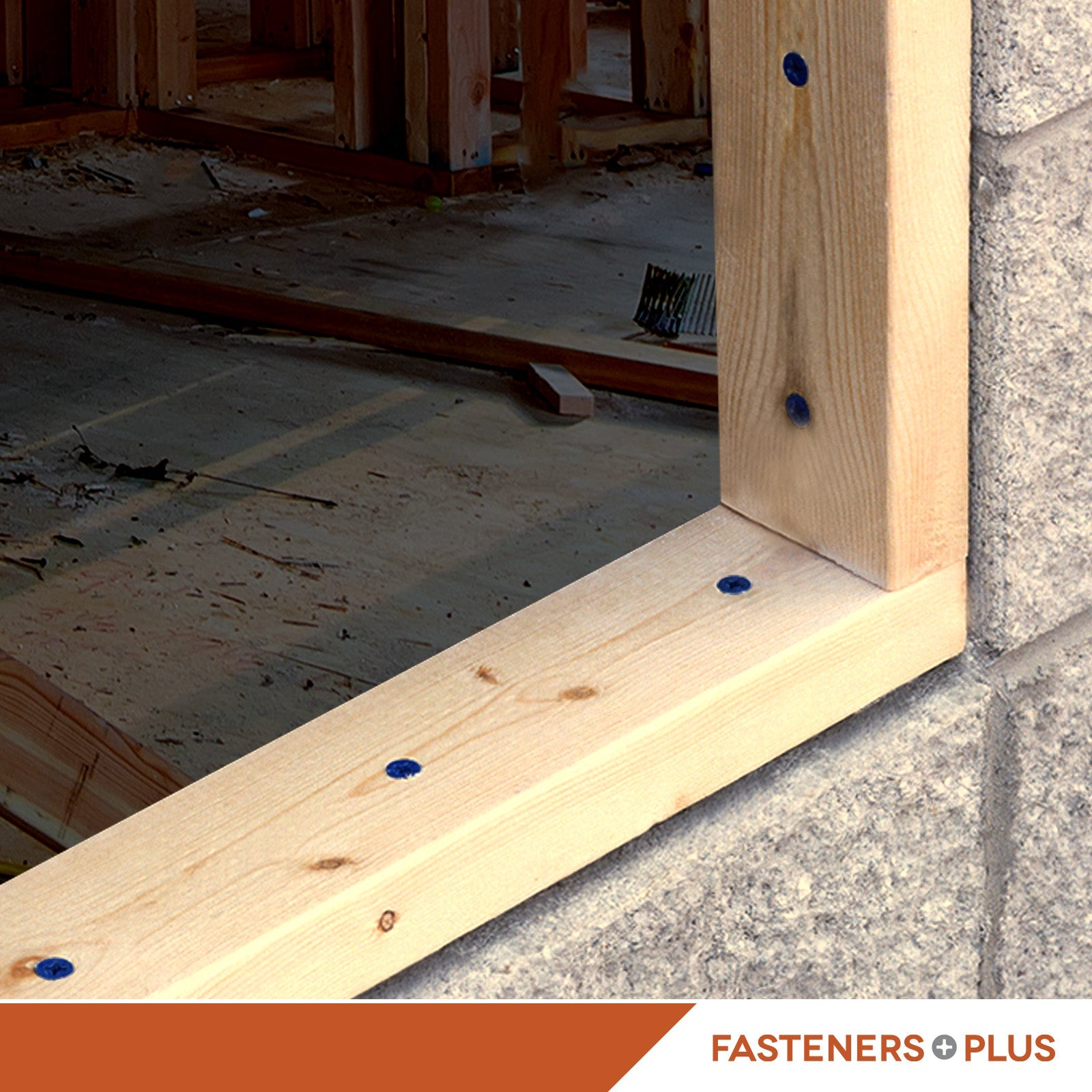

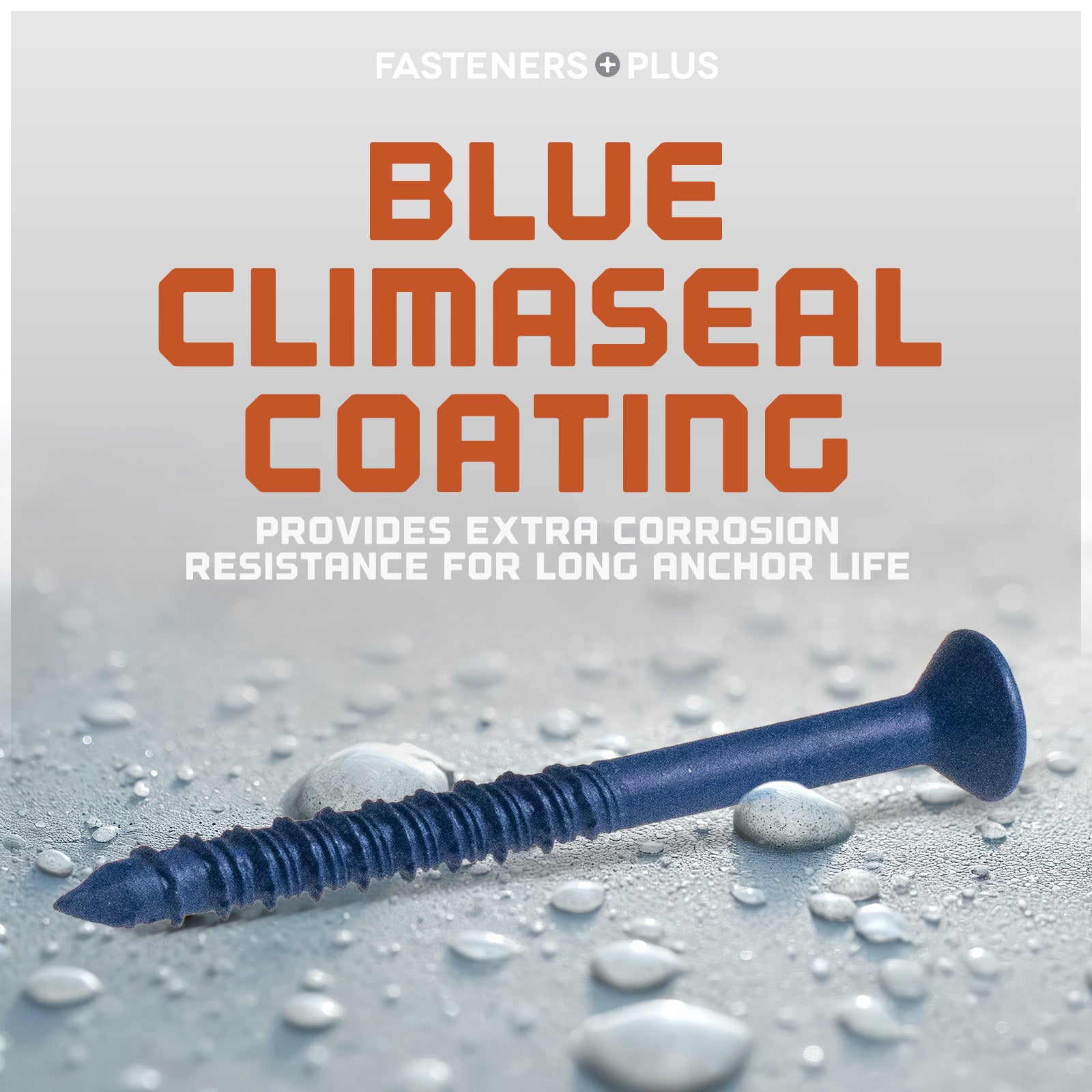

Tapcon brand screws are the original concrete screw anchors and can be used in a variety of base masonry materials such as concrete, brick and block. The blue climaseal coating provides extra corrosion resistance for long anchor life. This ITW Red Head Tapcon concrete screw anchor is proudly manufactured right here in the USA.
