SKU: THD75812H

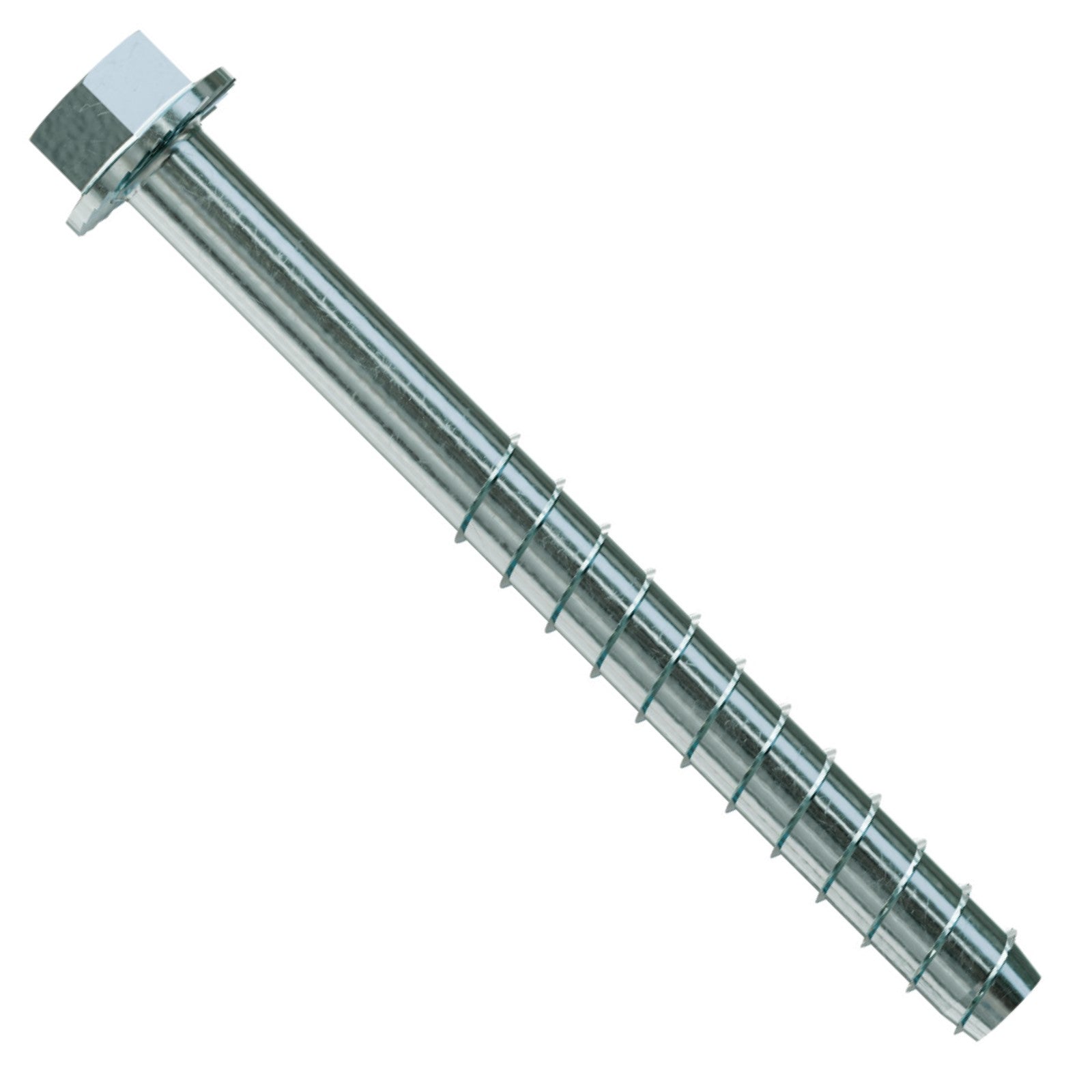

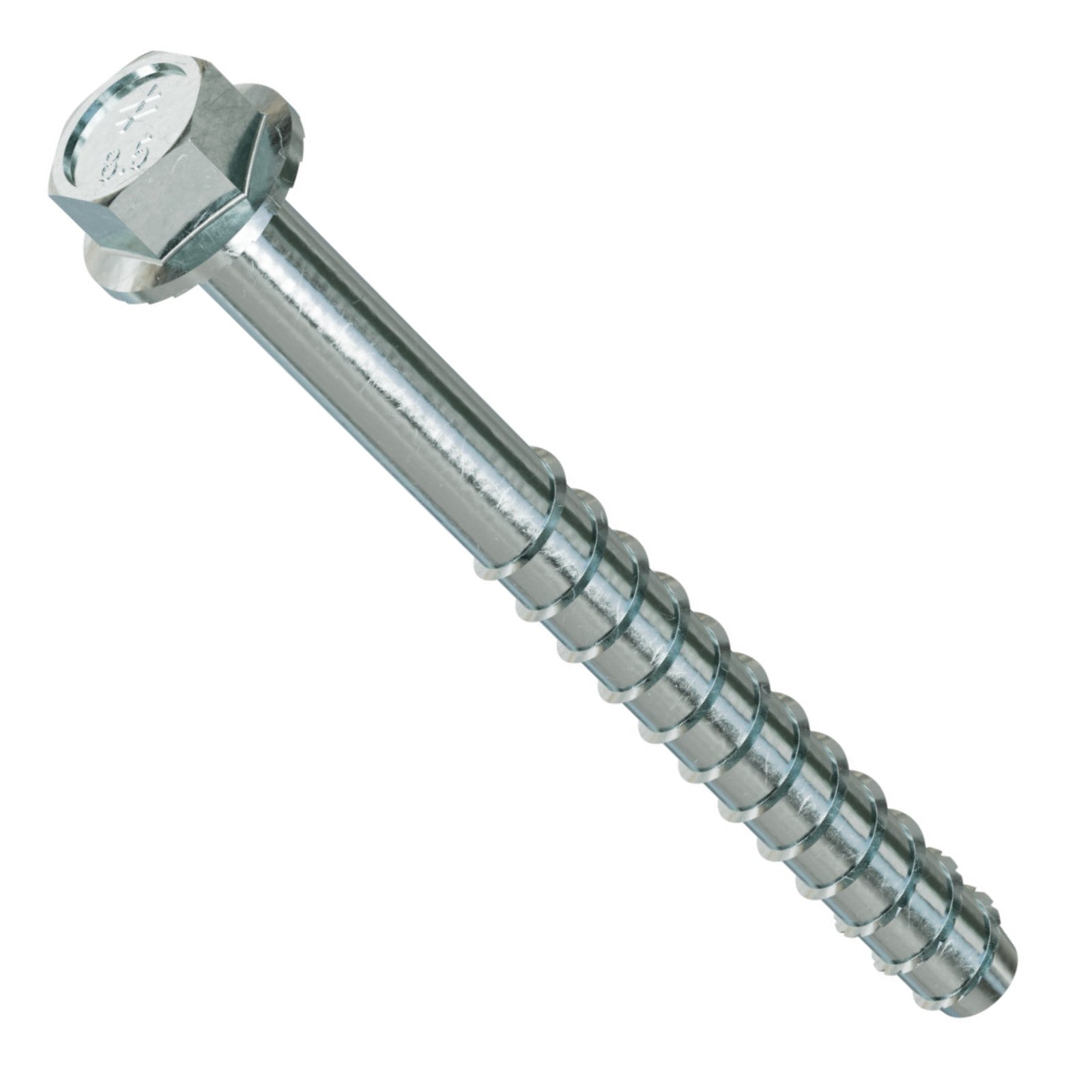

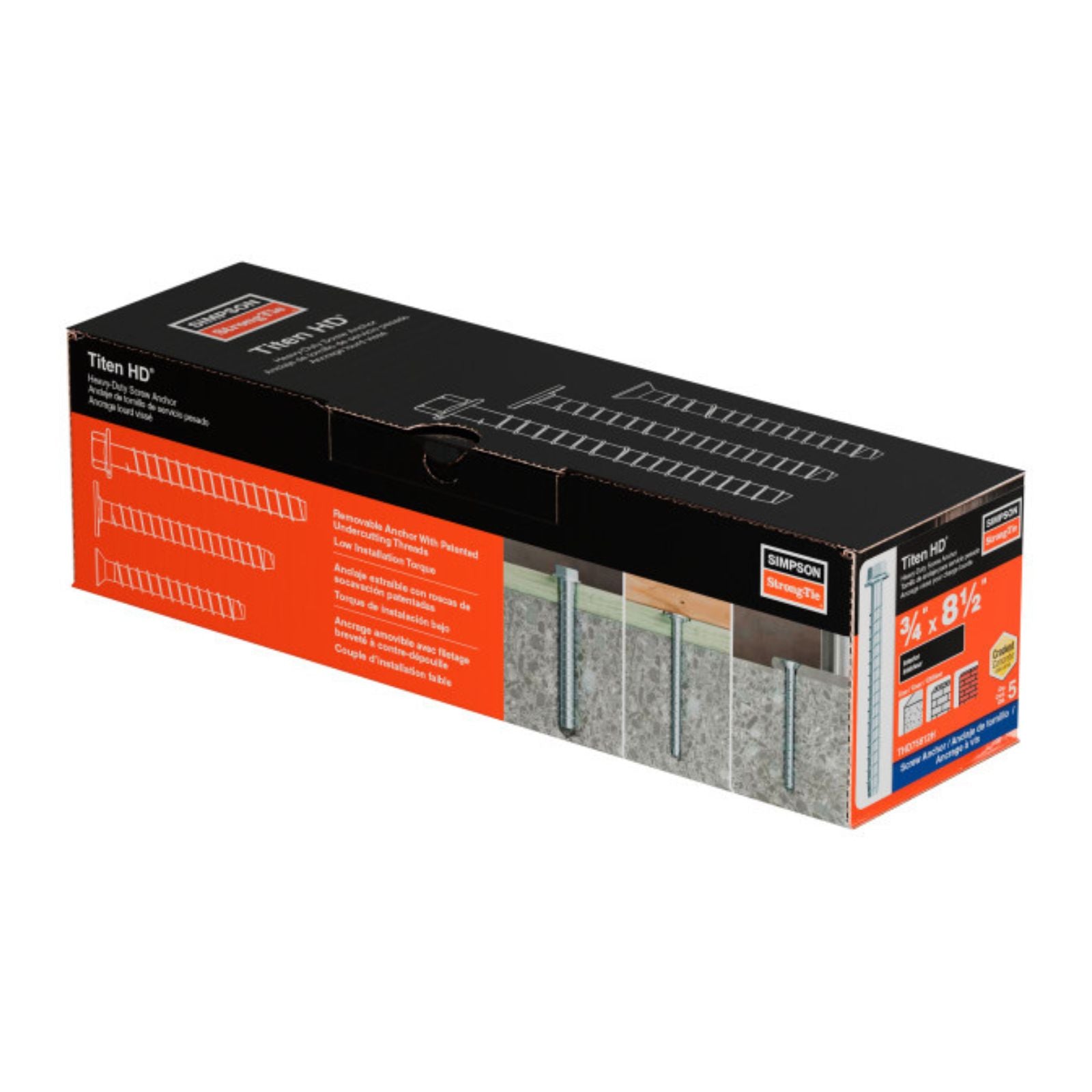

3/4" x 8-1/2" Strong-Tie THD75812H Titen HD Screw Anchor, Zinc, Pkg 5

3/4" x 8-1/2" Strong-Tie THD75812H Titen HD Screw Anchor, Zinc, Pkg 5!

1 9

Continue Browsing

Zinc Large Diameter Concrete Screws
SKU: THD75812H

3/4" x 8-1/2" Strong-Tie THD75812H Titen HD Screw Anchor, Zinc, Pkg 5

$43.21

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 5 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

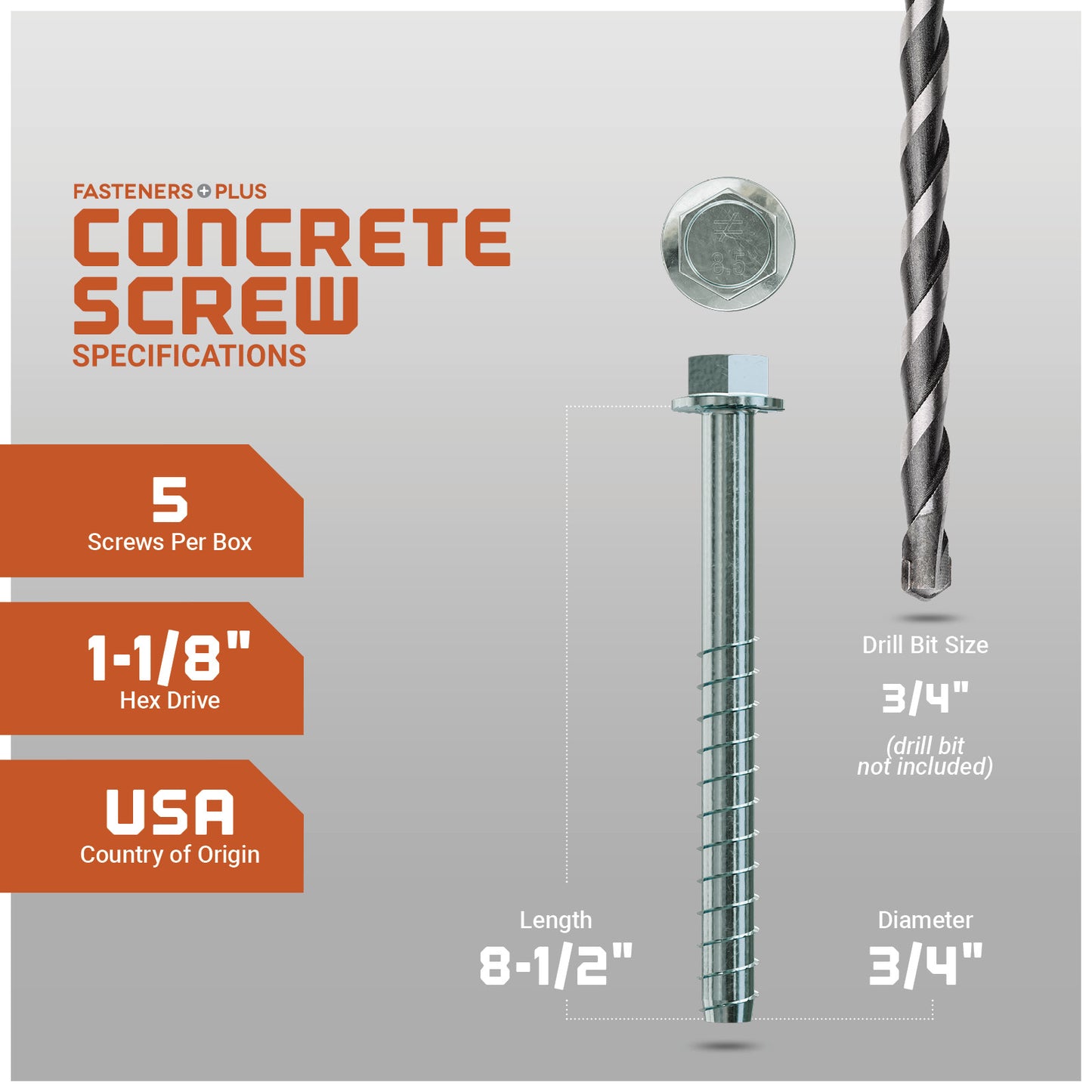

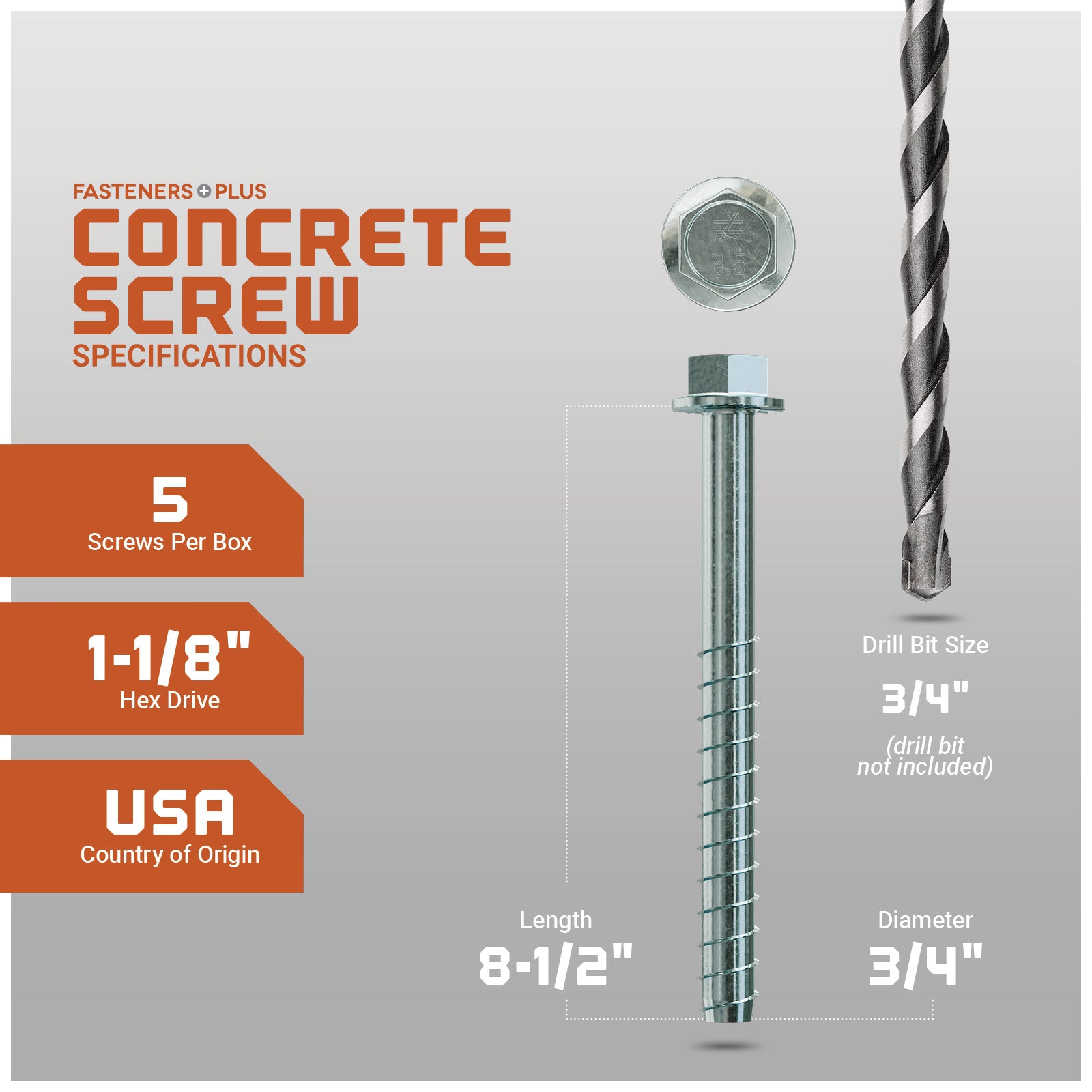

Specifications

Diameter: 3/4"
Finish: Zinc
Length: 8-1/2"
Drill bit size: 3/4"
Drive type: 1-1/8" Hex
Fixture hole size: 7/8"-15/16"

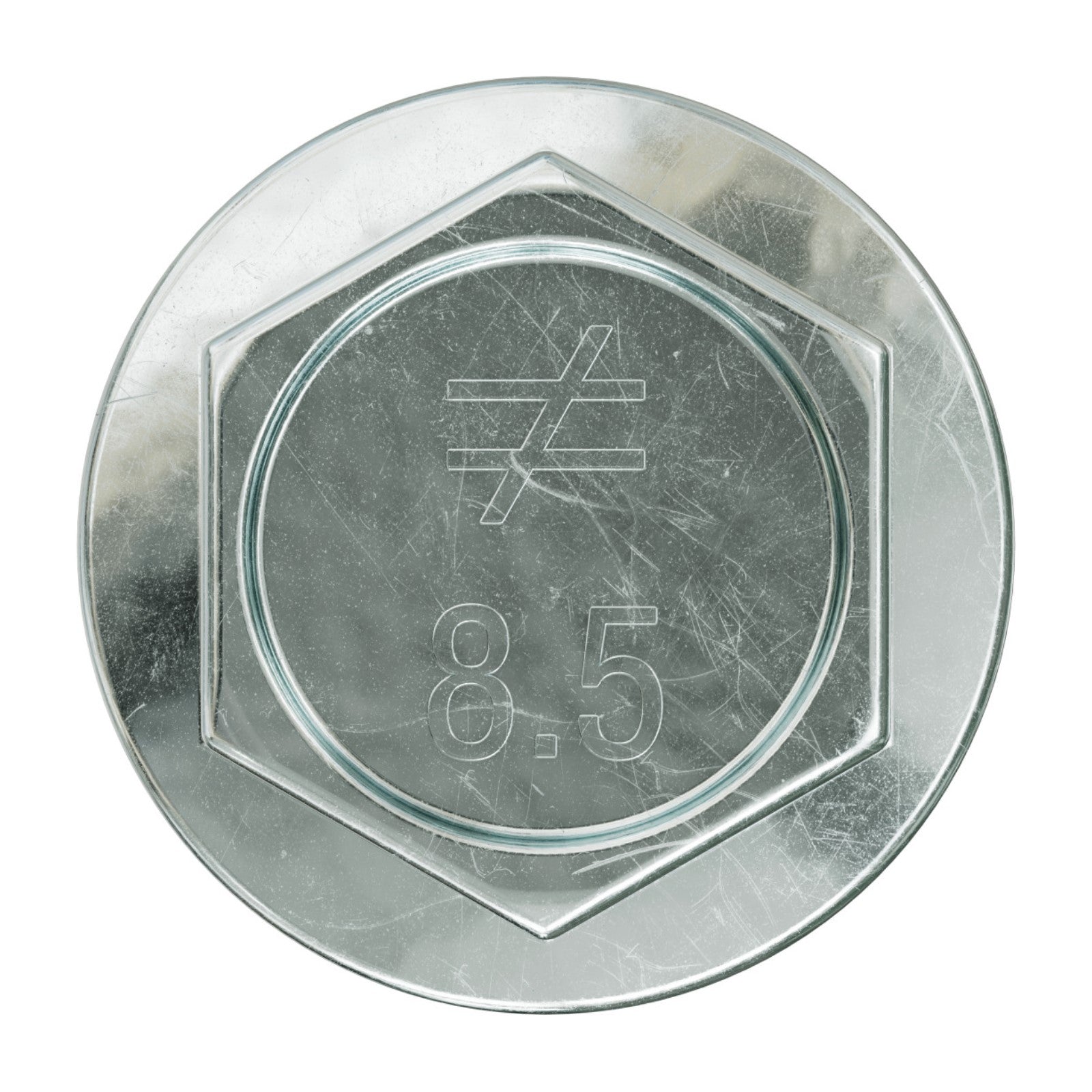

Head type: Hex Head
Manufacturer name: Simpson Strong-Tie
Quantity: 5
Description

Titen HD screw anchors are high strength anchors designed to be quickly and easily installed in cracked and uncracked concrete applications. These anchors are code listed by ICC-ES for cracked and uncracked concrete applications under the 2009 IBC. All Titen HD screw anchors feature a patented thread design with serrated cutting teeth for easy installation. These zinc concrete screws are designed for use in dry, interior, and non-corrosive environments or temporary outdoor applications.

Installation

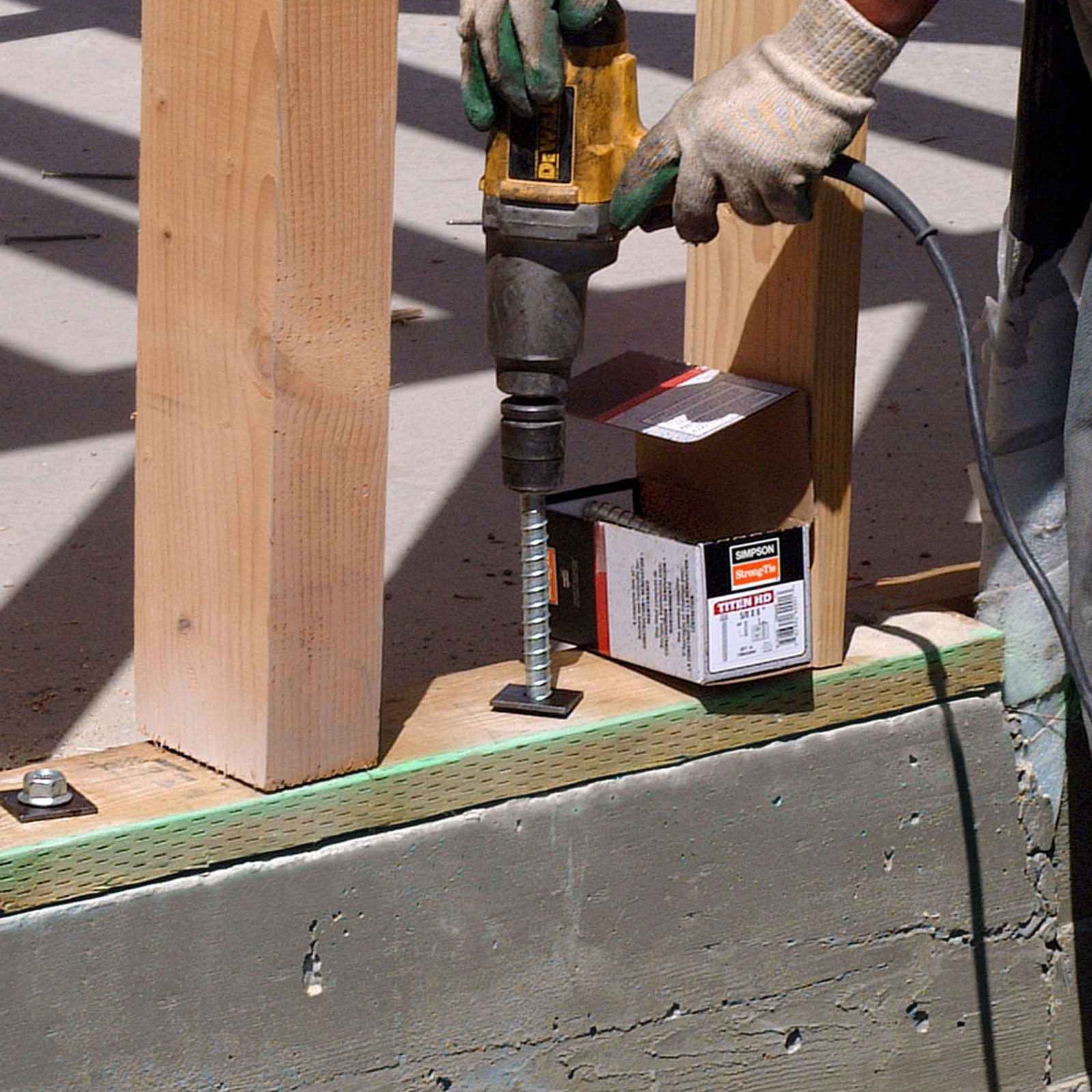

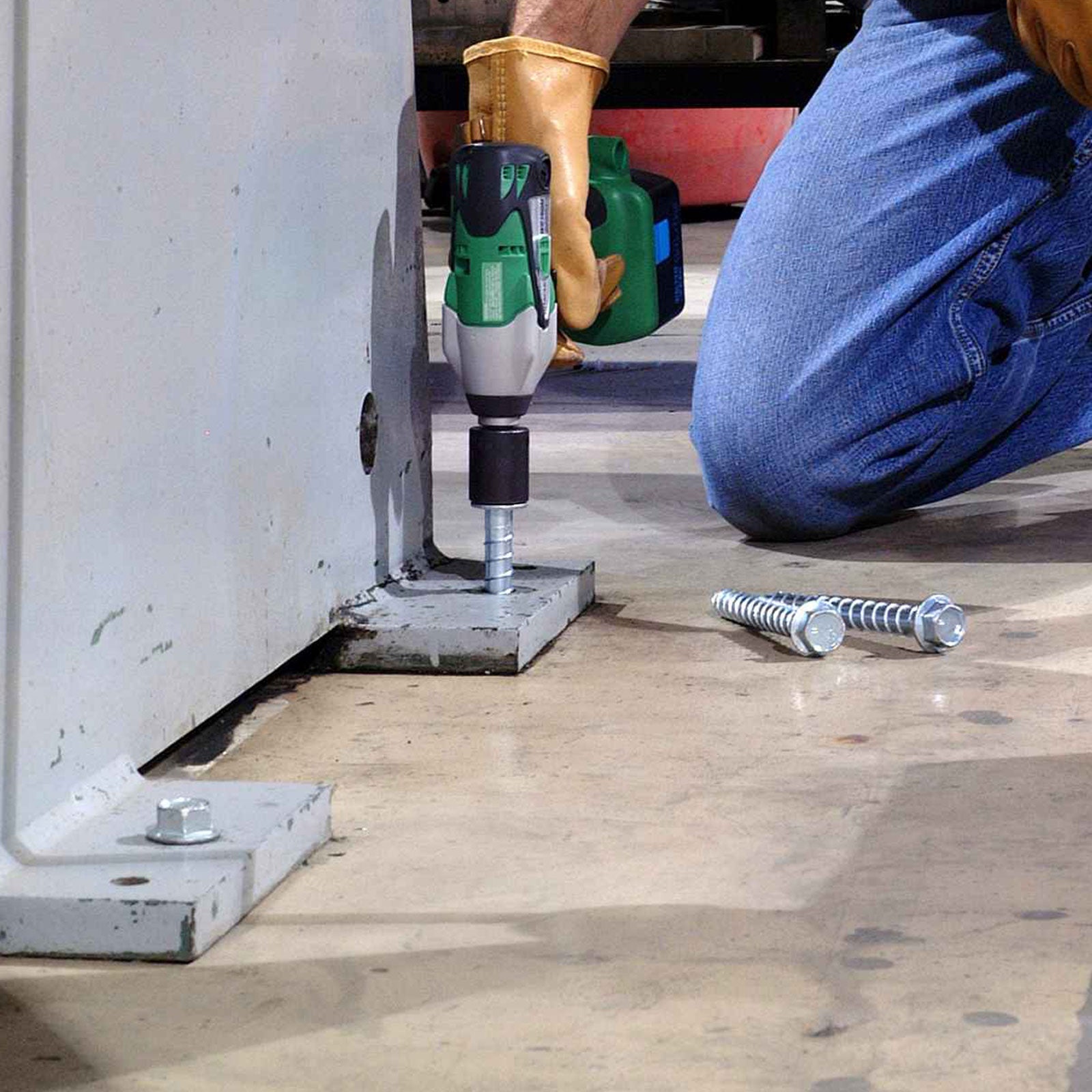

  1. Drill a hole in the base material using a drill bit that matches the diameter of the anchor bolt. Drill to the specified embedment depth, plus an additional overdrill. Clean the hole with compressed air.
  2. Insert the anchor through the fixture and into the hole.
  3. Tighten the anchor bolt until the hex-washer head contacts the fixture.

* see further instructions in Spec Sheet
