3/8" 8x19 Rotation-Resistant Wire Rope - EIPS IWRC | 2,500' Coil
Specifications
Right Hand Regular Lay
3/8" 8x19 Spin-Resistant Wire Rope Cable

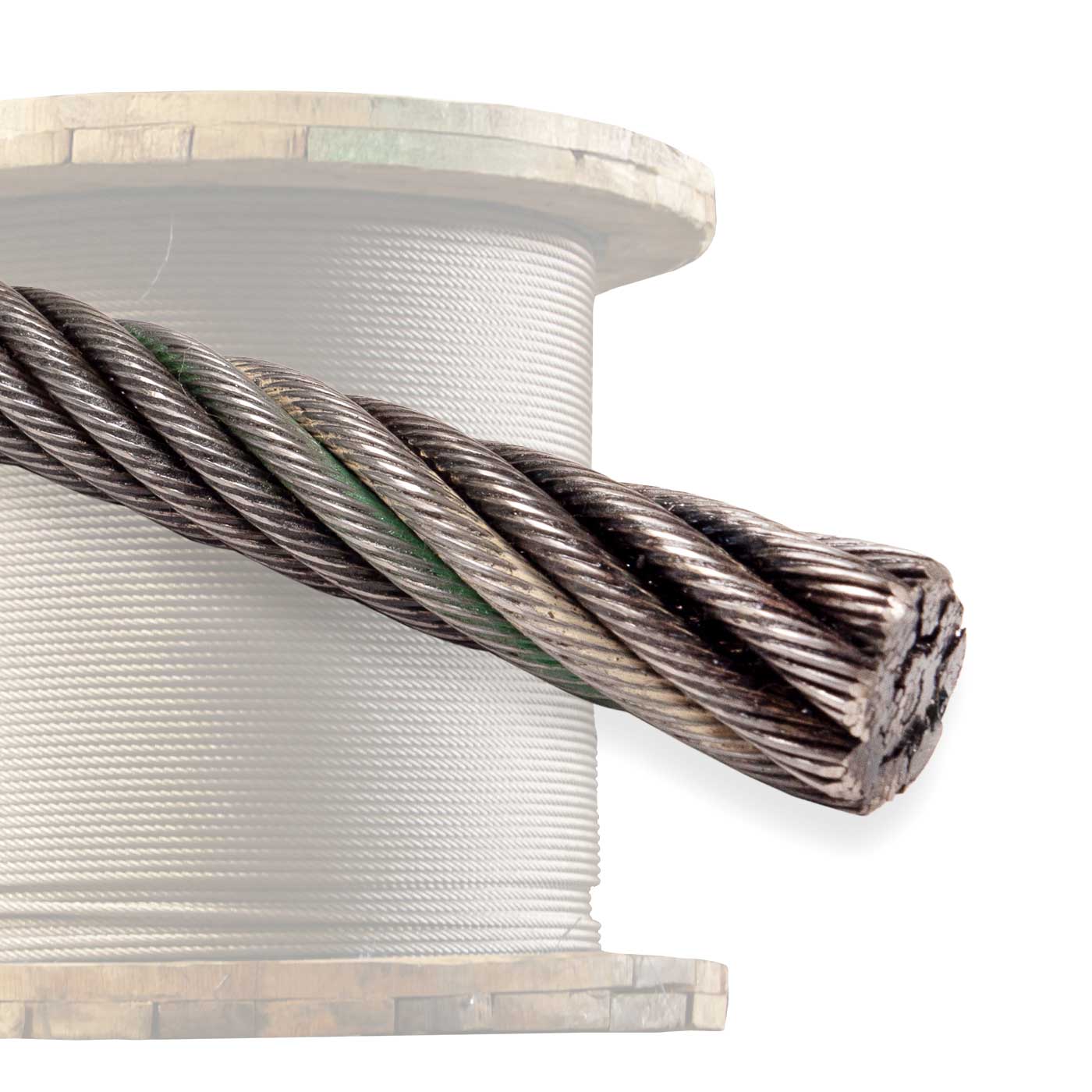

This 3/8" 8x19 spin-resistant wire rope is engineered to reduce rope rotation while under load, making it a reliable choice for hoisting unguided loads with single-part or multi-part line systems. Constructed from Extra Improved Plow Steel (EIPS) and featuring a bright steel finish with an Independent Wire Rope Core (IWRC), this rope provides excellent strength, durability, and operational stability for demanding lifting applications.
Rotation-Resistant Wire Rope for Hoisting & Lifting Applications

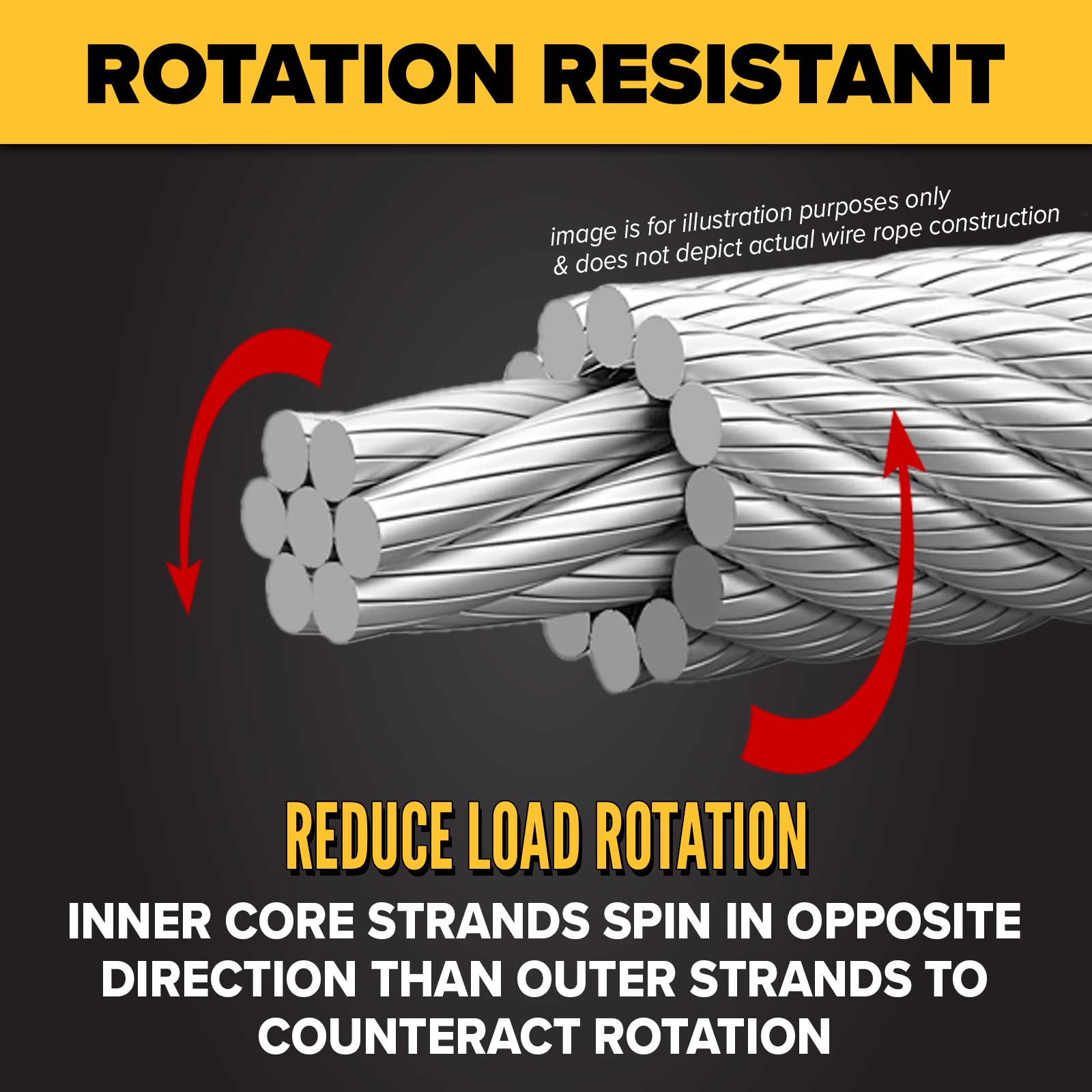

The 8x19 construction is designed with inner strands laid in the opposite direction of the outer strands, helping counteract rotational forces that naturally occur during lifting operations. Classified as a Category 3 Rotation-Resistant Rope, it offers limited resistance to rotation while maintaining greater durability than many Category 2 rotation-resistant ropes. This balance of strength and stability makes it well-suited for cranes, hoists, and lifting systems handling free-hanging loads.
8x19 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade cable. EIPS (Extra Improved Plow Steel) offers approximately 10% greater tensile strength than standard IPS-grade wire rope, providing improved break strength and dependable load-handling performance.

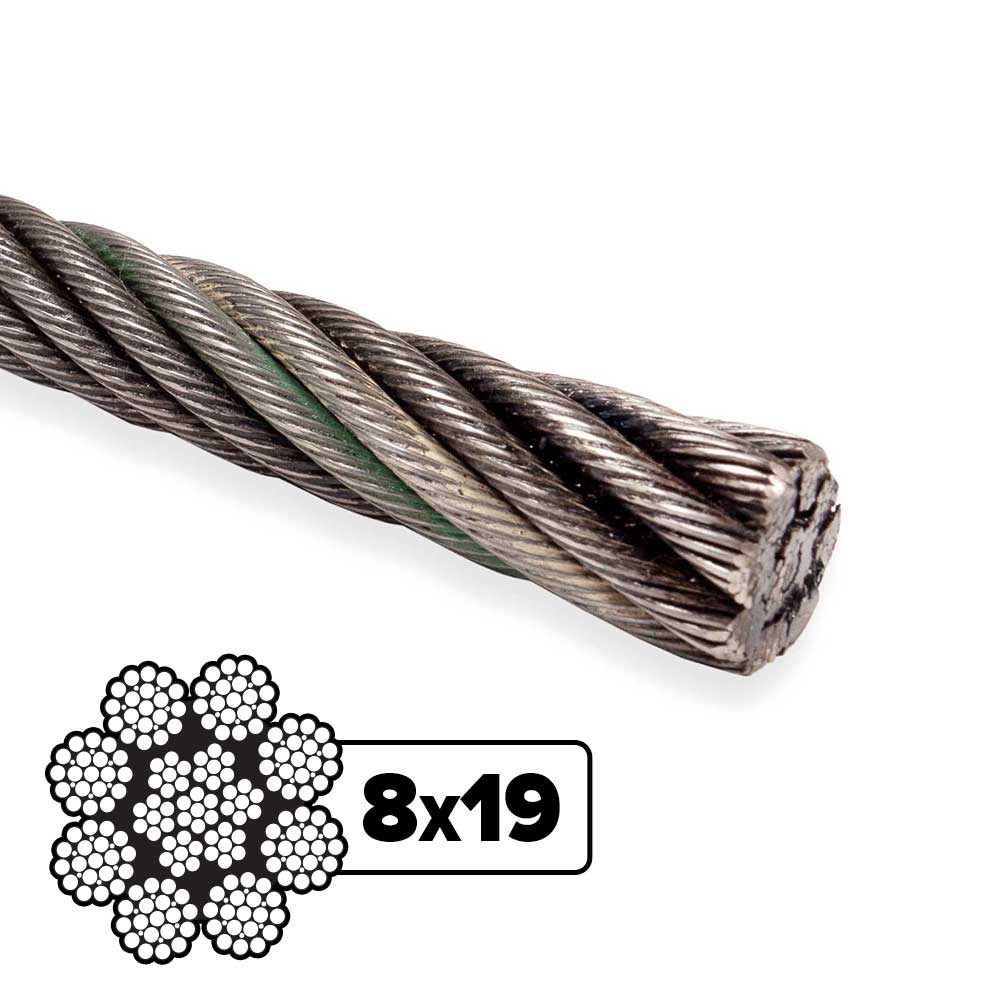

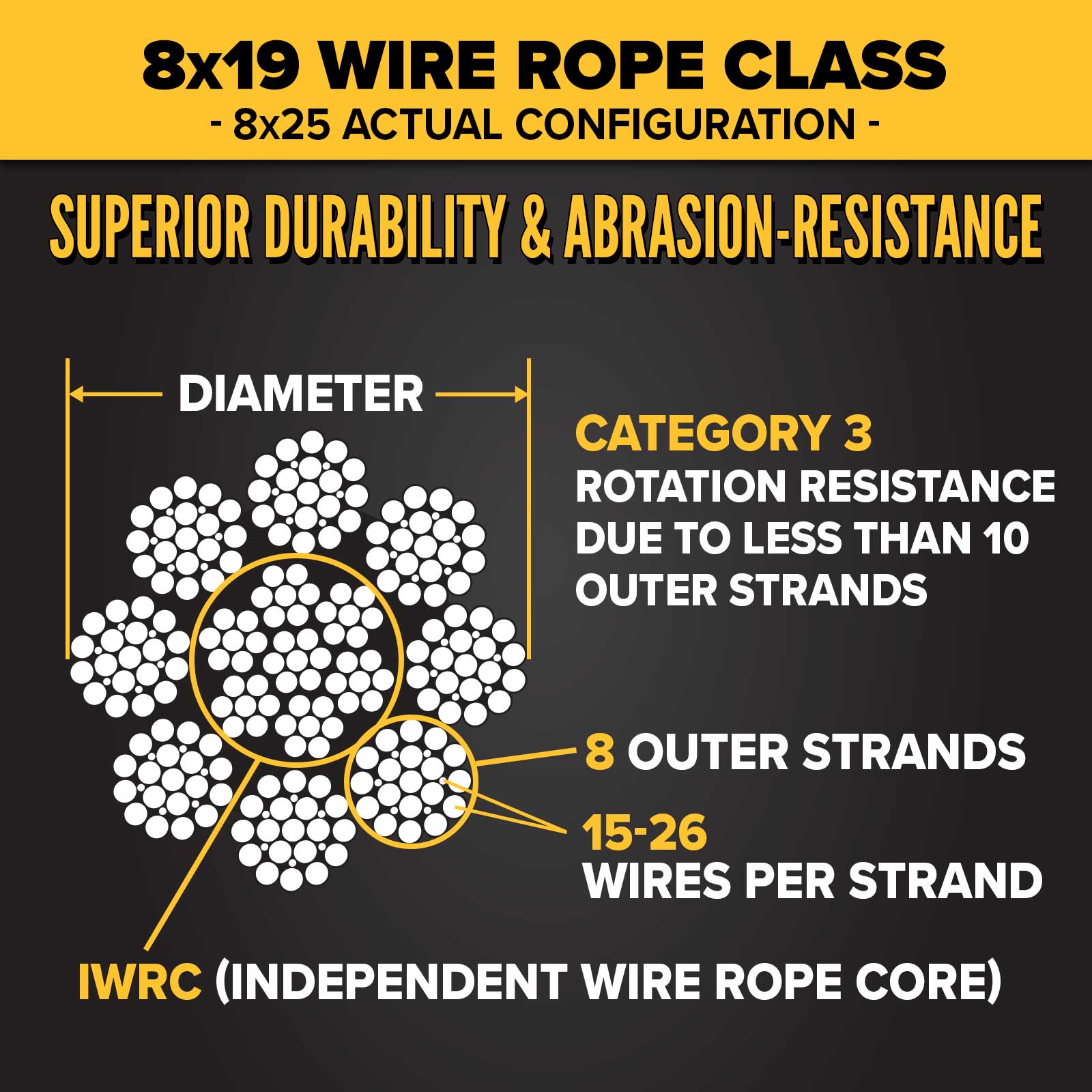

The class of this wire rope is 8x19. These numbers nominally refer to the rope construction, indicating eight outer strands with approximately 15-26 wires per strand. The actual construction supplied is 8x25, providing an excellent combination of strength, flexibility, and resistance to rotation.
Finish & Core

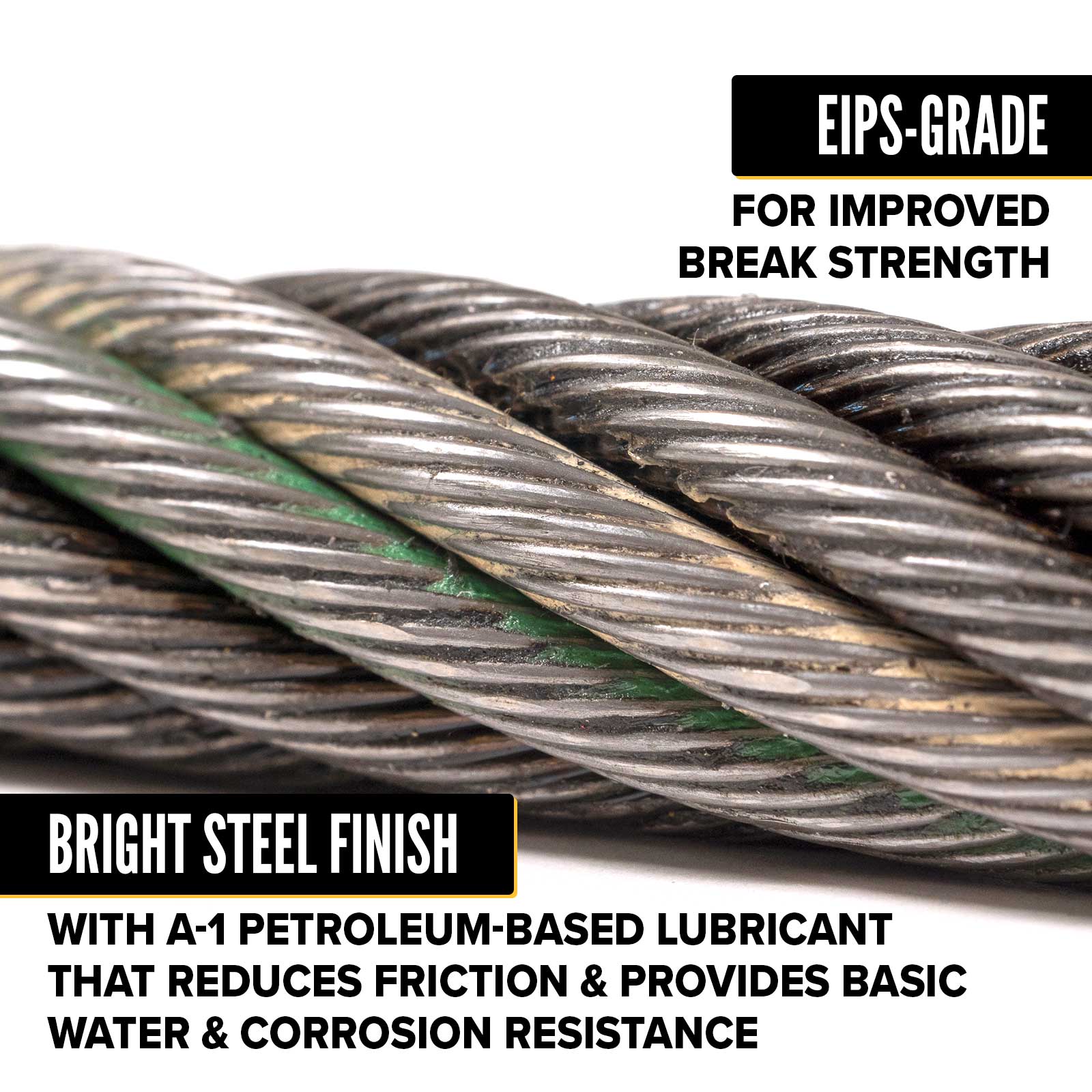

This wire rope features a bright steel finish treated with an A-1 petroleum-based lubricant. The lubricant reduces internal friction, helps minimize wear, and provides basic protection against moisture and corrosion. Lubrication is applied to both internal and external wires for enhanced service life.

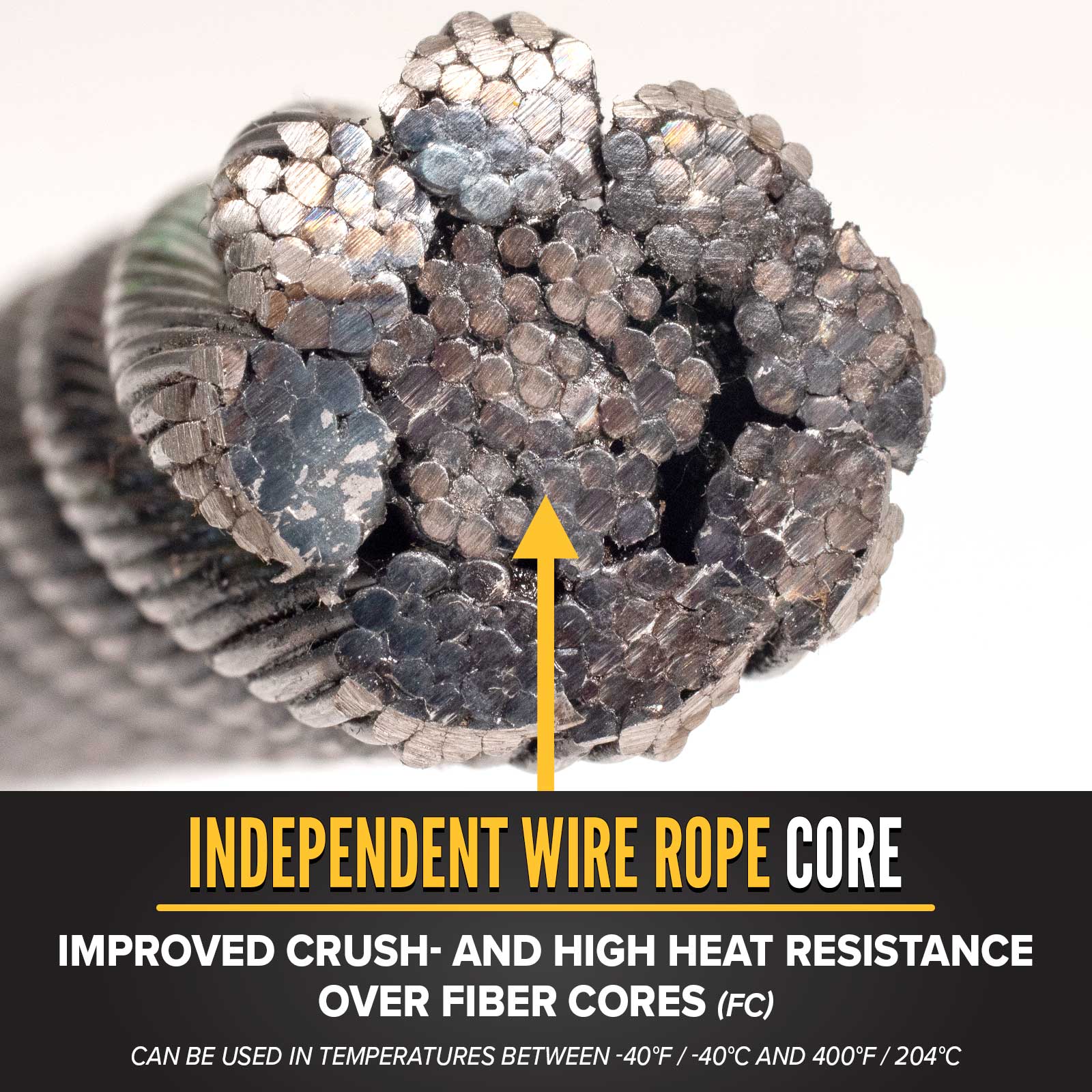

The Independent Wire Rope Core (IWRC) increases crushing resistance, improves structural stability, and supports heavy loads. It is well-suited for demanding applications and can typically operate in temperatures ranging from -40°F to 400°F.
Key Features
- Category 3 rotation-resistant design helps minimize rope spin under load
- EIPS-grade steel provides increased tensile strength and break resistance
- Actual 8x25 construction delivers durability and dependable lifting performance
- Bright steel finish with petroleum-based lubricant reduces wear and friction
- IWRC core improves crushing resistance and load stability
- Ideal for hoisting unguided loads with single-part or multi-part line systems
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Should not be used with a swivel
- Sold by the foot and shipped as one continuous length when available
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
