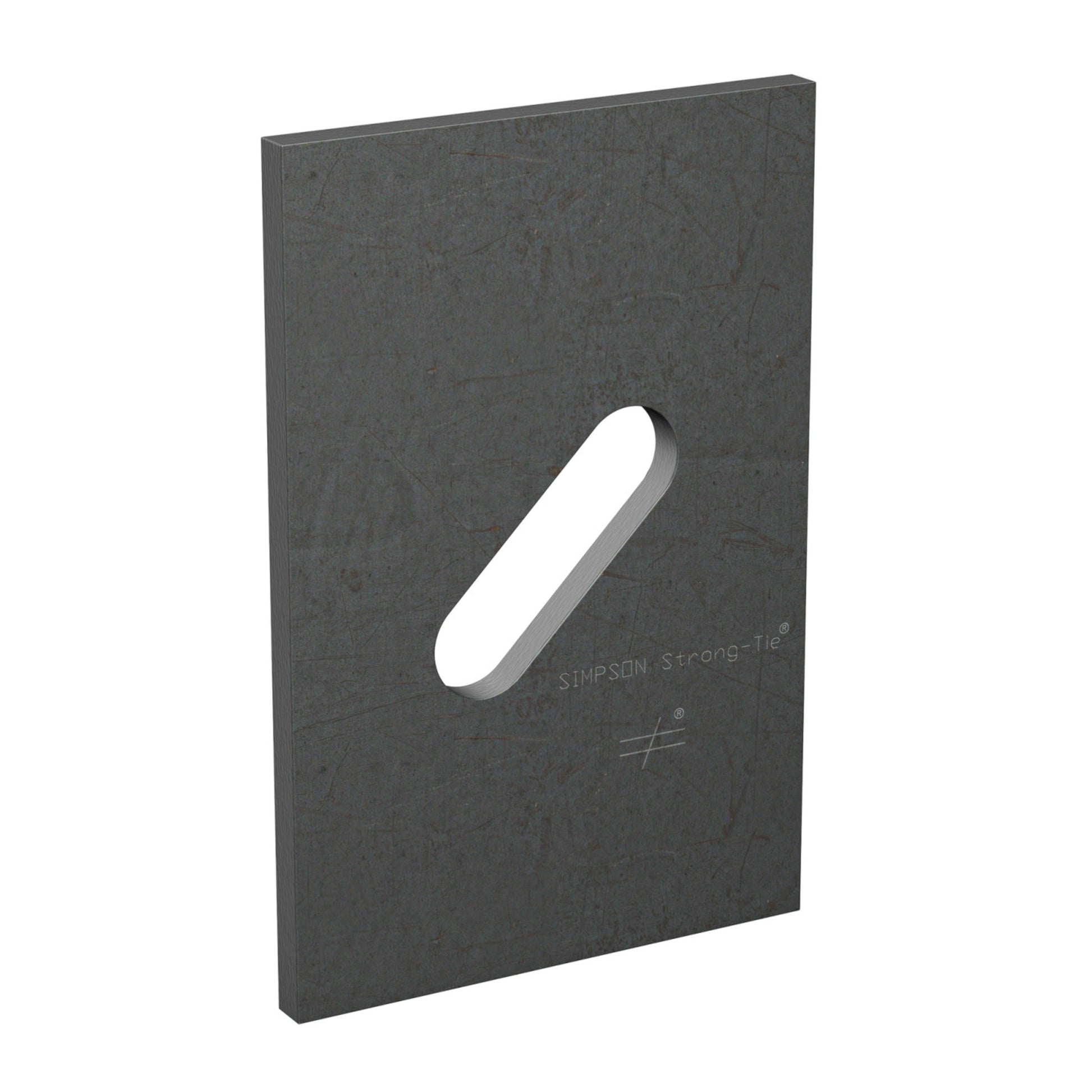

3" x 4-1/2" Simpson BPS 1/2-6 Bearing Plate w/ Slotted Hole for 1/2" Bolt - Plain
3" x 4-1/2" Simpson BPS 1/2-6 Bearing Plate w/ Slotted Hole for 1/2" Bolt - Plain!
3" x 4-1/2" Simpson BPS 1/2-6 Bearing Plate w/ Slotted Hole for 1/2" Bolt - Plain

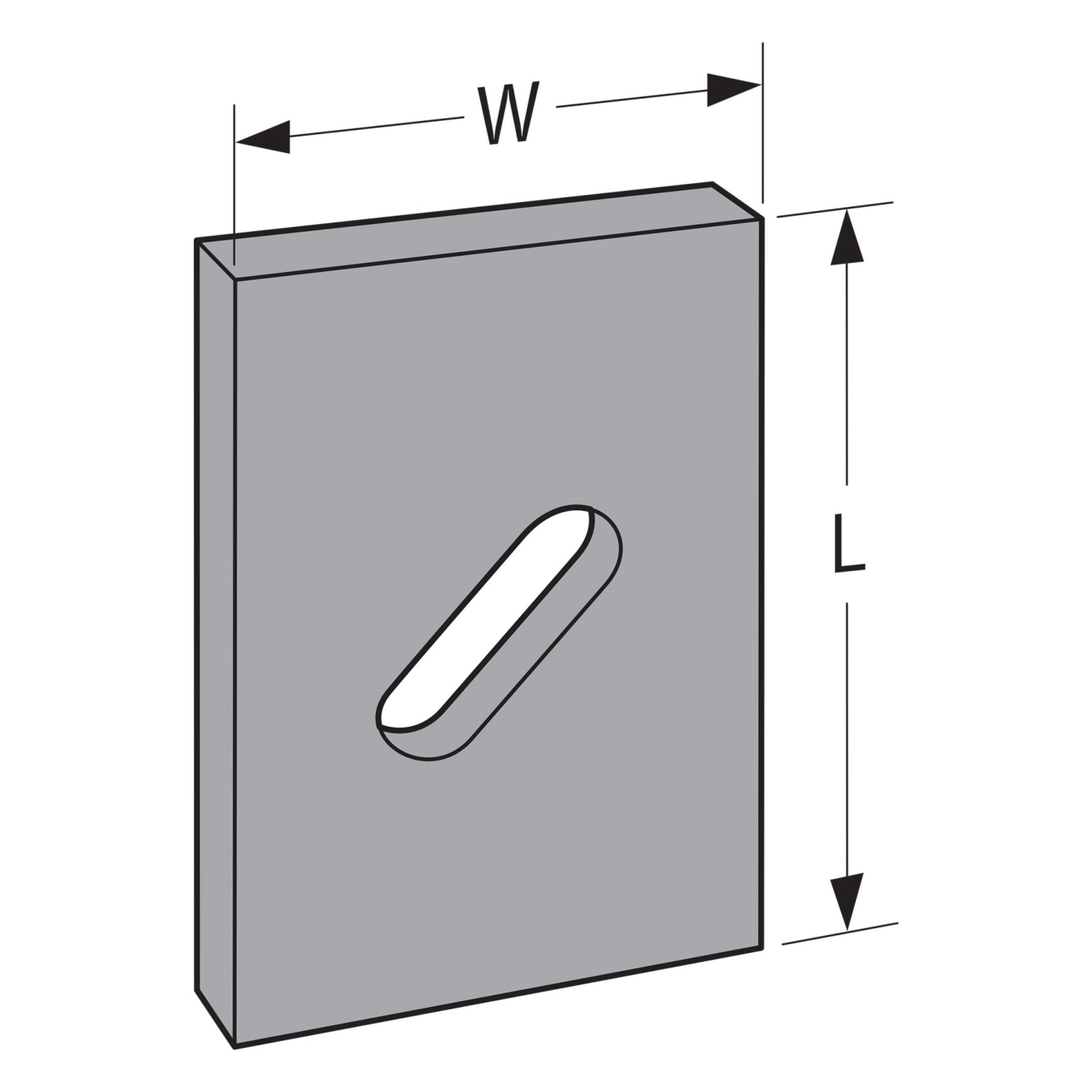

Specifications
The Simpson BPS Bearing Plate delivers superior load distribution and precision placement for foundation anchor-bolt connections. Its slotted hole design accommodates bolts that are not perfectly centered, giving contractors both strength and flexibility in installation.
Key Features
- Provides greater bearing surface than standard cut washers for enhanced structural integrity.
- Slotted hole allows bolt?location adjustment, especially useful when holes aren’t centered on the sill plate.
- Built from rugged 3?gauge steel and meets code requirements for 2×4 and 2×6 wall assemblies.
- Available uncoated, or with optional hot?dip galvanized (HDG) finish for superior corrosion resistance.
Applications
- Ideal for anchoring foundation bolts when standard washers aren’t adequate or properly aligned.
- Compliant with code demands for 2×4 and 2×6 wall fastening systems.
Installation
- Select the model suited to your bolt diameter and plate dimension requirements (e.g., BPS?1/2?3, BPS?1/2?6, BPS?3/4?6).

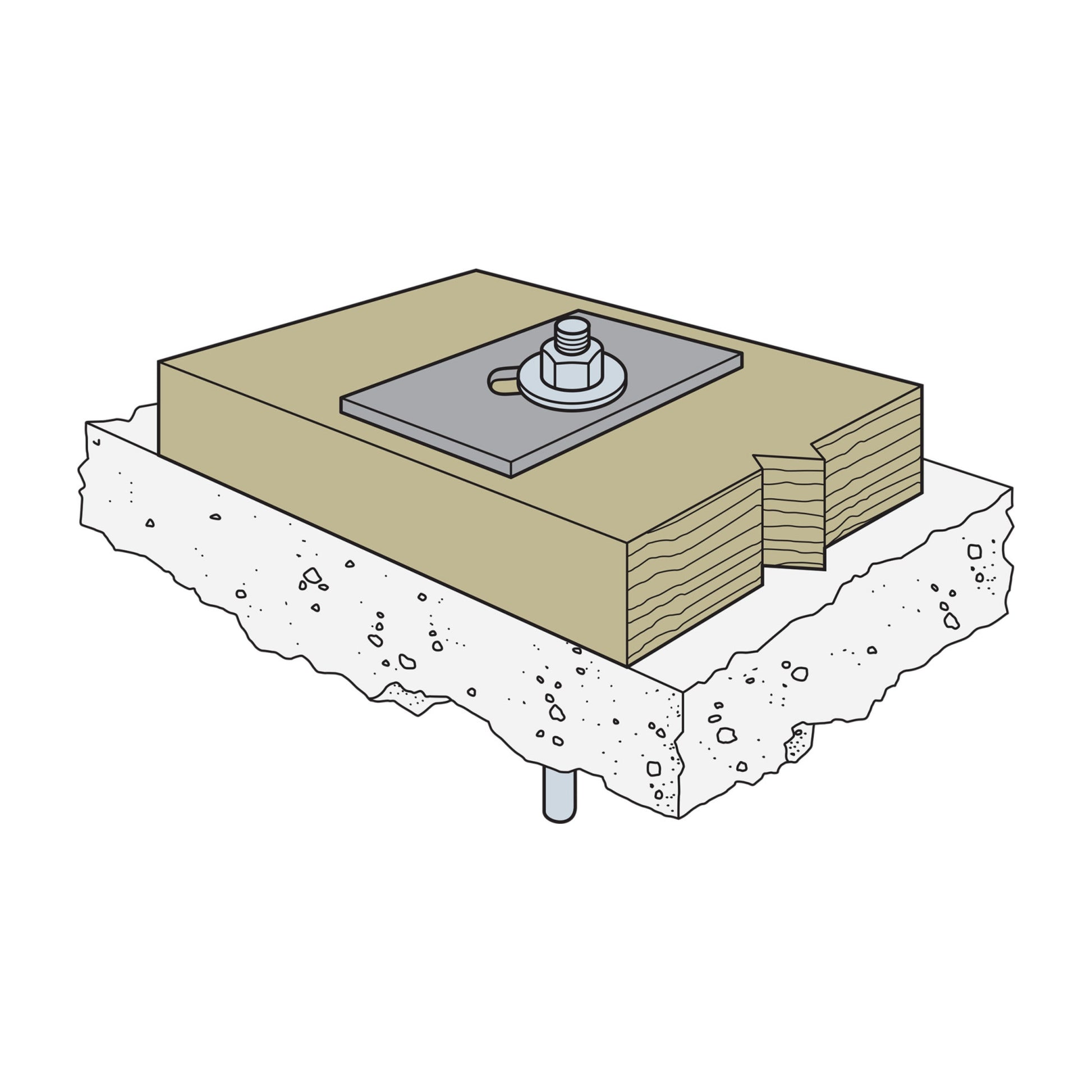

- Install the slotted plate under the nut in place of a washer. Use the slotted hole to shift and center the bolt as needed.

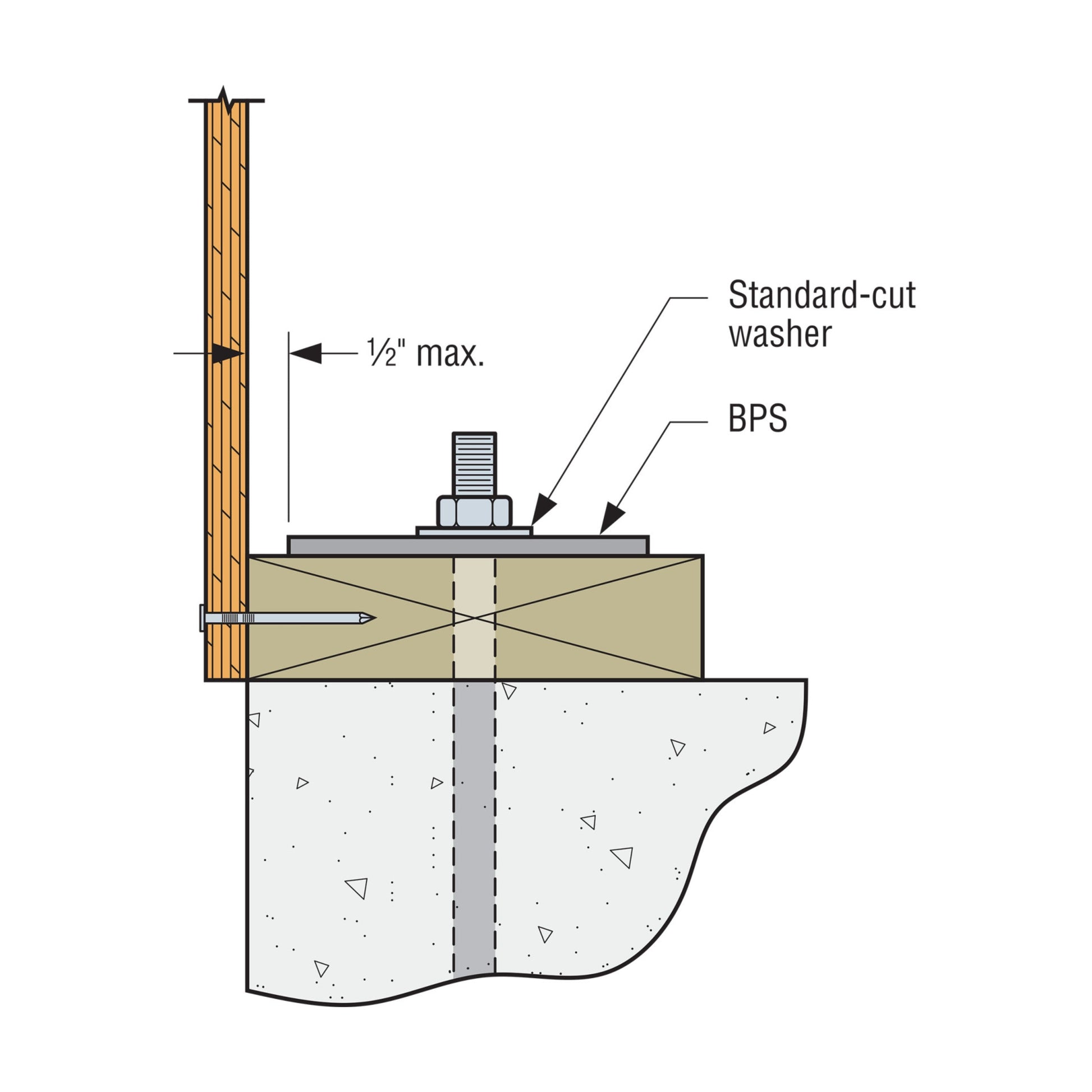

- For shear?wall installations, align the edge of the plate within ½" of the sheathed bottom track edge.
- Tighten to specification. Include a standard washer unless using a Titen HD screw anchor, which can omit it.
