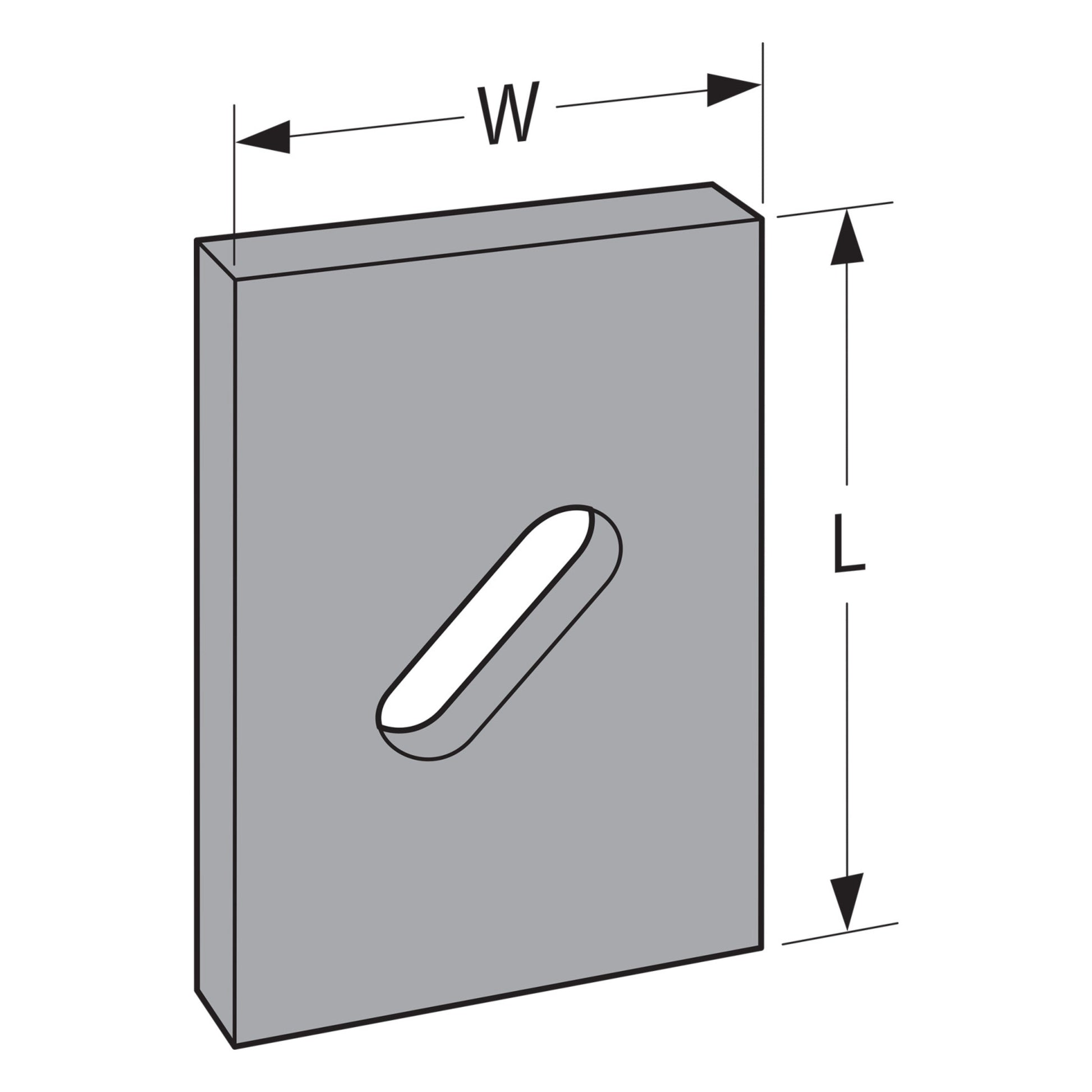

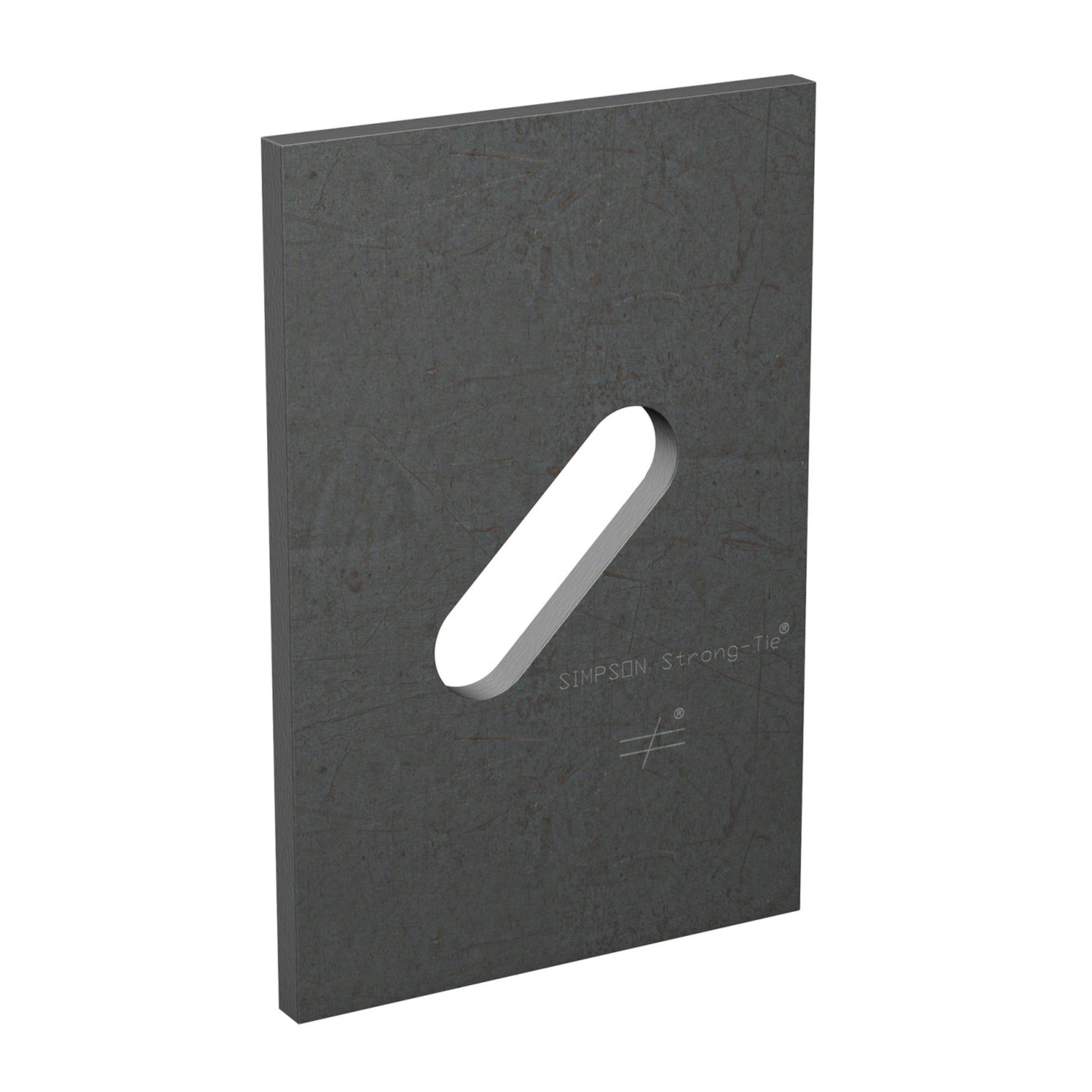

3" x 4-1/2" Simpson BPS 3/4-6HDG Bearing Plate w/ Slotted Hole for 3/4" Bolt - Hot Dip Galvanized
3" x 4-1/2" Simpson BPS 3/4-6HDG Bearing Plate w/ Slotted Hole for 3/4" Bolt - Hot Dip Galvanized!
3" x 4-1/2" Simpson BPS 3/4-6HDG Bearing Plate w/ Slotted Hole for 3/4" Bolt - Hot Dip Galvanized
Specifications
The Simpson BPS Bearing Plate with Slotted Hole (HDG) offers a strong, corrosion-resistant solution for anchor bolt connections. Its slotted design allows flexibility when bolt placement isn’t exact, while the hot-dip galvanized finish ensures long-term durability in exterior and treated wood environments.
Key Features
- Provides greater bearing surface than standard washers for enhanced strength.
- Slotted hole allows adjustment for misaligned anchor bolts.
- Hot-dip galvanized (HDG) coating protects against rust and corrosion.
- Made from heavy-duty 3-gauge steel - compliant with building codes for 2×4 and 2×6 framed walls.
- Available in a variety of sizes and bolt diameters to match diverse applications.
Applications
- Ideal for foundation anchoring, shear-wall, and sill plate systems where alignment flexibility is needed.
- Meets structural code requirements for 2×4 and 2×6 walls.
- Perfect for outdoor or treated wood environments demanding corrosion resistance.
- Use with standard anchor bolts or Titen HD screw anchors, as needed.

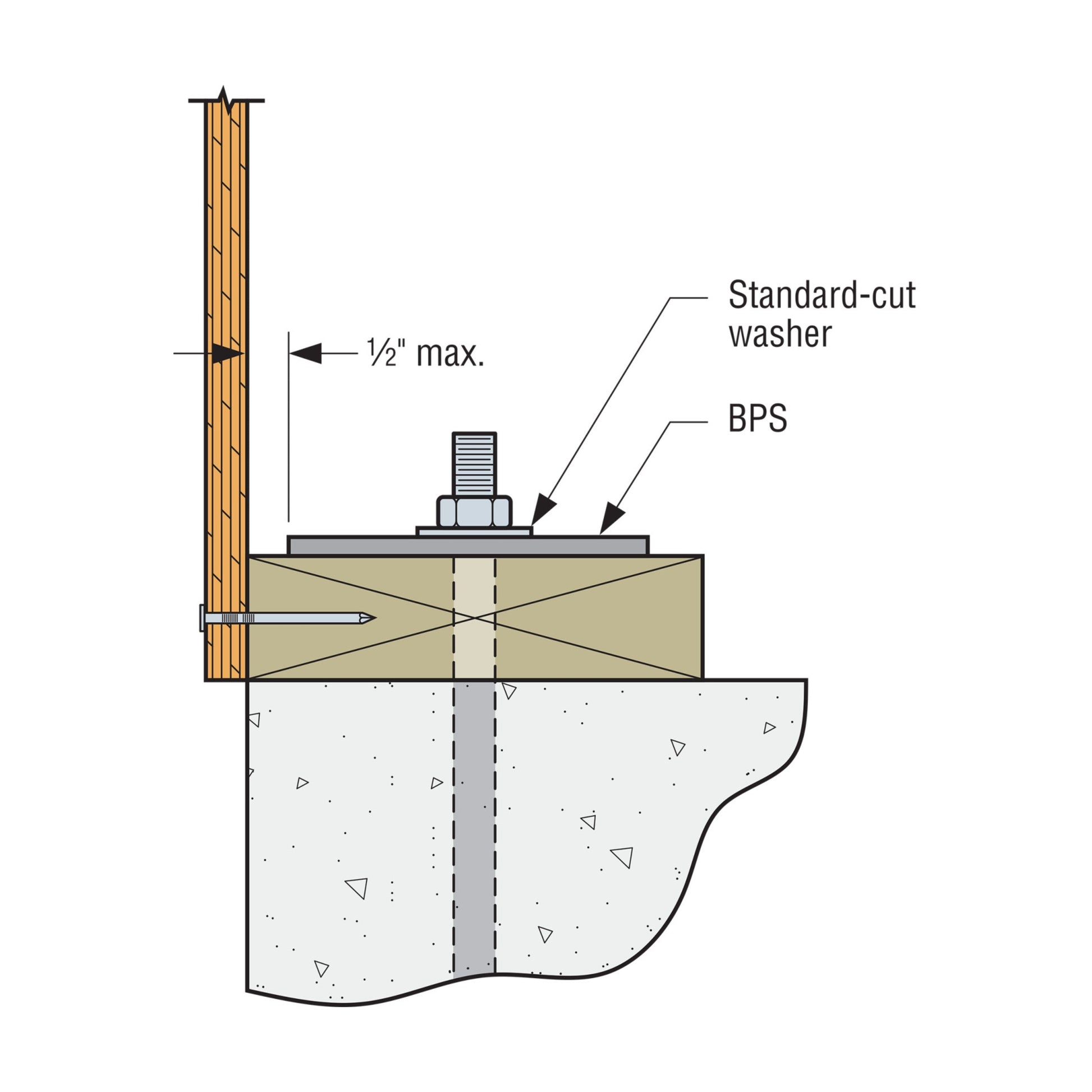

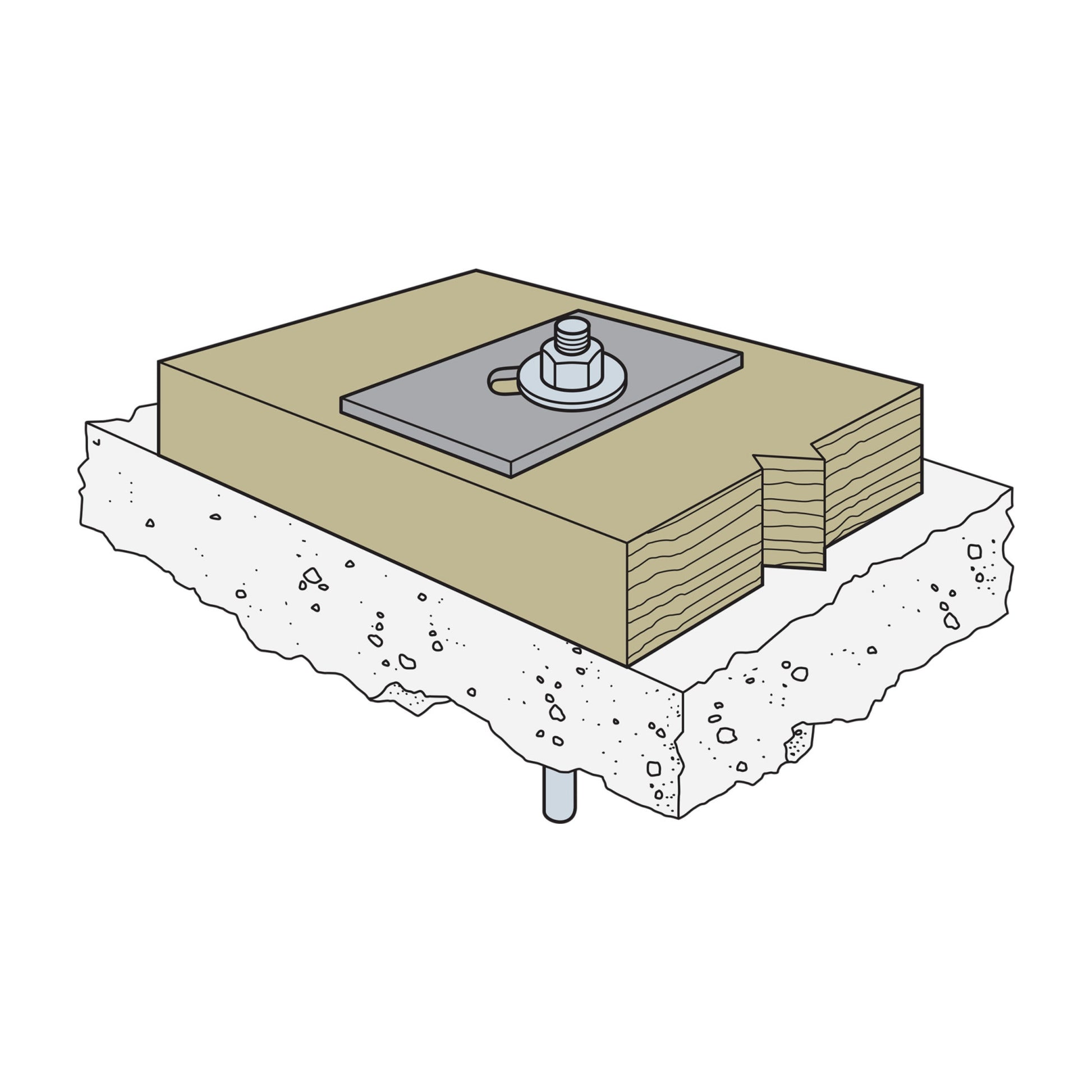

Installation
- Choose the correct HDG model based on your bolt size and plate dimensions.
- Place the plate under the nut, slot aligned for bolt positioning flexibility.
- For shear-wall installations, ensure the plate is placed within ½" of the sheathed track edge.
- Tighten the nut to spec. Add a standard washer unless using a Titen HD screw anchor that doesn’t require it.
