Shop more Channel Post Base
SKU: FS-5814-E/G

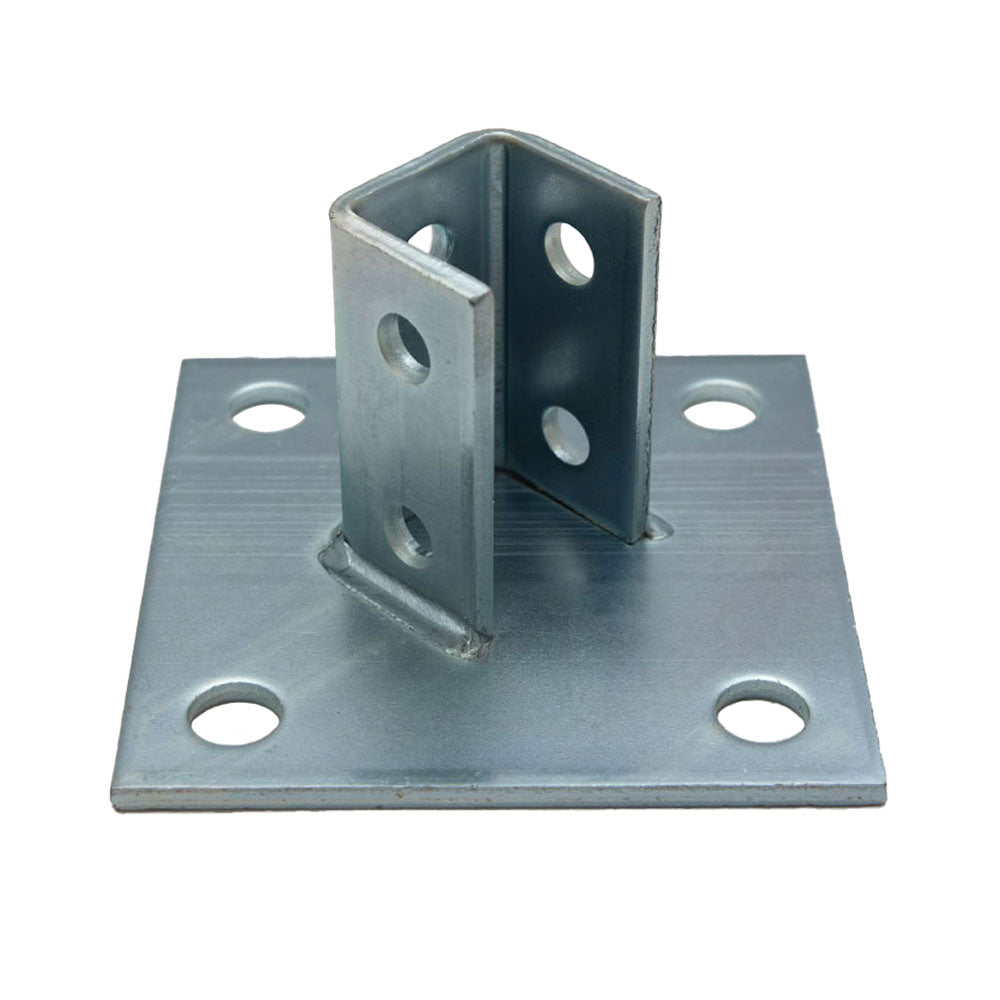

4-Hole Single Channel Post Base - Electro-Galvanized

4-Hole Single Channel Post Base - Electro-Galvanized

Regular price $22.95
Sale price $22.95 Regular price
0% off
Call to Order
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.

Description:

4-Hole Single Channel Post Base - Electro-Galvanized is a post base designed to fasten Strut Channel to the floor. The bottom plate of the strut channel post base pairs with anchor bolts to secure it to the ground. Post bases mounted using the correct anchors gives the channel structure more stability and is a long-term solution used for mounting a number of things like HVAC, shelving, and more. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

Specifications:

Material: Carbon Steel
Height: Double-Level
Thickness: 1/4"
Hole diameter: 9/16"
Width: Single-Channel
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Material Specification: ASTM A575 or ASTM A1011 GR33
Finish Specification: ASTM B633 (Type III SC1 (0.2 mil thickness))
View full details
