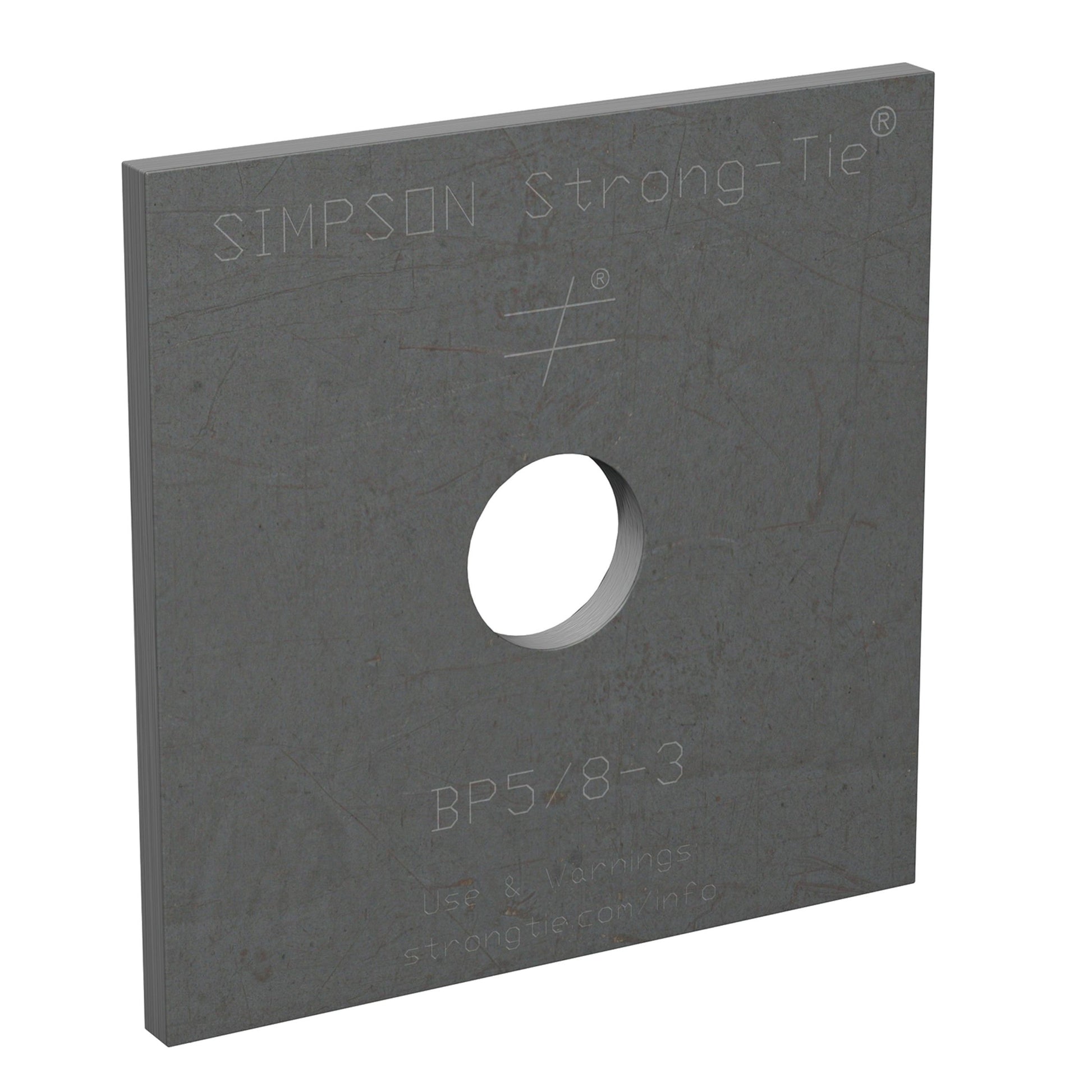

4" x 2" Simpson BP5/8SKTHDG Bearing Plate for 5/8" Bolt - Hot Dip Galvanized
4" x 2" Simpson BP5/8SKTHDG Bearing Plate for 5/8" Bolt - Hot Dip Galvanized!
4" x 2" Simpson BP5/8SKTHDG Bearing Plate for 5/8" Bolt - Hot Dip Galvanized
Specifications
The Simpson Hot?Dip Galvanized BP Bearing Plate elevates anchor?bolt connections by replacing standard washers with a plate that offers superior load distribution and longevity. Its durable HDG finish makes it well-suited for demanding environments, both indoor and exterior.
Key Features
- Larger bearing surface than standard cut washers for enhanced connection strength.
- Hot?dip galvanized coating for excellent corrosion protection—ideal for outdoor use and contact with treated lumber.
- Customizable to a range of anchor bolt diameters (3/8?–1?) and plate sizes; 3??×?3?, 3?gauge HDG plate available for 5/8? bolts.
Applications

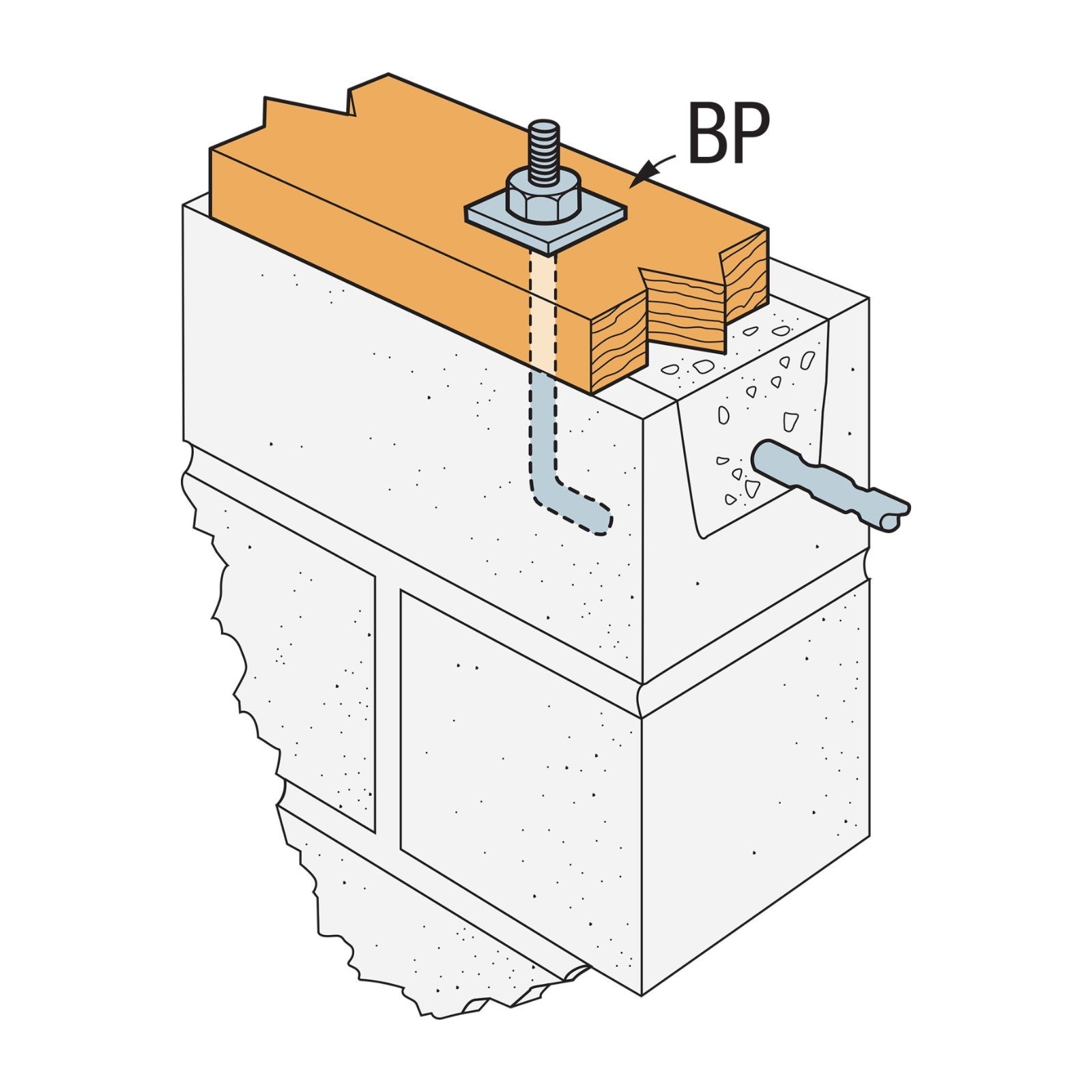

- Replaces cut washers in foundation anchor?bolt assemblies, improving load distribution.
- Great for both indoor and outdoor construction—built for hard-wearing performance.

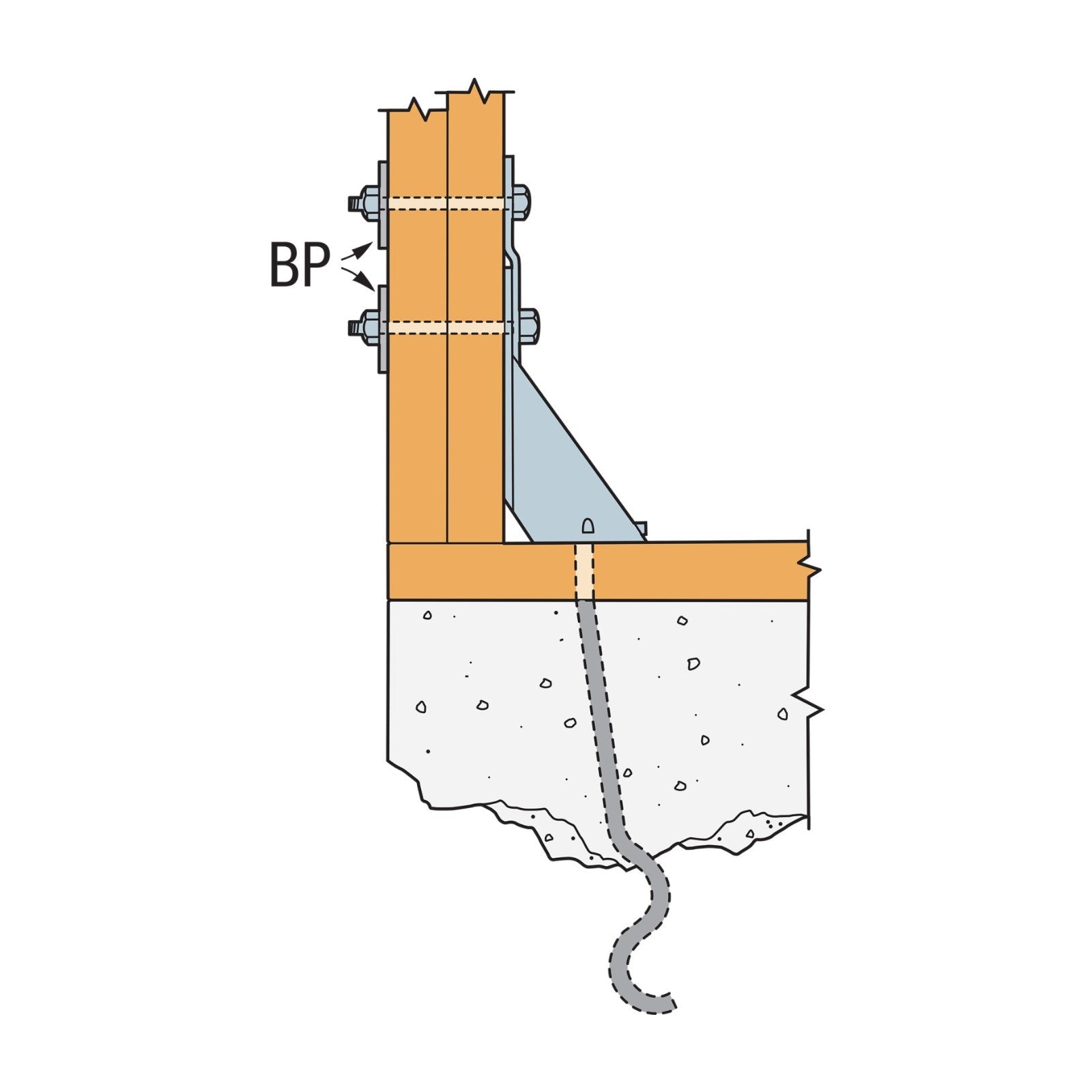

- Recommended for shear?wall installations; plate edge should sit within ½? of sheathed floor?track edge.
Installation
- Select the appropriate plate based on bolt diameter and application needs.
- Install the plate beneath the nut in place of a washer, ensuring a flush fit.
- In shear?wall situations, align the plate edge within ½? of the bottom track’s sheathed edge.
- Tighten the nut to specification for safe and effective load transfer.
