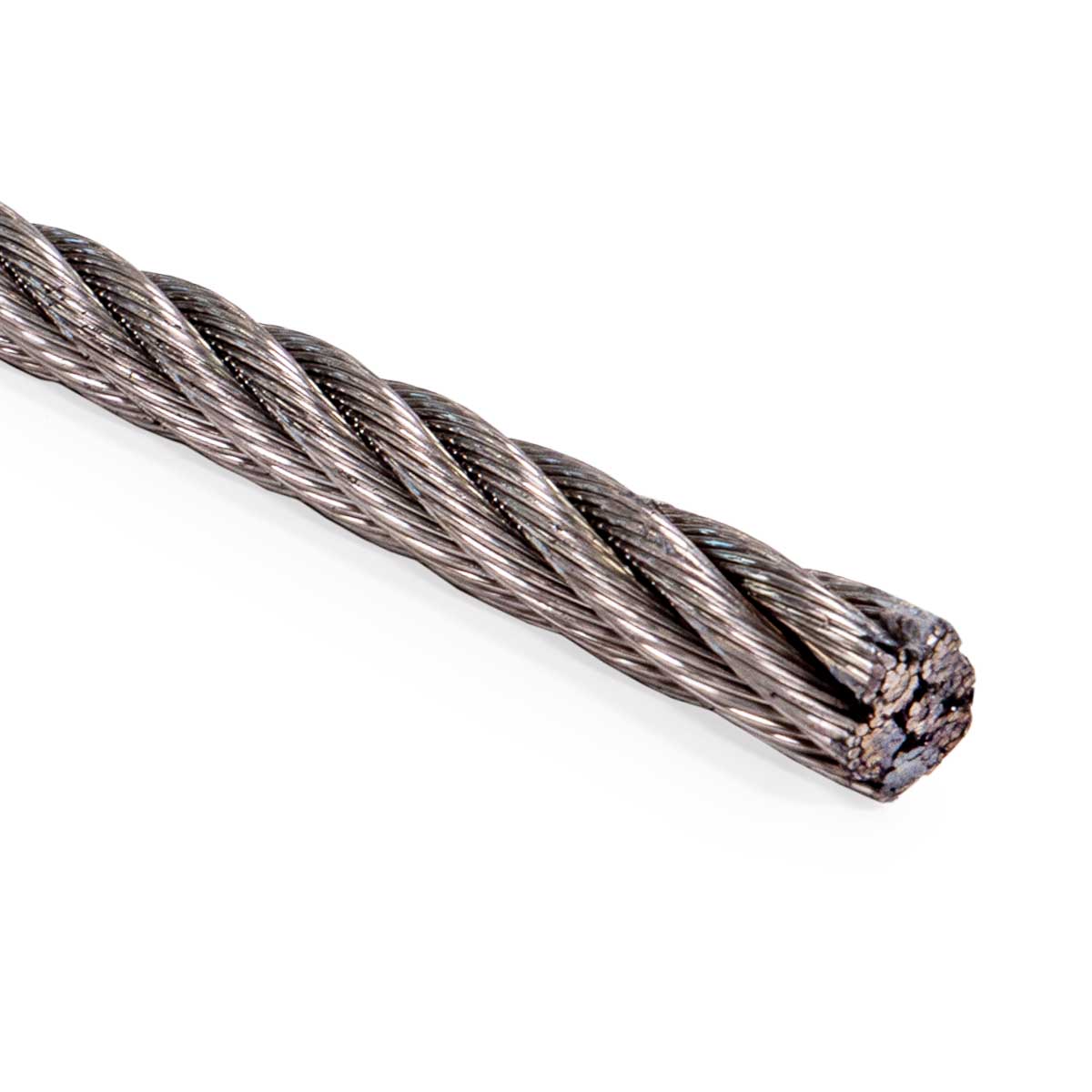

5/32" 7x19 Aircraft Cable | 304 Stainless
This 5/32" type 304 stainless steel 7x19 aircraft cable is a flexible, corrosion-resistant cable designed for applications such as deck railing systems, pulleys, winches, exercise equipment, and general utility use. The high strand count and smaller wire construction provide excellent flexibility and fatigue resistance, making it easy to work with while delivering long service life.
Note: Despite the name, aircraft cable is not intended for aircraft use. Before using this cable for critical overhead lifting applications, consult a qualified rigging professional.
Flexible Stainless Steel Cable for Railings, Pulleys & Winches
The 7x19 construction is one of the most flexible cable designs available, allowing the cable to bend easily around pulleys, sheaves, and fittings while resisting fatigue caused by repeated movement. Type 304 stainless steel offers excellent corrosion resistance and is a popular choice for outdoor and indoor applications where protection against rust is important.
How Does Aircraft Cable Differ From Wire Rope?
Aircraft cable is generally available in diameters up to 3/8", while traditional wire rope can be manufactured in diameters exceeding 2". Aircraft cable is designed to prioritize flexibility and handling characteristics, making it a preferred choice for many light- to medium-duty applications.
7x19 Steel Cable Configuration
This aircraft cable is manufactured from type 304 stainless steel. Compared to galvanized cable, type 304 stainless offers enhanced corrosion resistance while maintaining excellent strength. Although type 316 stainless steel provides even greater corrosion protection, type 304 is generally stronger and more cost-effective, making it an excellent choice for most environments where rust resistance is required.
The class of this cable is 7x19. These numbers nominally refer to the cable construction and indicate seven total strands, including the core strand, with approximately 15-26 wires within each strand. Six outer strands are wrapped around a central core strand to create a highly flexible and fatigue-resistant cable.
Key Features
- Type 304 stainless steel provides excellent corrosion resistance and durability
- Flexible 7x19 construction offers superior bendability and fatigue resistance
- Ideal for deck railings, pulleys, winches, exercise equipment, and utility applications
- More corrosion-resistant than galvanized cable while maintaining excellent strength
- Cost-effective alternative to type 316 stainless steel for most environments
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Not intended for aircraft use
- Sold by the foot and shipped as one continuous length when available
Accessories & More
Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
