Shop more Zinc Large Diameter Concrete Screws
SKU: THDB62800WH

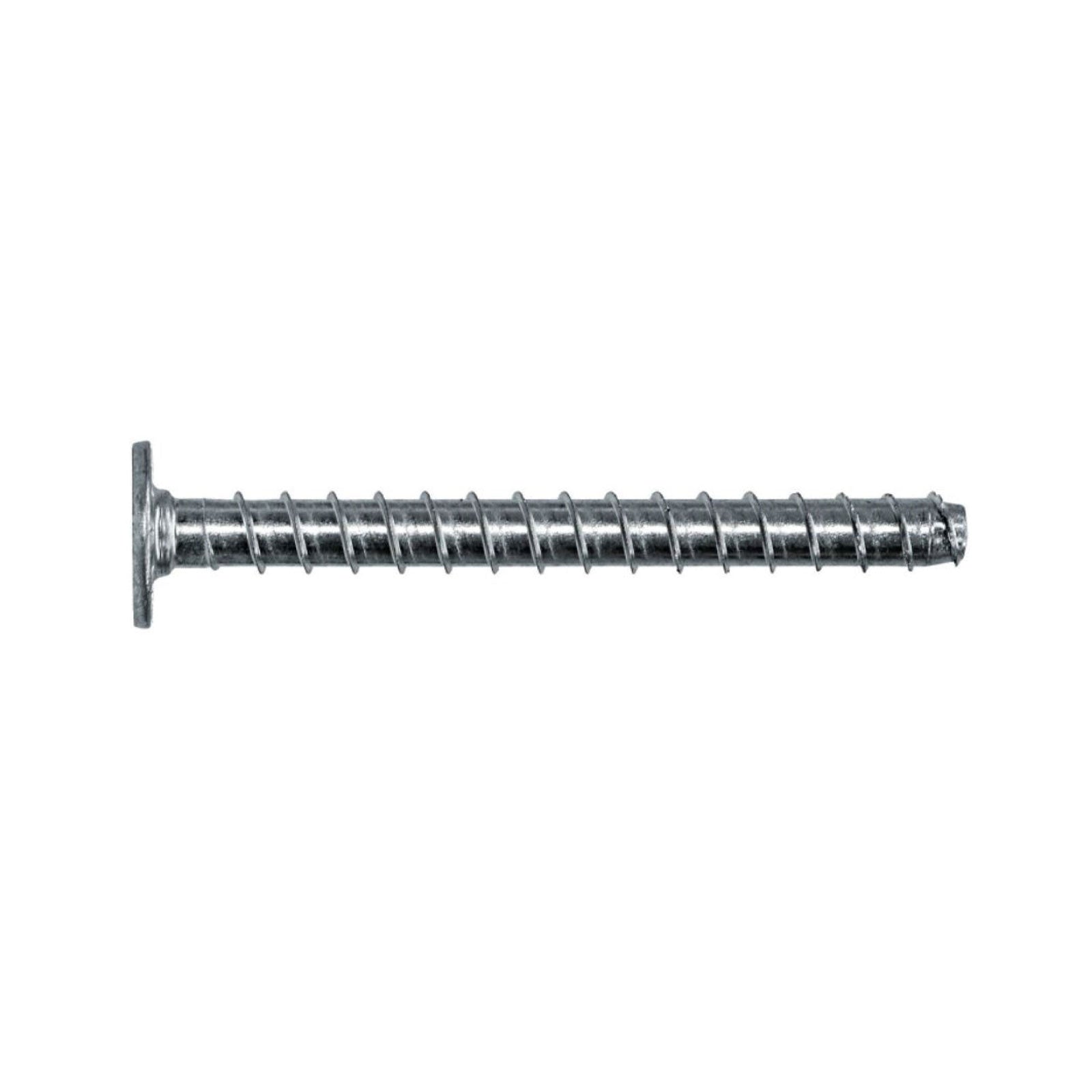

5/8" x 8" Strong-Tie THDB62800WH Washer Head Titen HD Anchor, Zinc, Pkg 10

5/8" x 8" Strong-Tie THDB62800WH Washer Head Titen HD Anchor, Zinc, Pkg 10

Regular price $69.30
Sale price $69.30 Regular price
0% off
shipping truck, lead time icon
Ships Apr 15 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

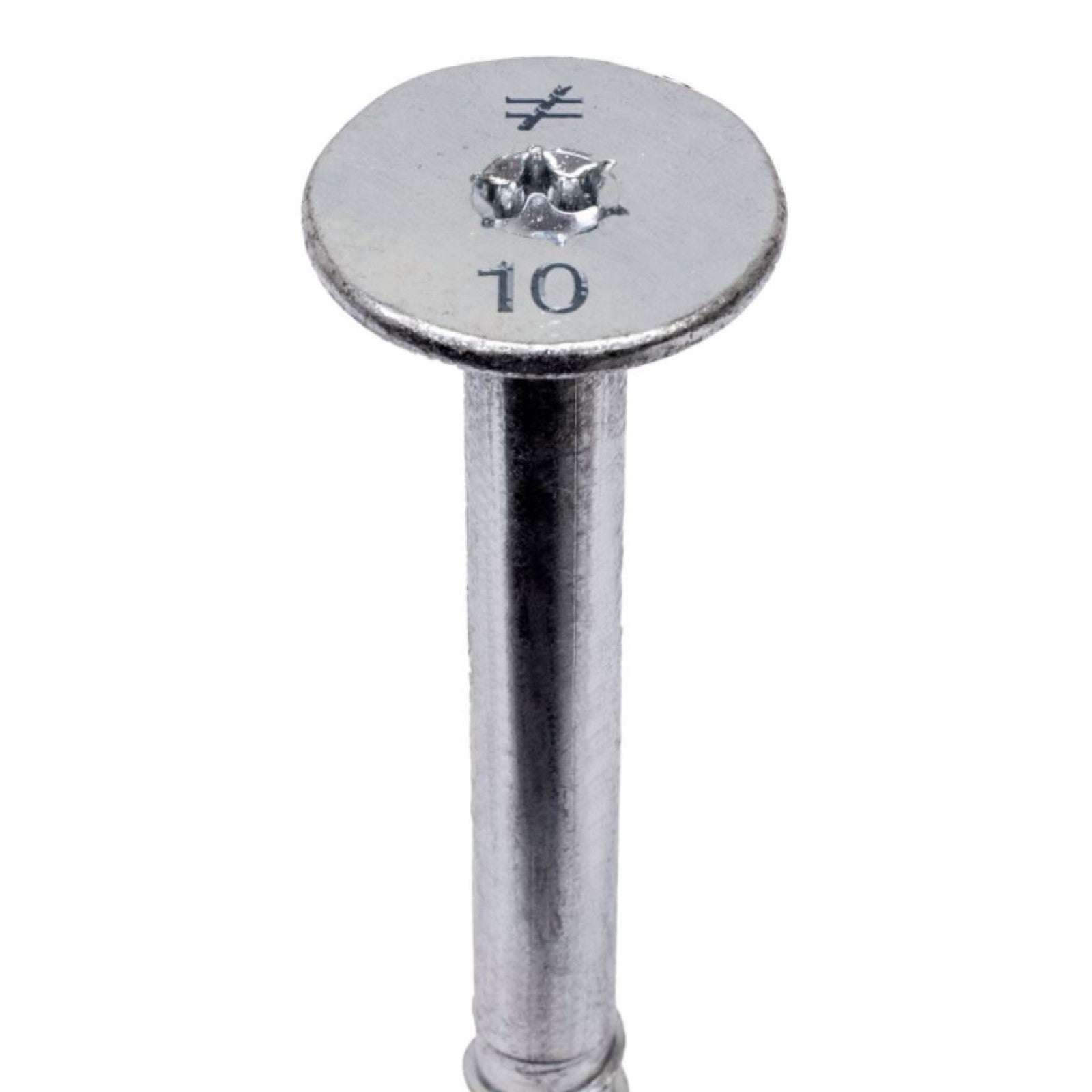

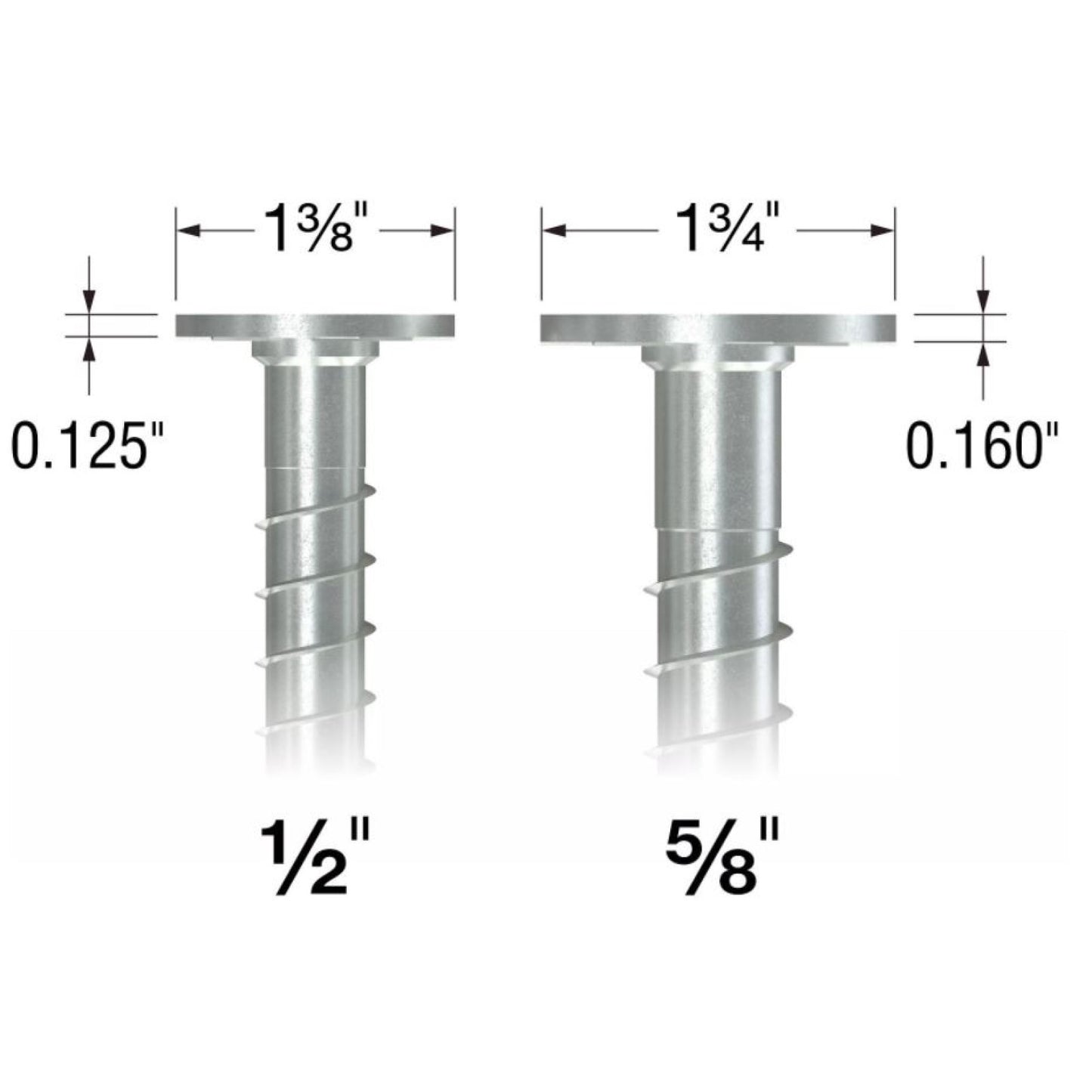

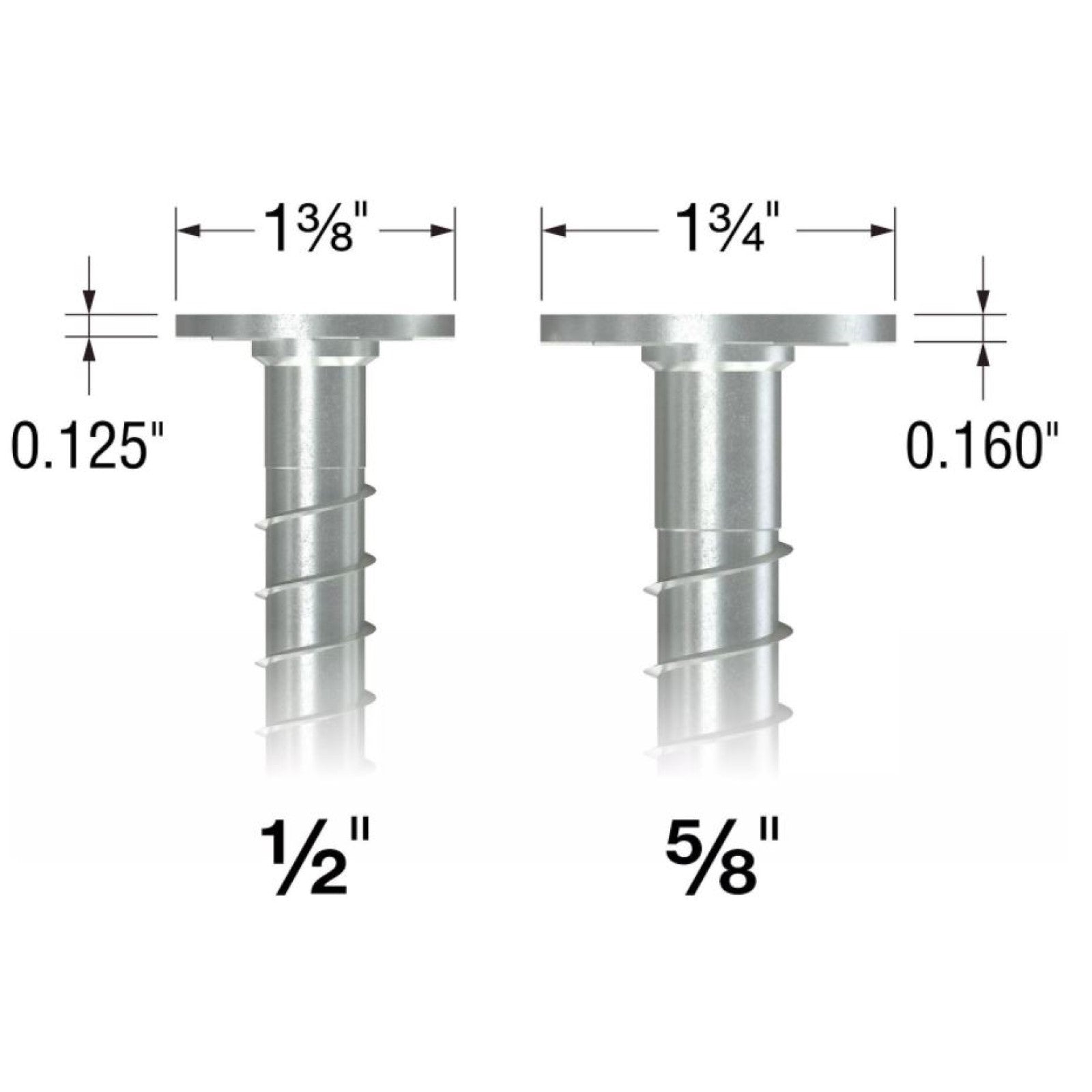

5/8" x 8" Washer Head Titen HD screw anchors are high-strength anchors designed to be installed in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a low profile head is necessary. The washer head screw anchor is suitable to use in sill plate applications. Modular wall and floor systems can be installed right over the top of the anchor with no notching required due to the minimal head profile. These anchors are in accordance with the ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind, and seismic loading conditions. Pre-drilling with a carbide drill bit the same diameter as the anchor is necessary for proper installation. Washer Head profile is 0.160" thick with a diameter of 1-3/4".

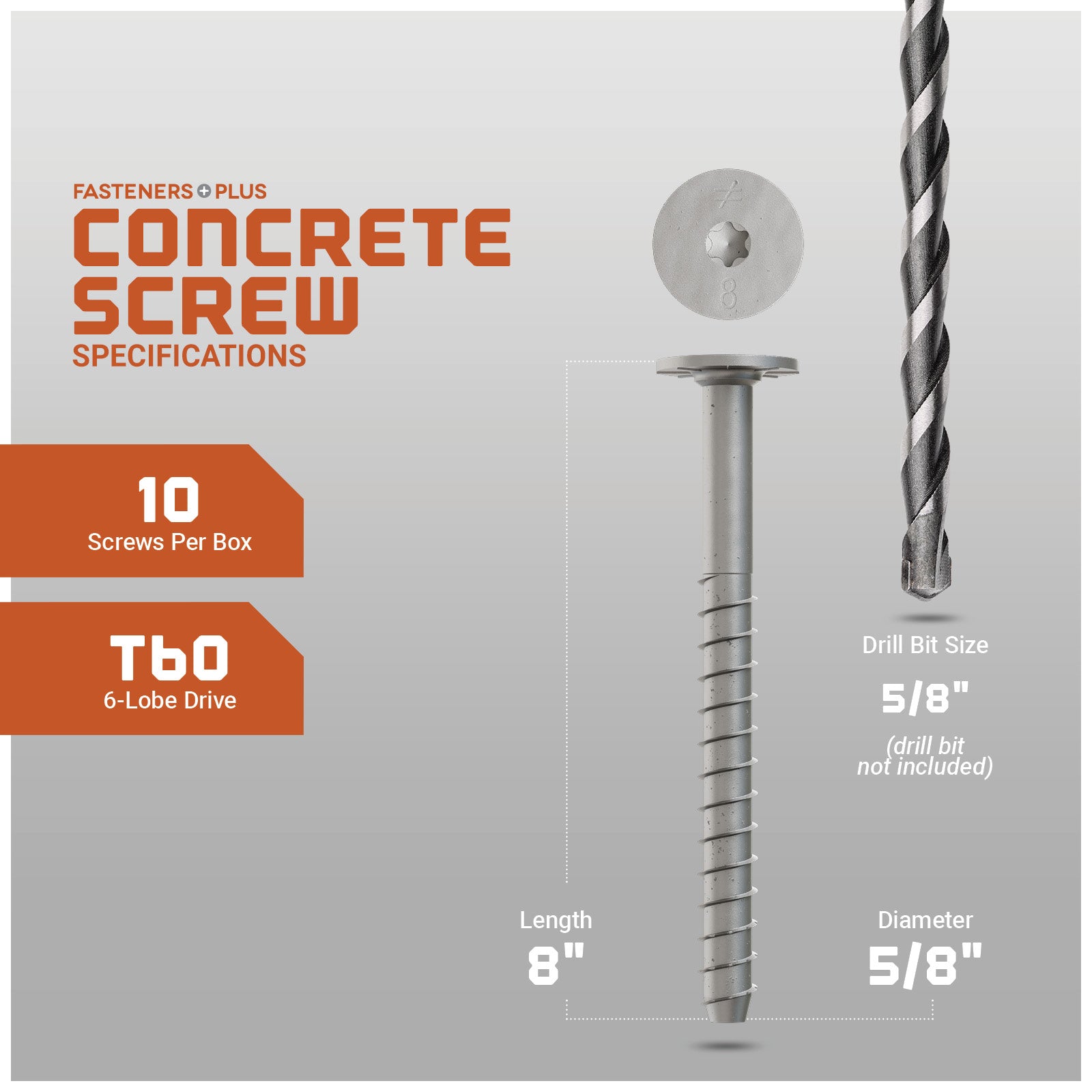

Specifications:

Material: Carbon Steel
Fixture hole size: 3/4"-13/16"
Drill bit size: 5/8"
Quantity: 10
Head type: Washer Head
Finish: Zinc
Diameter: 5/8"
Length: 8"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
