SKU: SC716EIG637-2500FT

7/16" 6x37 Galvanized Wire Rope - EIPS IWRC | 2,500' Coil

Regular price $4,79500
Ships FREE in 2-3 business days.

Description

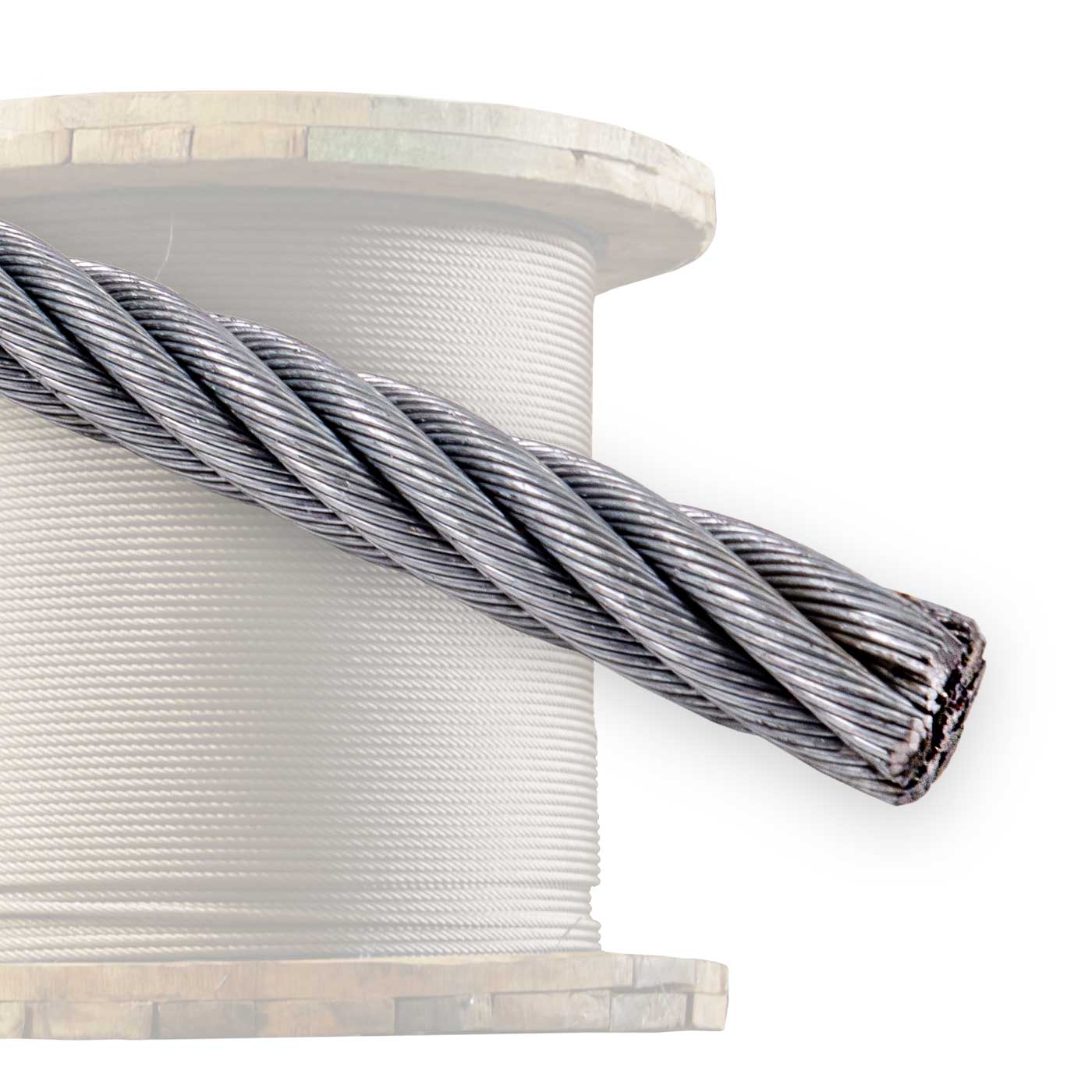

7/16" 6x37 Wire Rope Cable | Galvanized

This 7/16" galvanized wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a flexible 6x37 class construction. Designed for applications requiring repeated bending and reliable performance, this wire rope is commonly used for hoisting, suspension systems, winch lines, lifting equipment, and general rigging applications where flexibility and corrosion resistance are essential.

Corrosion-Resistant Wire Rope for Hoisting, Rigging & Winch Applications

The 6x37 class is known for its superior flexibility and fatigue resistance compared to 6x19 wire rope. Its construction allows the rope to bend repeatedly with less risk of wire fatigue, making it an excellent choice for applications involving pulleys, sheaves, and continuous movement.

Combined with a hot-dip drawn galvanized finish, this wire rope offers enhanced protection against rust and environmental exposure, making it well-suited for outdoor and moisture-prone applications where long service life is critical.

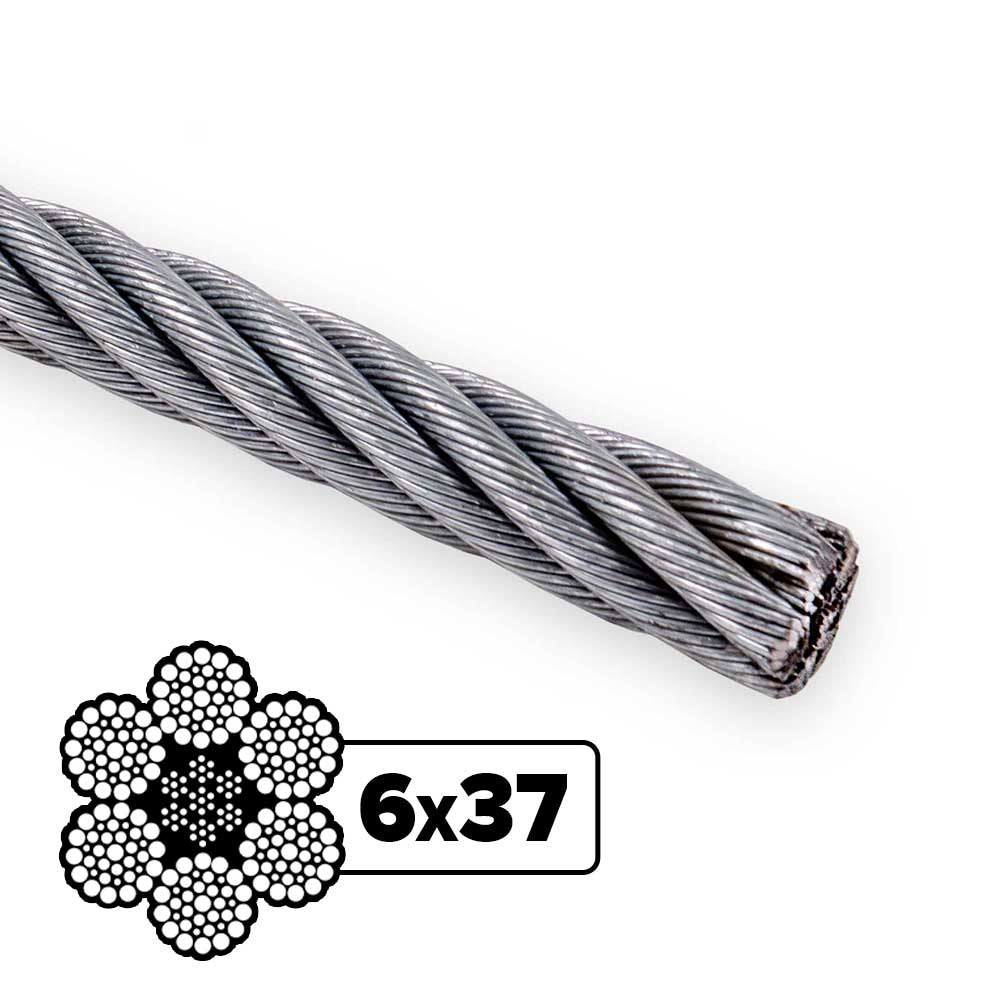

6x37 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable load-handling performance.

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 27-49 wires making up each strand. The actual construction supplied is 6x36, which falls within the 6x37 classification and delivers the same flexibility and fatigue-resistant characteristics expected from this class of wire rope.

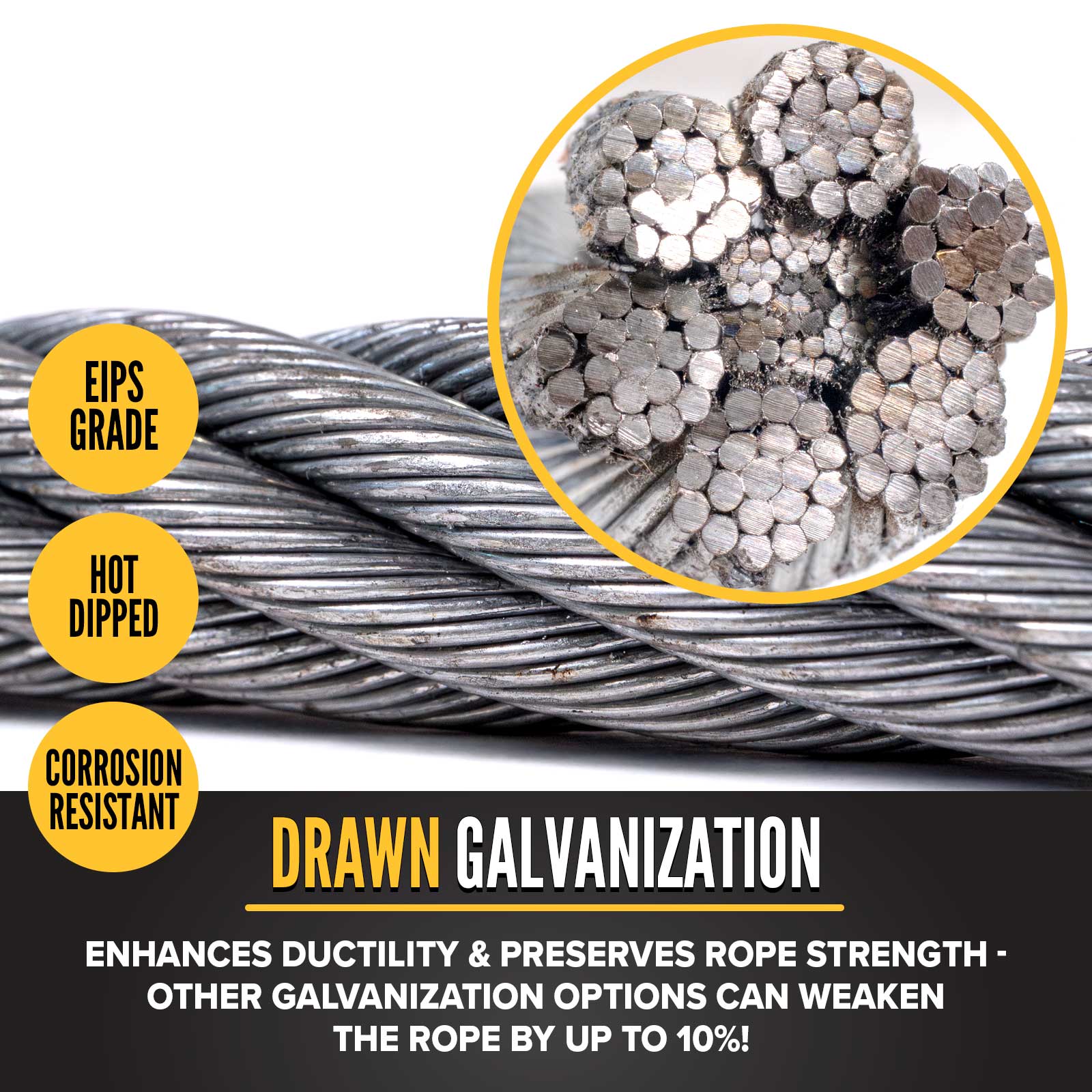

Hot-Dip Drawn Galvanized Finish & IWRC Construction

The hot-dip drawn galvanizing process provides superior corrosion resistance while maintaining the rope's original strength. Unlike some standard galvanization methods that can reduce breaking strength, this process preserves performance while improving durability and ductility. The coating also resists flaking and cracking during service.

The Independent Wire Rope Core (IWRC) provides greater support than fiber core constructions. IWRC wire rope offers superior crush resistance, enhanced load stability, and dependable performance in temperatures ranging from -40°F to 400°F.

Key Features

  • EIPS-grade steel provides approximately 10% greater tensile strength than IPS grades
  • 6x37 class construction delivers superior flexibility and fatigue resistance
  • Actual rope construction supplied is 6x36
  • Performs exceptionally well in repetitive bending applications
  • Hot-dip drawn galvanized finish provides long-term corrosion protection
  • Galvanization process maintains rope strength while improving durability
  • IWRC core improves crushing resistance and load support
  • Ideal for hoisting, suspension systems, winch lines, and general rigging applications
  • Suitable for outdoor, marine-adjacent, and moisture-prone environments
  • Temperature range from -40°F to 400°F
  • Meets RR-W-410 and ASTM A1023 dimensional and strength requirements

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.

View Product Safety Warnings

California Residents: WARNING

Specifications

Assembly Break Strength: 10.2 tons / 20,400 lbs.
Rated For Overhead Lifting: Yes
Grade: EIPS
Wire Rope Diameter: 7/16"
Length: 2,500'
Wire Rope Class: 6x37
Rope Construction: 6x36
Core: IWRC
Finish: Galvanized
Item Weight: 875 lbs.
Weight Per Foot: 0.35 lbs.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Shipping and Returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Additional Info: Right Hand Regular Lay
