SKU: SC78EIB825SR-2500FT

7/8" 8x19 Rotation-Resistant Wire Rope - EIPS IWRC | 2,500' Coil

Lengths

1' 250' 500' 1,000' 2,500' 5,000'
Regular price $24,34500
Ships FREE in 2-3 business days.

Description

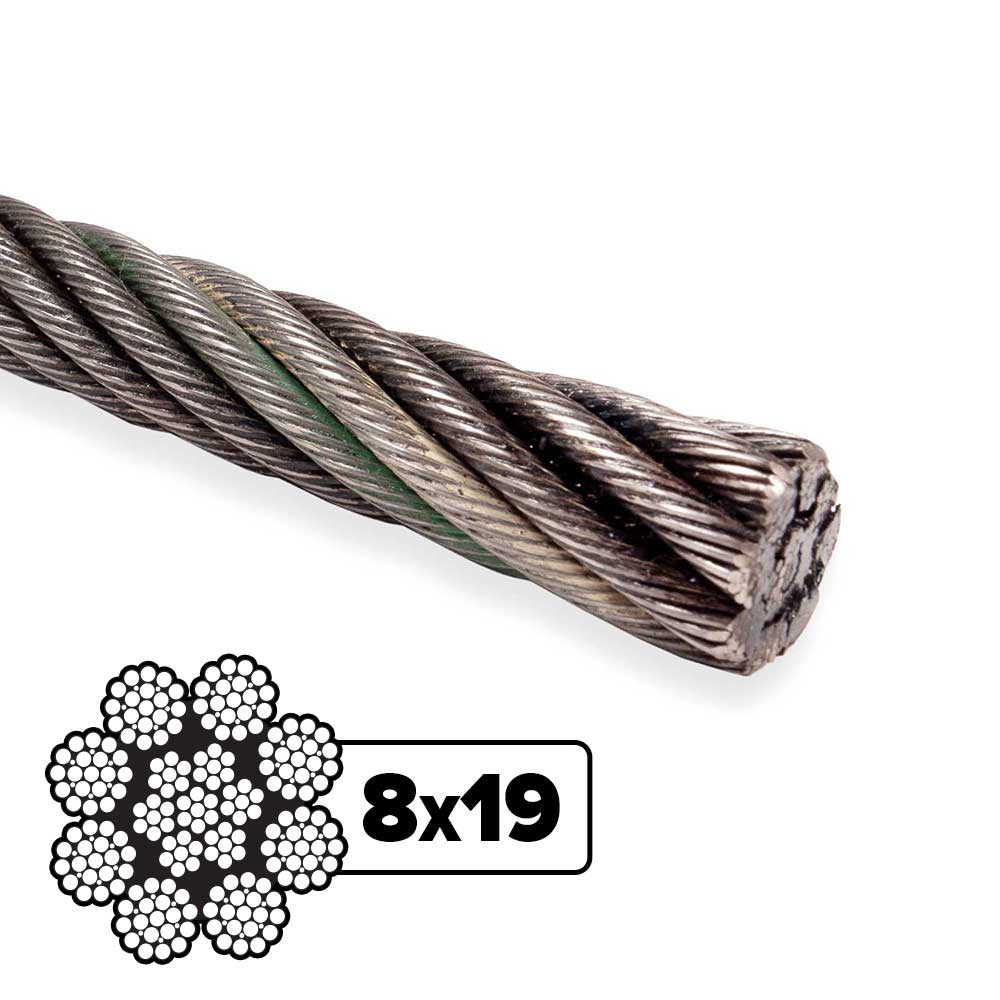

7/8" 8x19 Spin-Resistant Wire Rope Cable

This 7/8" 8x19 spin-resistant wire rope is engineered to minimize rope rotation while under load, making it a dependable choice for hoisting unguided loads with single-part or multi-part lifting lines. Manufactured from Extra Improved Plow Steel (EIPS) and featuring an Independent Wire Rope Core (IWRC), this rope combines strength, durability, and controlled handling for demanding lifting applications.

Rotation-Resistant Wire Rope for Hoisting & Lifting Applications

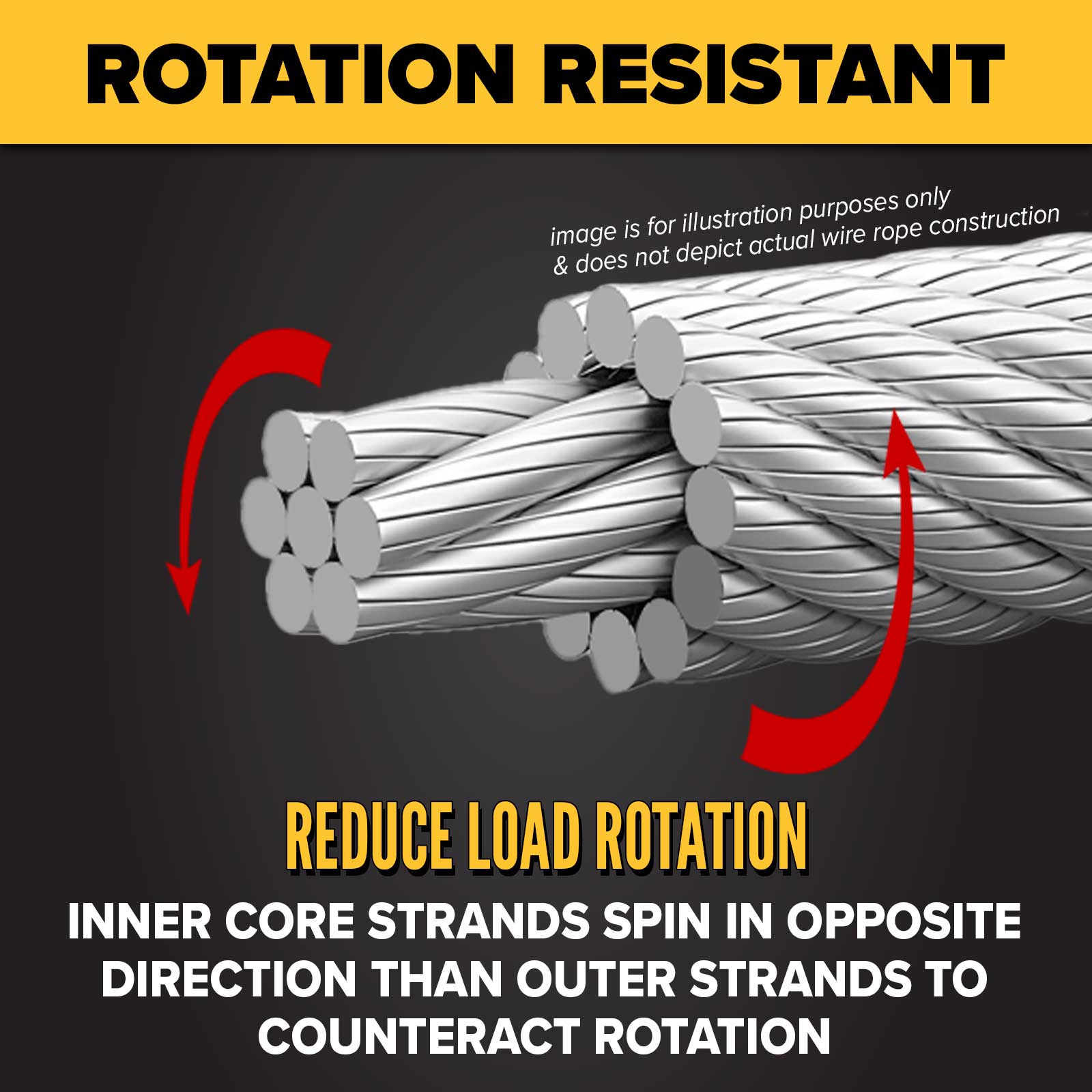

The 8x19 construction utilizes opposing strand lays, with the inner strands wrapped in the opposite direction of the outer strands. This design helps counteract rotational forces generated during lifting, reducing load spin and improving stability during operation.

Classified as a Category 3 Rotation-Resistant Rope, the 8x19 construction offers moderate rotation resistance while maintaining greater durability and wear resistance than many Category 2 rotation-resistant ropes. It is commonly used in crane operations, lifting systems, and other applications where load control is important.

8x19 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in increased breaking strength and dependable performance under demanding loads.

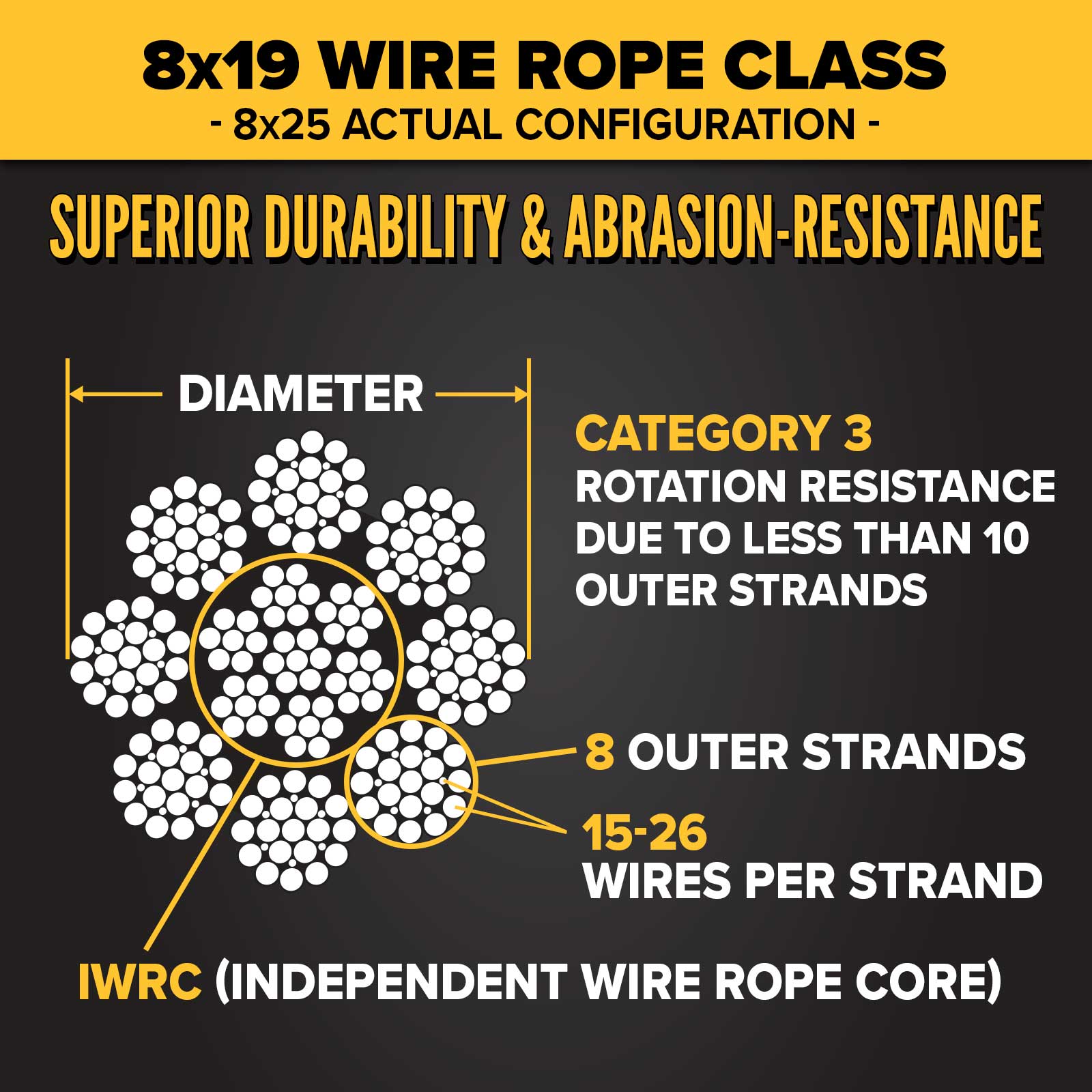

The class of this wire rope is 8x19. These numbers nominally refer to the rope construction, consisting of eight outer strands surrounding the core, with approximately 15-26 wires making up each strand. The actual construction supplied is 8x25, which falls within the 8x19 classification and delivers the performance characteristics expected from this class of rope.

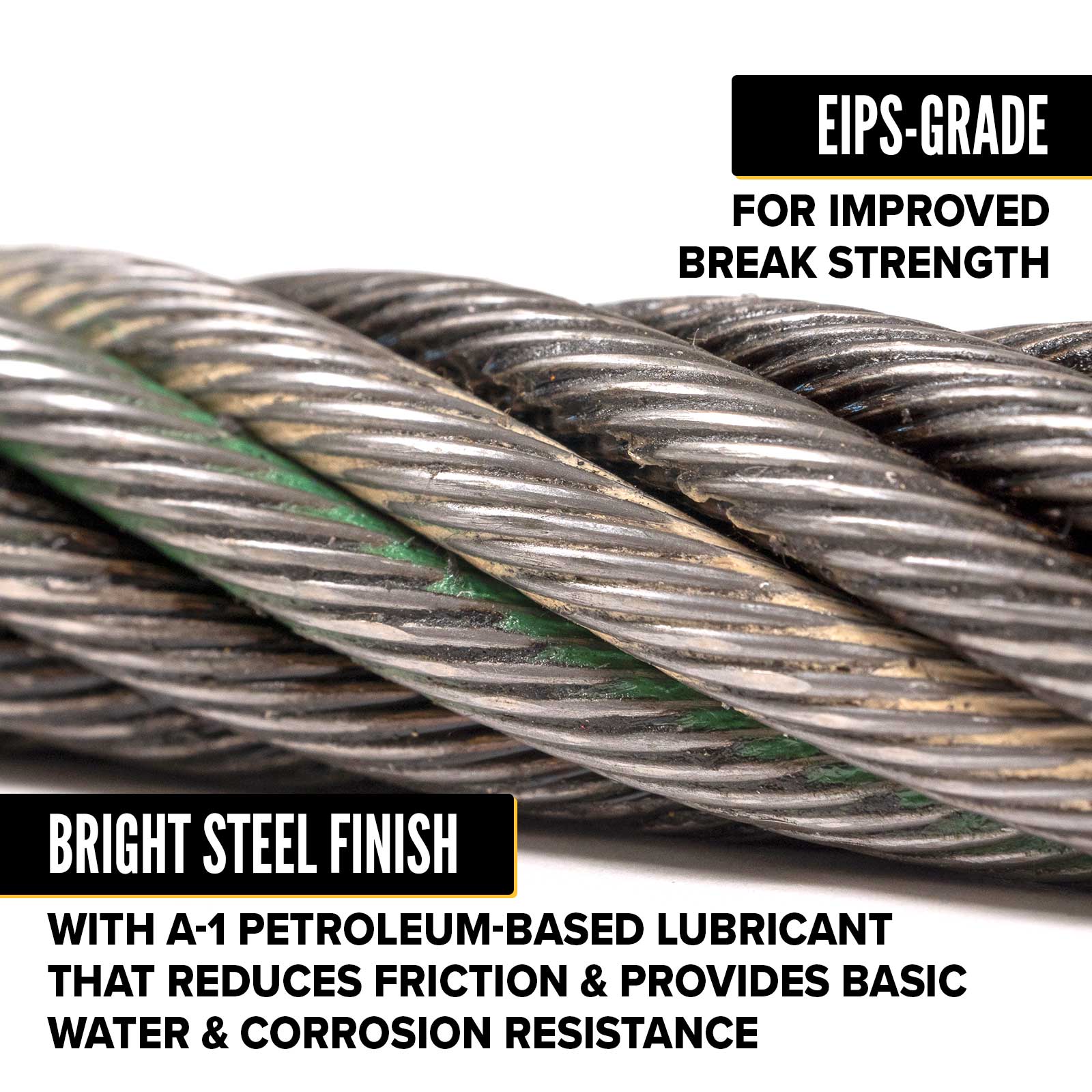

Bright Finish & IWRC Construction

This wire rope features a bright steel finish protected with an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic resistance against moisture and corrosion.

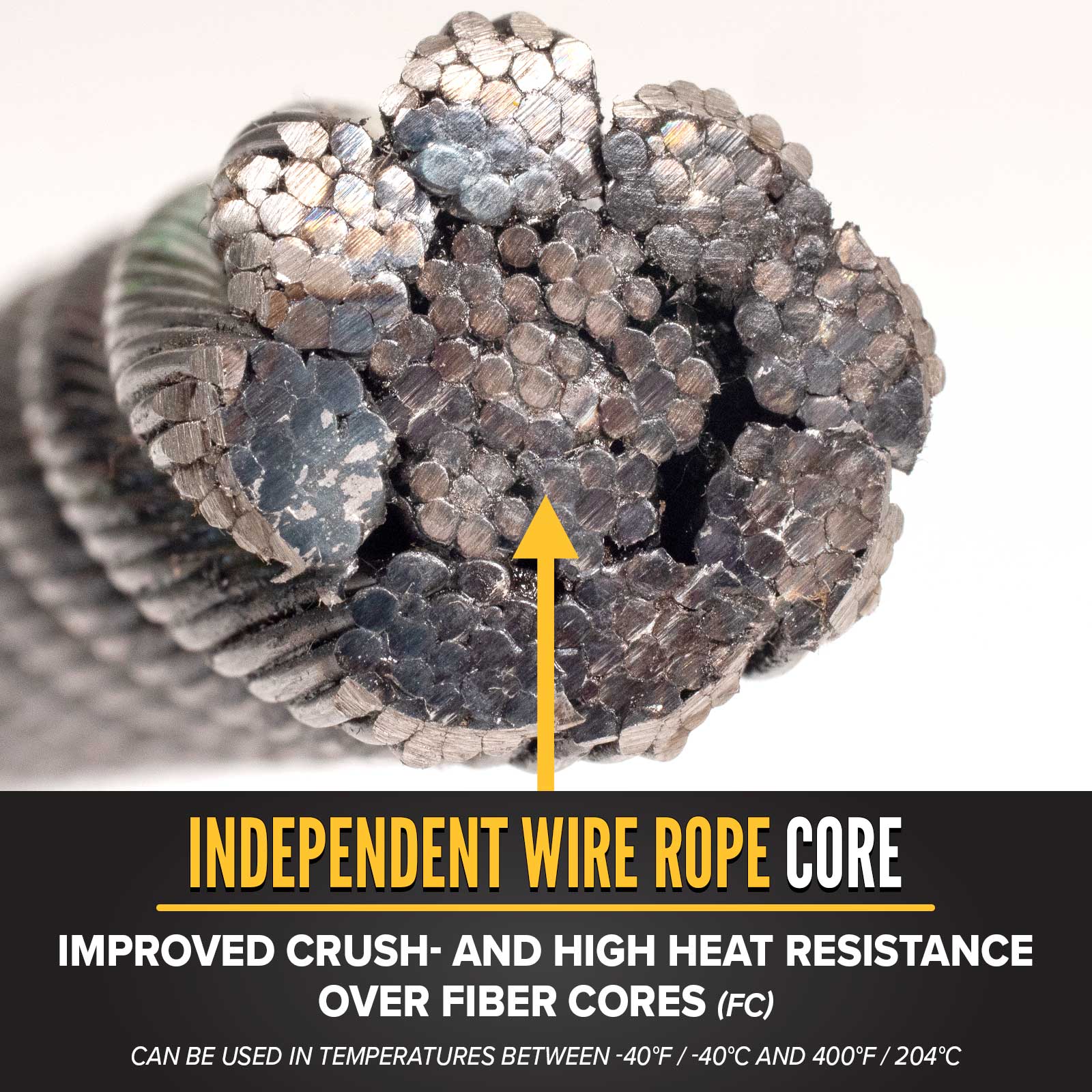

The Independent Wire Rope Core (IWRC) provides greater structural support than fiber core constructions. IWRC wire rope offers enhanced crushing resistance, improved load stability, and dependable operation in temperatures ranging from -40°F to 400°F.

Key Features

  • EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
  • 8x19 spin-resistant construction helps reduce rope and load rotation
  • Actual rope construction supplied is 8x25
  • Category 3 rotation-resistant wire rope design
  • Ideal for hoisting unguided loads using single-part or multi-part lines
  • Bright finish with A-1 lubricant reduces friction and internal wear
  • Lubricant applied to internal and external wires for added protection
  • IWRC core improves crushing resistance and load support
  • More durable than many Category 2 rotation-resistant rope constructions
  • Temperature range from -40°F to 400°F
  • Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
  • Should not be used with a swivel
  • Imported from a vetted supplier
  • Certificate of Conformity available upon request

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.

View Product Safety Warnings

California Residents: WARNING

Specifications

Assembly Break Strength: 39.8 tons / 79,600 lbs.
Rated For Overhead Lifting: Yes
Grade: EIPS
Wire Rope Diameter: 7/8"
Length: 2,500'
Wire Rope Class: 8x19
Core: IWRC
Finish: Bright
Item Weight: 3,600 lbs.
Weight Per Foot: 1.44 lbs.
Standards: Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023
Shipping and Returns: This item ships LTL; learn more. This item cannot be returned due to safety risks associated with used materials.
Additional Info: Category 3 Rotation-Resistant Rope
Right Hand Regular Lay
