SKU: FS-5529-E/G

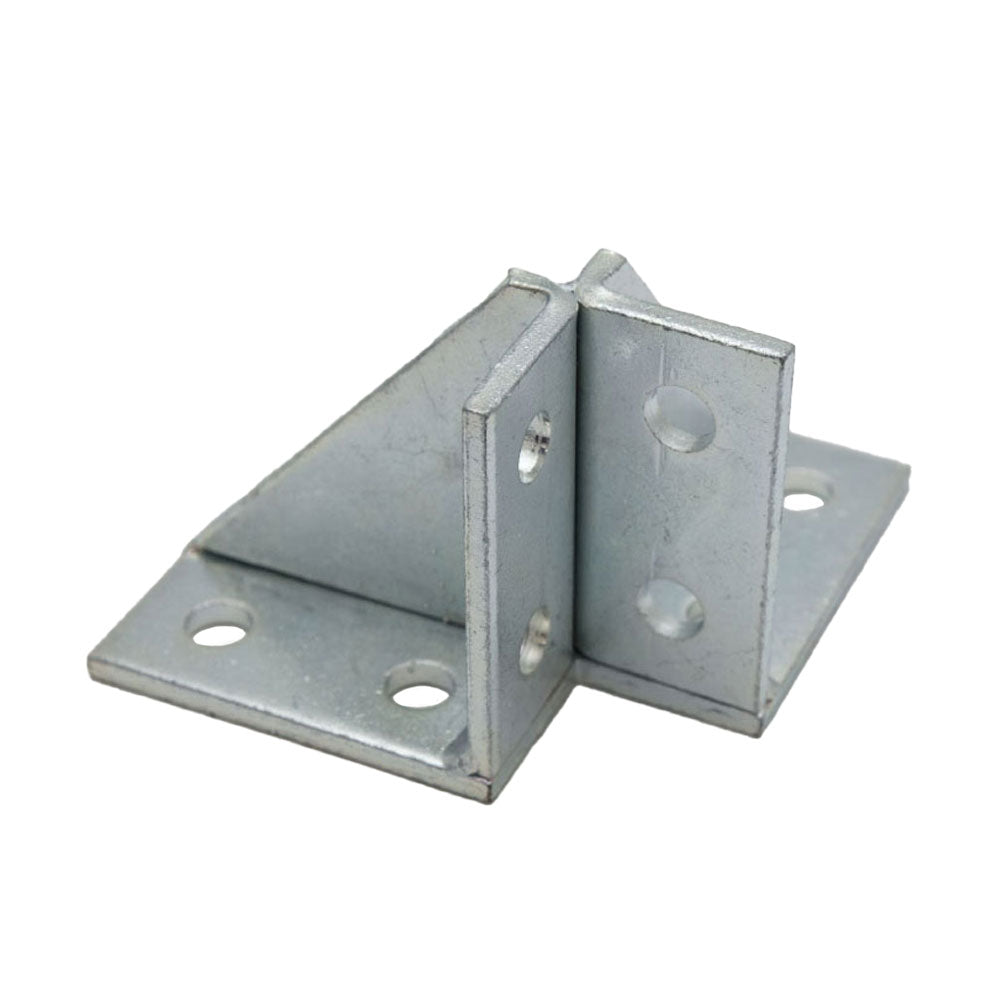

8 Hole 2-Way Channel Connector - Electro-Galvanized

8 Hole 2-Way Channel Connector - Electro-Galvanized!

  • Flexstrut FS-5529 2-Way Channel Connector Drawing
  • Flexstrut FS-5529 2-Way Channel Connector Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 5

Continue Browsing

Wing Fittings
SKU: FS-5529-E/G

8 Hole 2-Way Channel Connector - Electro-Galvanized

$39.99

Request Bulk Pricing
min. order qty: 3
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-galvanized
Material: Carbon Steel
Finish Specification: ASTM B633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 GR33
Thickness: 1/4"
Width: 1-5/8"
Description

8 Hole 2-Way Channel Connector - Electro-Galvanized allows channels to be connected perpendicularly and can be used to create joints along a vertical piece of strut. 8-Hole 2 Way Gusset Wing Fittings allow for 2 arms to be created from the corner wing fitting. The Corner Fittings have 9/16" punched holes and should be used with like metals. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

More
View full details

Continue Browsing

Wing Fittings

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
