SKU: LCH1.620-ATLAS

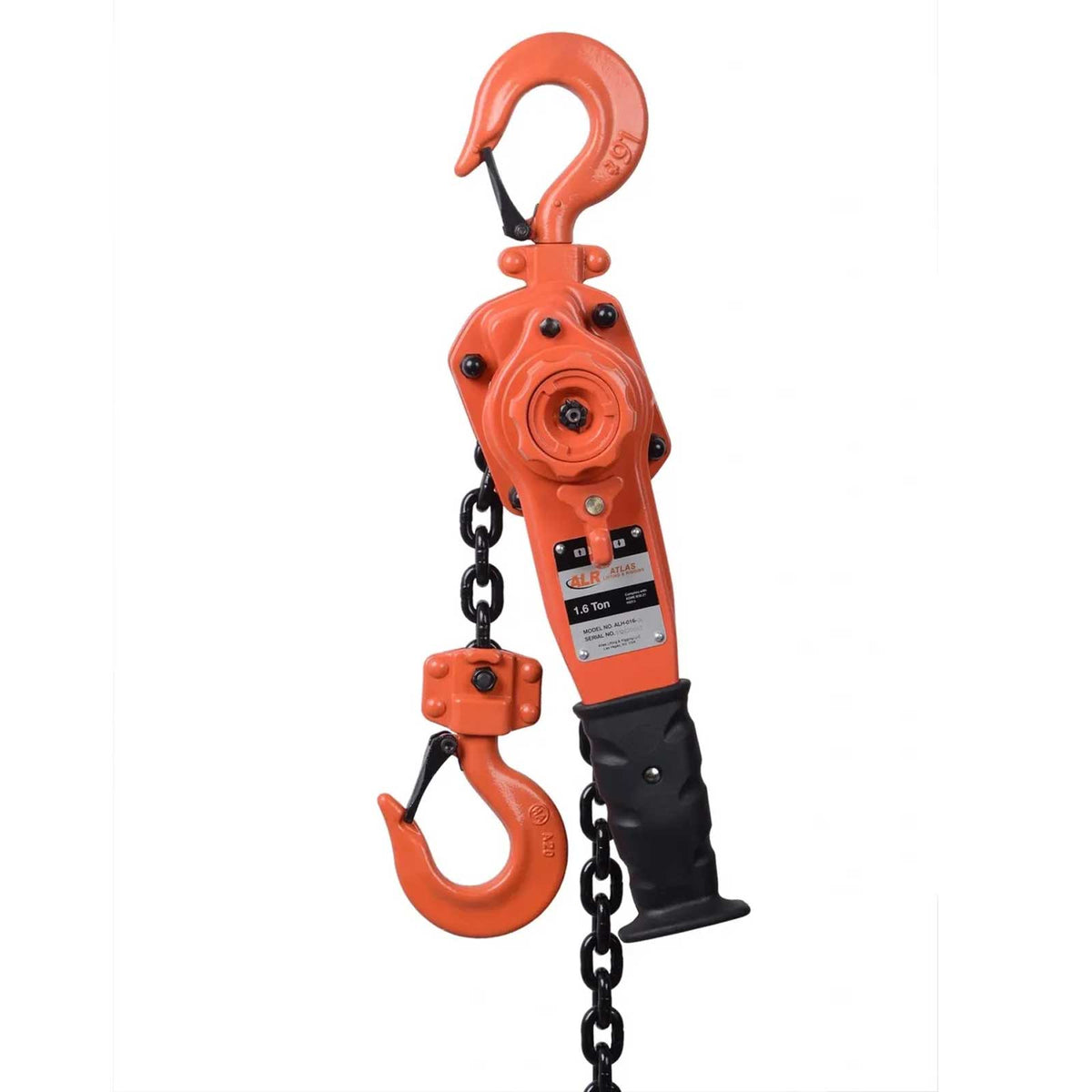

Atlas Lever Chain Hoist | 1.6 Ton x 20' Lift

Regular price $69900
Ships FREE Nov 20 when you order now

Description

The Atlas lever chain hoist is built as a premium ratchet chain hoist for utility crews, riggers, welders, and mechanical contractors who need durability, control, and value in the shop or the field. Its ratcheting lever handle gives precise control for lifting, pulling, tensioning, and positioning in tight or rugged spaces.

Key Features

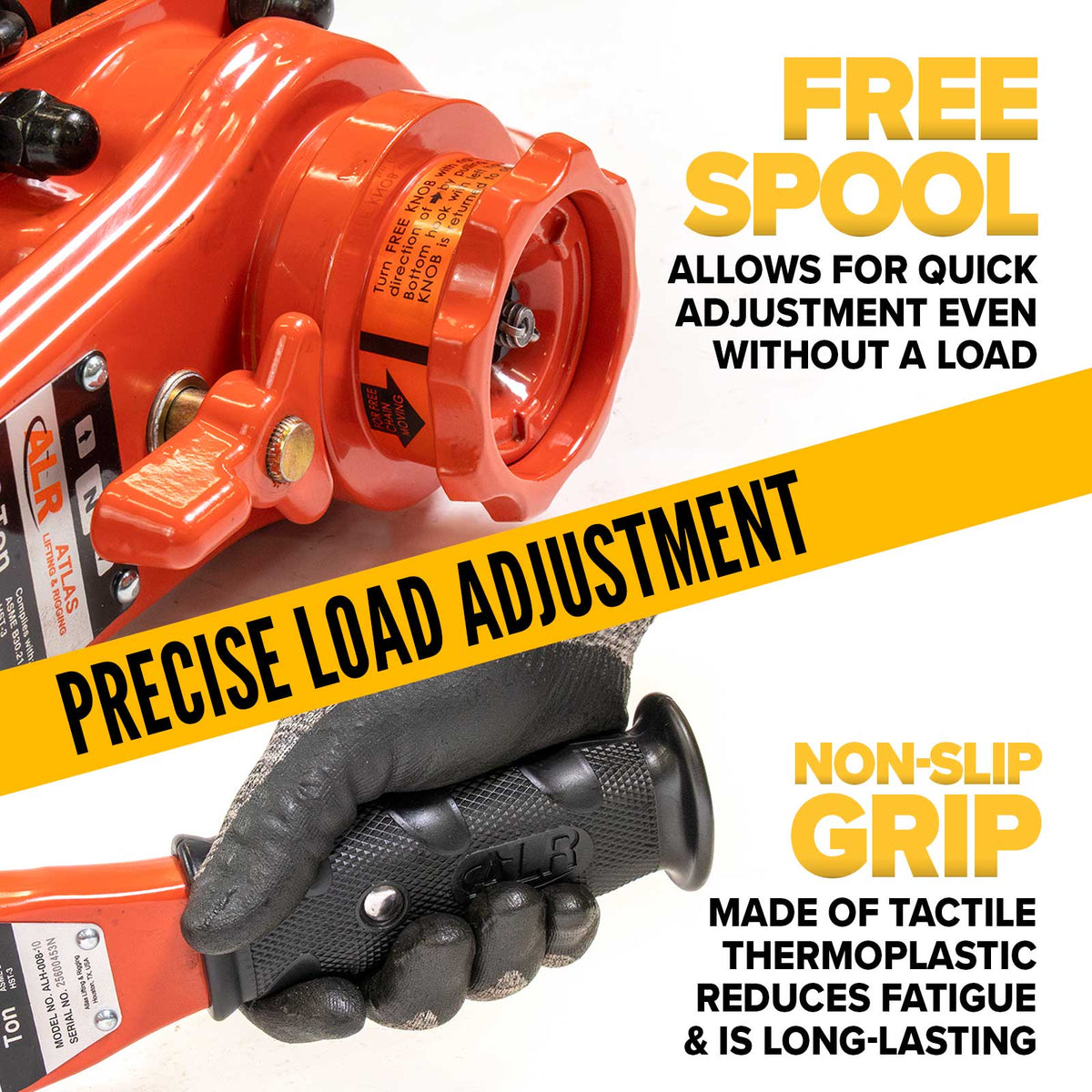

  • Quick-adjust free spool mechanism, sintered braking system, and ergonomic grip provide more control with less operator fatigue.
  • Reinforced alloy steel side plates, sealed bearings, and drop-forged components support long-term reliability.

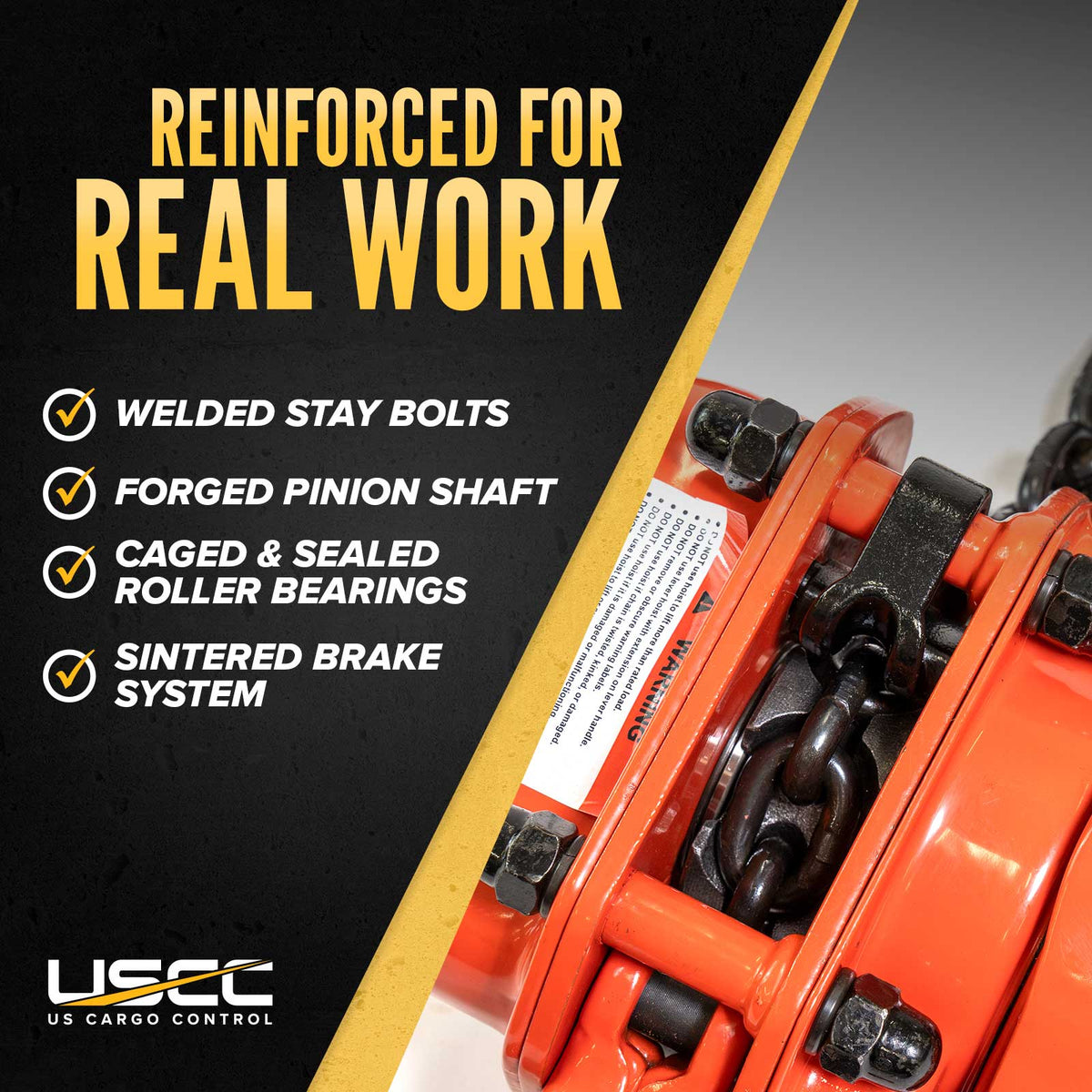

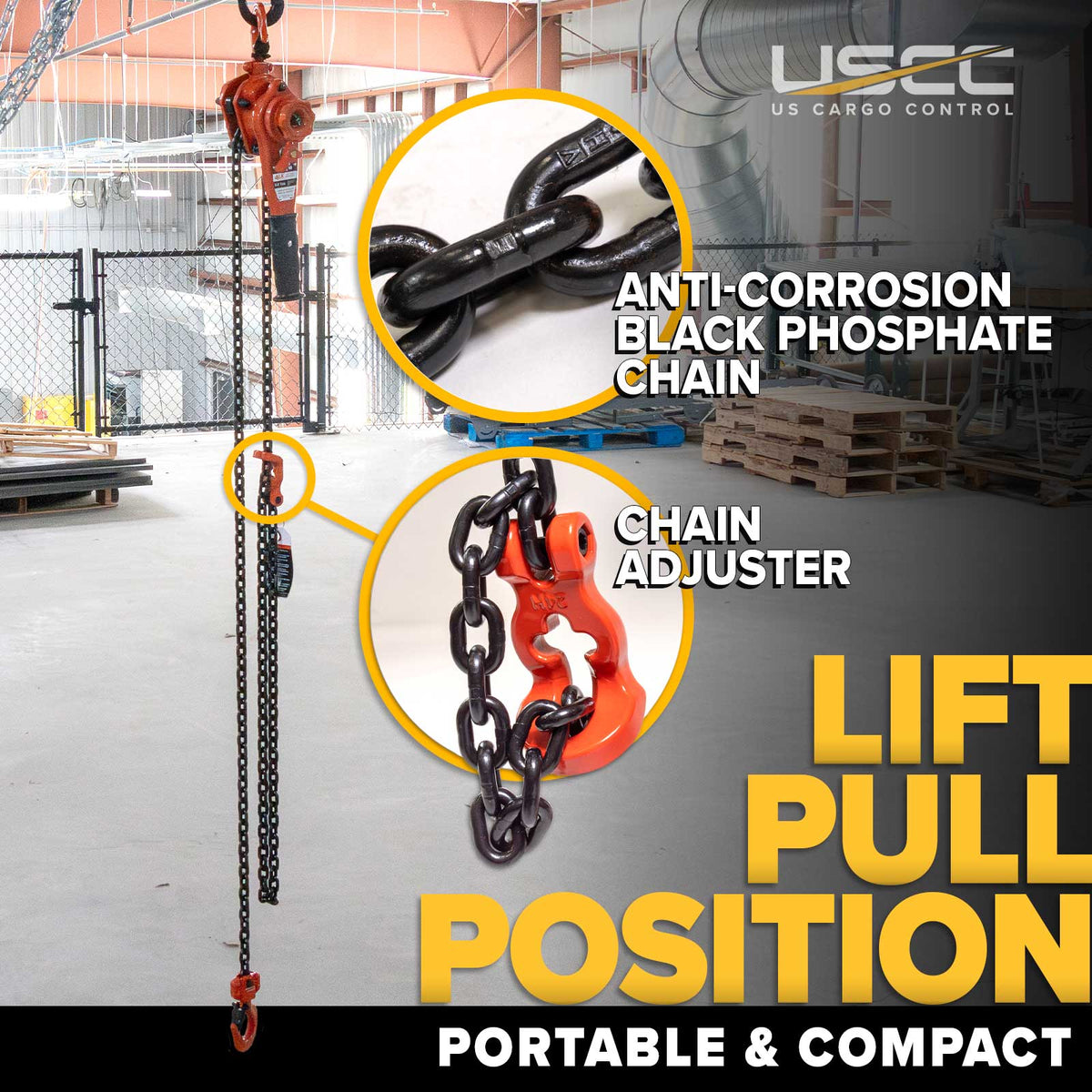

  • Welded stay bolts, forged shafts, and heavy-duty black phosphate chain rated 20% stronger than standard Grade 80.

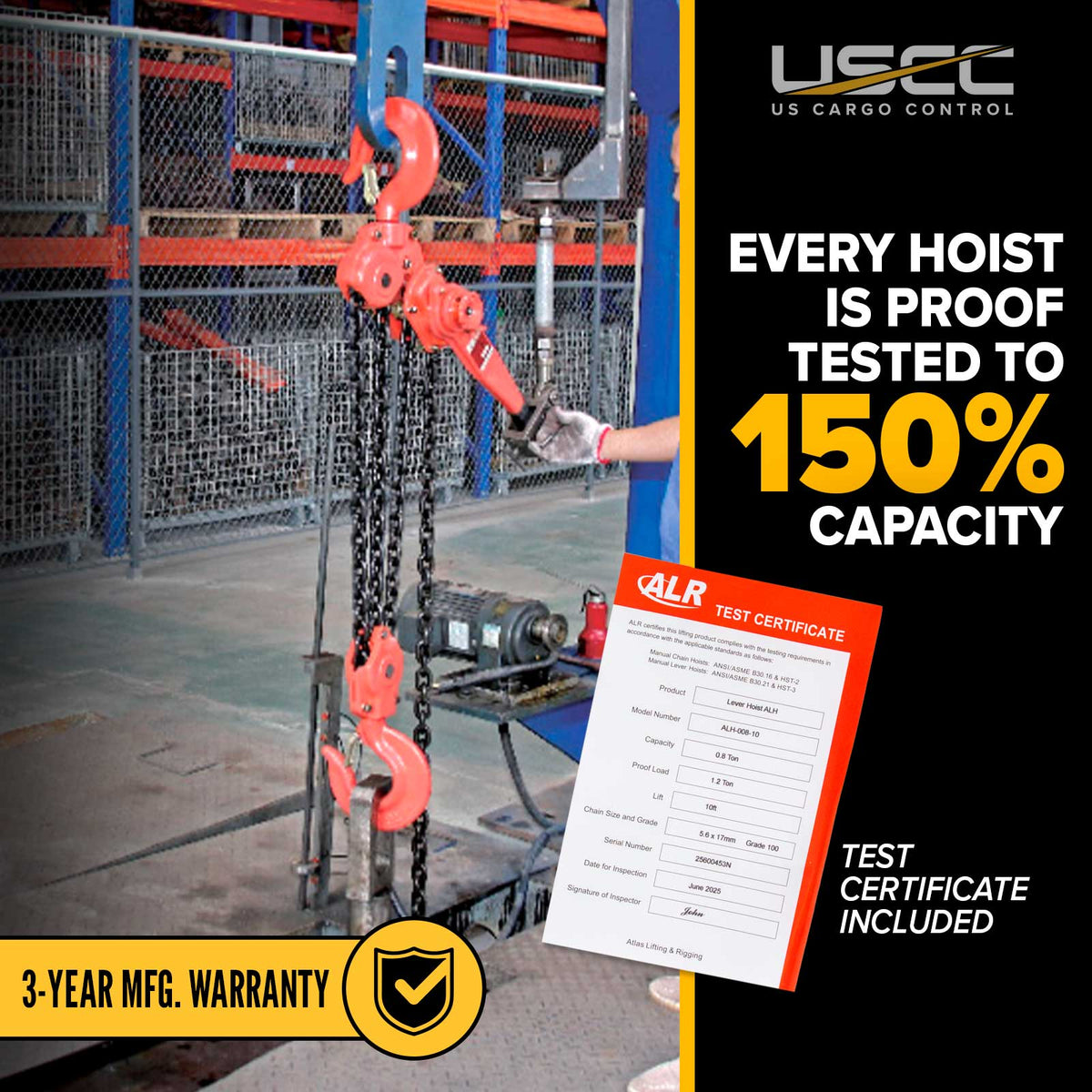

  • Proof-tested to 150% of rated capacity, with forged-in ID marks and serialized test certification meeting ISO standards.
  • Backed by a 3-year warranty; custom configurations available.

Applications

  • Serious field and shop work across utility, rigging, welding, and mechanical contracting.
  • Vertical and horizontal lifting jobs that call for premium-tier construction.
  • Crews that want traceable, ISO-standard certification on every unit.

View Product Safety Warnings

Specifications

Working Load Limit (lbs.): 3,527
Rated For Overhead Lifting: Yes
Grade: Grade 80 alloy chain
Length: 20'
End Fitting: Removable safety latch hook
Material: Steel
Finish: Powder-coated
Color: Orange
Includes Load Limiter: No
Item Weight: 30.05 lbs.
Standards: Meets or exceeds all requirements of ANSI/ASME B30.21 and ASME HST-3
Manufacturer Name: Atlas Lifting & Rigging
Manufacturer Part Number: ALH-016-20
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
Additional Info: 3-year warranty
Number of Falls: 1
Pull to Rated Load: 339 N
WLL (tons): 1-3/5

Reviews (0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

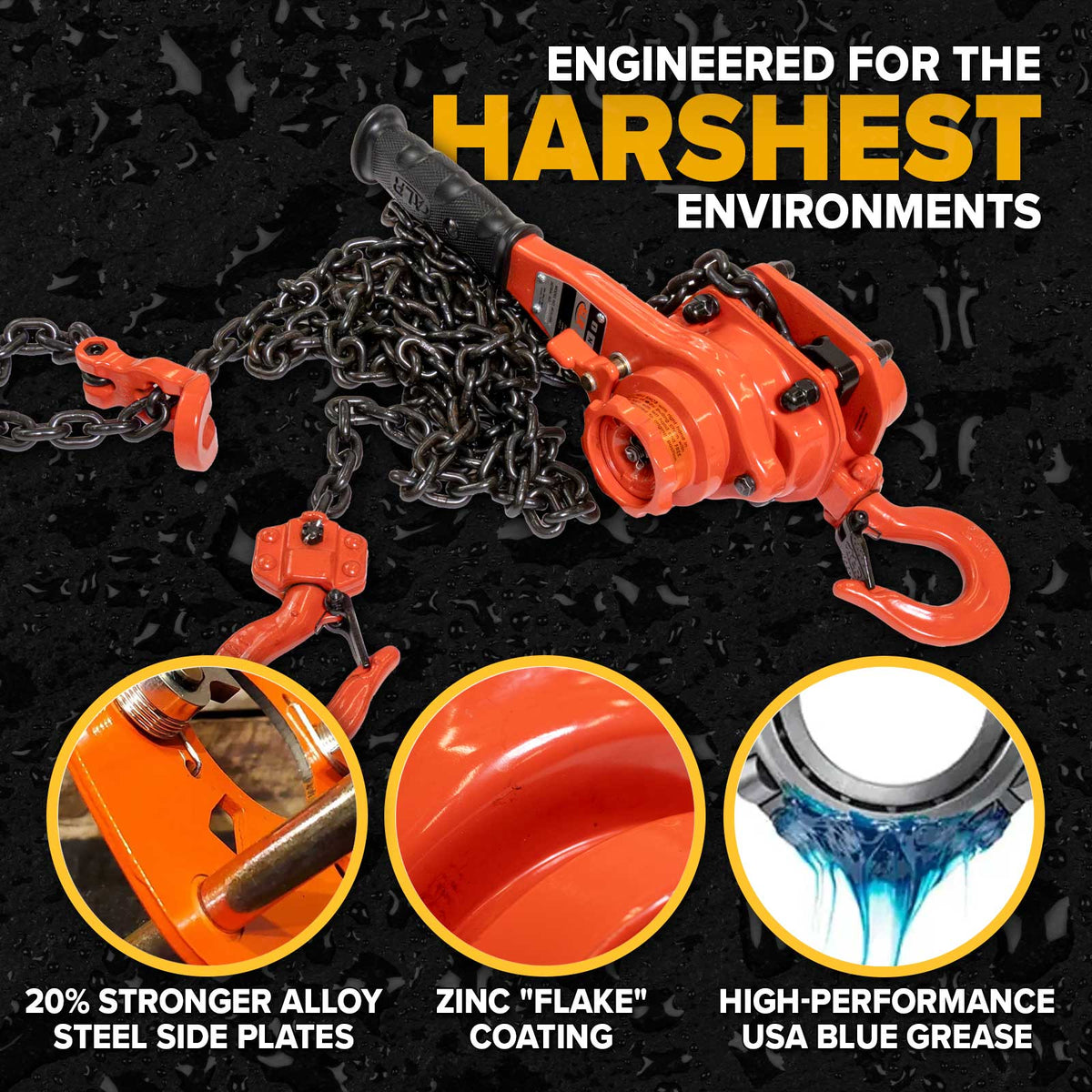

  • Engineered For The Harshest Environments

    Atlas hoists are built with reinforced alloy steel side plates, drop-forged pinion shafts, and proprietary hardened chain rated 20% stronger than standard Grade 80. Welded stay bolts, sealed roller bearings, and heavy-duty hooks round out the construction, adding durability and lift capacity. Every part is engineered for structural strength, built to hold up in demanding jobsite conditions.

  • 100% Tested. 0% Compromise.

    Consistent, long-lasting performance comes from precision CNC machining, in-house chain production, and advanced heat-treating. Every hoist is proof-loaded to 150% of its rated capacity and 100% tested, with zinc flake coatings and premium blue grease protecting against corrosion and wear. Together, these features reduce maintenance needs and help extend service life.

  • Engineered For Safety. Built For Peace Of Mind.

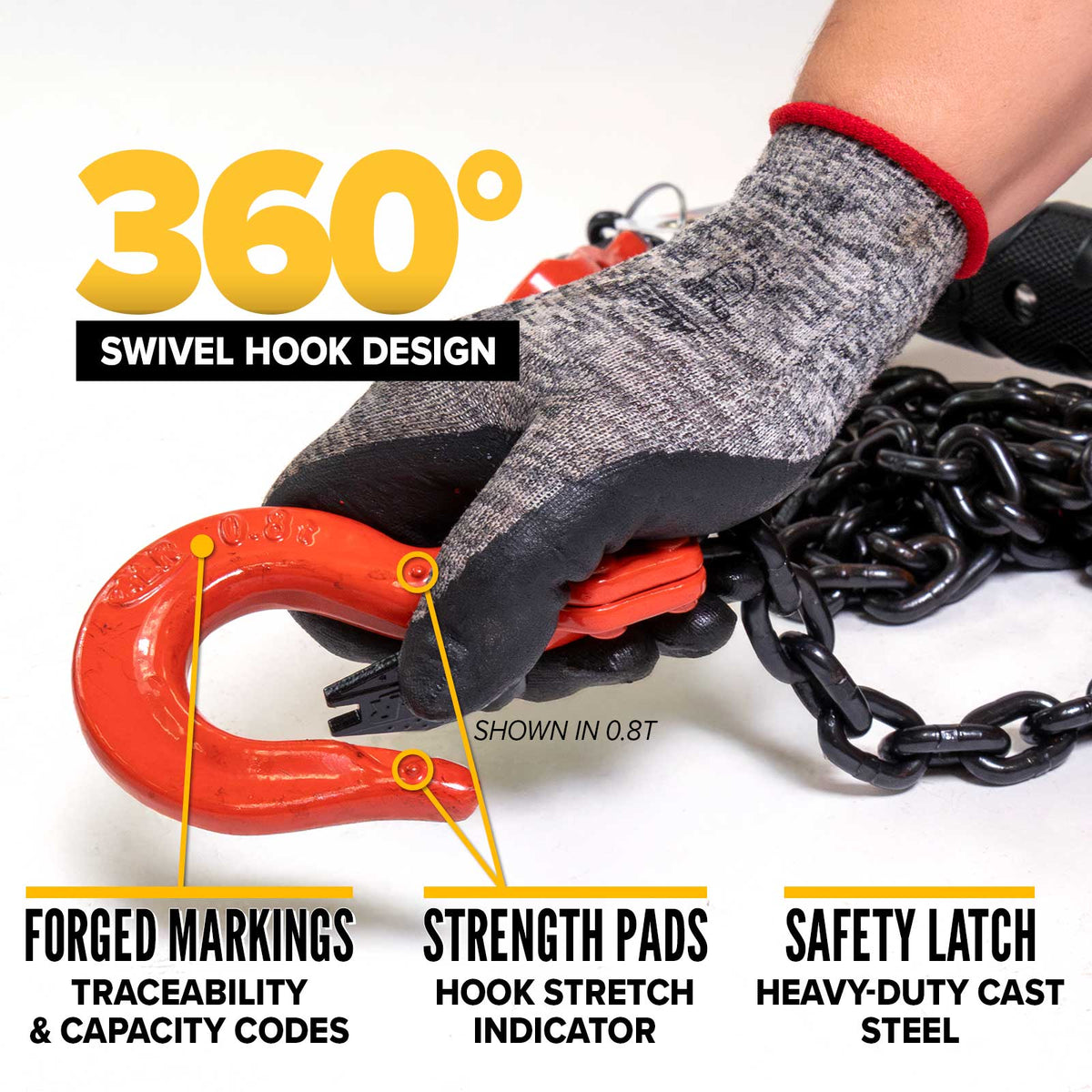

    Atlas hoists are engineered with safety innovations, built for confidence in every lift. Sintered braking systems, ergonomic controls, and heavy-duty safety latches help prevent accidental slippage, while traceable hook markings and strength pads monitor wear and alert users to risks.
