SKU: eAK-4

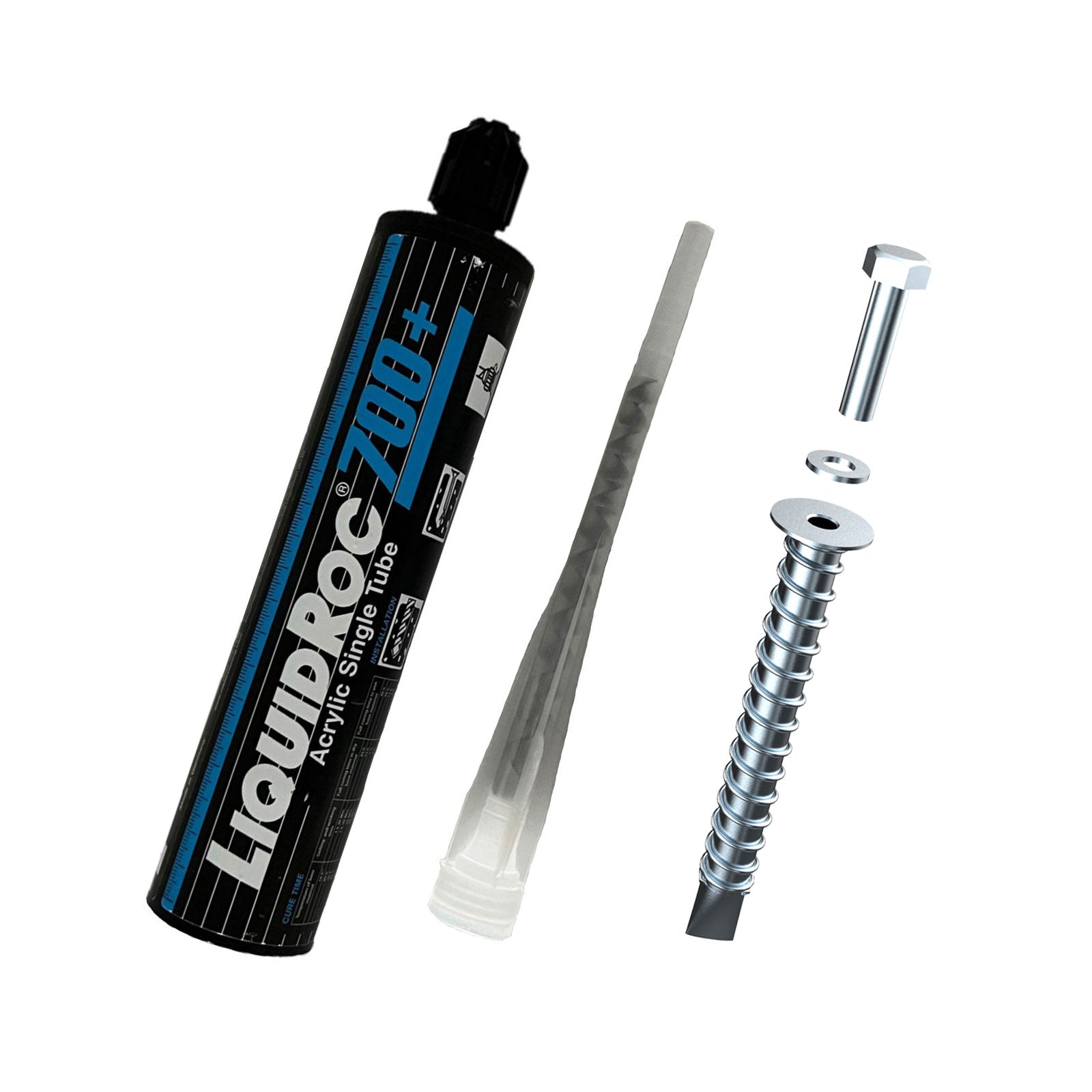

Bolthold eAK4 Asphalt Anchor Kit w/ 4 SP10 & Epoxy Grout

Bolthold eAK4 Asphalt Anchor Kit w/ 4 SP10 & Epoxy Grout

Regular price $70.00
Sale price $70.00 Regular price
0% off
shipping truck, lead time icon
Ships Apr 17 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Bolthold eAK-4 kit provides you with the correct amount of anchors and grout for securing anchors into asphalt. The included SP10-38 anchors are ideal for anchoring bike racks, signs, machinery, and more into asphalt surfaces. The SP10-38 asphalt anchor requires a 7/8" hole that is 6" deep. The length of the bolt inside the anchor should not exceed 3". Each anchor is pre-installed with a 1" long hex bolt and a 1" diameter washer.

You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.

Asphalt Anchor Features:

  • Asphalt Anchors are mounted flush with the surface.
  • A 1.4" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
  • The attached objects can be easily removed without leaving protrusions on the surface.

Kit Includes:

For step-by-step instructions on how to properly install asphalt anchors with grout, see product guide document listed in the specifications tab.

Specifications:


Thread type: 3/8"-16 UNC Coarse Female Thread
Head diameter: 1.35"
Diameter: 5/8"
Length: 6"
Manufacturer name: Bolthold Asphalt Anchors
Torque: 200 lb.-in.
Additional information: Shear Resistance: 1000 lbs.
Pull Force: 1500 lbs.
Product Guide: View Spec Sheet
