Bolthold SP58-58 Asphalt Anchor, Zinc Plated, 6 Pkg
Bolthold SP58-58 Asphalt Anchor, Zinc Plated, 6 Pkg
Description:
Description:
Notice: Do not install anchors with tile grout. Bolthold anchors must be installed with the specified EPX2 or EPX3 special grout.

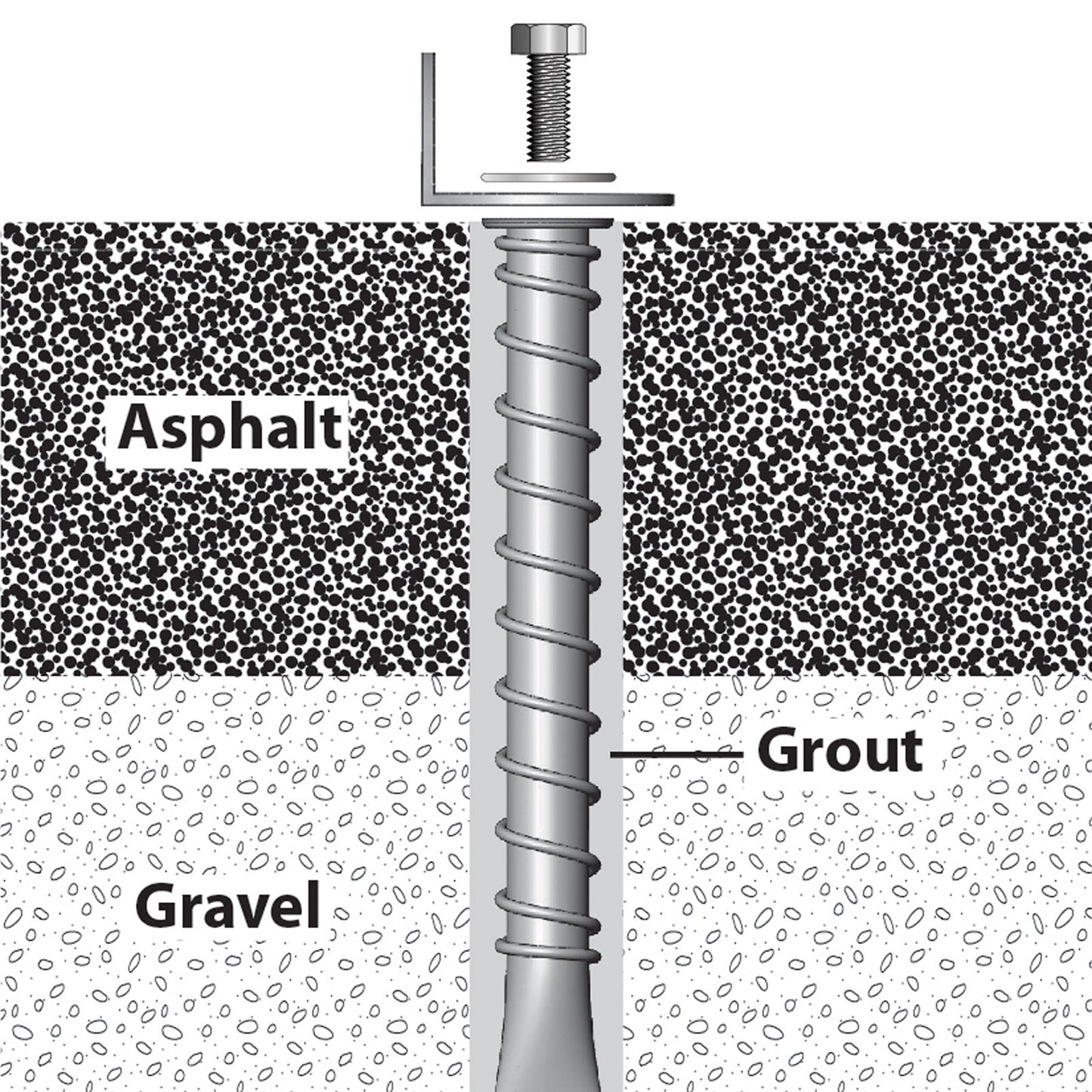

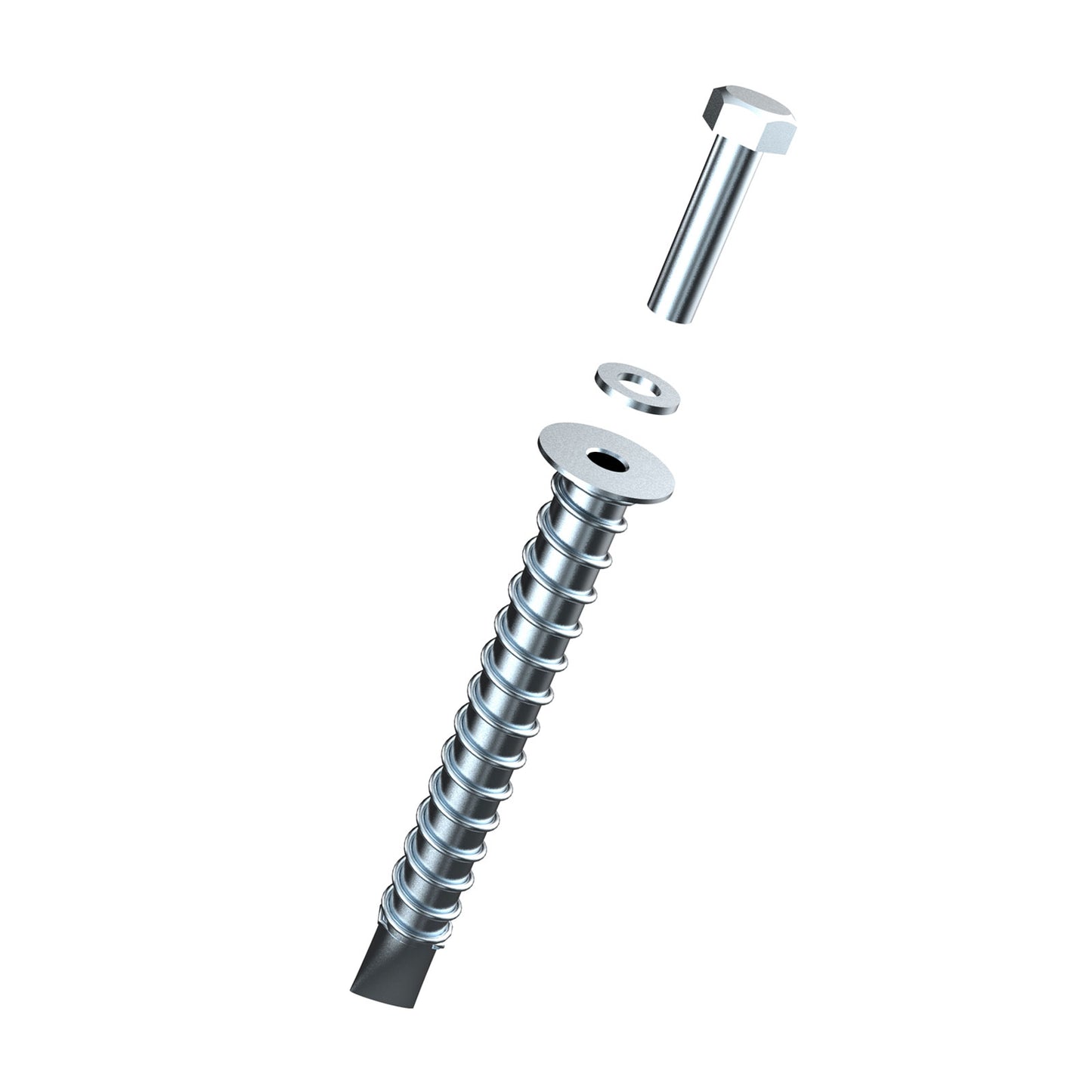

Bolthold SP58-58 Asphalt Anchors are heavy-duty anchors skillfully designed for asphalt applications. This 10" asphalt anchor bolt is great for mounting tents, speed bumps and curbs directly to asphalt surfaces. This anchor requires a 1.5" hole that is 10" deep, and the use of grout to secure it into the asphalt. The thread inside the anchor should not exceed 4". Each anchor is pre-installed with a bolt and a washer.
You can load the anchors at 80% of their pull rating if the object/structure stands solidly by itself. If the object applies a static pull force on the anchors just as it stands, limit the load to 20% of the pull rating.
Features:
- Anchors are mounted flush with the surface.
- A 2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
- The attached objects can be easily removed without leaving protrusions on the surface.
Required Grout:
Listed below are the approximate amounts of grout required to install one six-pack of SP58-58 asphalt anchors.
- Two six-packs of EPX2 grout. (12 oz. bags) - Each Bag Of EPX2 grout installs (0.5) SP58-58 Anchor.
- One EPX2 tub of grout. (10 lb. tub) - Each Tub Of EPX2 grout installs (10) SP58-58 Anchors.
- Six EPX3 cartridges of grout. (10 oz. tube) - Each Tube Of EPX3 grout installs (1) SP58-58 Anchor.
Specifications:
Specifications:
Thread type: 5/8"-11 UNC Coarse Female Thread
Head diameter: 2"
Quantity: 6
Diameter: 1-1/4"
Length: 10"
Manufacturer name: Bolthold Asphalt anchors
Torque: 750 lb.-in.
Additional information: Shear Resistance: 2500 lbs.
Pull Force: 5000 lbs.
Product Guide: View Spec Sheet
Features
Features
-Anchors are mounted flush with the surface.
-A 2" header at the top of the anchor prevents the anchor from dropping below the surface and being pulled up into the mounting plate once the bolt is tightened.
-The attached objects can be easily removed without leaving protrusions on the surface.
