Specifications

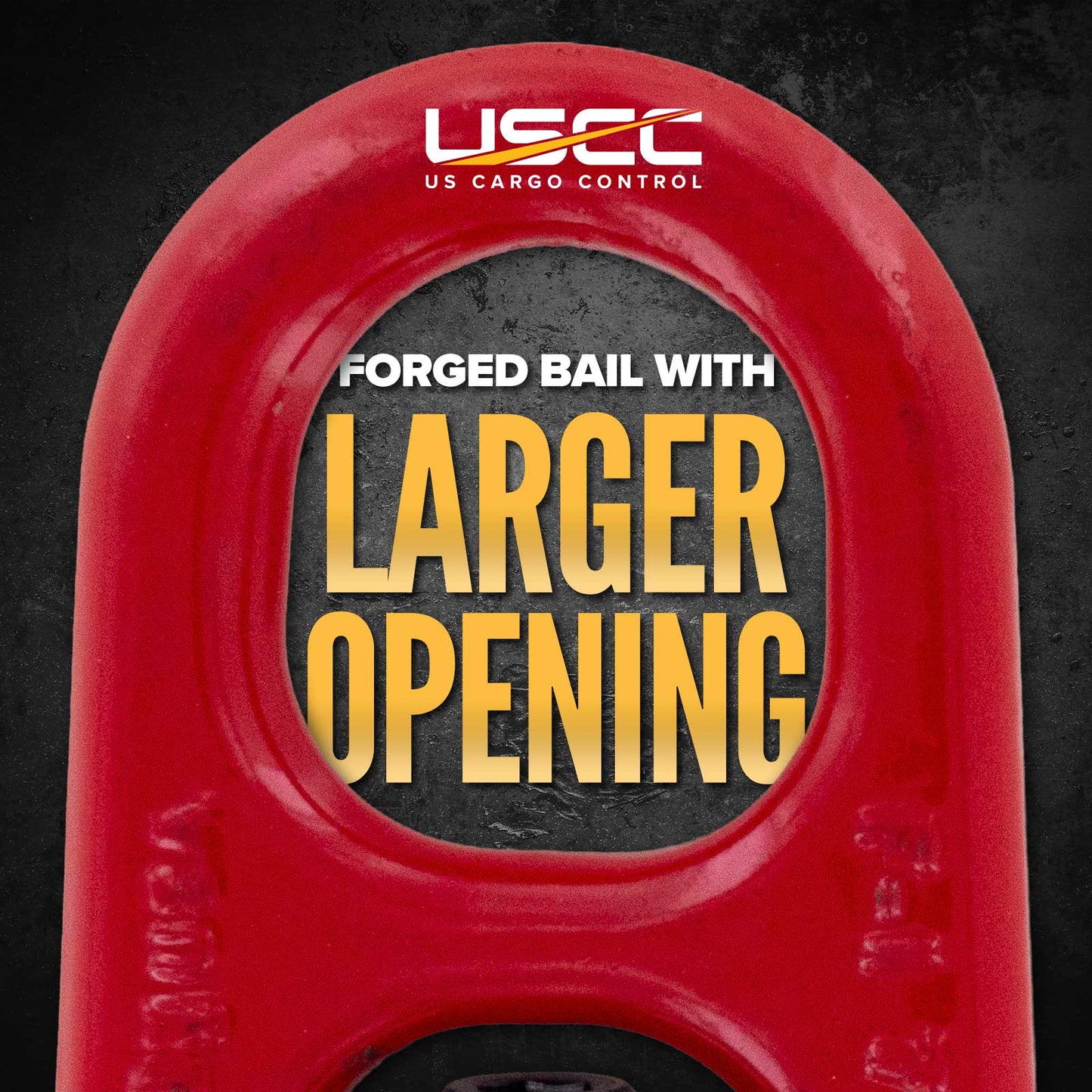

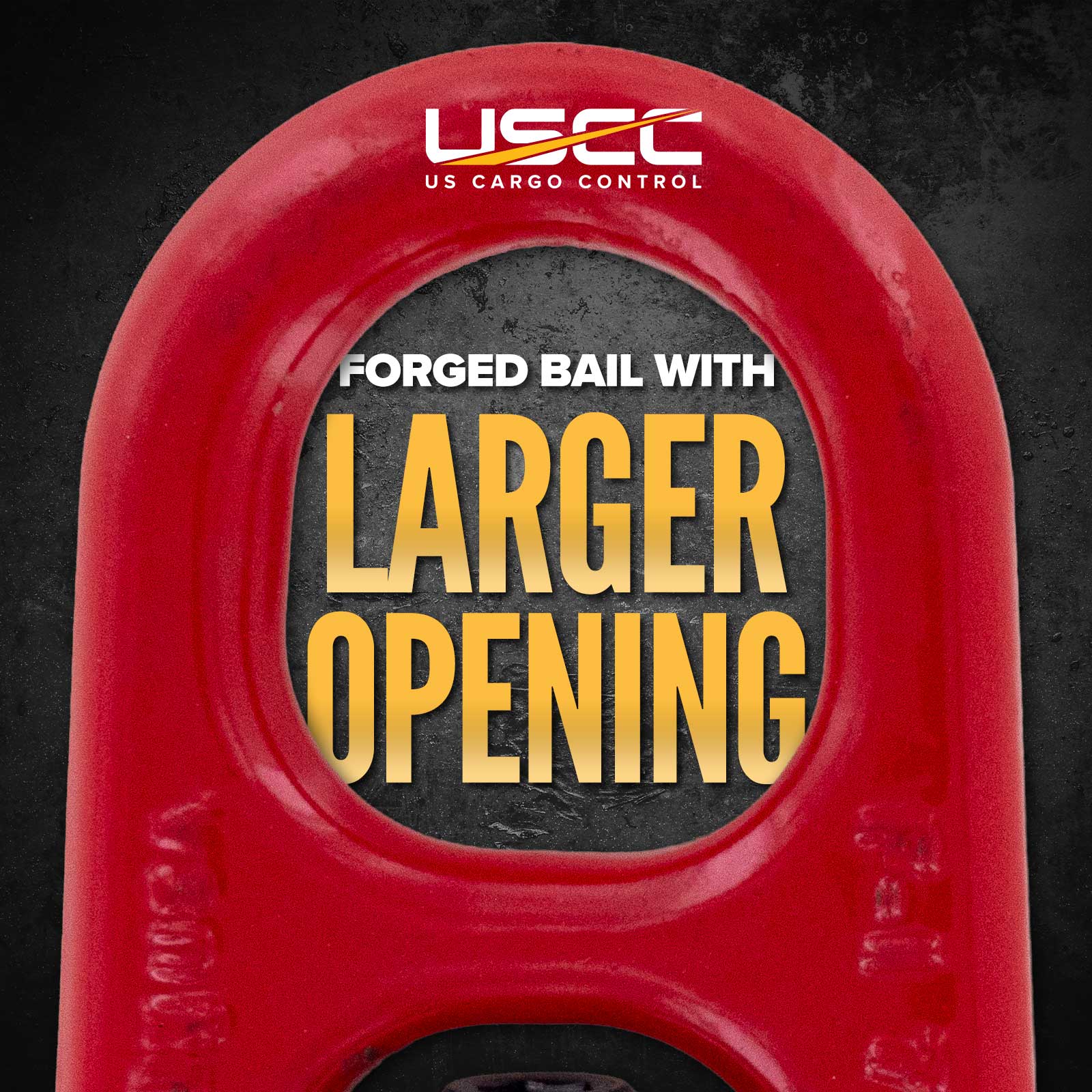

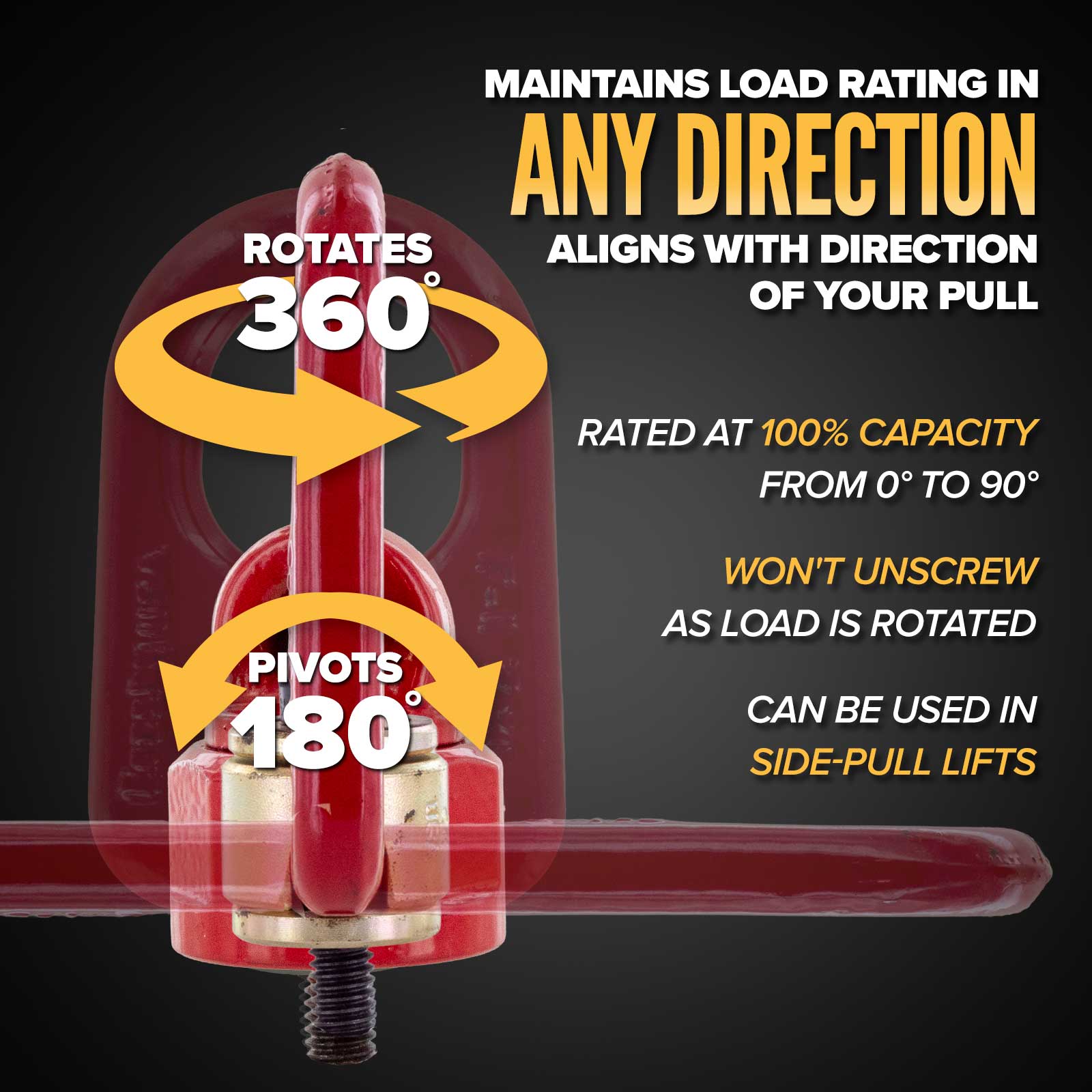

Heavy Lift Swivel Hoist Rings are built for superior durability, making them well-suited for demanding field environments. With a bail opening larger than that of standard hoist rings, attaching sling hooks or other lifting hardware is faster and more convenient. In contrast to standard eye bolts, which remain fixed, these hoist rings can pivot and swivel at the base, rotating smoothly with the movement of the load. The ring pivots up to 180°, while the base offers full 360° rotation via a swivel bushing, enabling lifts from any angle while maintaining alignment with the applied force for optimal capacity and safety.
The top washer is color-coded for quick recognition (Red = UNC threads), with the working load limit and recommended torque permanently stamped on each piece. Every heavy lift swivel hoist ring is proof tested to 2.5 times its listed Working Load Limit.

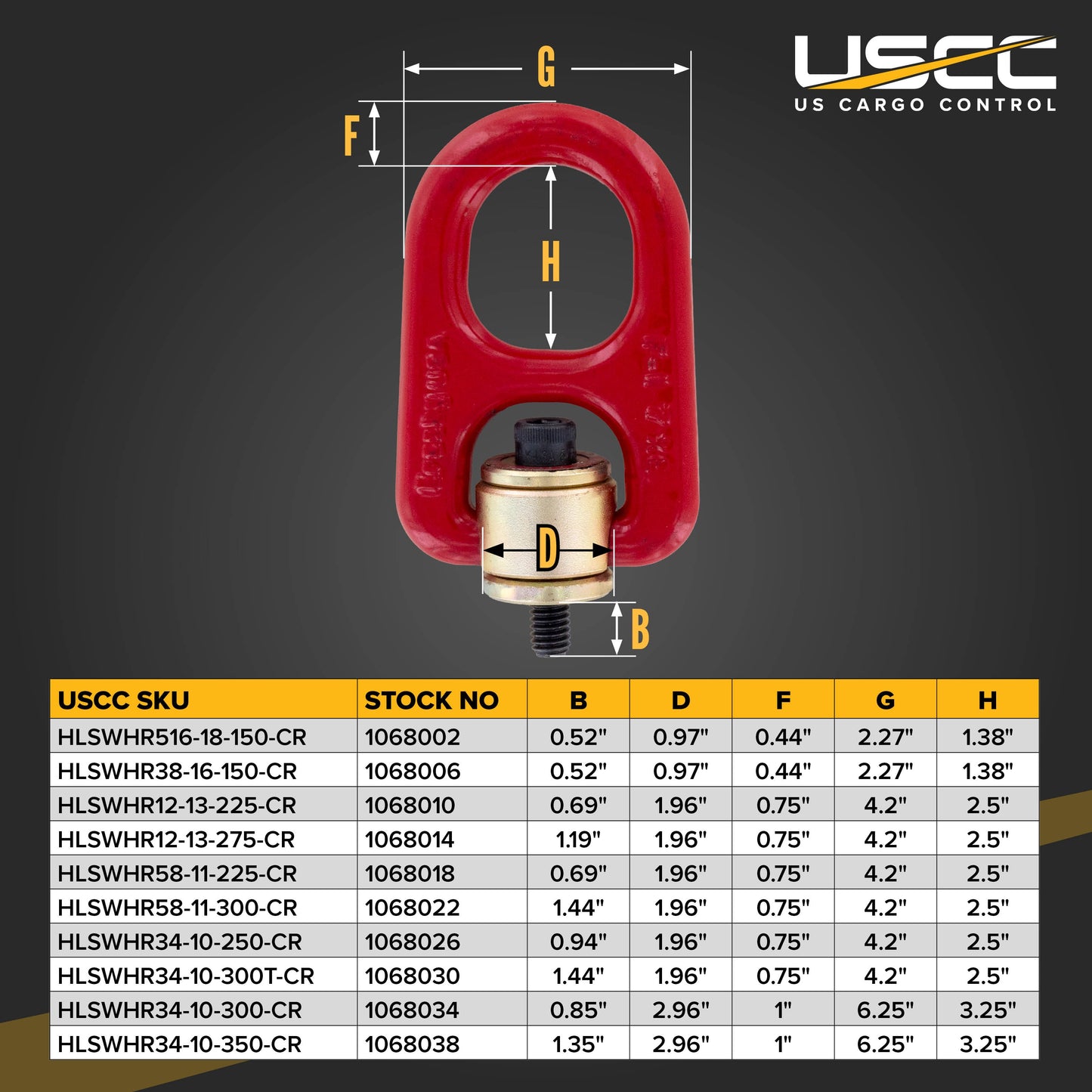

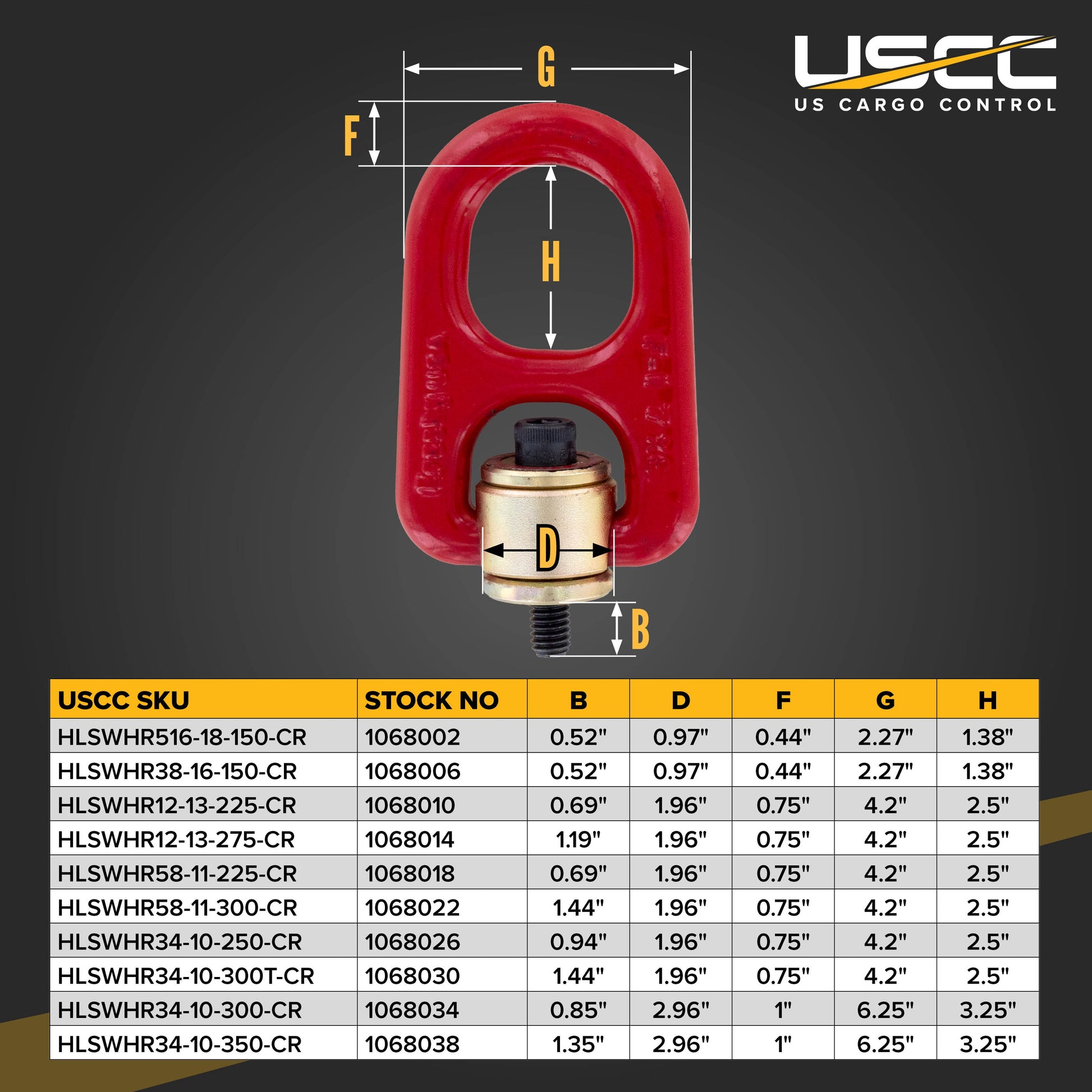

Bolt Size: 3/4" x 2-1/2" (other sizes available)
Working Load Limit: 5000 lbs.
California Residents: WARNING
⚠️Warning: Eye Bolts
Never exceed the maximum working load limit / load capacity. Doing so can result in product failure leading to injury or death.
When loading at angles, rated capacity is drastically reduced (for example, at 45 degrees, it's reduced to 1/4 of the original value).
The angle from the bolt centerline should never be greater than 45 degrees.
Always apply loads in the plane of the eye.
Ensure proper seating for shoulder lifting eyes before use, otherwise the working load limit will be reduced. If it does not bear firmly against the mating part, a steel washer or spacer may be required.
