SKU: GVSEB58X4-CR

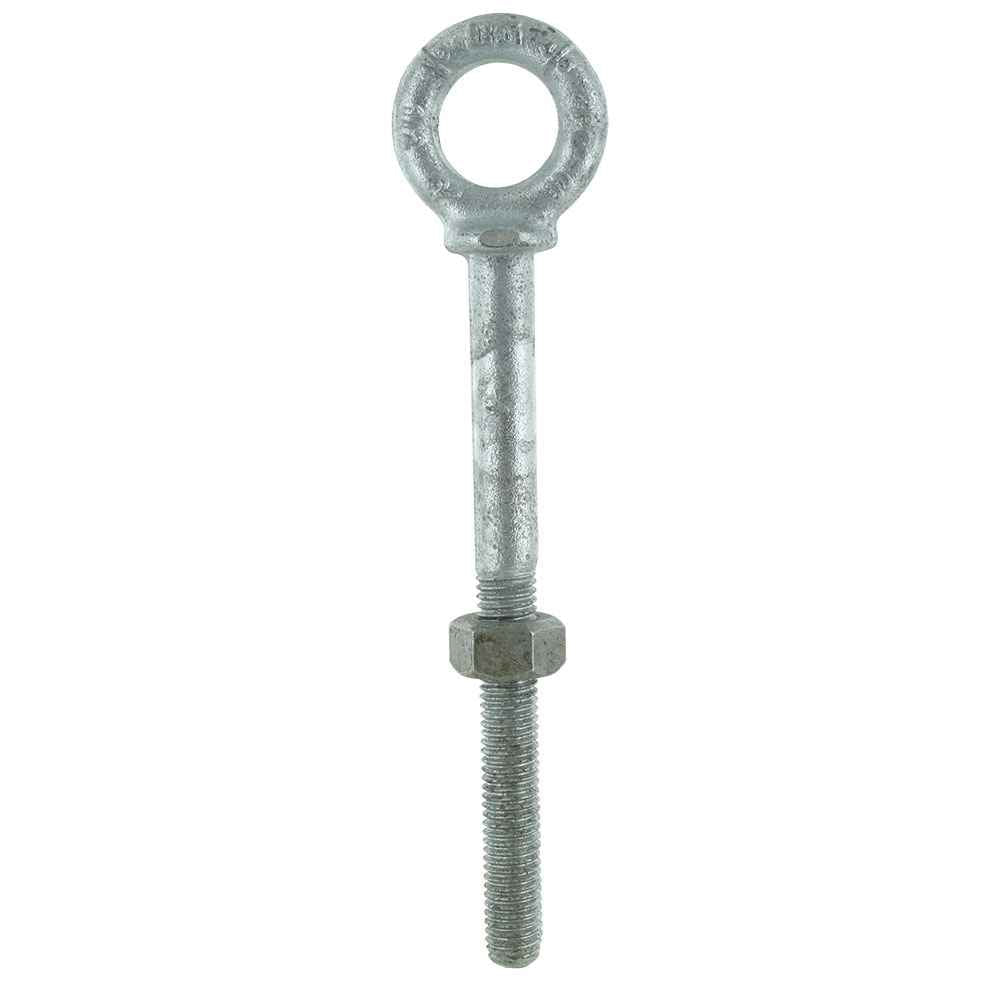

Crosby® 5/8" x 4" Galvanized Shoulder Eye Bolt - G-277

Made in USA

crosby logo

Shank Length

2-1/2" 3-1/4" 4" 4-1/2" 6" 8" 9" 12" 15"
Regular price $3875

Description

Crosby shoulder nut eye bolts are built for long-term strength and performance. Forged from durable steel, these bolts are quenched and tempered to boost resilience, and are fatigue-rated at 1.5 times the WLL through 20,000 cycles. They feature a safety design factor of 5:1.

The bolts and accompanying heavy hex nuts are hot-dip galvanized for added corrosion protection, and they meet or exceed the specifications outlined in ASME B30.26.

Note: The WLLs are for in-line pull only.

California Residents: WARNING

⚠️Warning: Eye Bolts

Never exceed the maximum working load limit / load capacity. Doing so can result in product failure leading to injury or death.

When loading at angles, rated capacity is drastically reduced (for example, at 45 degrees, it's reduced to 1/4 of the original value).

The angle from the bolt centerline should never be greater than 45 degrees.

Always apply loads in the plane of the eye.

Ensure proper seating for shoulder lifting eyes before use, otherwise the working load limit will be reduced. If it does not bear firmly against the mating part, a steel washer or spacer may be required.

Specifications

Working Load Limit (lbs.): 5,200
Safety Factor: 5:1
Diameter: 5/8"
Shank Length: 4"
Material: Steel
Finish: Galvanized
Item Weight: .69 lbs.
Standards: Meets or exceeds ASTM F541 & ASME B30.26 requirements.
Manufacturer Name: Crosby®
Manufacturer Part Number: 1045176
Shipping and Returns: This item cannot be returned due to safety risks associated with used materials.
