SKU: FS-6424-E/G

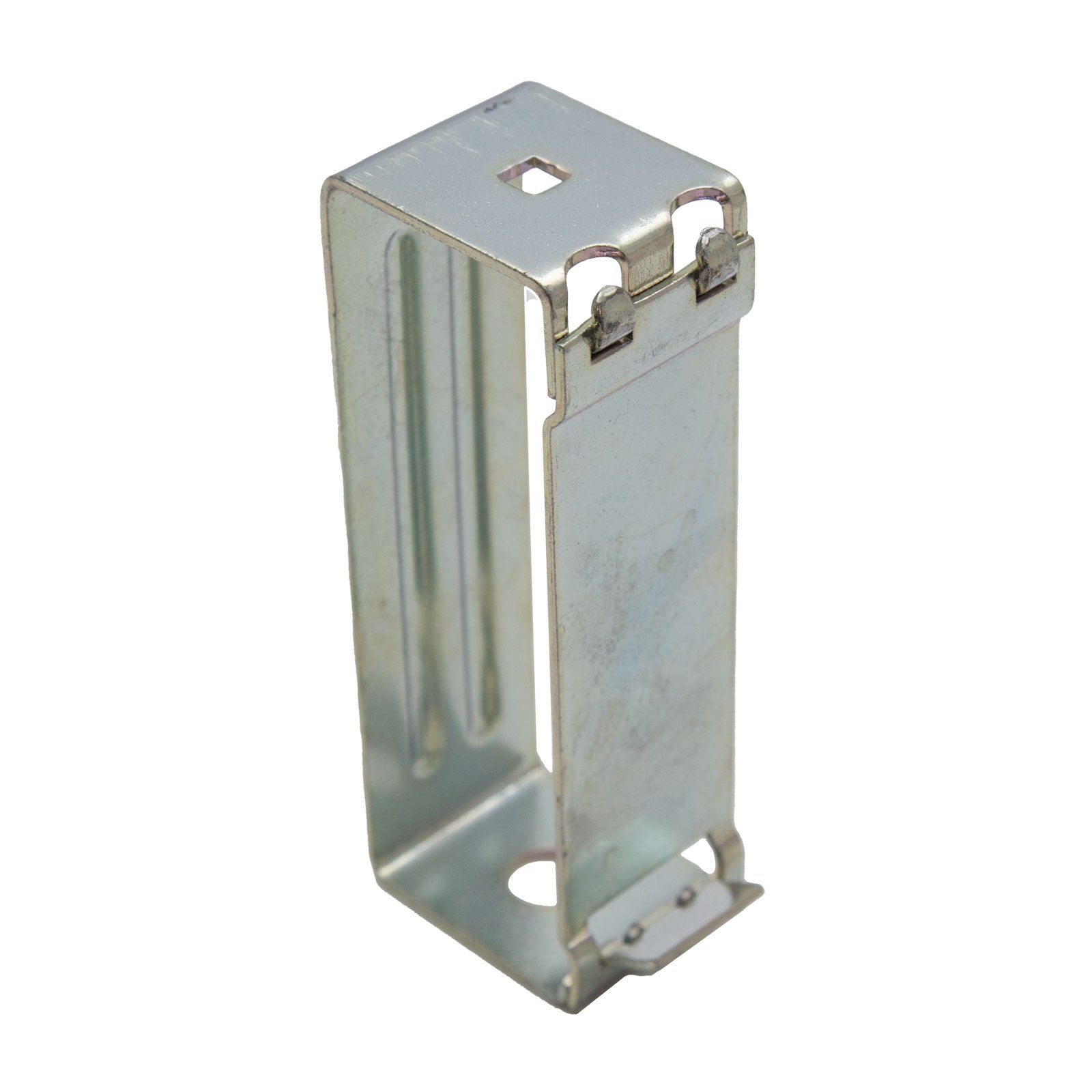

Deep Channel Hanger - Electro-Galvanized
Deep Channel Hanger - Electro-Galvanized
No reviews
Regular price
$7.01
Sale price
$7.01
Regular price
Unit price
/
per
0% off
min. order qty: 15
Payment methods
Accepted payments:
Please call (888) 794-1590 for custom quantities.
Ships in 7-14 business days.
Ships in 7-14 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.
Description:
Description:

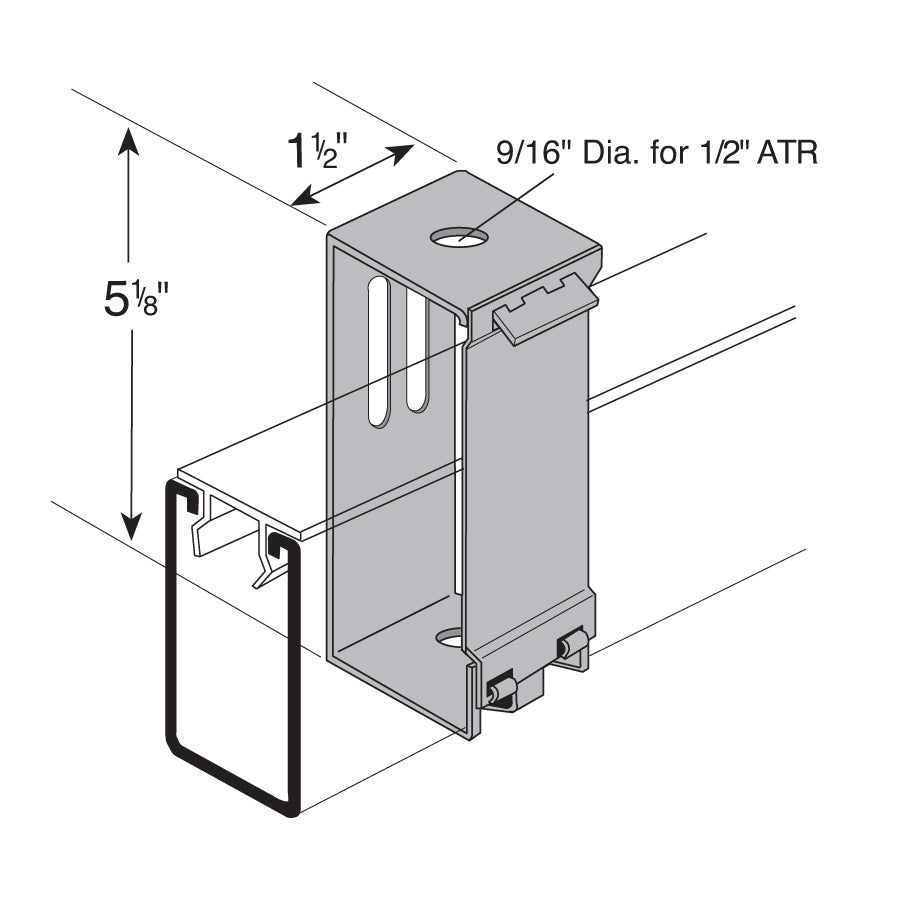

Deep Channel Hanger - Electro-Galvanized is used to hang and support channel 3-1/4" and allows for making connections where threaded rod is suspended from the ceiling. Strut Channel Hangers are used for ceiling grids and hanging pipes and other electrical equipment. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Additional information: Design Load=250#
Product Guide: View Spec Sheet
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Additional information: Design Load=250#
Product Guide: View Spec Sheet
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
