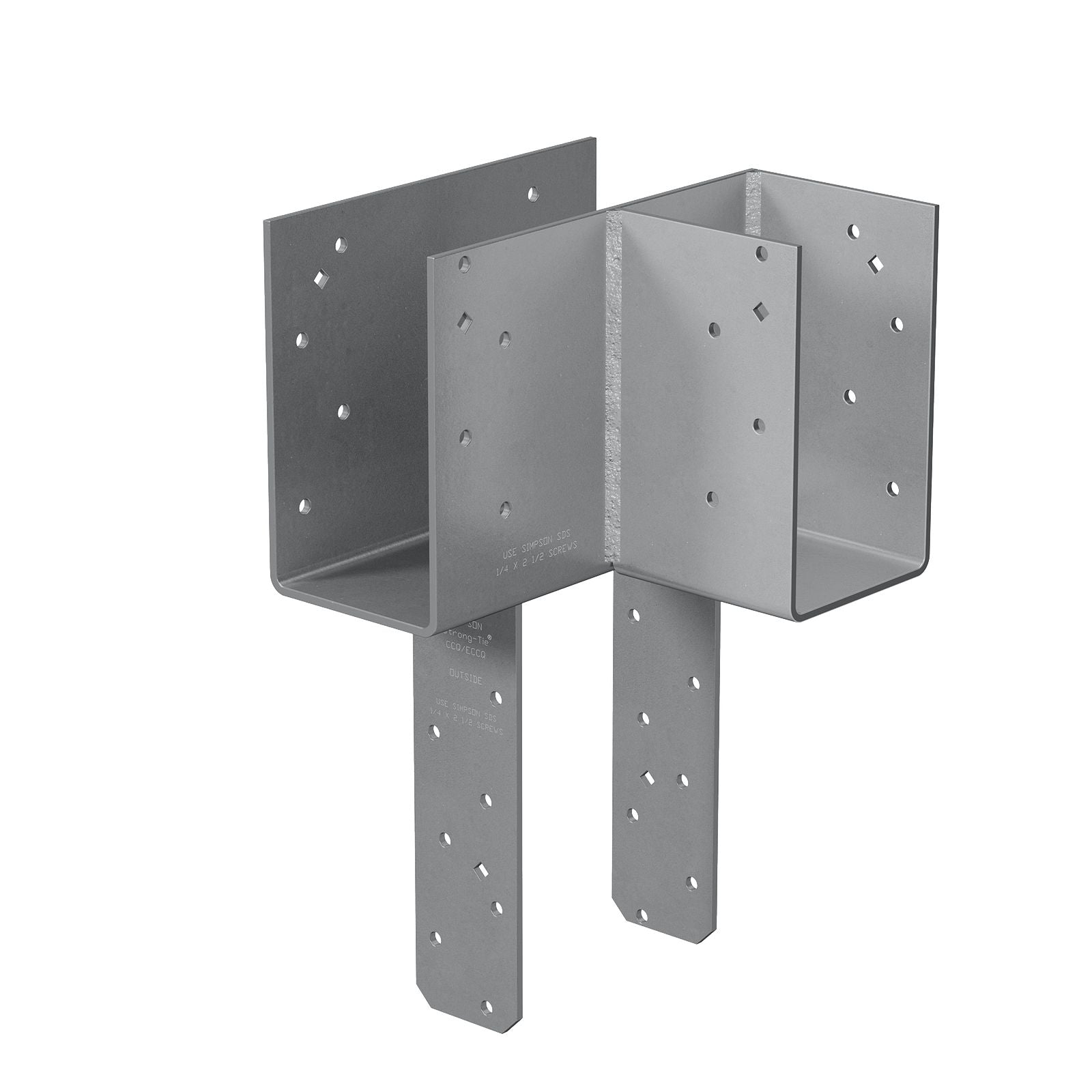

Simpson ECCLQ8X-SDS L-Shape End Column Cap for 8X Beam W/SDS Screws, Custom Non-Returnable

Simpson ECCLQ8X-SDS L-Shape End Column Cap for 8X Beam W/SDS Screws, Custom Non-Returnable

Call for Price
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

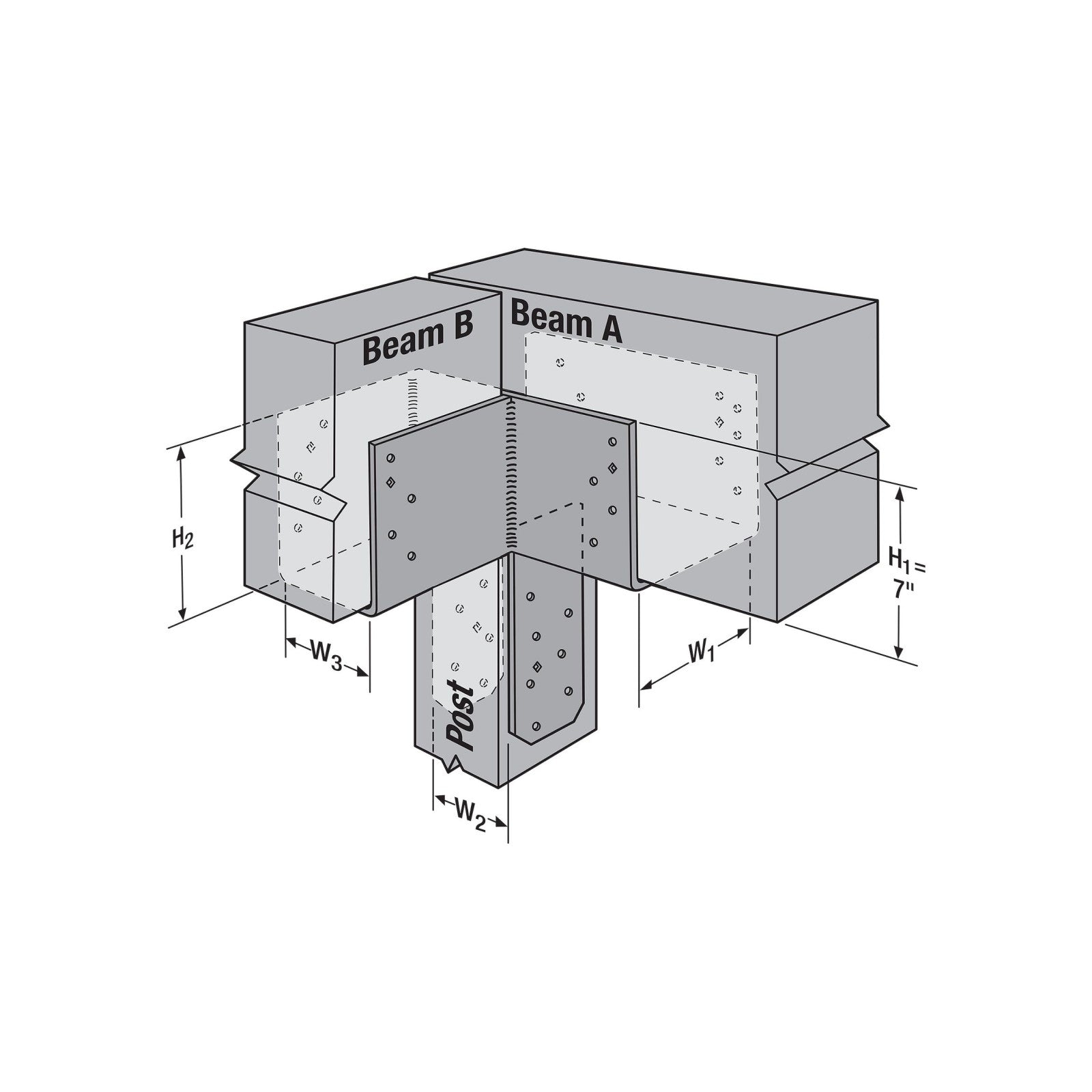

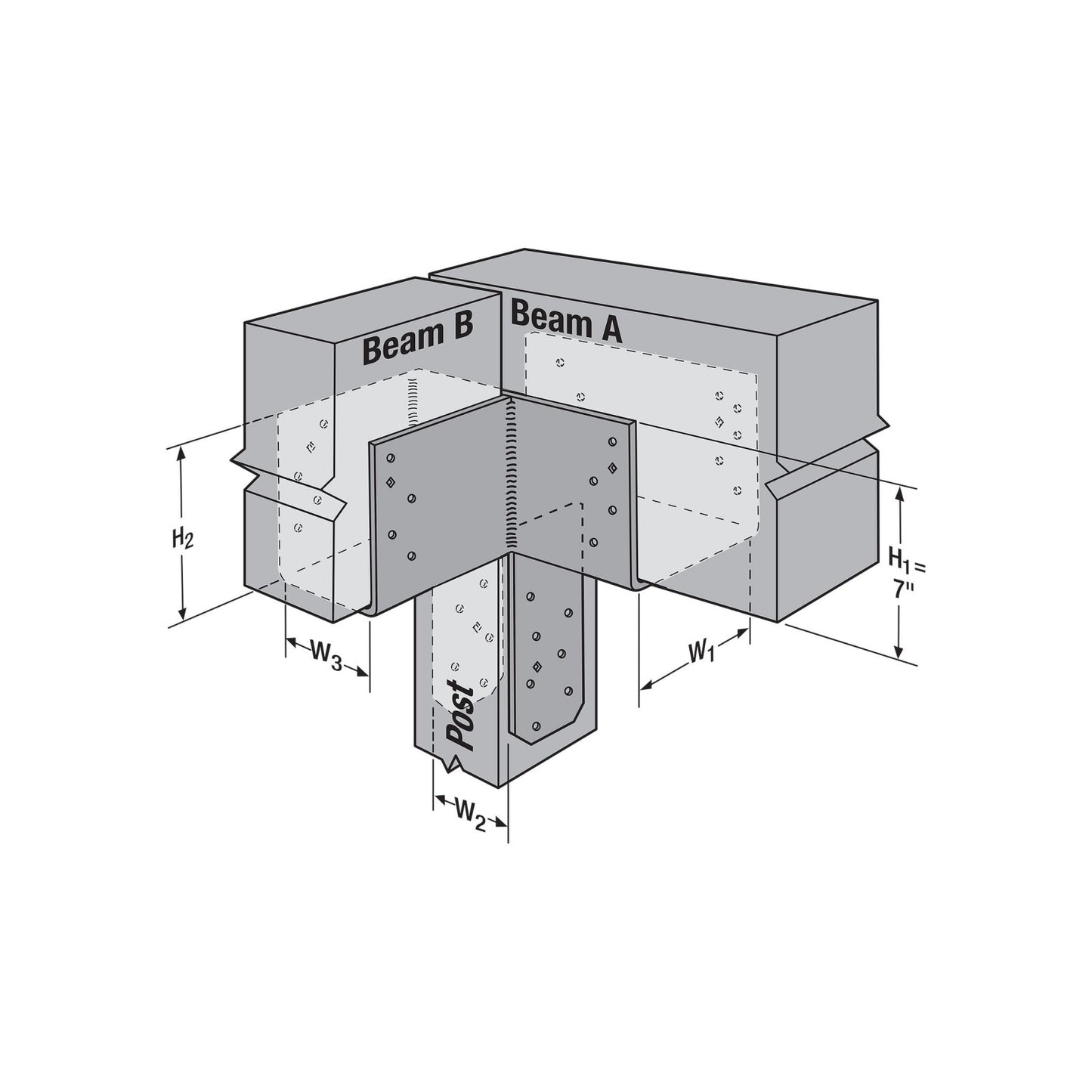

The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ8X-SDS comes with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.


  • 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Also available in hot dip galvanized (HDG) finish, please specify when ordering.
  • Available in widths up to 8" wide, straps may be rotated, and column caps may be ordered without the column straps for field welding to a steel column.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

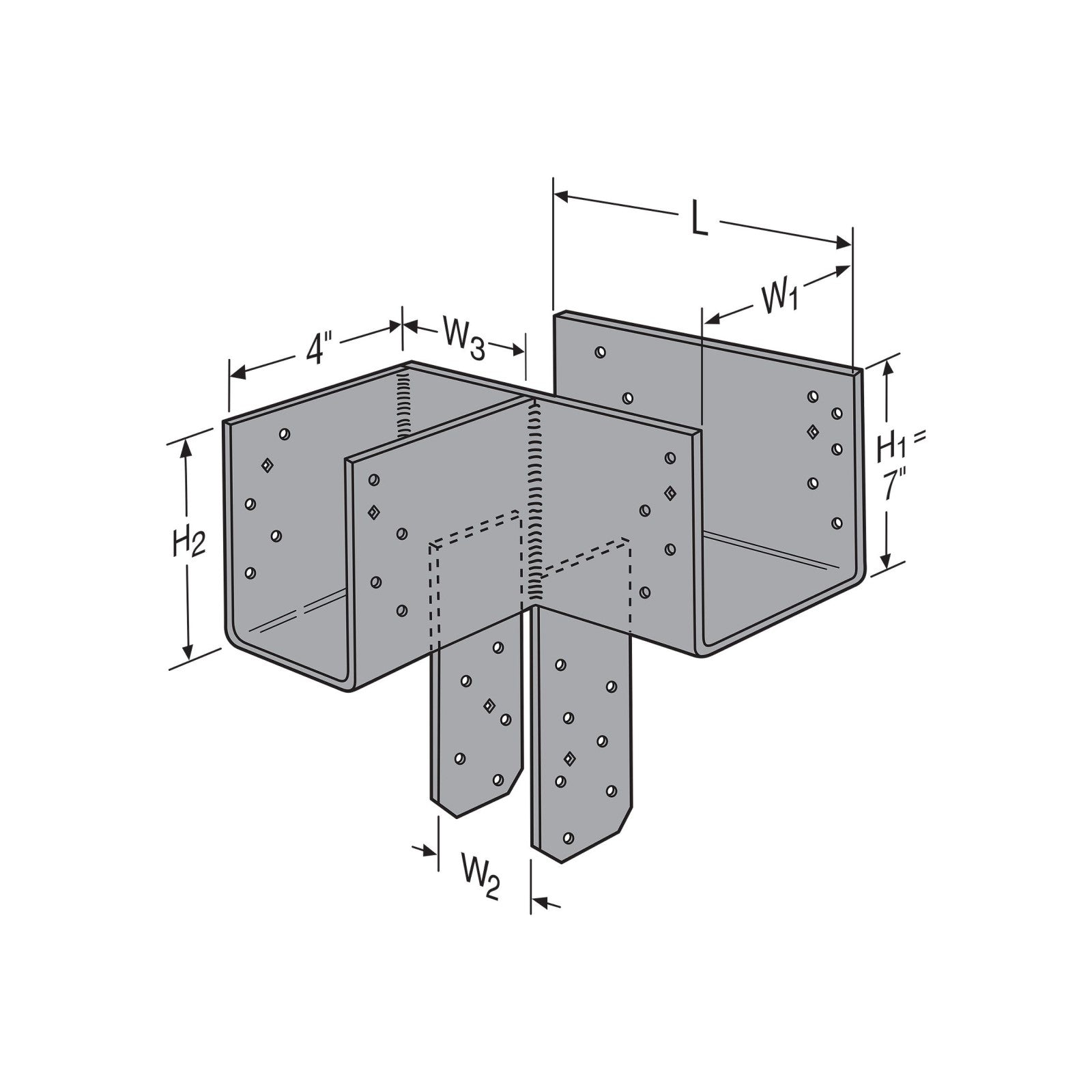

Height: (See Image 2) H1: 7"; H2: 7" - 15"
Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Thickness: 3 Gauge
Width: (See Image 2) W1: 7.5" - 8"; W2: 3.25" - 8"; W3: 3.25" - 8"
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
Beam size: 8X
Product Guide: View Spec Sheet
