FallTech 5-Piece Confined Space Davit System | 60' Winch & 60' SRL-R | 6050428WR
Specifications
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Personnel Winch Drive / Drum Gears: Plated alloy steel
SRL-R Housing / Drum: Machined aluminum alloy
Rescue User Capacity: 2 users, 310 lb max. for each person
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.

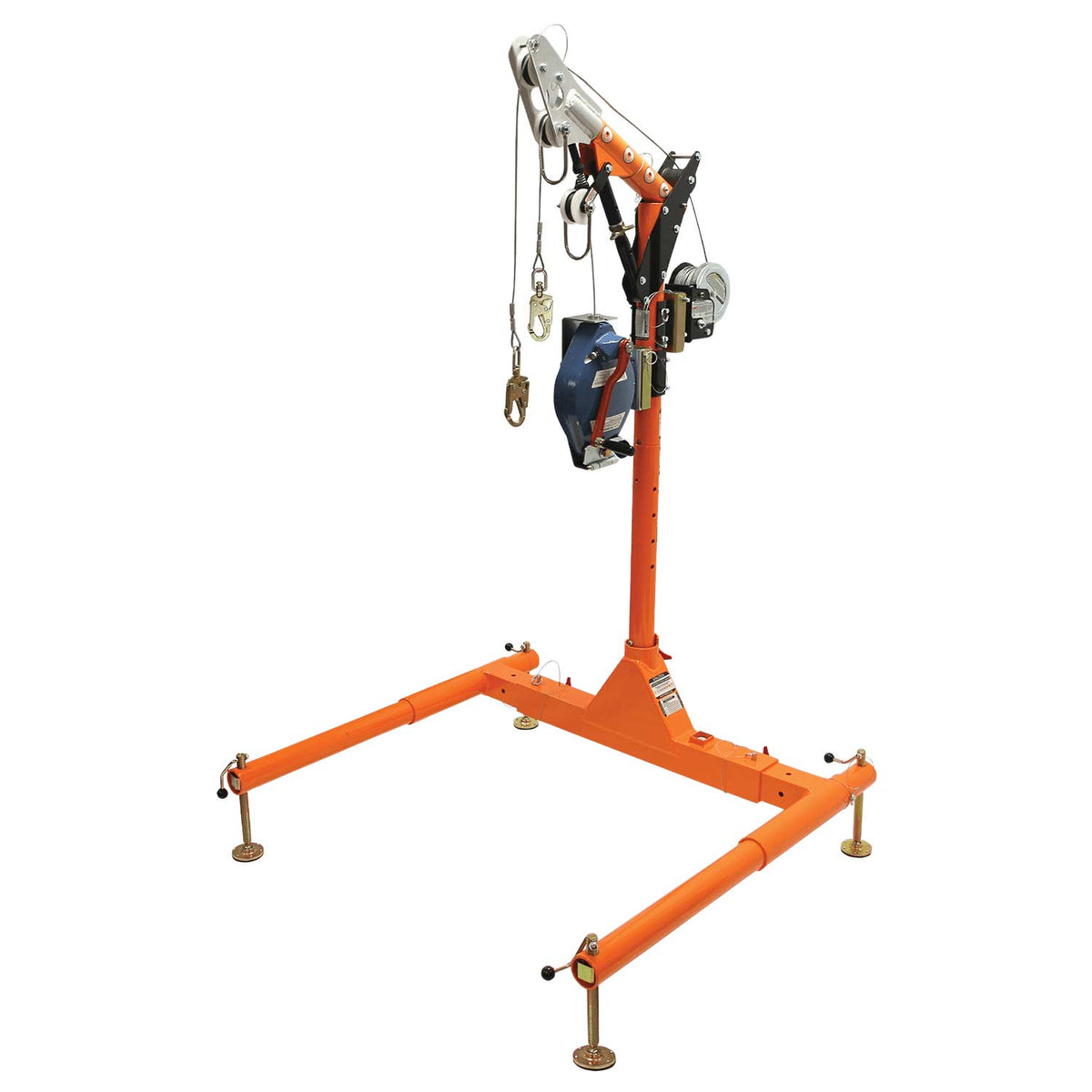

A confined space davit system takes on challenges that standard fall protection gear just isn't built to handle, and this 5-piece setup gives you both a personnel winch and a self-retracting lifeline for rescue, mounted on the same arm. The base adjusts from 38" to 65" wide, and the offset arm reaches out between 12" and 29", so you can center the lifeline over the access point no matter the opening. A bullseye level on the base makes it easy to check your horizontal positioning, and height adjusts without tools. Two device receiver brackets let you mount either the winch or the SRL-R quickly, and the whole system carries a powder-coat finish for durability.
Key Features
- 3-piece adjustable base, 38" to 65" wide
- Offset arm with dual pulleys, adjustable reach of 12" to 29", and a secondary 5,000 lb. anchor point
- Bullseye level on the base for quick horizontal positioning checks
- Tool-free height adjustment
- 33" lower mast extension for spaces with overhead clearance restrictions
- Two device receiver brackets for quick winch and SRL-R mounting
- Includes a 7297 personnel winch with 60' of 3/16" galvanized cable and a 20" weather-resistant storage bag
- Winch is mechanical with a 5:1 gear mechanical advantage and a redundant secondary braking system
- Winch handle operation force: max 30 lbs.; average lifting speed: 12 feet per minute; folding handle for compact storage
- Includes a 7281 SRL-R with 60' of 3/16" galvanized cable and a weather-resistant 20" storage bag
- ANSI SRL Class B rated self-retracting lifeline that doubles as a rescue retrieval winch
- Corrosion-resistant SRL-R housing, galvanized steel cable, load-indicating swivel snap hook, and integrated inertial braking system
- SRL-R Static Strength: Minimum 3,000 lb; Average Arrest Force: 1,125 lb; Maximum Arrest Force: 1,800 lb; Maximum Arrest Distance: 54"
Applications
- Confined space personnel entry and exit
- Confined space rescue and retrieval operations
- Jobs needing both a winch and a self-retracting lifeline on one davit arm system
