FallTech 5-Piece Confined Space Davit System | 60' Winch | 6050228W
Specifications
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Personnel Winch Drive / Drum Gears: Plated alloy steel
Rescue User Capacity: 2 users, 310 lb max. for each person
Rescue Static Strength: 5,000 lb min.
Entry/Egress Static Strength: 1,800 lb min.

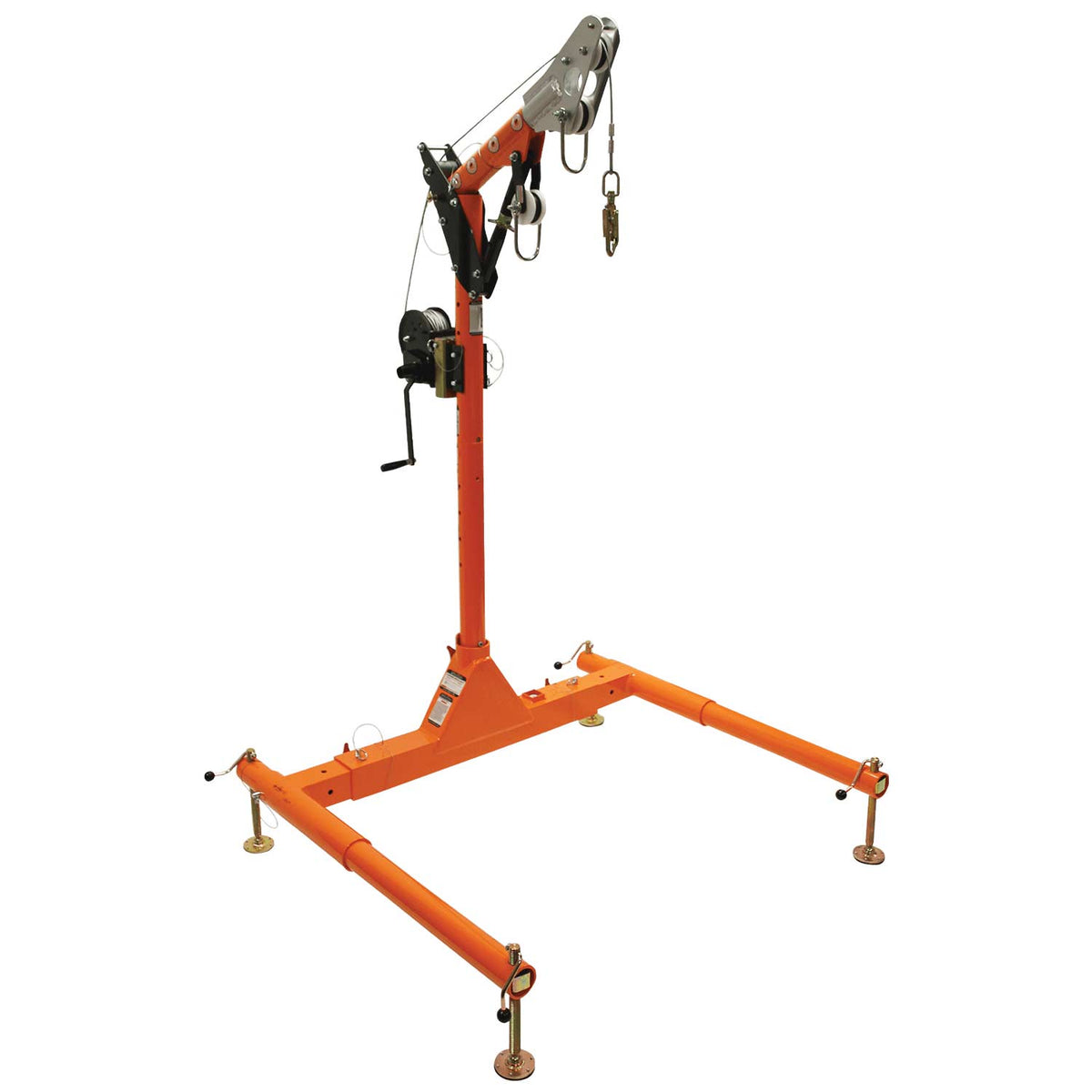

A confined space davit system takes on challenges that standard fall protection gear just isn't built to handle, and this 5-piece setup covers both entry and exit and rescue support. The base adjusts from 38" to 65" wide, and the offset arm reaches out between 12" and 29", so you can center the lifeline over the access point no matter the opening. A bullseye level on the base makes it easy to check your horizontal positioning, and height adjusts without tools. A device receiver bracket makes swapping the winch in quick, and the whole system carries a powder-coat finish for durability.
Key Features
- 3-piece adjustable base, 38" to 65" wide
- Offset arm with dual pulleys, adjustable reach of 12" to 29", and a secondary 5,000 lb. anchor point
- Bullseye level on the base for quick horizontal positioning checks
- Tool-free height adjustment
- 33" lower mast extension for spaces with overhead clearance restrictions
- Device receiver bracket for quick winch mounting
- Powder-coat finish for durability
- Includes a 7297 personnel winch with 60' of 3/16" galvanized cable and a 20" weather-resistant storage bag
- Winch is mechanical with a 5:1 gear mechanical advantage and a redundant secondary braking system
- Winch handle operation force: max 30 lbs.; average lifting speed: 12 feet per minute; folding handle for compact storage
- Alloy steel swivel snap hook on the winch cable lifeline
- Winch engineered for personnel confined space entry and exit only, not material handling
Applications
- Confined space personnel entry and exit
- Confined space rescue support
- Jobs needing a portable, adjustable davit arm system over varied opening sizes
