FallTech 8' Confined Space Tripod Kit with 3-Way SRL-R | 7508
Specifications
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
SRL-R Housing / Drum: Machined aluminum alloy
ANSI Personnel Capacity: 130-310 lbs.
OSHA User Capacity: 130-310 lbs.
Material Capacity: 620 lbs.

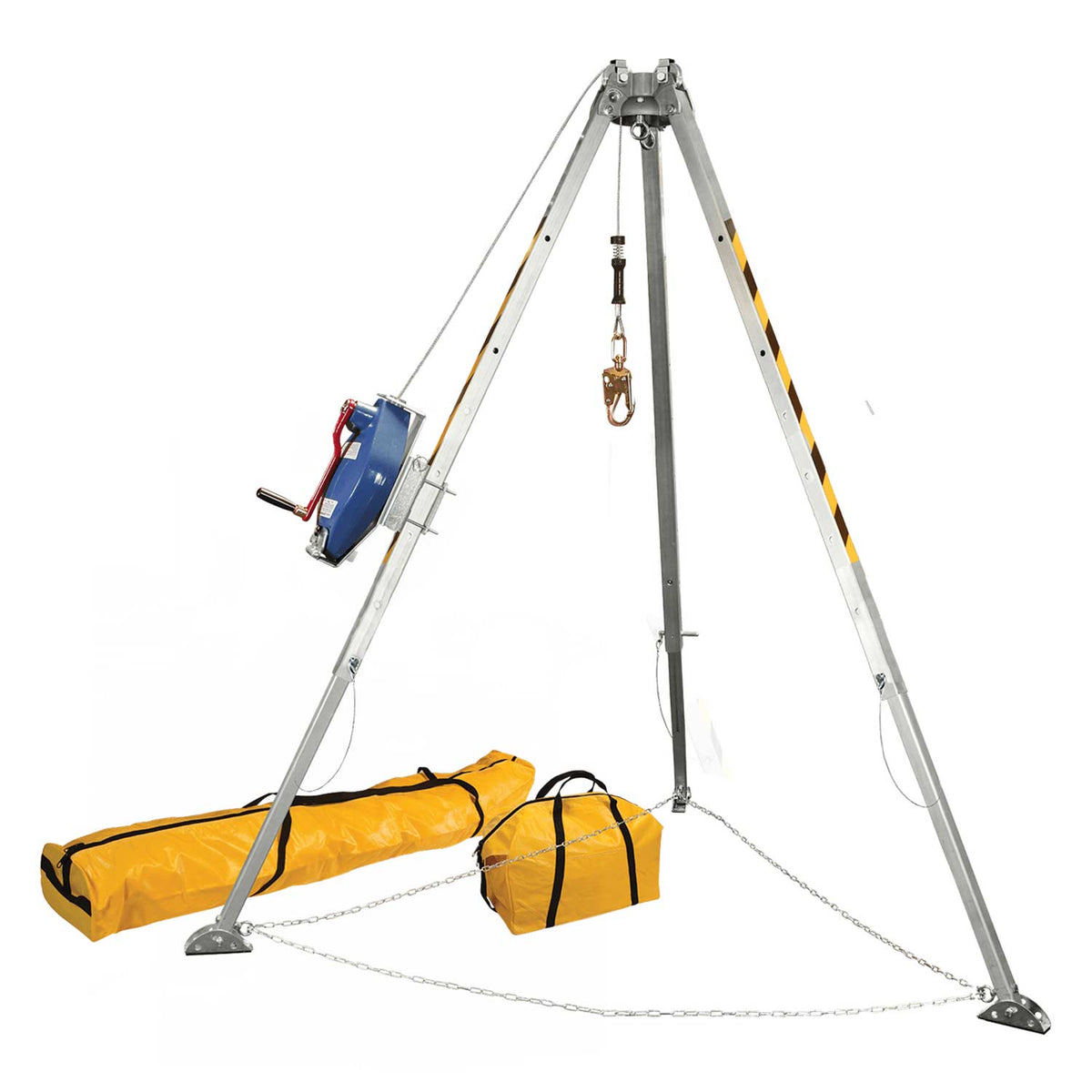

This 8' confined space tripod kit pairs a portable aluminum tripod with a 3-way SRL-R for secure entry, exit, and rescue in tight spaces. The 7276 tripod has 2-stage telescoping legs that adjust from 5 to 8 feet in 6-inch increments, giving you an internal working height of 55 to 81 inches, and auto-leveling feet with both rubber pads and spiked edges handle hard and soft ground alike. Dual pulleys with protective covers keep the cable running clean, and two auxiliary eyebolts on the head assembly let you add supplementary devices when the job calls for it.
Key Features
- Aluminum tripod with 2-stage telescoping legs, adjustable from 5' to 8' in 6-inch increments
- Internal working height of 55" to 81"
- Auto-leveling feet with rubber pads and spiked edges for hard and soft surfaces
- Dual pulleys with protective covers for smooth cable payout and retraction
- Head assembly with two auxiliary eyebolts for additional devices
- 7281 SRL-R with 60' of 3/16" galvanized steel cable and 3-way operation, doubling as a rescue retrieval winch
- Corrosion-resistant SRL-R housing
- Load-indicating swivel snap hook and mounting bracket
- Integrated inertial braking system
- ANSI SRL Class B rated
- Static Strength: 3,000 lb minimum
- Average Arrest Force: 1,125 lb
- Maximum Arrest Force: 1,800 lb
- Maximum Arrest Distance: 54"
- Kit includes leg bracket assembly, leg safety chain, 70" tripod bag, and 20" weather-resistant device bag
Applications
- Confined space entry, exit, and rescue operations
- Manhole, vault, and tank access points needing a portable anchor and retrieval system
- Jobs where a lightweight, adjustable tripod is needed over varied opening heights
