16' x 28' Heavy Duty Lumber Tarp | 4' Drop & Flap - 18 oz. Blue Tarp
16' x 28' Heavy Duty Lumber Tarp | 4' Drop & Flap - 18 oz. Blue Tarp!
16' x 28' Heavy Duty Lumber Tarp | 4' Drop & Flap - 18 oz. Blue Tarp
Colors:
Specifications
UV pass through rate: Grade 6-7
Cold crack resistance: -40°F (-40°C)
Rows of D Rings: 2
D Ring Count: 62
Grommet count: 46
Seams are heat sealed, then d-rings are sewn on

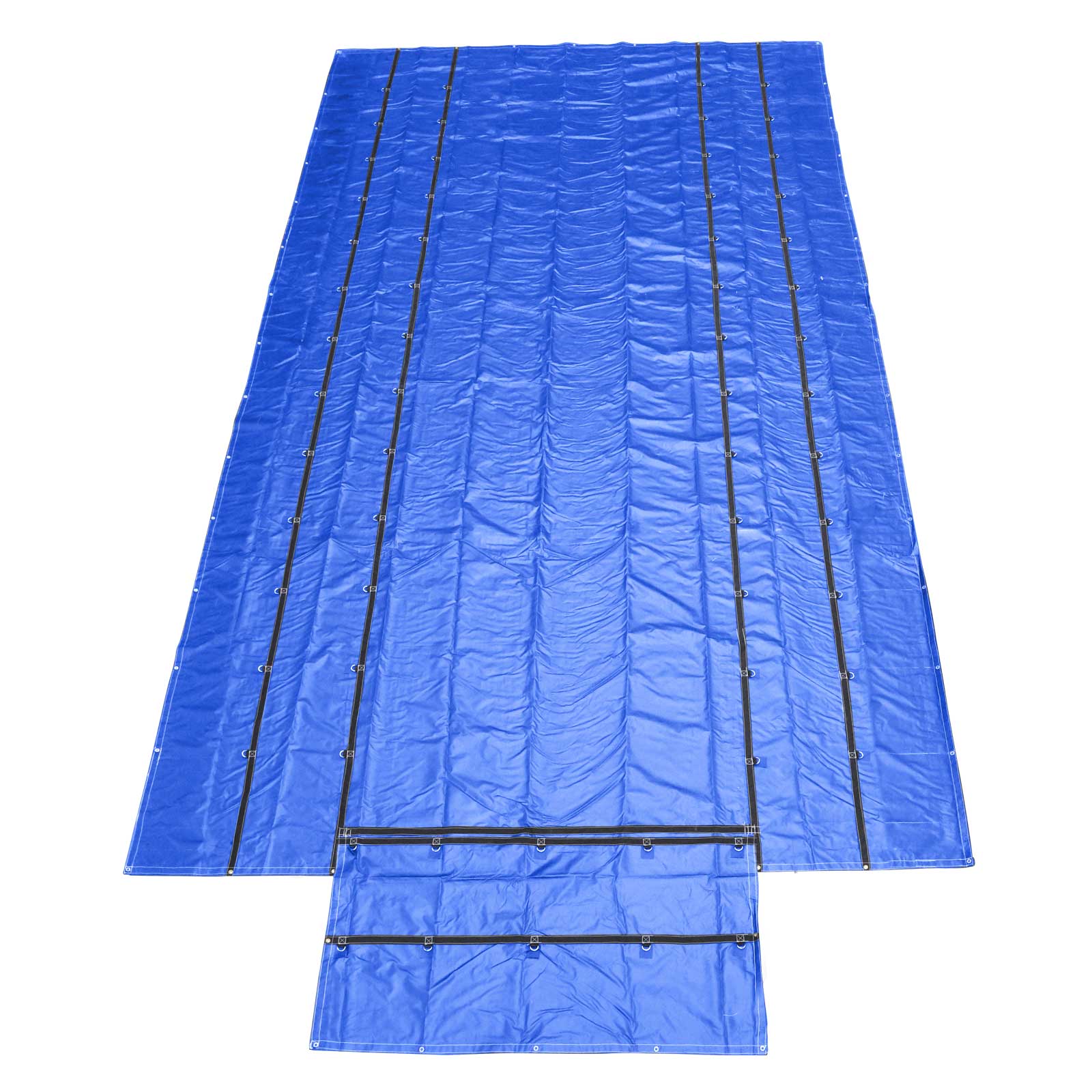

16′ × 28′ Heavy‑Duty Lumber Tarp - 4′ Drop & Flap - 18oz PVC - Blue
Professional flatbed crews depend on this 16′ × 28′ lumber tarp with a 4′ drop and integrated rain flap for optimal load coverage. Crafted from robust 18oz PVC‑coated polyester, this tarp combines strength and weather‑resistance in one package — designed to protect lumber, steel plate, or palletized freight during transit.
Durable Construction for Reliable Cargo Protection

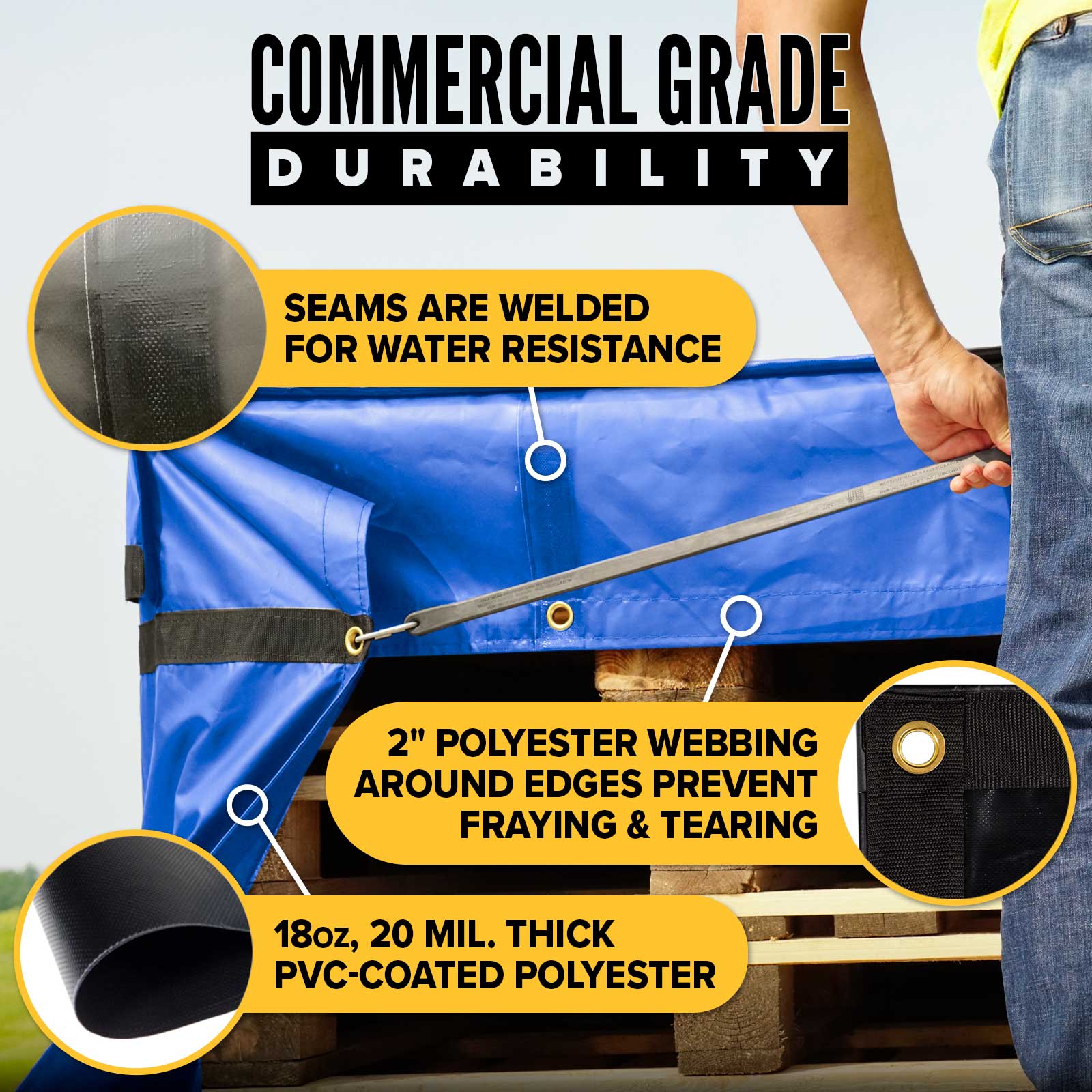

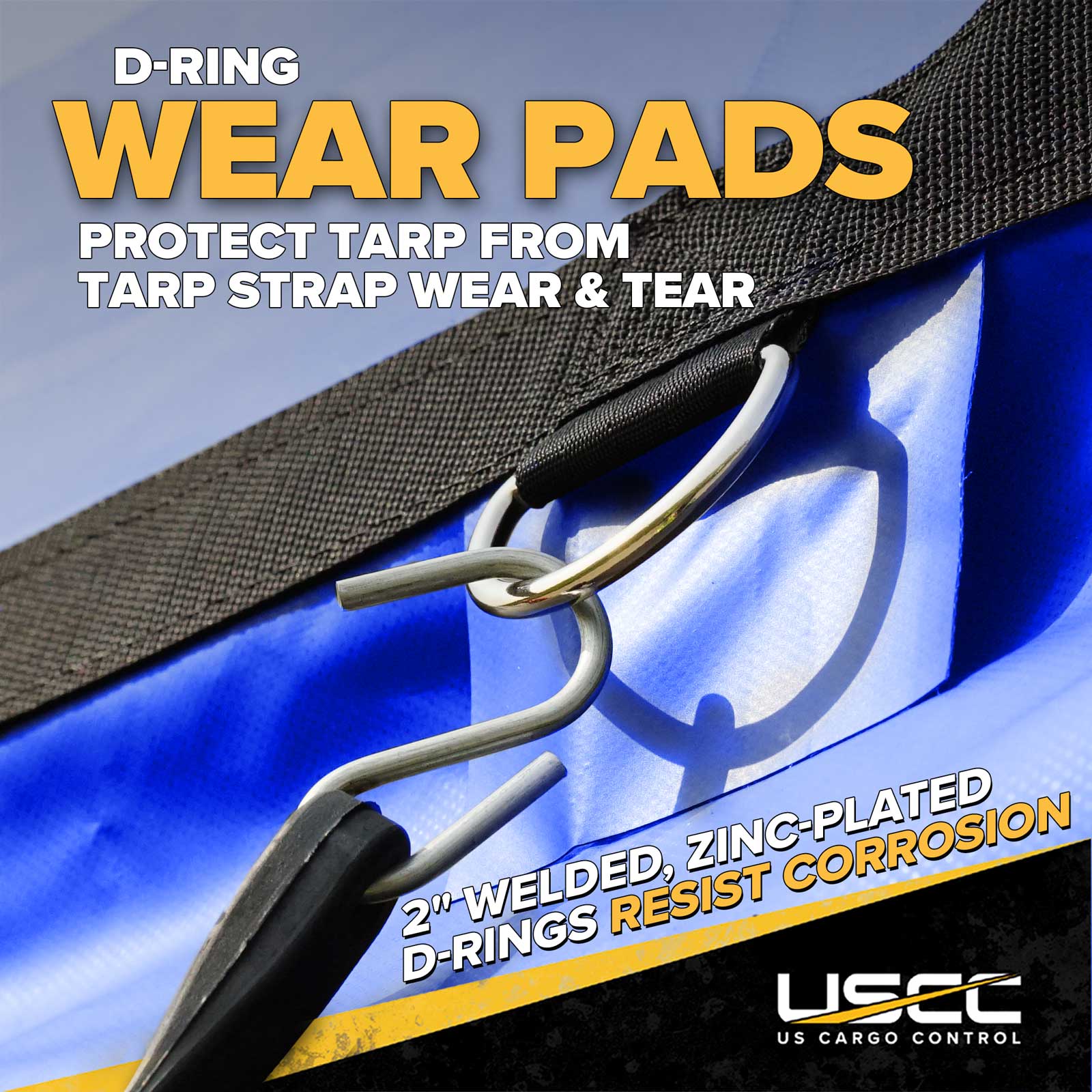

This tarp is engineered for tough conditions: seams are heat‑sealed, then rows of 2″ welded steel D‑rings are sewn on with abrasion‑resistant pads beneath each tie‑point. With UV pass‑through rated Grade6‑7 and cold crack resistance to ‑40°F (‑40°C), it holds up in sun, snow, wind and winter haul environments.
Key Features

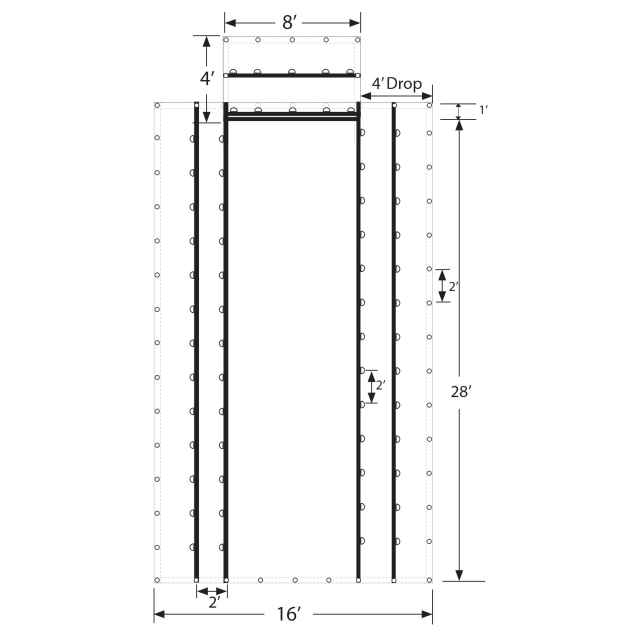

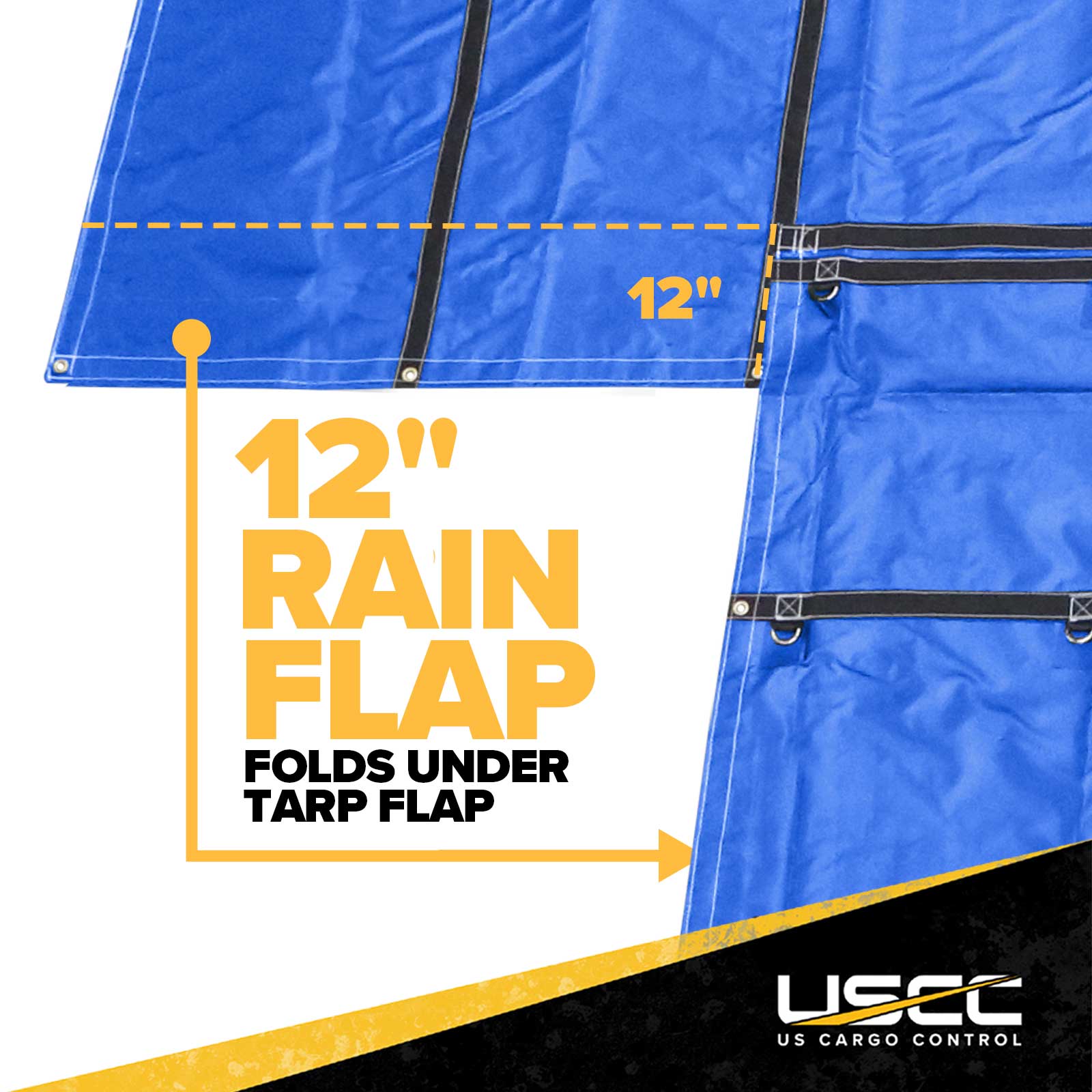

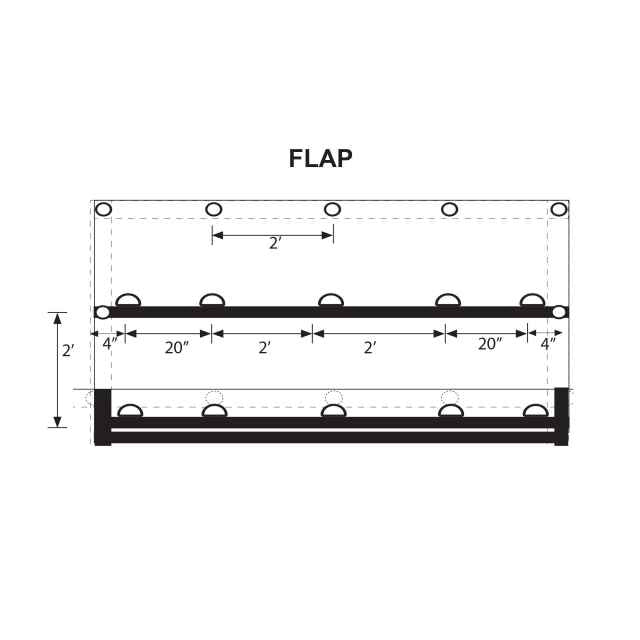

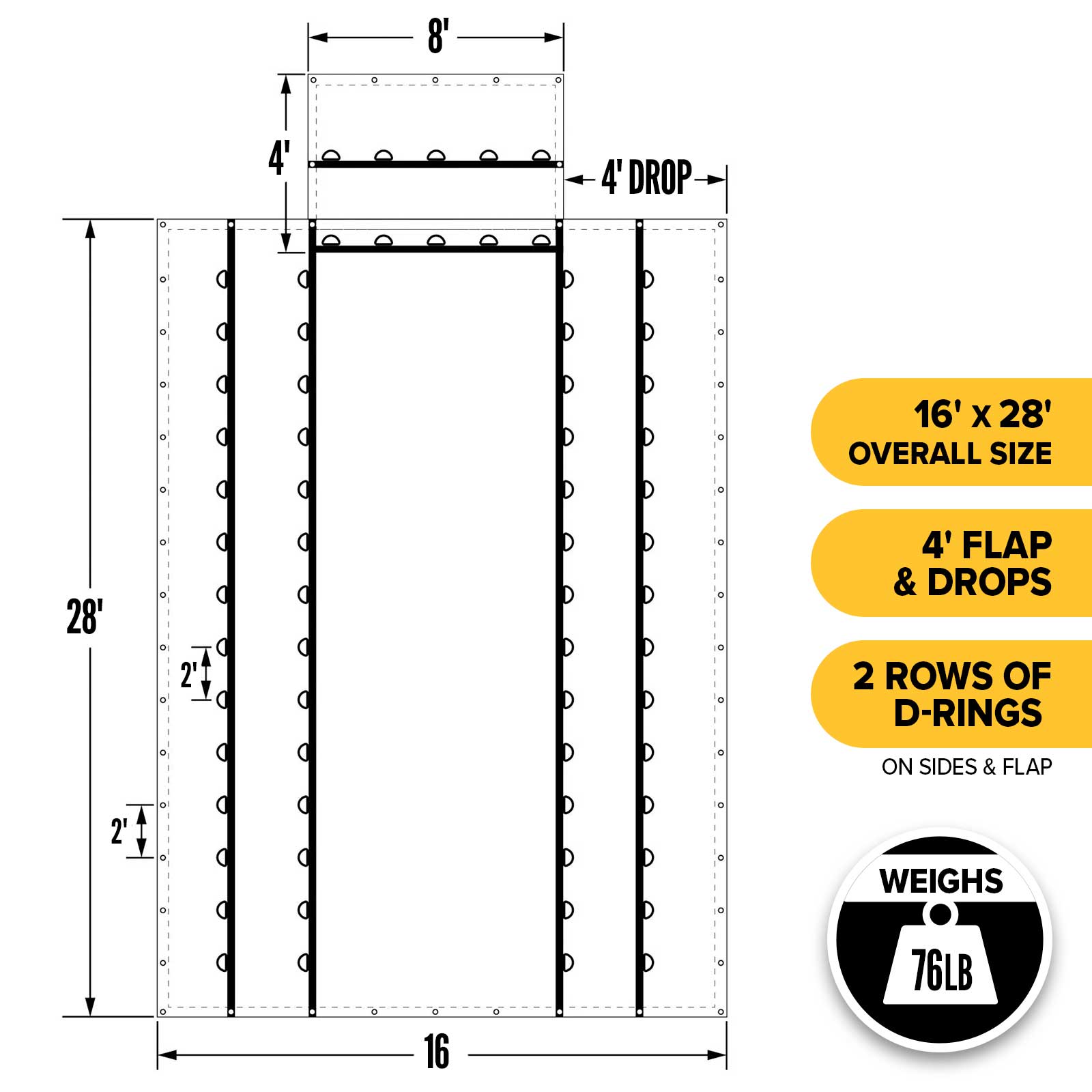

- Overall Size: 16′ wide × 28′ long (includes 12″ rain flap) with 4′ drop/flap for corner sealing.
- 18oz PVC‑Coated Polyester Fabric: Heavy‑duty shell and sides built to withstand repeated use and harsh elements.
- Water‑Resistant Design: Material is waterproof by nature; however D‑rings and grommets classify the tarp as water‑resistant.
- Cold Weather Rated: Maintains flexibility down to ‑40°F (‑40°C) for year‑round reliability.
- UV Protection: Rated Grade6‑7, offering strong resistance to sun damage and material breakdown.
- Dual Rows of Welded D‑Rings: 62 total 2″ steel D‑rings sewn into reinforced layout for fast, secure tie‑downs.

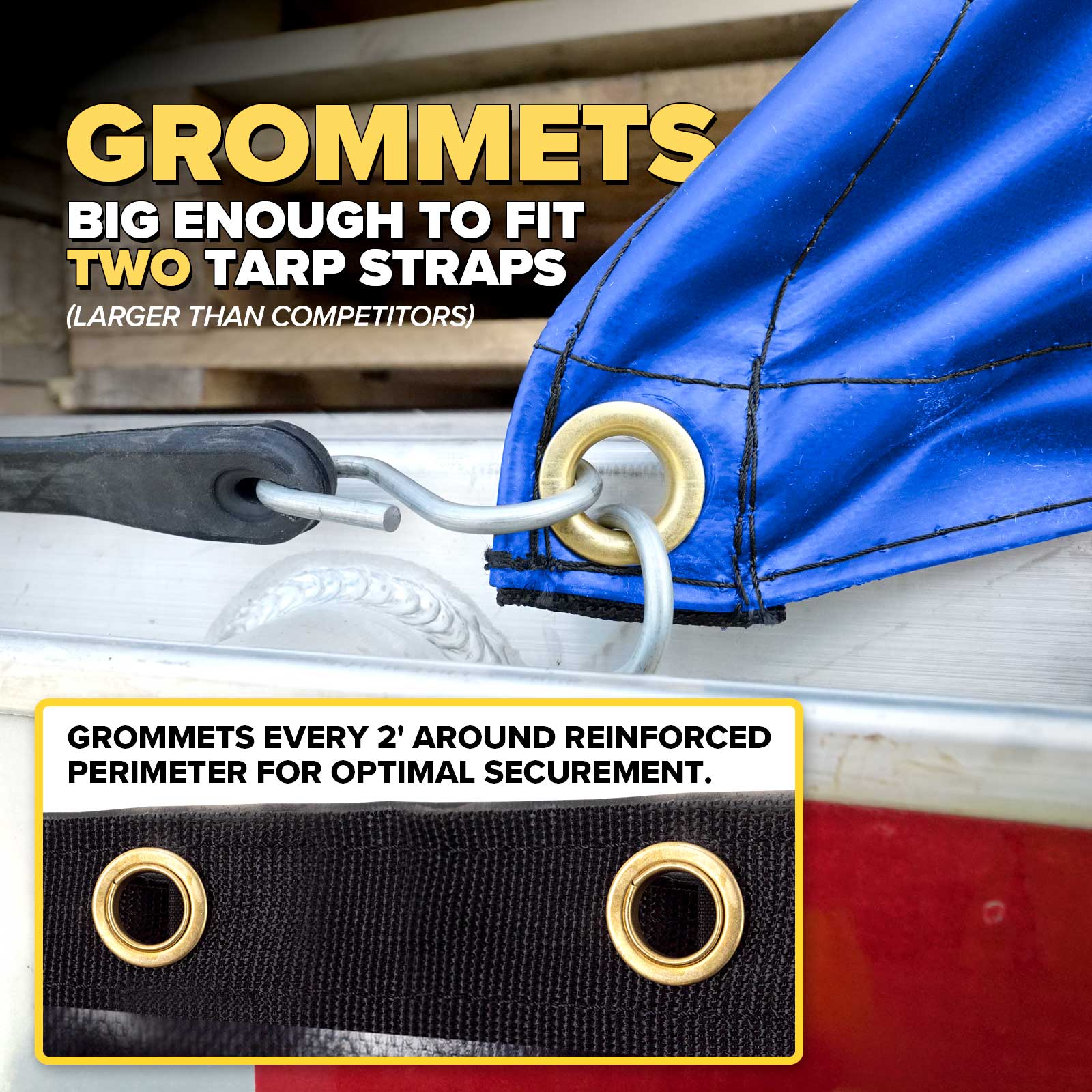

- Oversized Grommets: 46 larger grommets around perimeter allow dual strap connections, especially useful for odd‑shaped loads.
- Reinforced Edges: 2″ polyester webbing wraps the perimeter to prevent fraying and preserve grommet integrity.

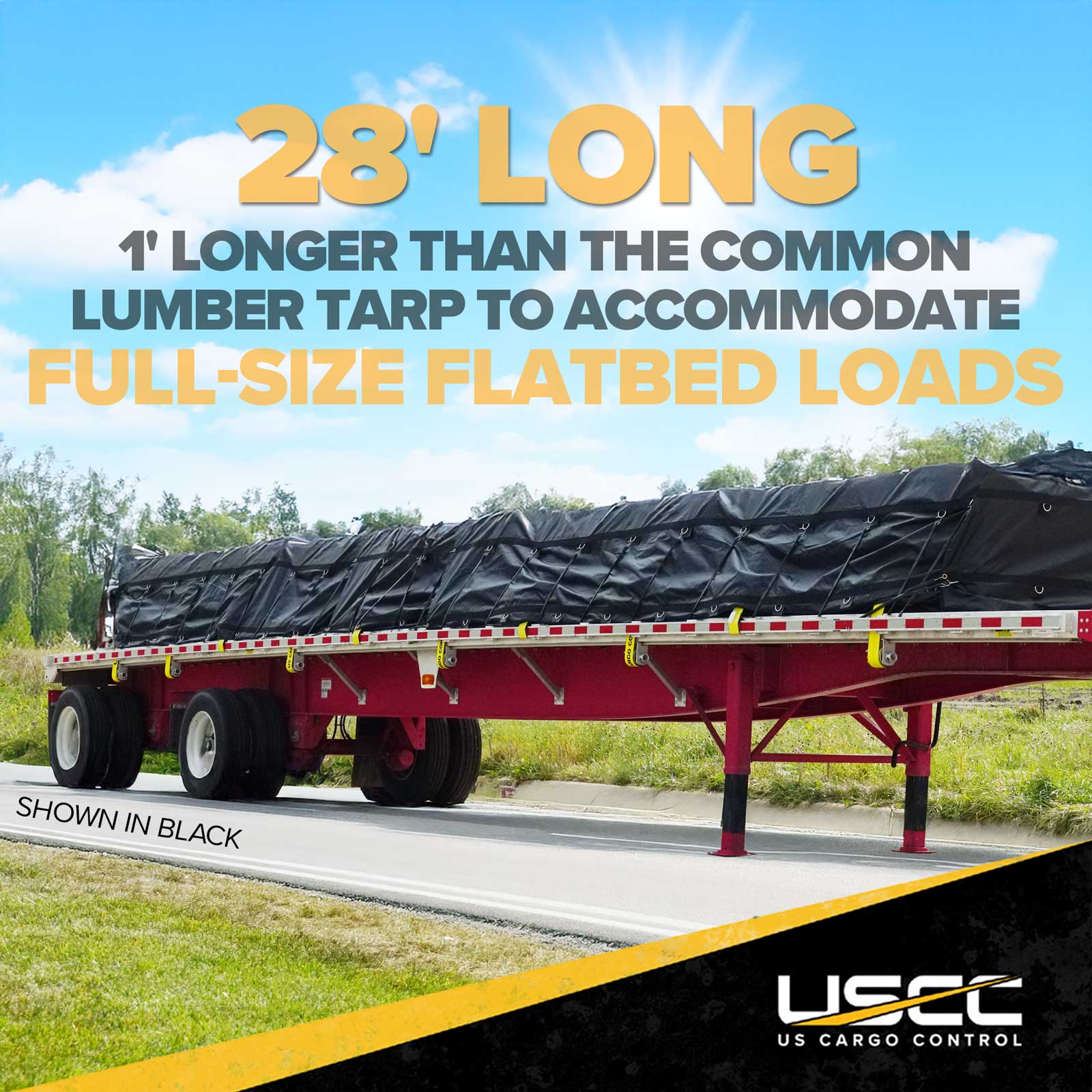

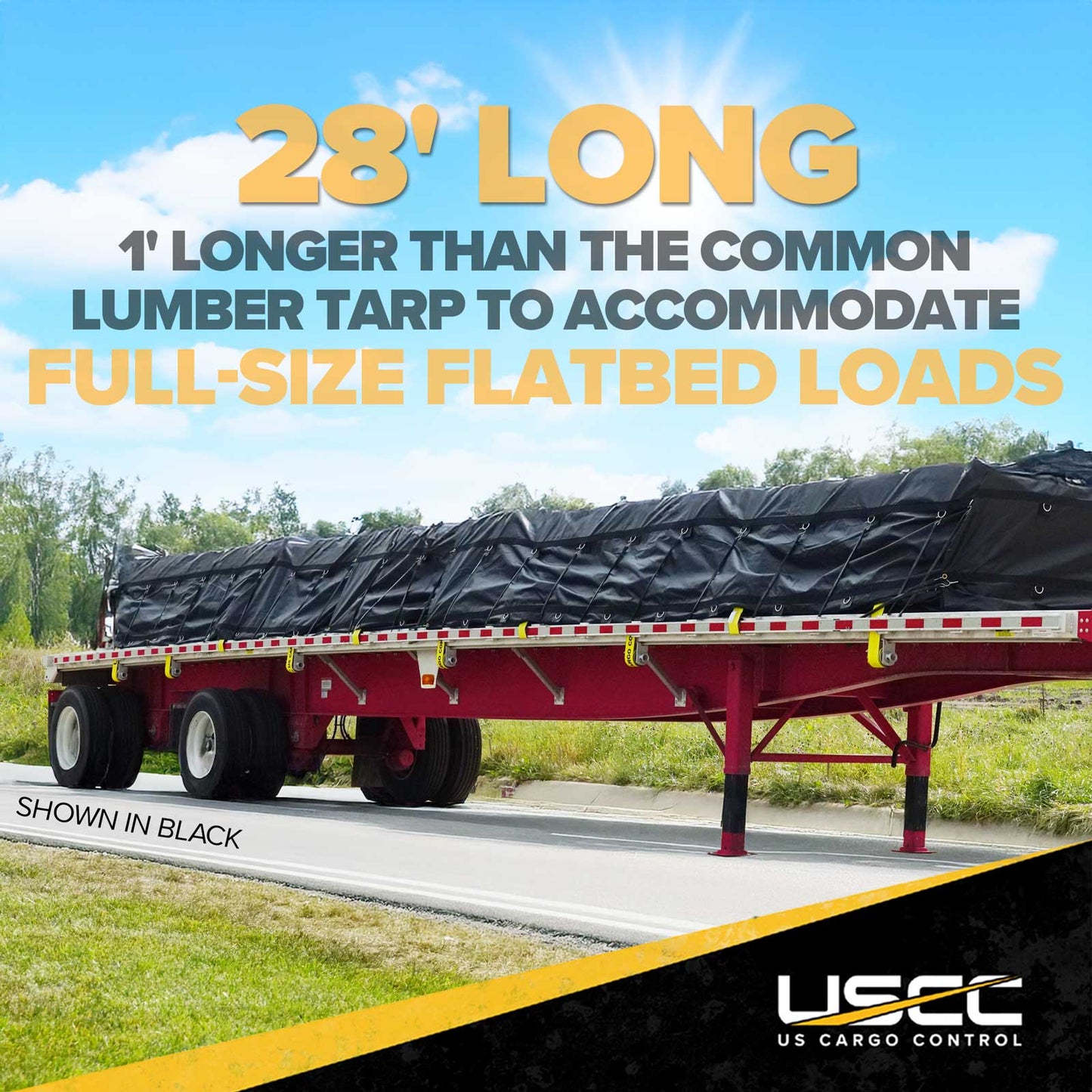

- Brace for Heavy Hauls: Designed for full‑size flatbed applications with extra length (28′ vs 27′ standard) for added flexibility.
Explore More Heavy-Duty Lumber Tarp Sizes
We carry a wide range of 18 oz PVC-coated lumber tarps in various lengths, widths, and drop sizes to suit your exact flatbed hauling needs. Whether you're covering full lumber stacks or mixed freight, our team of product experts is here to help you choose the right tarp for the job.
| Tarp Size (W x L) | Drop / Flap Length | Weight |
|---|---|---|
| 16' x 28' | 4' | 76 lbs. |
| 20' x 18' | 6' | 67 lbs. |
| 20' x 28' | 6' | 94 lbs. |
| 24' x 18' | 8' | 80 lbs. |
| 24' x 28' | 8' | 113 lbs. |
| 28' x 28' | 10' | 136 lbs. |
