M&W 0.55 Ton Hinged Vertical Plate Clamp | 0.5 - 1.0 Jaw | 21719
M&W 0.55 Ton Hinged Vertical Plate Clamp | 0.5 - 1.0 Jaw | 21719!
M&W 0.55 Ton Hinged Vertical Plate Clamp | 0.5 - 1.0 Jaw | 21719
Specifications
ASME B30.BTH -1 Design Compliant
WLL (tons): 0.55

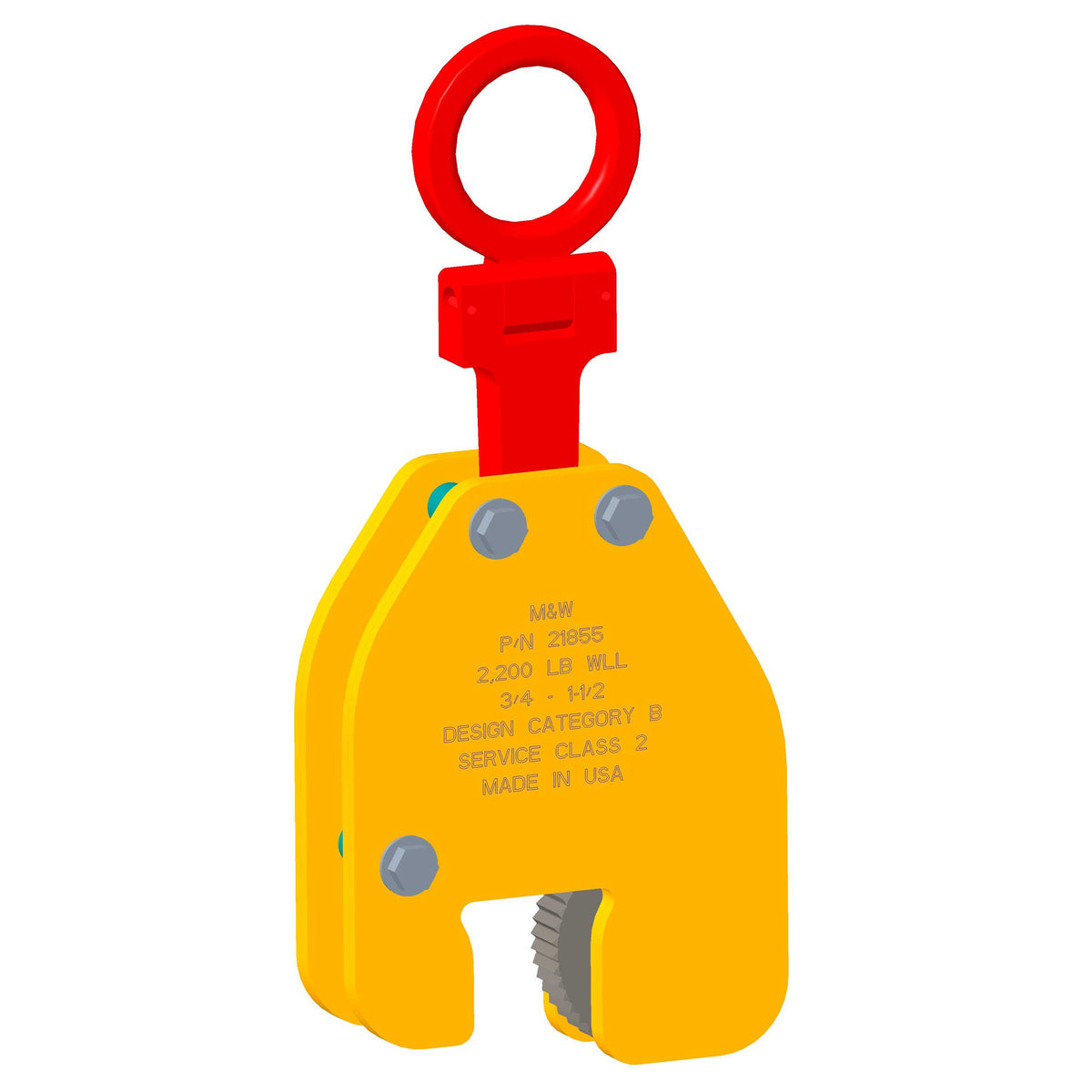

This M&W vertical plate clamp doesn't carry the minimum-load restriction most plate clamps do, so you can lift material anywhere along its rated capacity instead of needing the load close to the working load limit for a secure grip. The hinged lug lets you place and lift from any angle, and a full 180-degree turning range lets you flip a plate from vertical to horizontal or back without a second tool.
Key Features
- No minimum load limit, unlike most plate clamps that need a load near their rated capacity for a secure grip
- Hinged lug for placing and lifting from any angle
- Full 180-degree turning range to flip plate between vertical and horizontal
- Non-welded, premium-alloy construction made in the United States
- Self-locking jaw automatically returns to the pre-load position after use
- Rated for use from -40 to 170 degrees Fahrenheit
- Handles material with a surface hardness up to 400 Brinell (43 Rc)
- WLL and serial number clearly marked on the clamp
Applications
- Precision plate work where jaw range needs to be dialed in closely to material thickness
- Any m&w vertical plate clamp setup where load size varies significantly job to job
- Vertical-to-horizontal plate turning without a second piece of equipment
