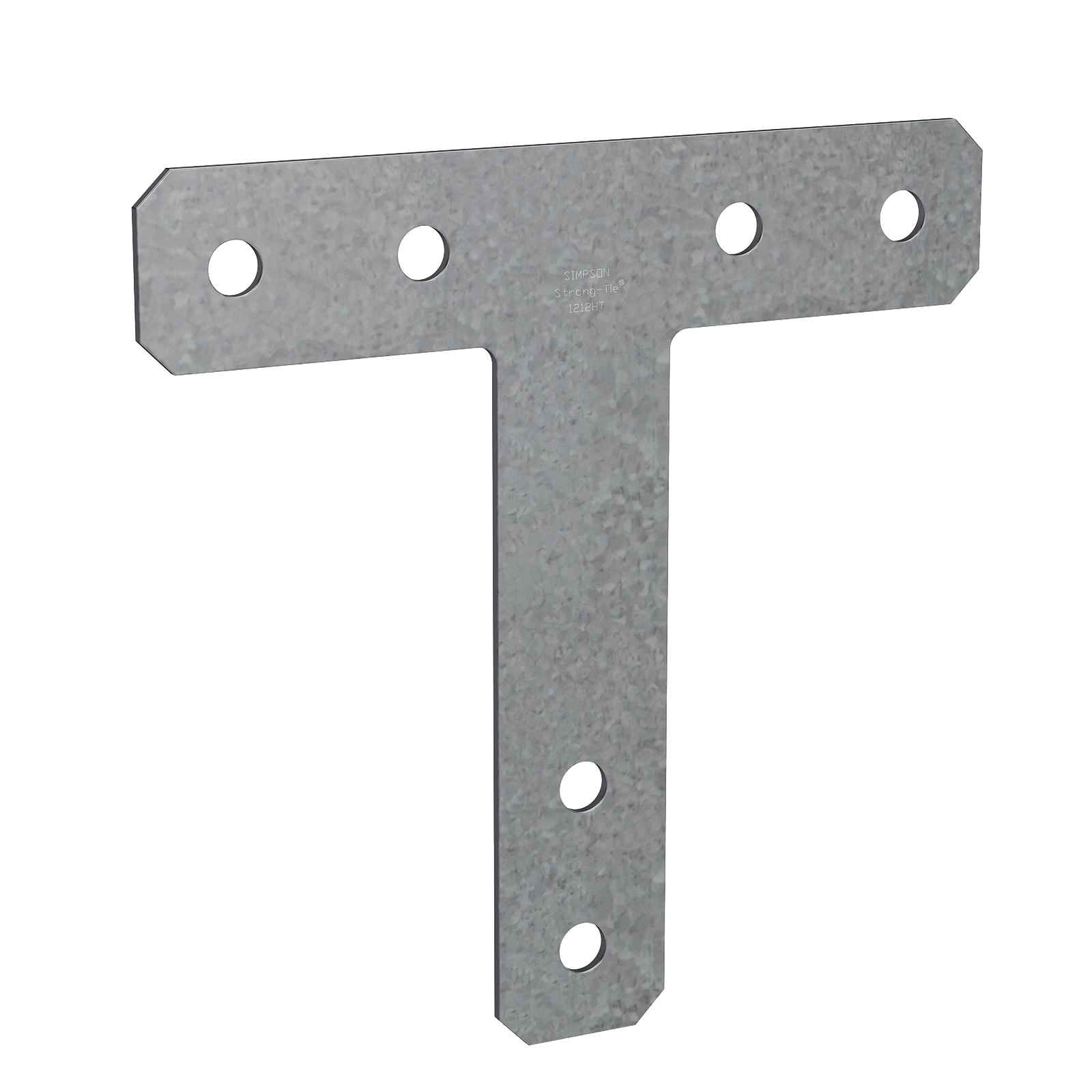

Simpson 1212HT 12 x 12 Heavy T Strap - G90 Galvanized

Simpson 1212HT 12 x 12 Heavy T Strap - G90 Galvanized

Regular price $42.00
Sale price $42.00 Regular price
0% off
shipping truck, lead time icon
Ships Apr 15 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Simpson Strong-Tie HLPC/HTPC straps are non-notched, beam-to-column ties used in ornamental applications where a more finished look is required. The 1212HT T strap features a standard G90 galvanized finish for versatile applications and better looking finish than standard paint.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

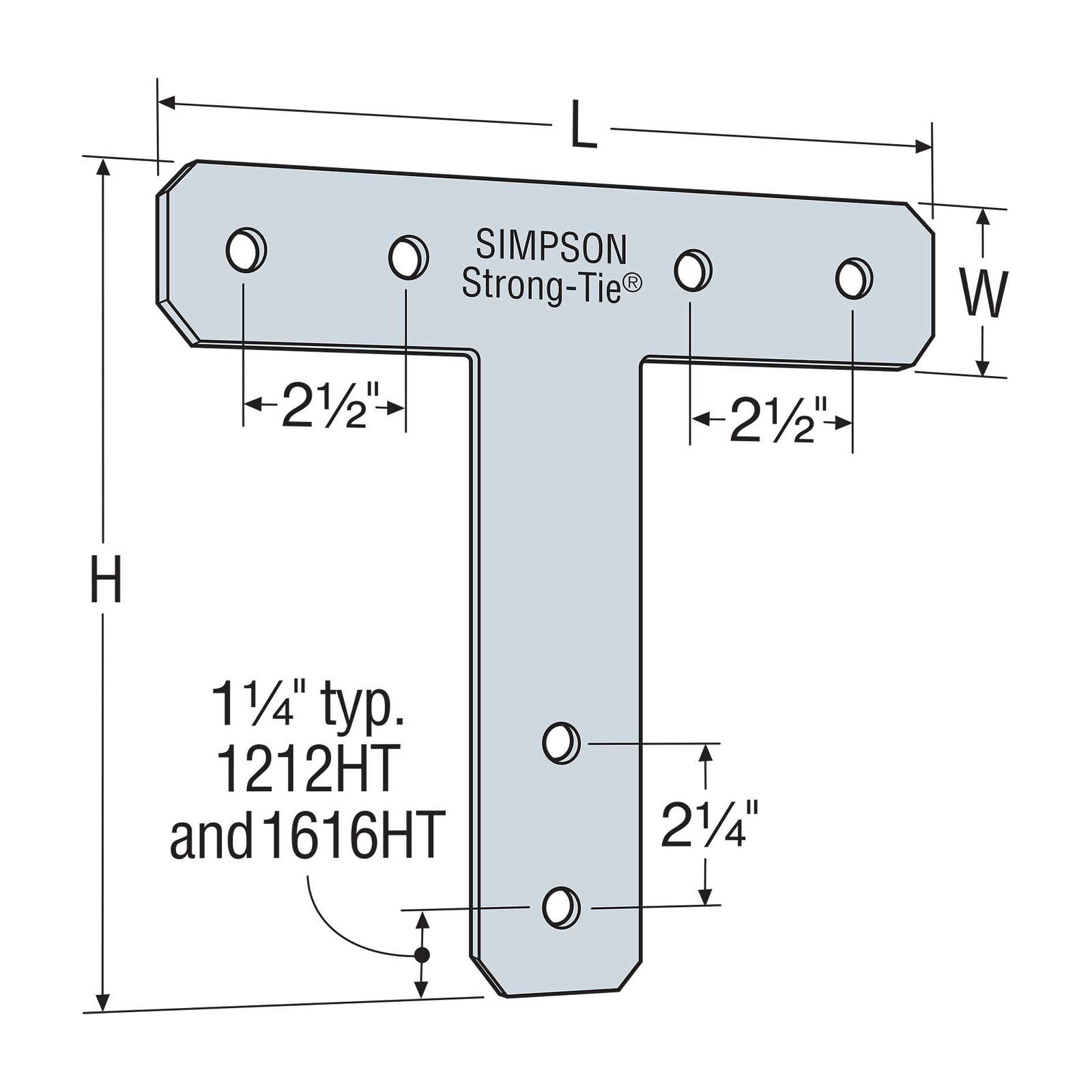

Specifications:

Material: Galvanized Steel
Height: 12"
Fasteners required: Bolts - (6) 5/8"
Thickness: 7 Gauge
Quantity: 1
Width: 2-1/2"
Finish: G90 Galvanized
Length: 12"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Features

•Galvanized for corrosion resistance
•Versatile for a variety of beam-to-column projects
•Load rated for uplift and lateral forces

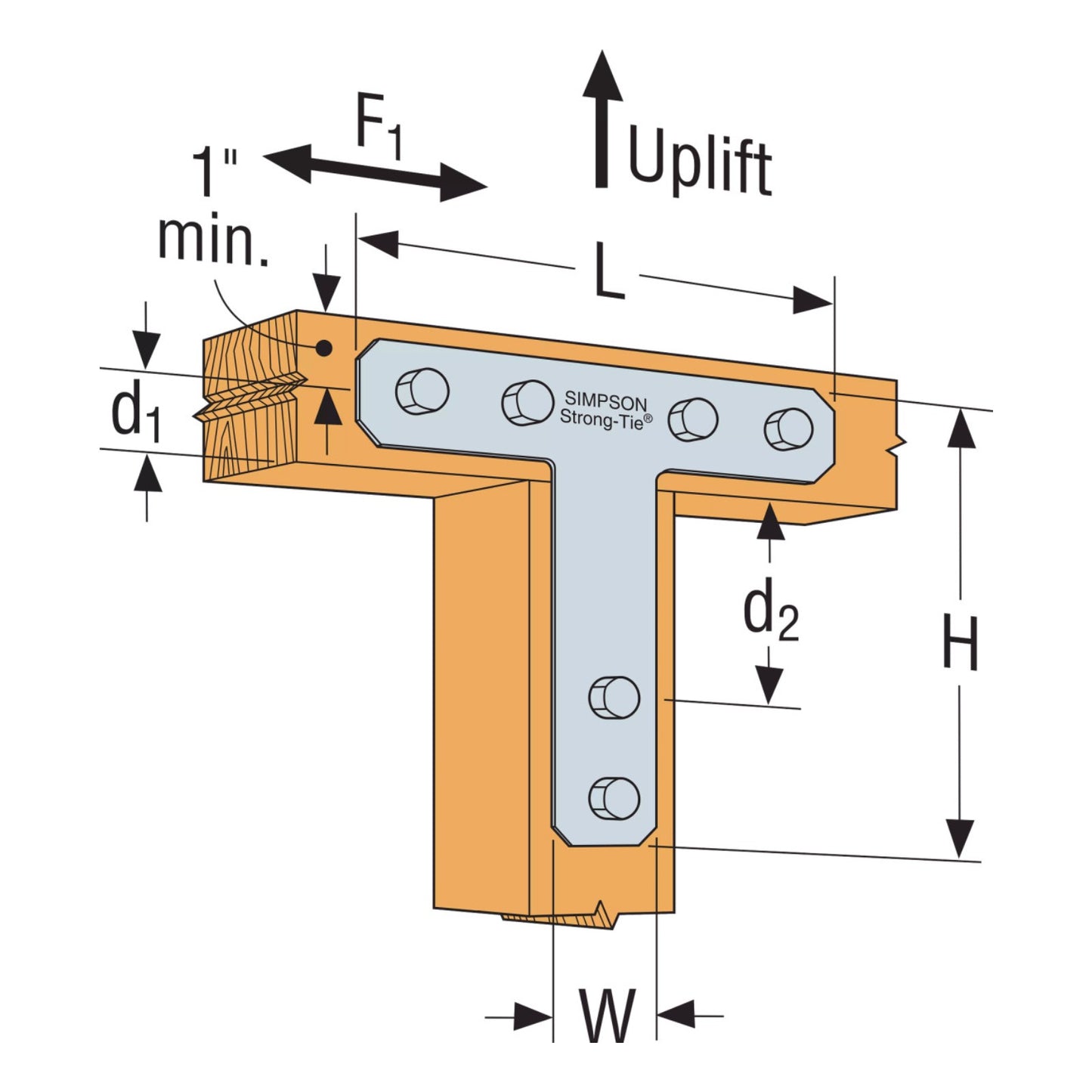

Installation

•Use all specified fasteners.
•1212HL, 1616HL, 1212HT and 1616HT are to be installed in pairs with machine bolts in double shear. A single part with machine bolts in single shear is not load rated.
•Allowable loads are based on a minimum member thickness of 3 1/2".
•1212HT, 1616HT loads assume a continuous beam.

View full details
