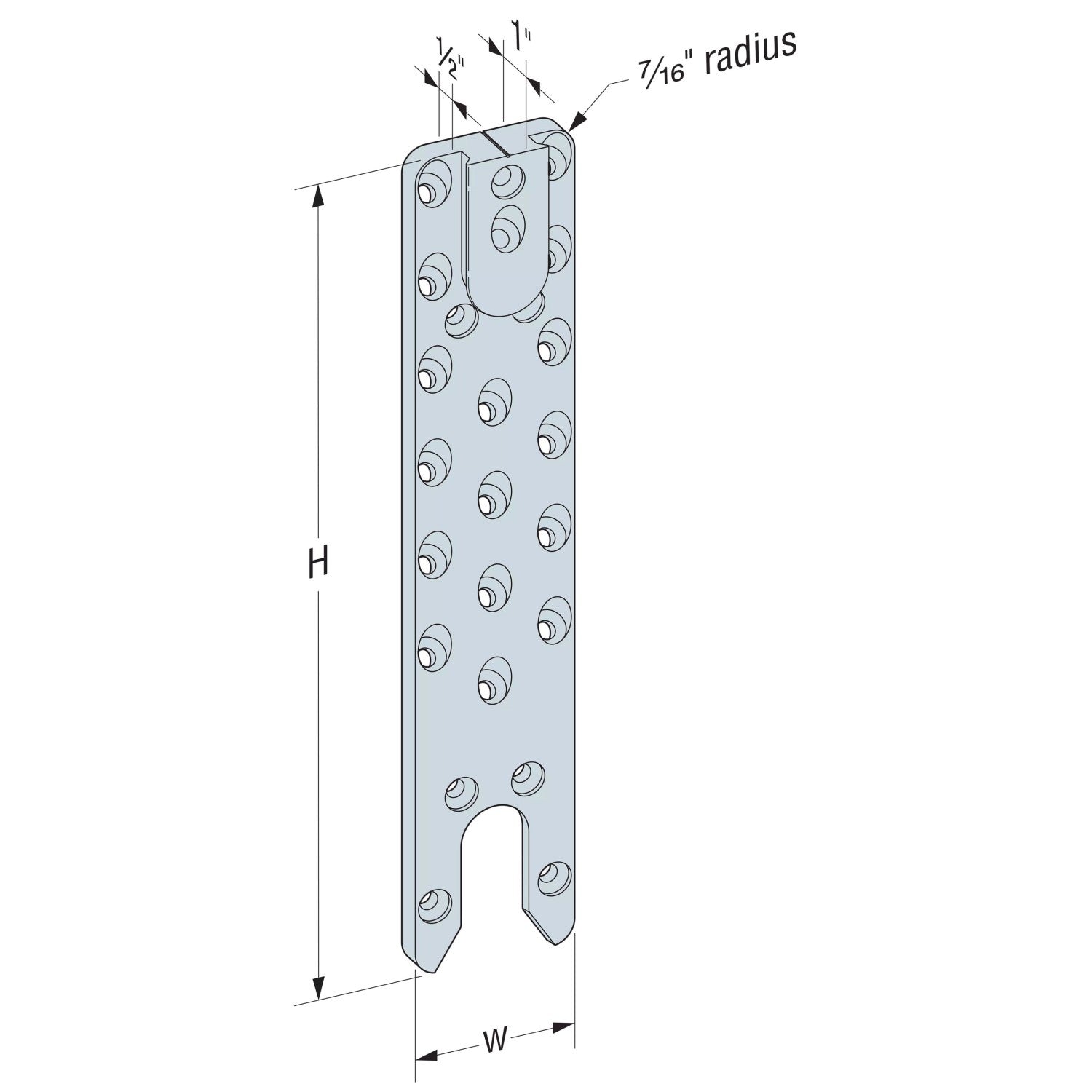

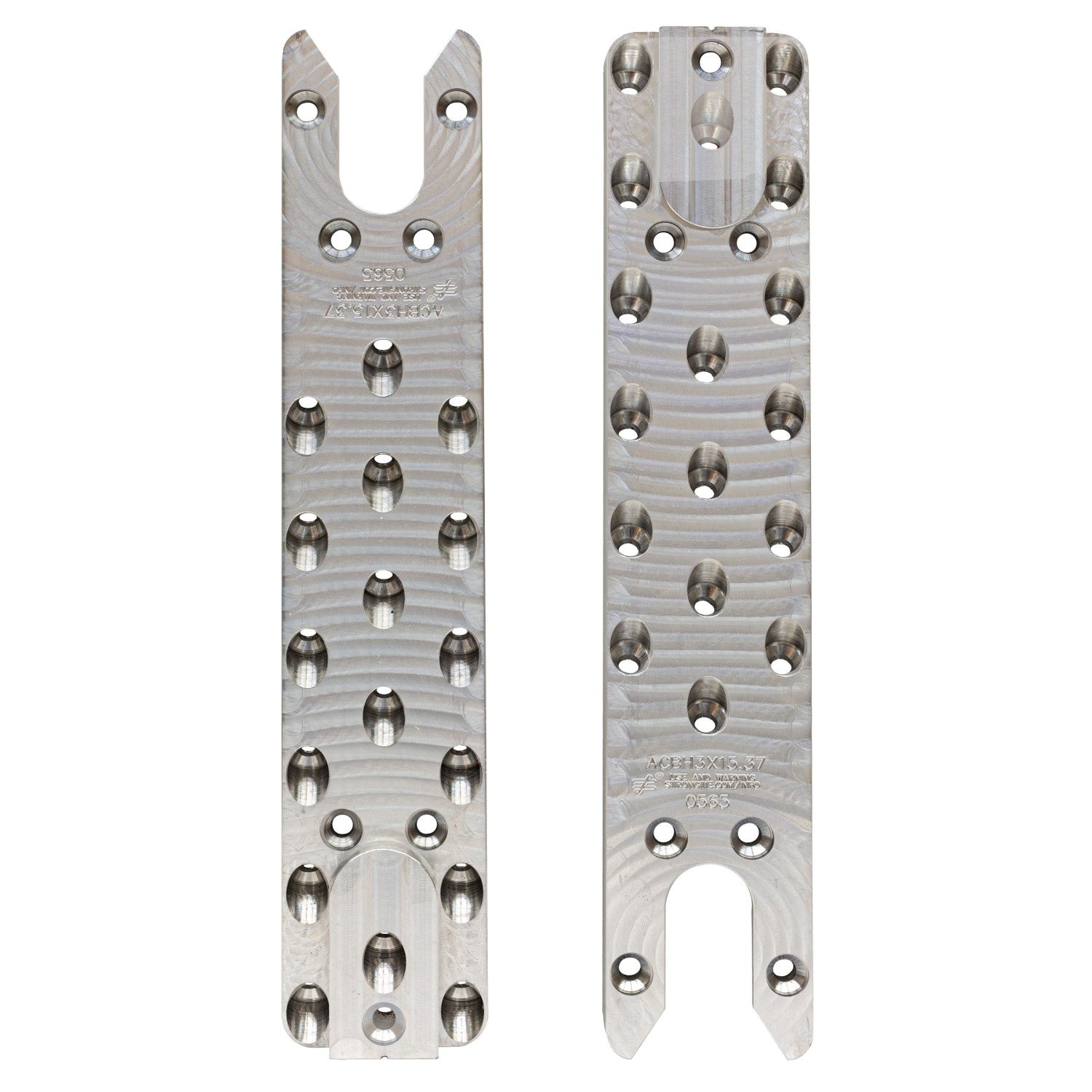

The ACBH3X15.37-R1 from Simpson Strong-Tie is a concealed beam hanger kit designed for high-performance connections in mass timber and engineered wood construction. Built for structural reliability and clean aesthetics, this kit enables hidden wood-to-wood connections in exposed framing applications.

Kit Includes:

• (16) ACBH 3x15.37 Concealed Beam Hanger Backplates

Key Features:

• Angled Fasteners: Uses Strong-Drive SDCF Timber-CF screws installed at 45° for improved capacity and stiffness
• Concealed Aesthetic: Hidden wood-to-wood connection ideal for exposed timber applications
• High Load Capacity: Engineered for demanding structural environments, including mass timber framing
• Durability: Fabricated from high-quality materials for lasting performance

Applications:

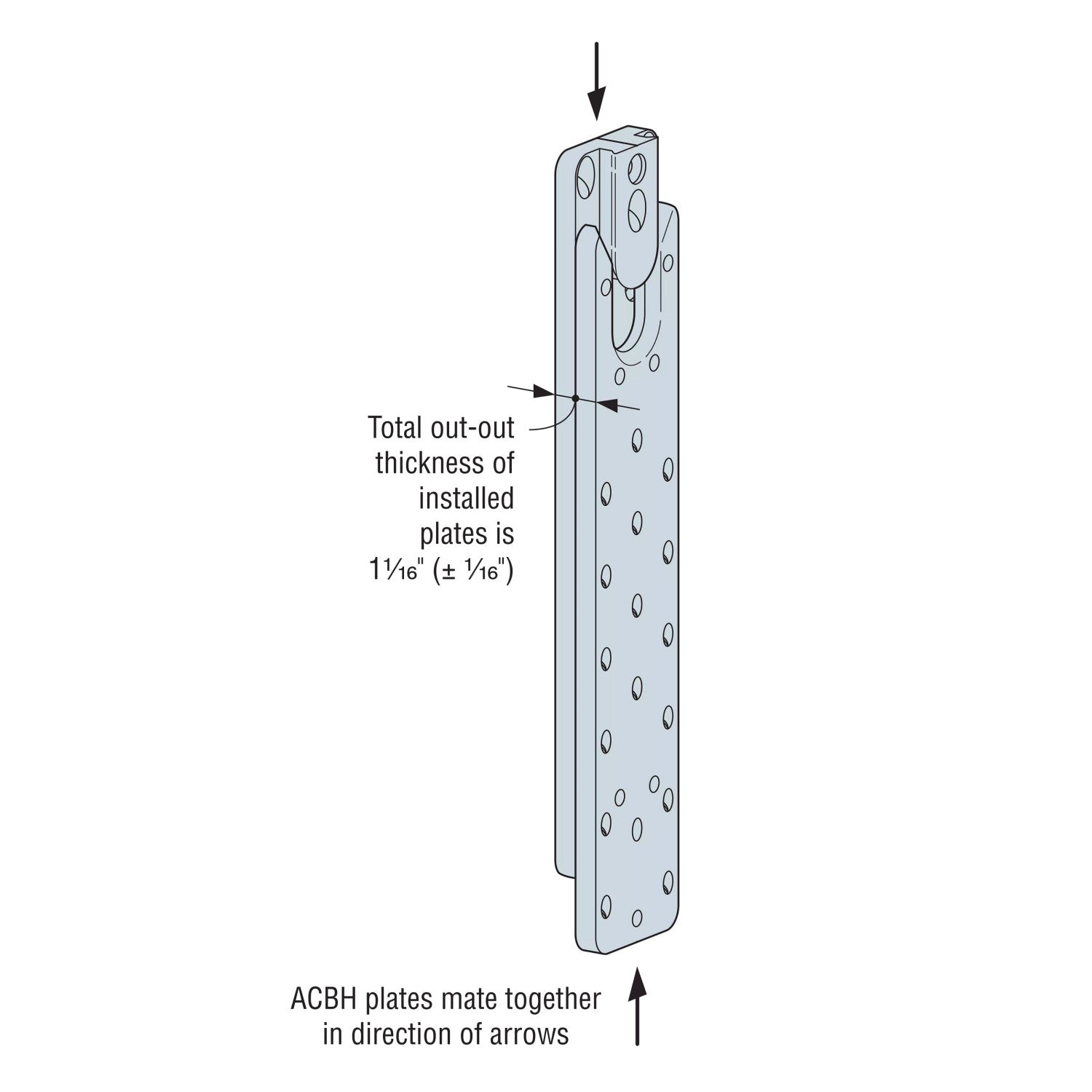

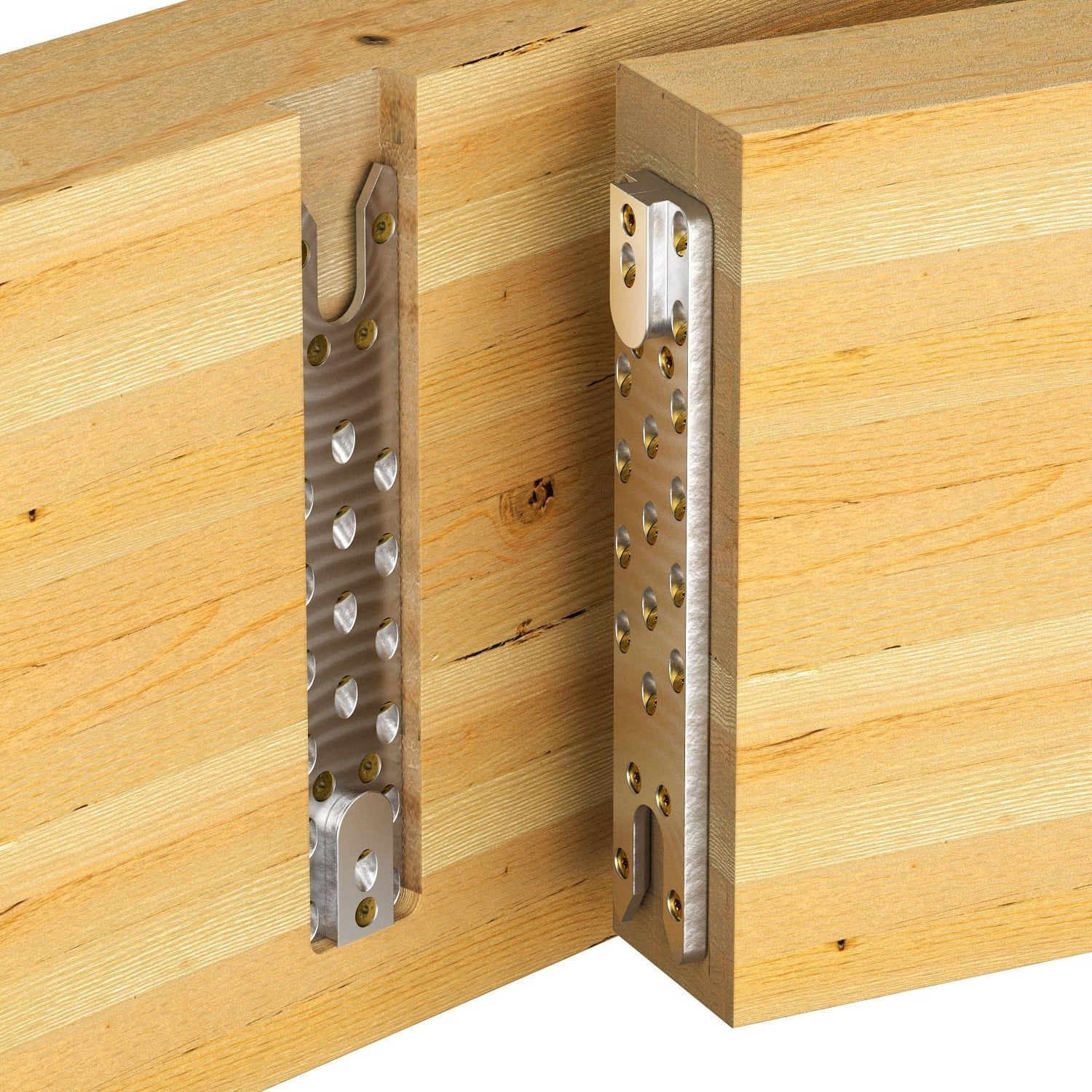

• Mass timber and engineered wood beam-to-column connections
• Architectural and exposed-framing projects where visible hardware is undesirable
• Residential, commercial, and institutional buildings using concealed timber joinery

Installation Overview:

1. Preparation: Ensure all components are clean, aligned, and free of defects.
2. Positioning: Align the ACBH hanger at the designated connection point according to plans.
3. Fastening: Install Strong-Drive SDCF Timber-CF screws at a 45° angle through the pre-aligned fastener tabs.
4. Beam Placement: Insert the beam into the hanger pocket, ensuring full seating and structural contact.
5. Final Check: Confirm all fasteners are secure and the connection complies with design requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
