Simpson Strong-Tie APLH26R Concealed Flange Light Joist Hanger for 2x6 Rough Cut Joists - Black Powder Coat, ZMAX
Joist Size
Lumber Type
Options
Description
Description
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 6x10". If you have a nominal joist measuring 1-1/2" x 5-1/2" you will need an APLH26 Decorative Light Joist Hanger.

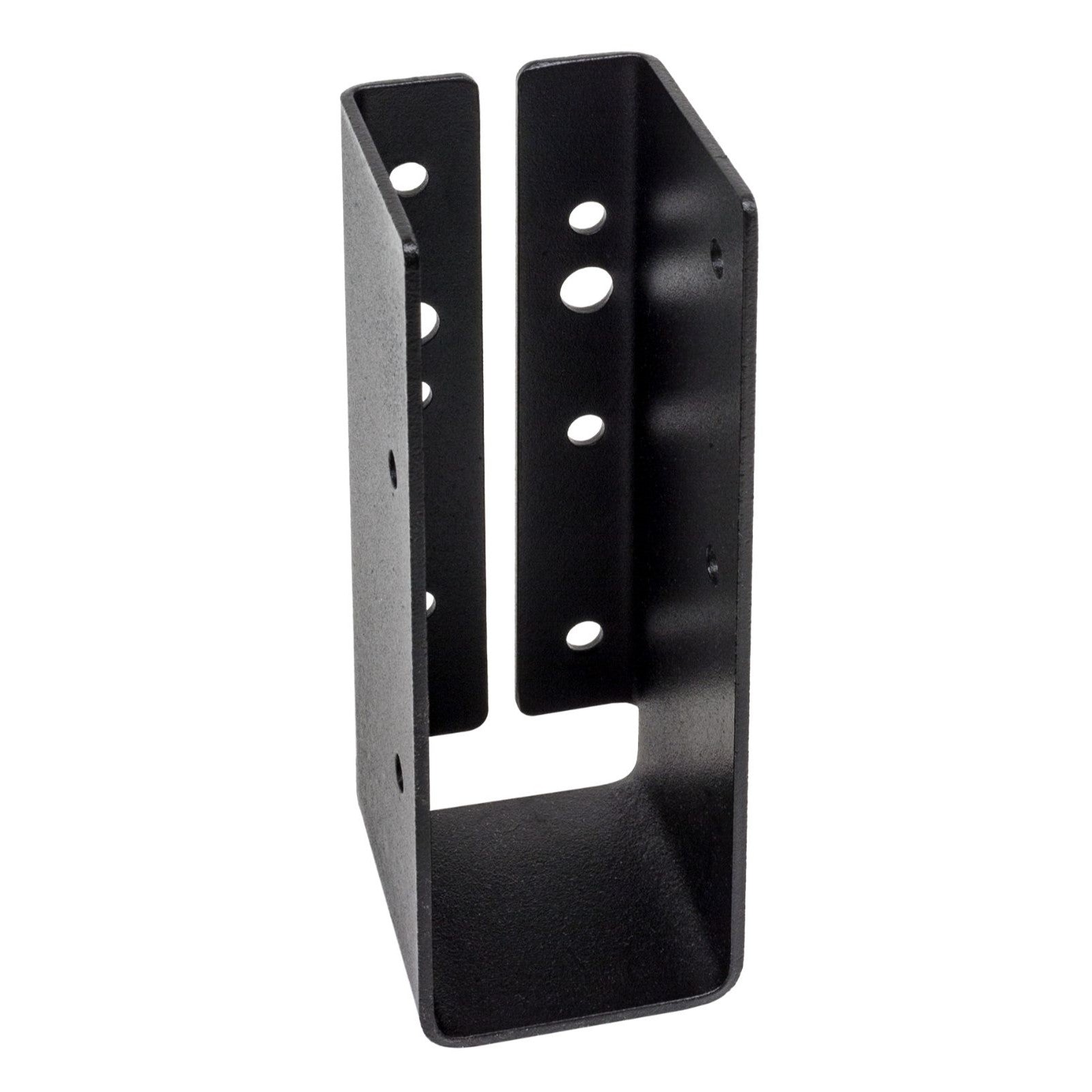

The Simpson APLH26R is a concealed flange light joist hanger designed specifically for rough cut 2x6 lumber (actual dimensions: 2" x 6"). Its concealed flange design offers a clean, finished appearance, making it ideal for outdoor projects where aesthetics are important.
Take the guesswork out of what fasteners you need with our APLH26R Kit that has the fasteners included to complete your project!
Key Features:
- Material & Finish: Made from 14-gauge steel with ZMAX galvanization and a black powder coat for enhanced corrosion resistance in exterior and treated-wood applications.
- Design: Concealed flange with straight edges provides a cleaner look for joist connections.
Applications:

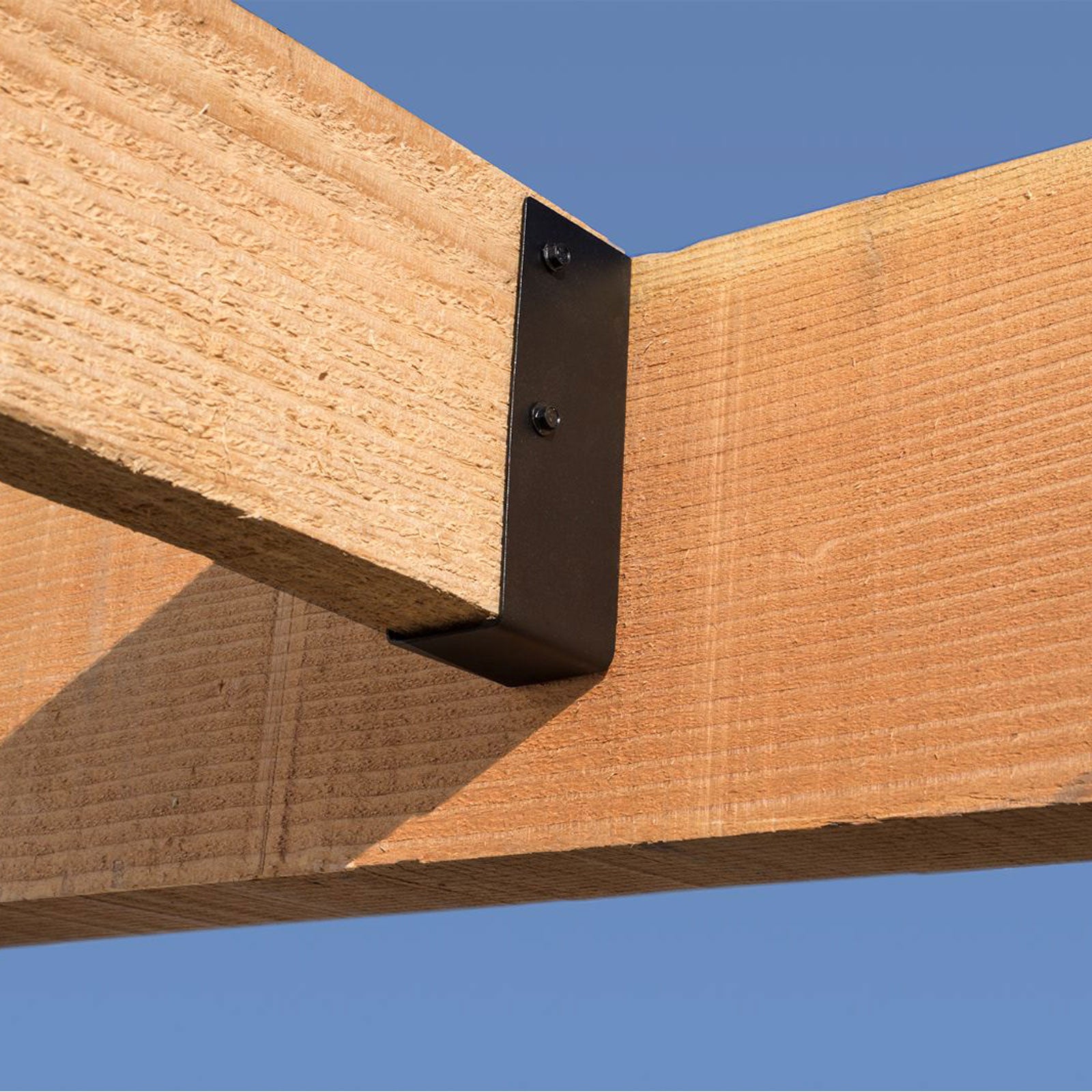

Ideal for connecting 2x6 rough cut joists to beams in outdoor structures such as decks, pergolas, and pavilions.
Installation:
Install using Simpson's SD10112DBB Connector screws. The hanger is designed for use with Simpson Strong-Tie Outdoor Accents connector screws for optimal performance and appearance.
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
• (10) #10 x 1-1/2" SD10112DBB Connector screws
