SKU: CC66HDG

Simpson CC66HDG Column Cap - Hot Dip Galvanized

Simpson CC66HDG Column Cap - Hot Dip Galvanized!

Skip to product information
1 of 2

Continue Browsing

CC Column Caps

$152.97

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 5 when you add 2 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Hot Dip Galvanized
Material: Heavy Gauge Steel
Beam size: 6x
Fasteners required: Beam - (4) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Post size: 6x
Thickness: 7 Gauge
Description

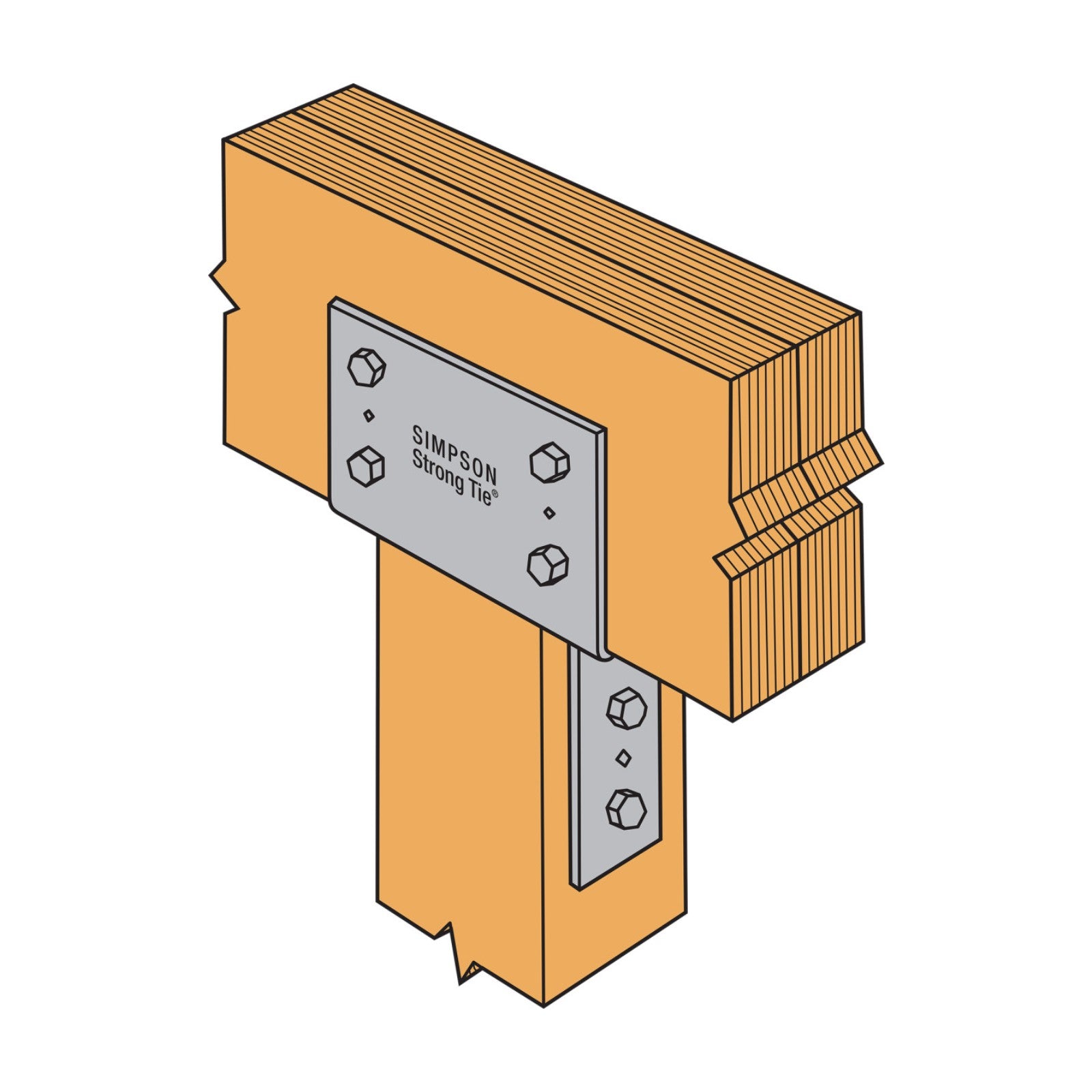

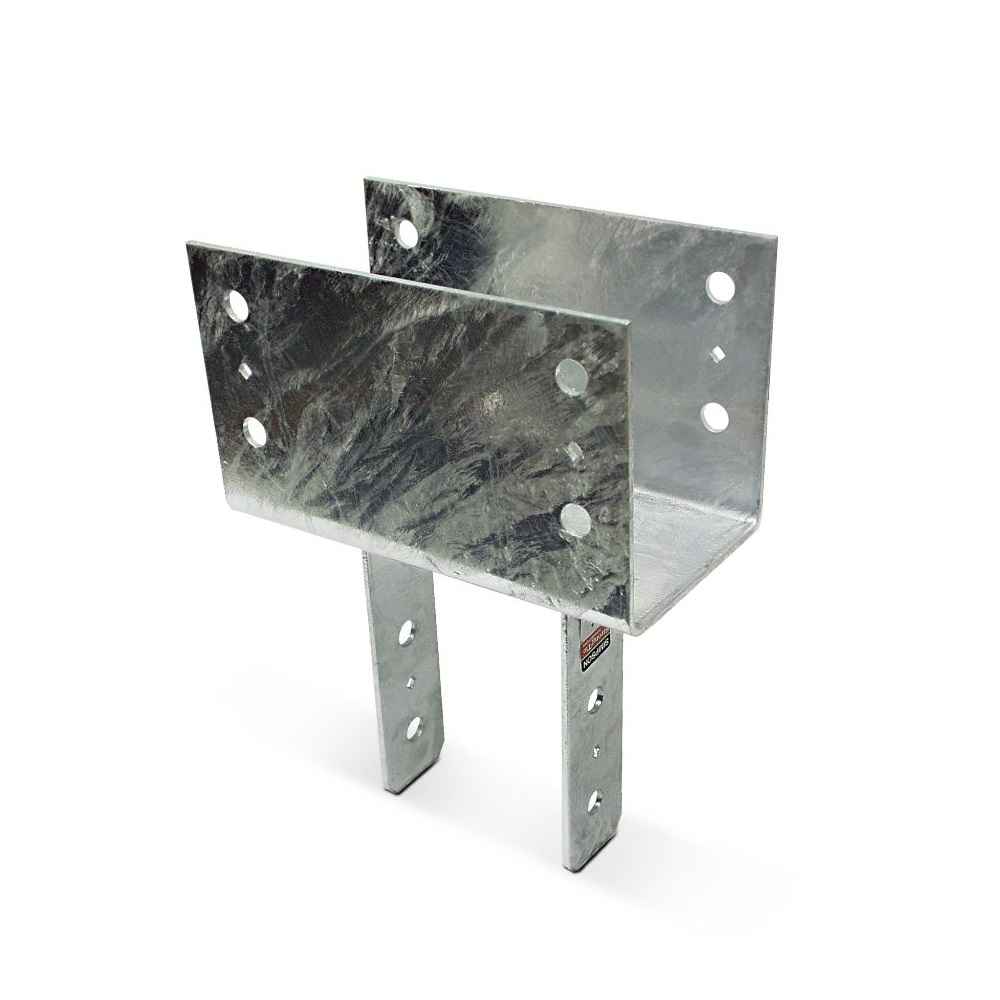

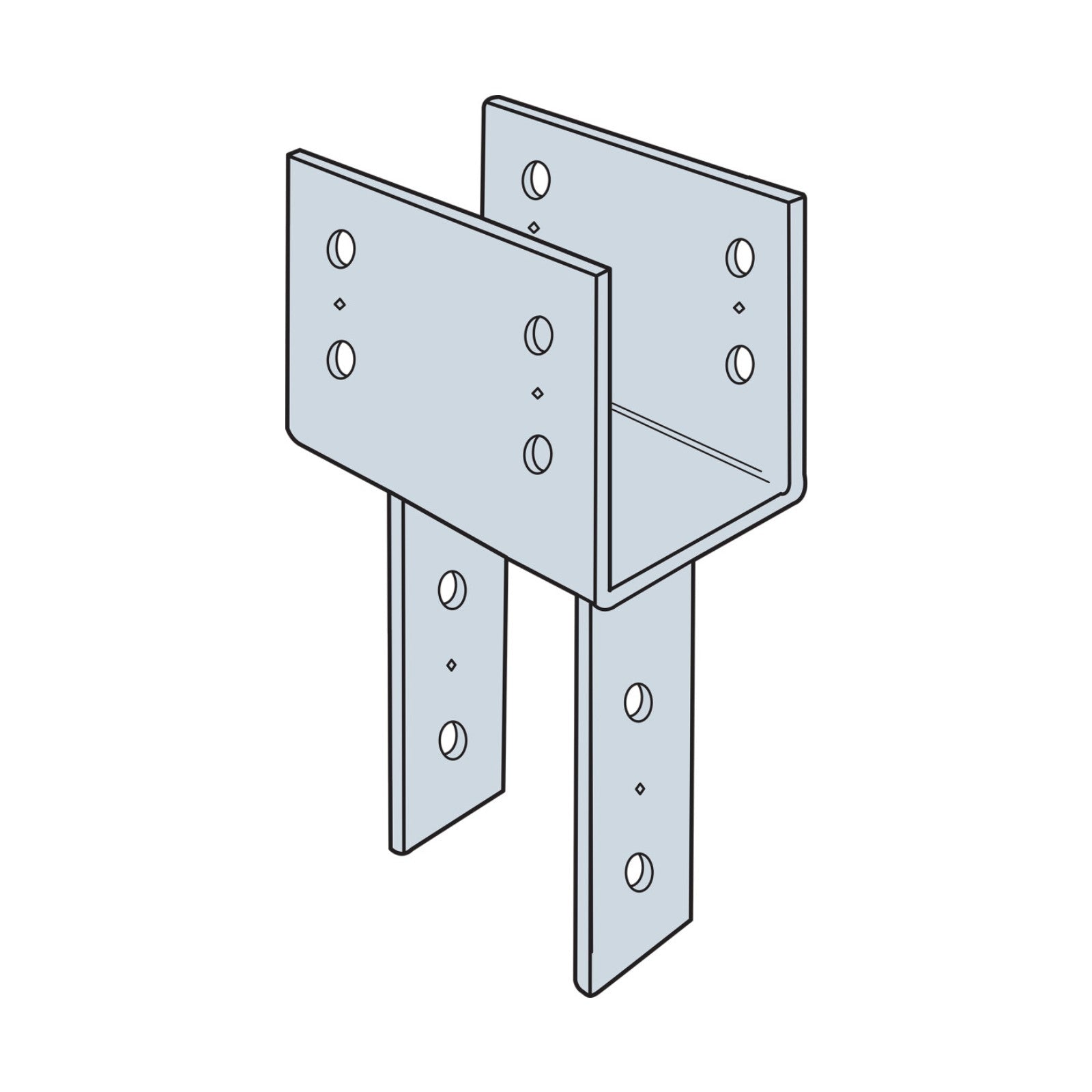

The Simpson CC66HDG Column Cap - Hot Dip Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.

The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 6x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Provides strong column to beam connection and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 6x beams and 6x posts/columns.
  • Material and Finish: Made from Heavy Gauge Steel for durability and finished with Hot Dip Galvanized coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design: Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
