SKU: CC88

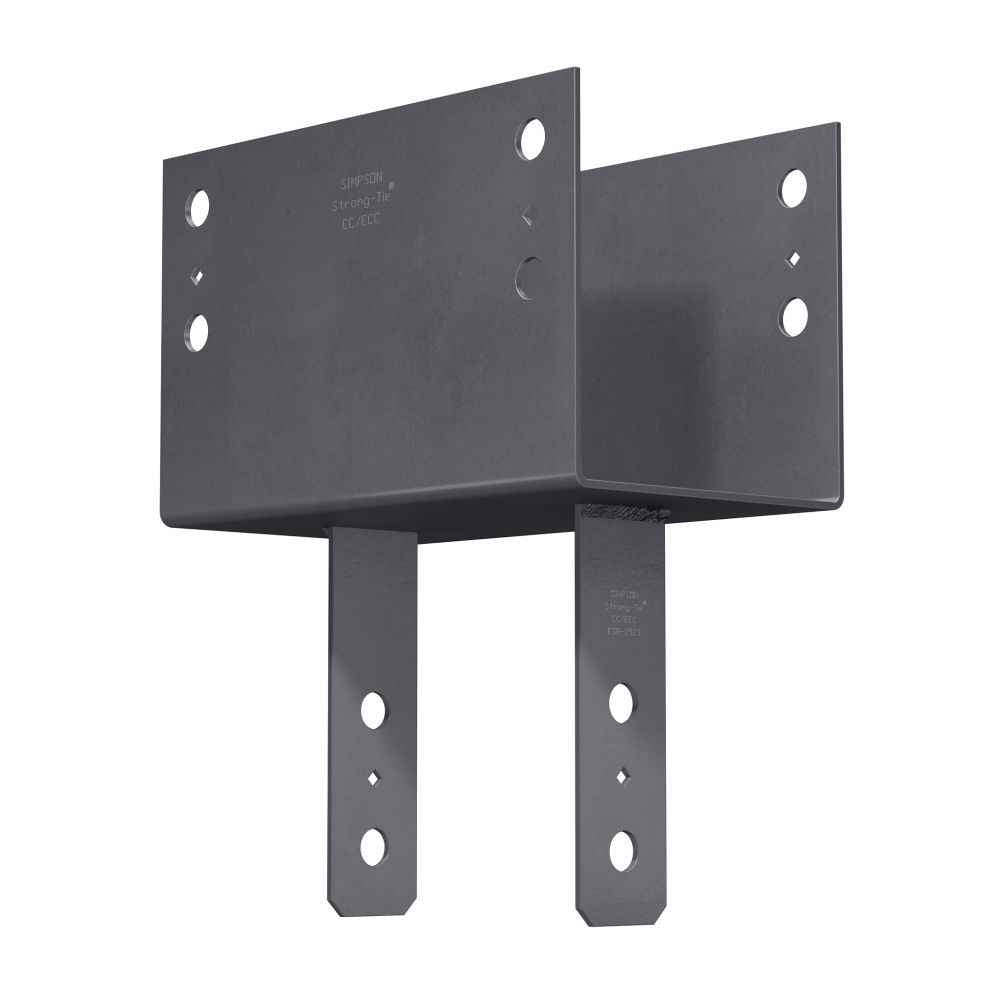

Simpson CC88 Column Cap - Gray Paint

Simpson CC88 Column Cap - Gray Paint

Regular price $174.87
Sale price $174.87 Regular price
0% off
shipping truck, lead time icon
Ships Apr 23 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

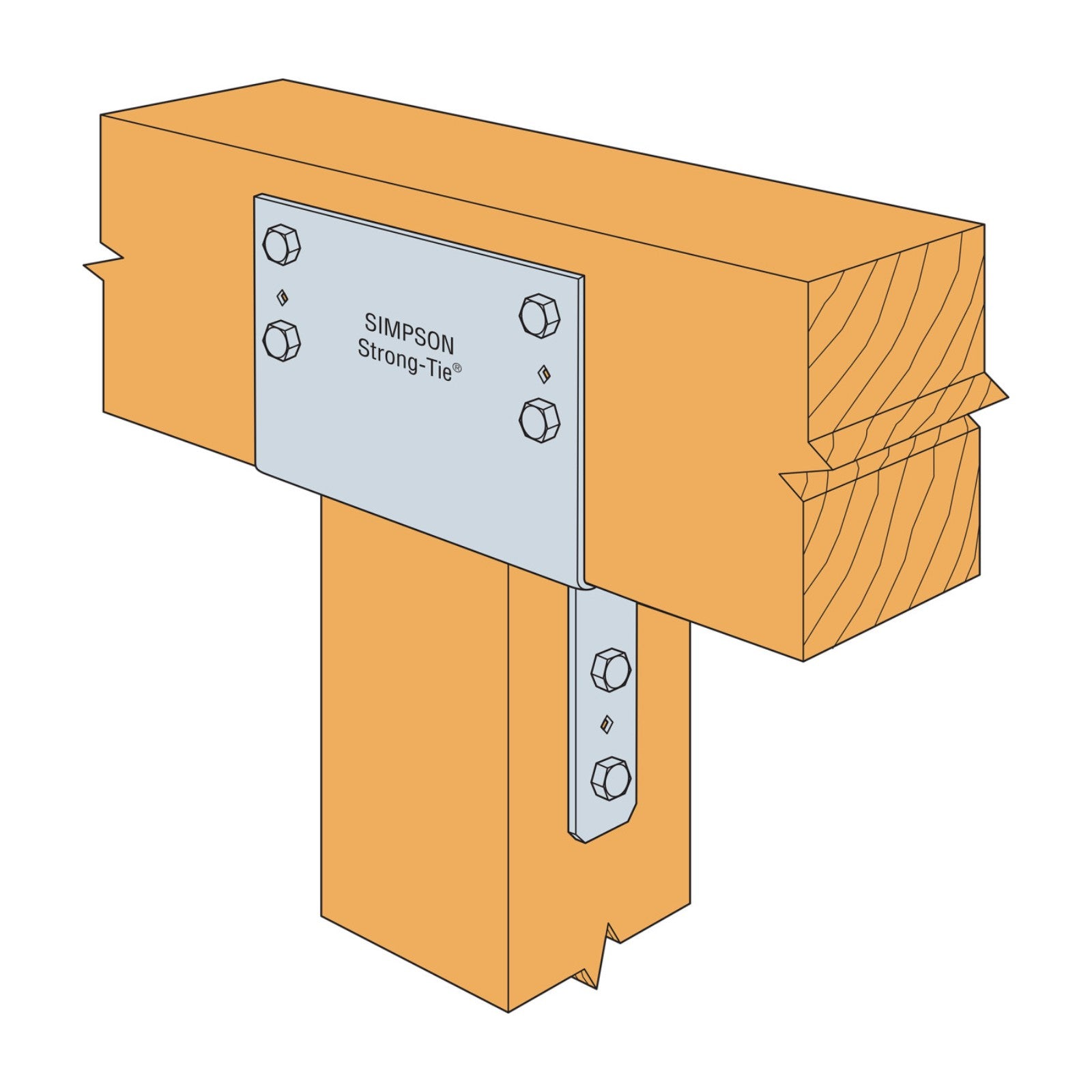

Simpson Strong-Tie CC column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie CC88 post base features a Gray Painted finish for added corrosion resistance.

Installation:

  • Use all specified fasteners.
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
  • Contact engineered wood manufacturers for connections that are not through the wide face.

Options:
  • Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
  • For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
  • Contact engineered wood manufacturers for connections that are not through the wide face.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson CC Column Caps.


California Residents: WARNING

Specifications:


Post Size: 8X
Fasteners required: Beam - (4) 3/4" Machine Bolts Post - (2) 3/4" Machine Bolts
Thickness: 3 Gauge
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Beam size: 8X
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
-Contact engineered wood manufacturers for connections that are not through the wide face.
