SKU: CC9X

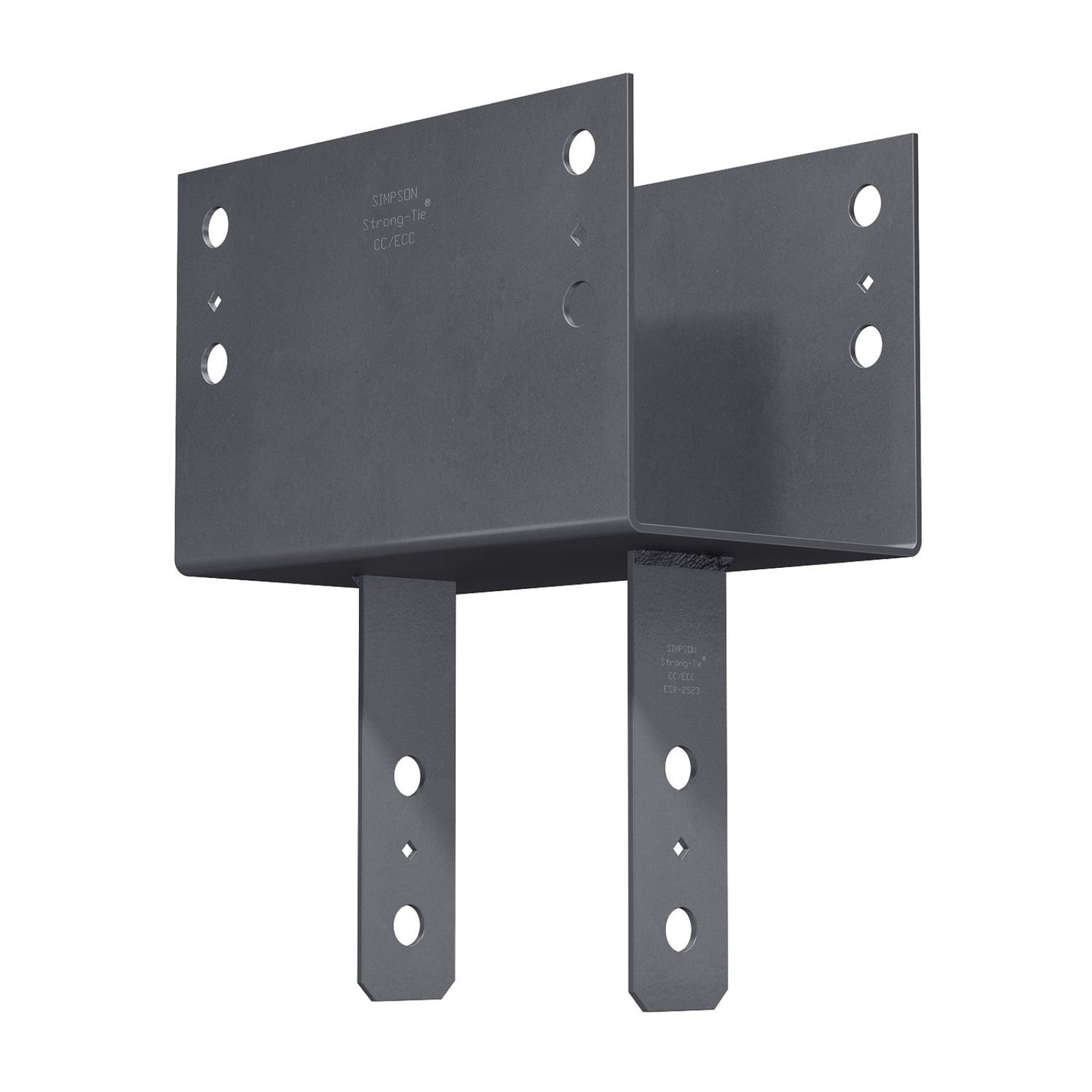

Simpson CC9X Column Cap for 8-3/4" Beam, Variable Post, Custom Non-Returnable

Simpson CC9X Column Cap for 8-3/4" Beam, Variable Post, Custom Non-Returnable!

Skip to product information
1 of 4
Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Beam size: 8-3/4"
Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Height: 8"
Manufacturer name: Simpson Strong-Tie
Thickness: 3 Gauge

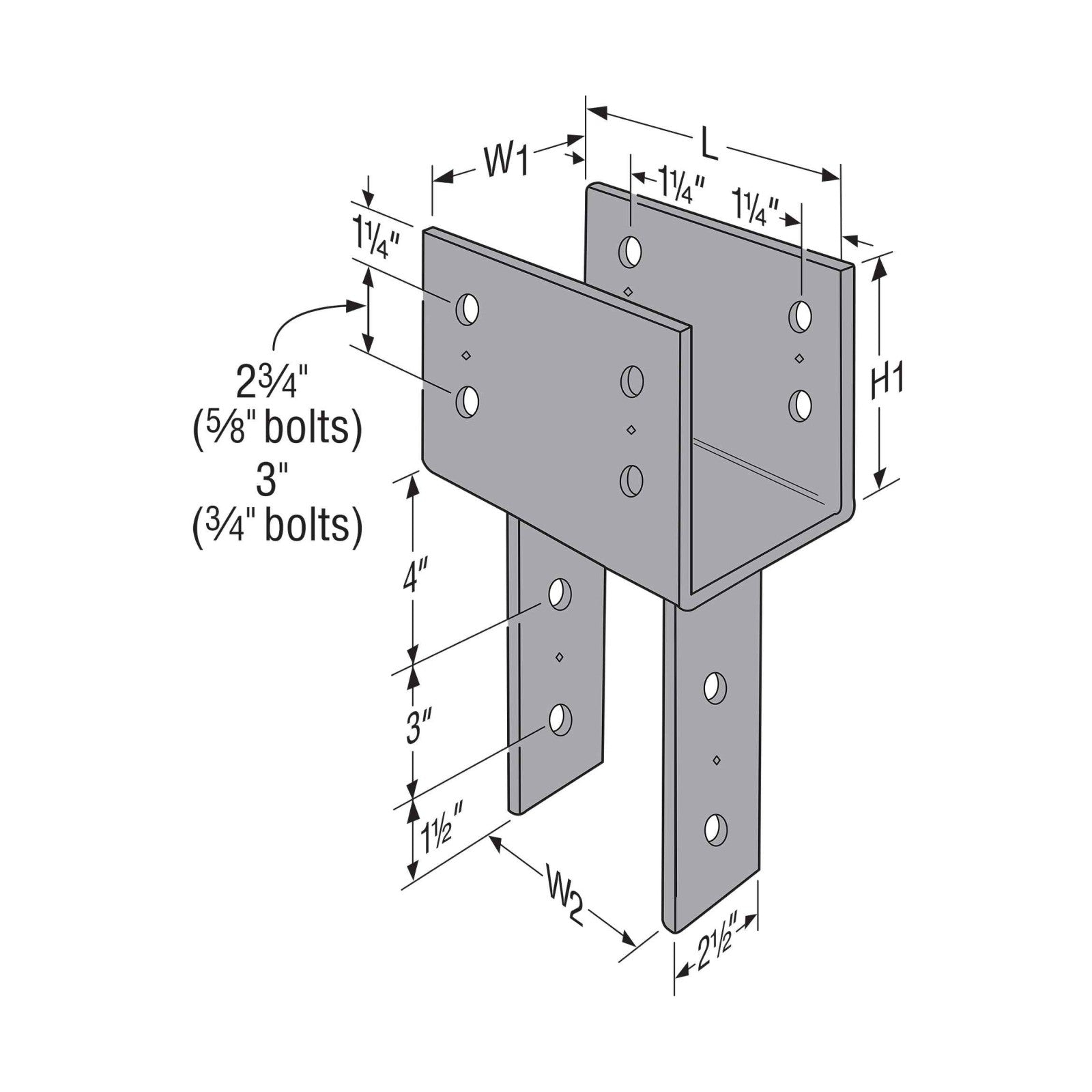

Width: (See Image 2) W1: 8" - 8.9375"; W2: 3.25" - 12"
Description

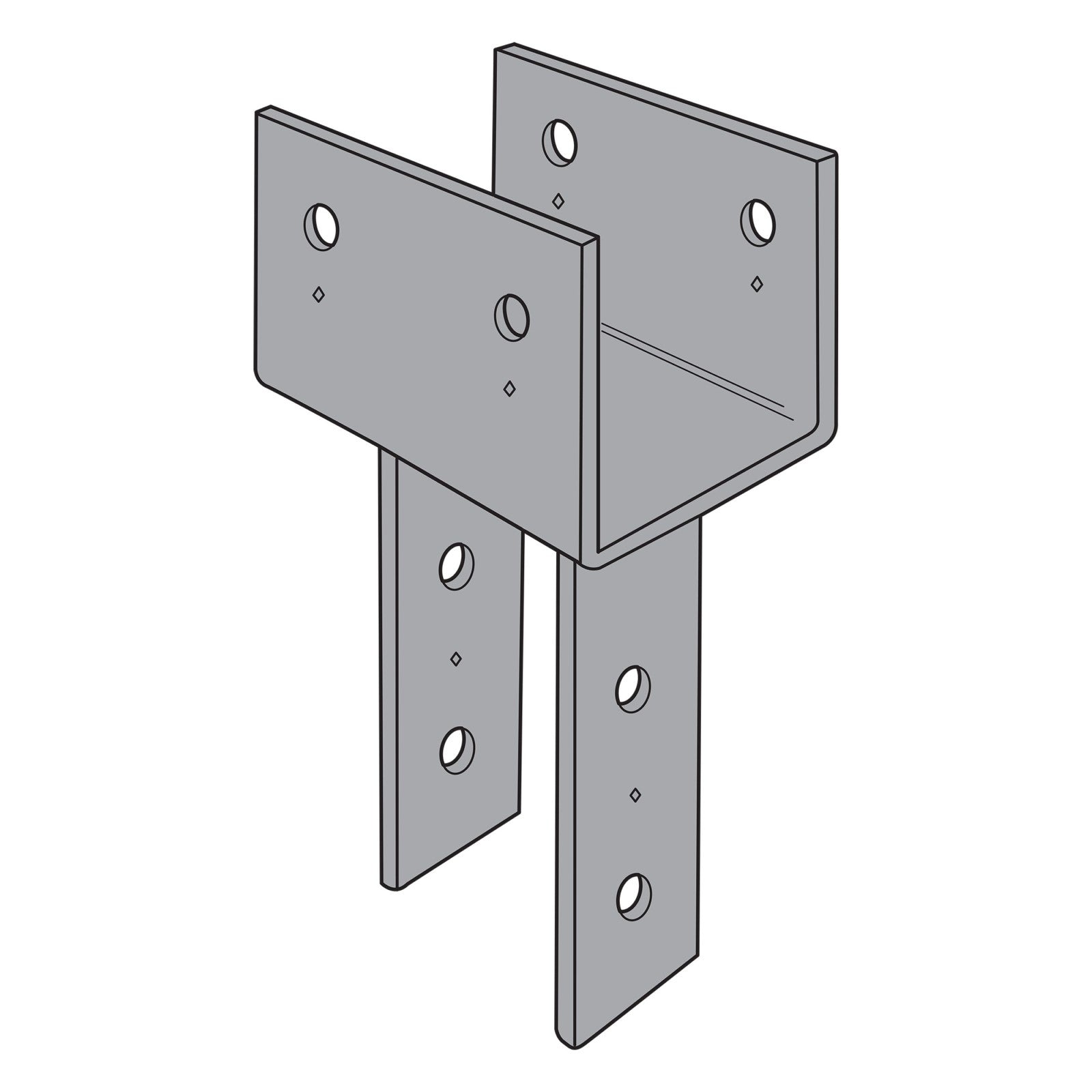

Simpson Strong-Tie CC column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie CC9X post base features a Gray Painted finish for added corrosion resistance.

Installation:

  • Use all specified fasteners.
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
  • Contact engineered wood manufacturers for connections that are not through the wide face.

Options:

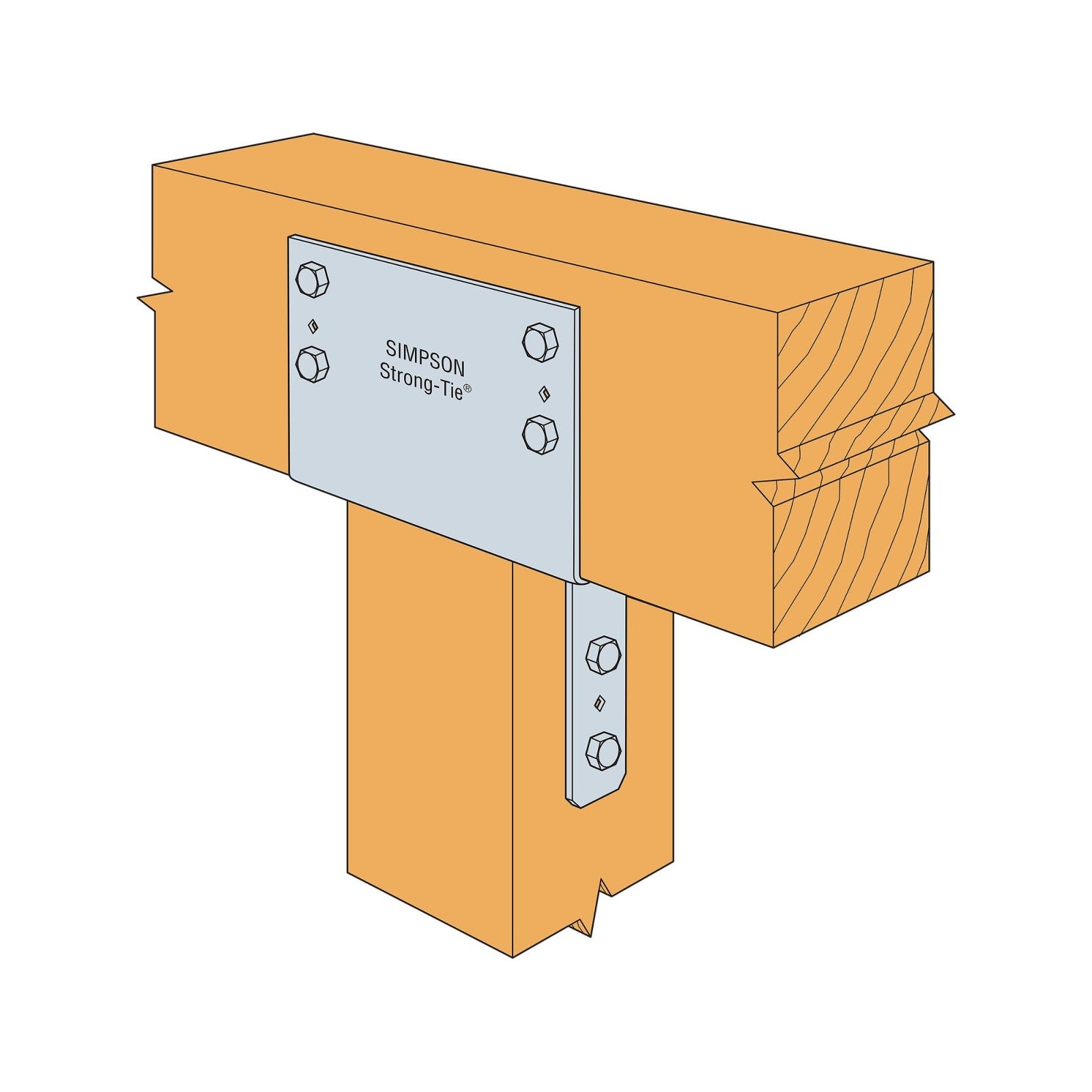

  • Straps may be rotated 90° where W1 is greater than or equal to W2 (see illustration)

For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.) Contact engineered wood manufacturers for connections that are not through the wide face.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
