SKU: CCC6X

Simpson CCC6X Cross Column Cap for 6X Beam, Made to Order Non-Returnable

Name: Simpson CCC6X Cross Column Cap for 6X Beam, Made to Order Non-Returnable
SKU: CCC6X
Availability: InStock

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

The CCC Column Cap is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCC6X is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

Certified welds for confidence in strength and loading
Bolt spacing that meets NDS code requirements to ensure optimal performance
Diamond holes to provide temporary fastening
Also available in HDG, please indicate when ordering.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

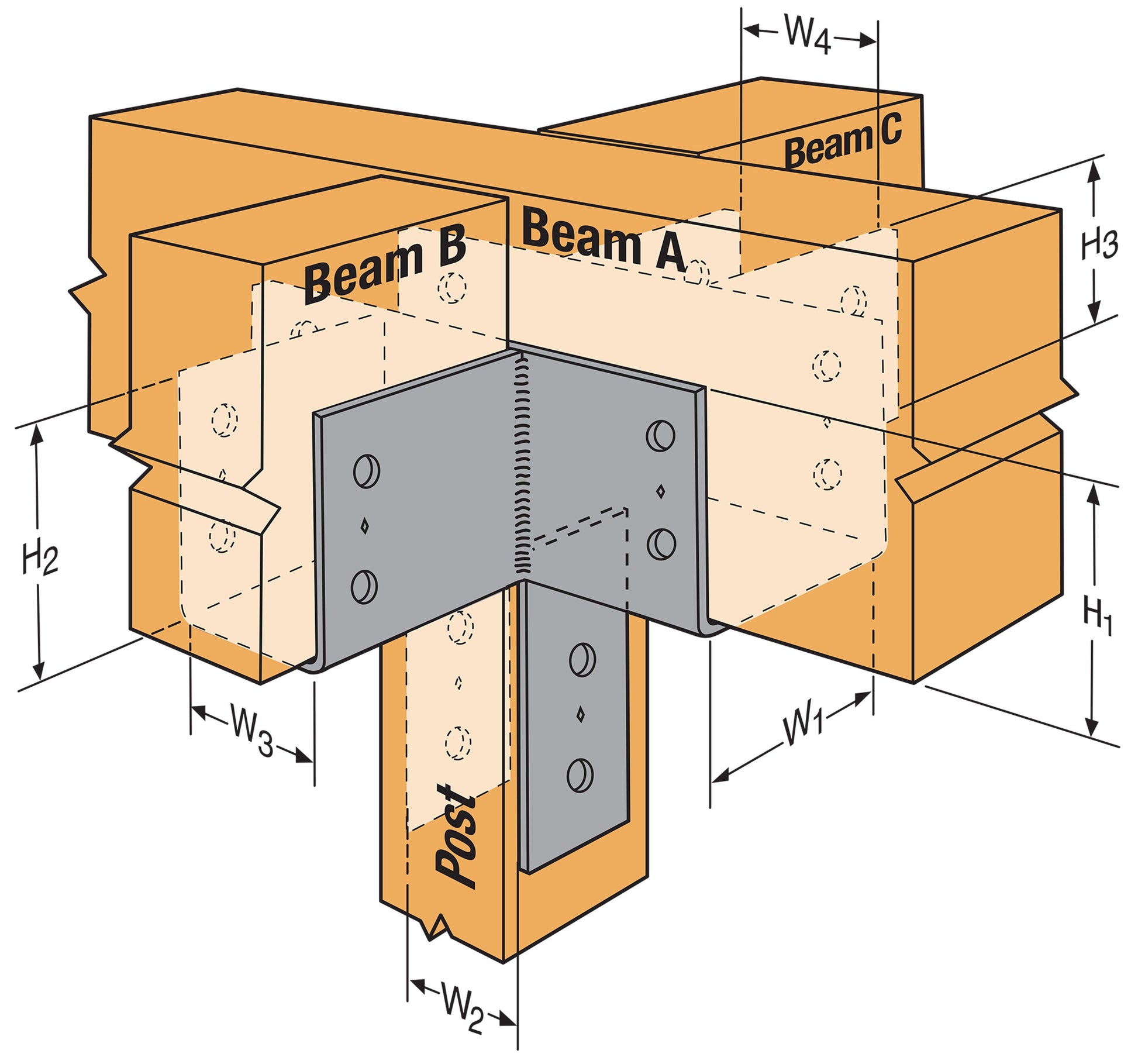

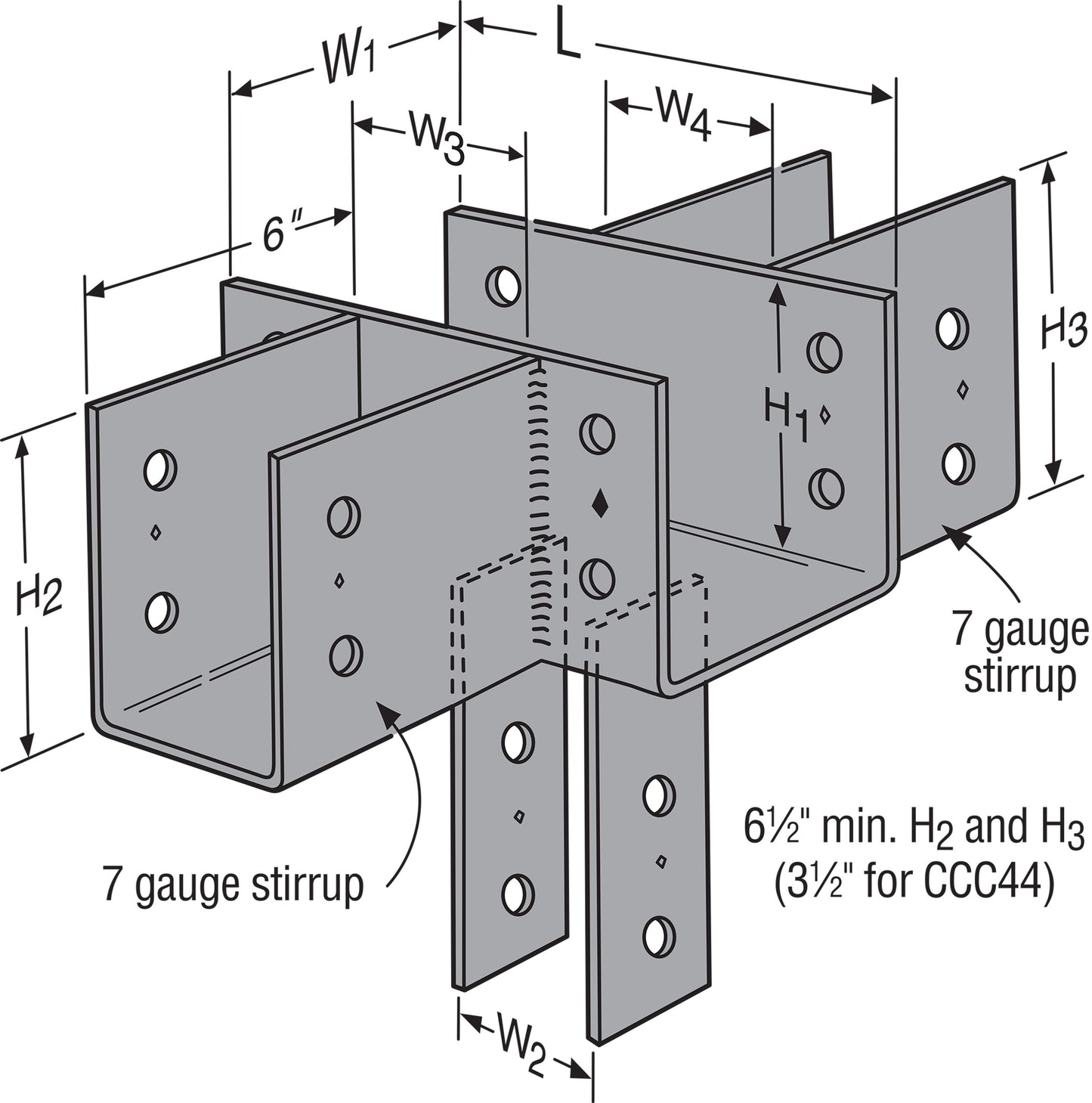

Width: (See Image 2) W1: 4.125" - 6.8125"; W2: 3.25" - 10"; W3: 3.25" - 8"; W4: 3.25" - 8"

Height: (See Image 2) H1: 6.5"; H2: 6.5" - 15"; H3: 6.5" - 15"

Finish: Gray Paint

Manufacturer Name: Simpson Strong-Tie

View Spec Sheet
