Shop more CC Column Caps
SKU: CCO4/6

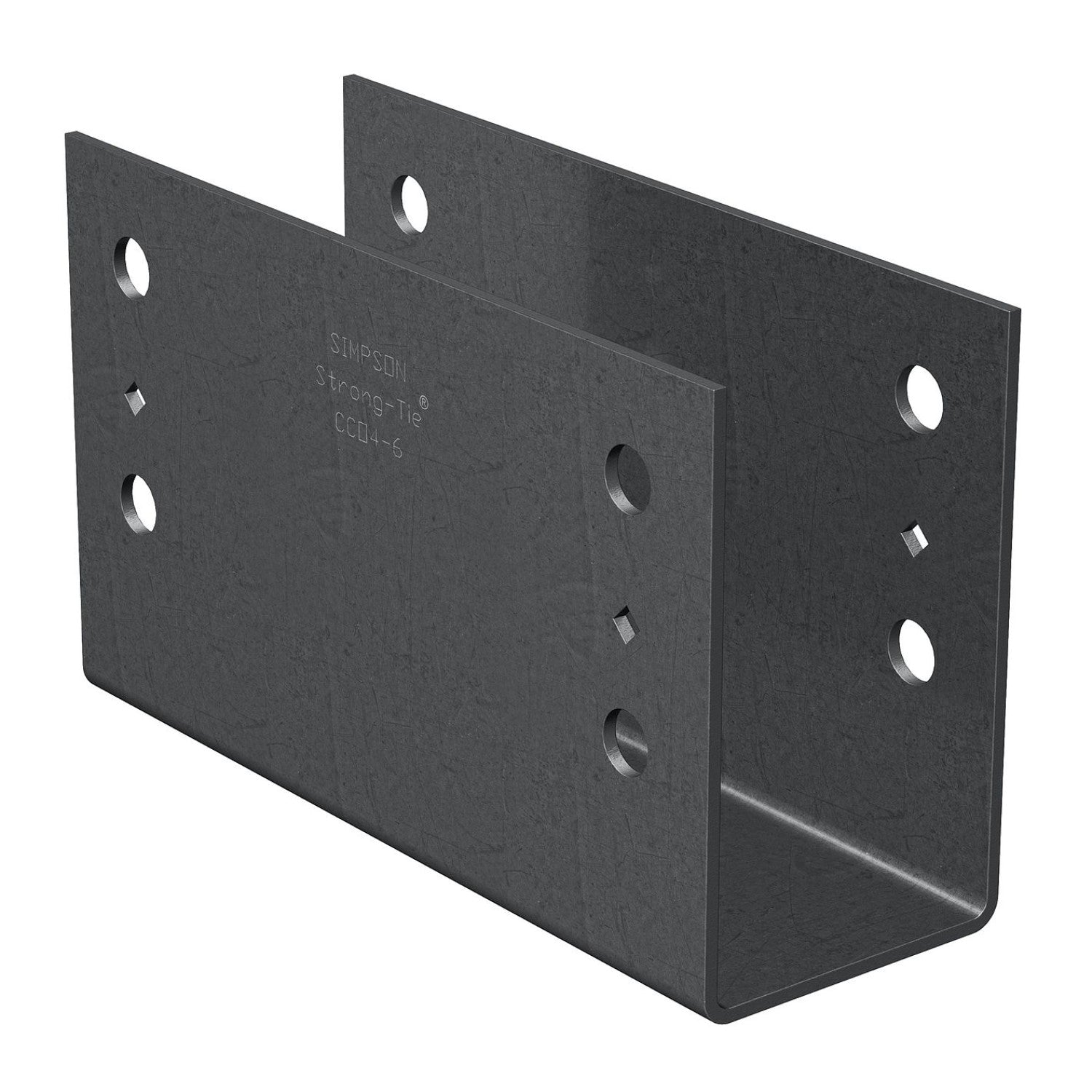

Simpson CCO4/6 Column Cap Only 7 Gauge - No Coating

Simpson CCO4/6 Column Cap Only 7 Gauge - No Coating

Regular price $77.27
Sale price $77.27 Regular price
0% off

Description:

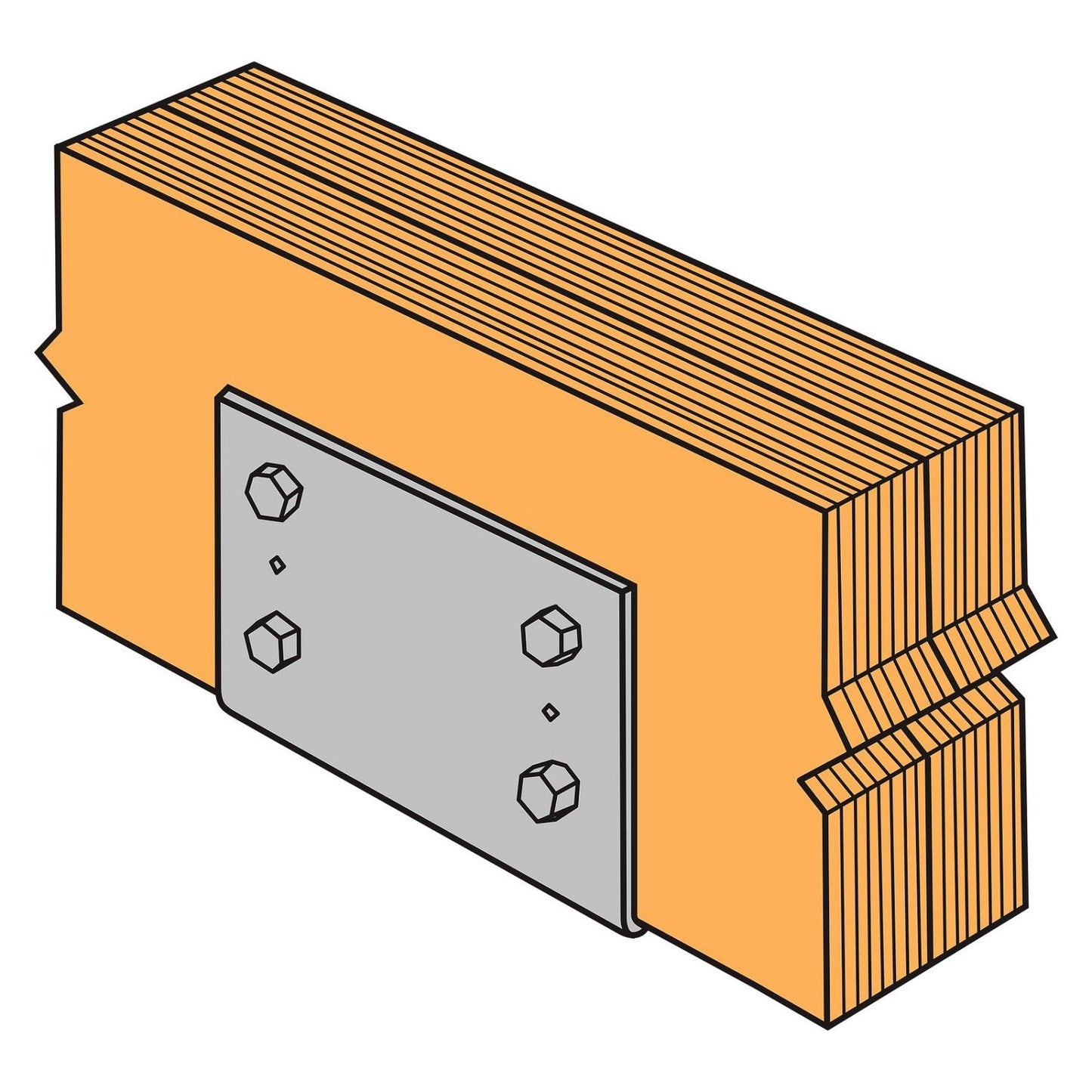

The Simpson CCO Column Cap Only is designed to provide strong column-beam connections on top of steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides additional surface area for bearing that extends beyond each side of the column. This helps to distribute the load from the beam and provide support for the connection.

Key Features

  • Uplift loads increased for earthquake or wind loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

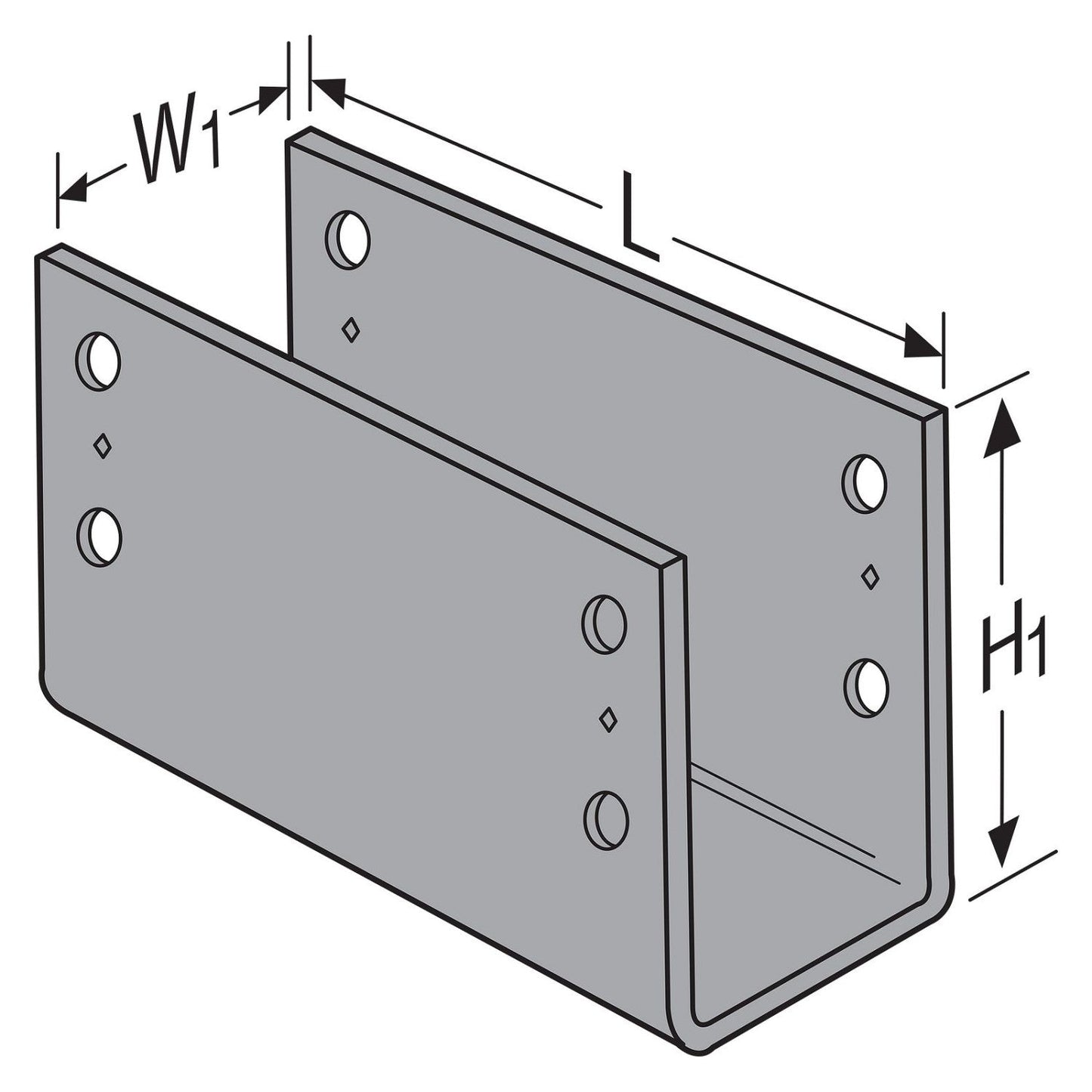

Specifications:


Height: 6-1/2"
Fasteners required: See Product Spec Sheet
Thickness: 7 Gauge
Width: Beam 3-1/2"
Length: 11"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
