SKU: CCO5 1/4

Simpson CCO5 1/4 Column Cap Only 7 Gauge - No Coating

Simpson CCO5 1/4 Column Cap Only 7 Gauge - No Coating!

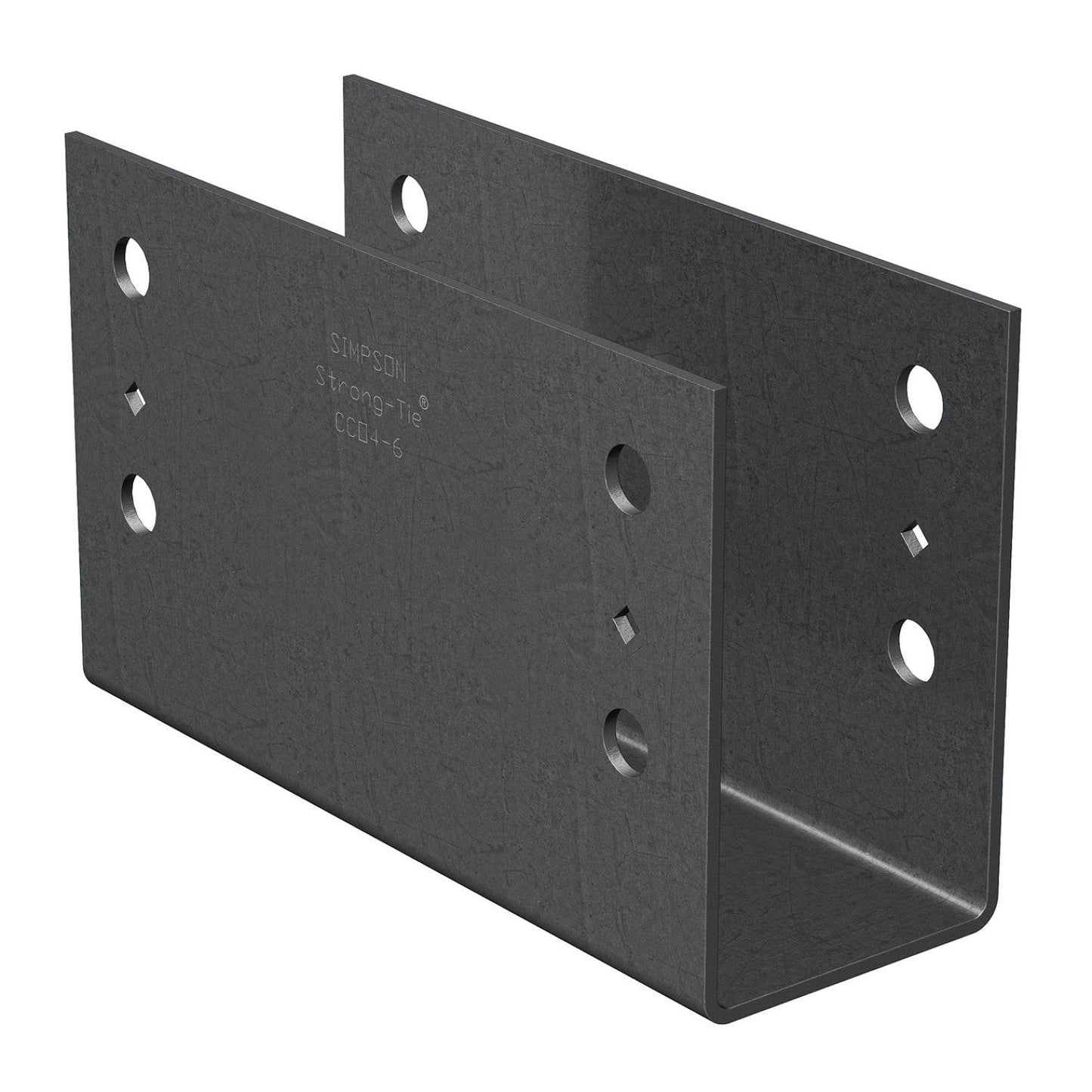

  • CCO Column Cap Only (CCO4-6 shown)

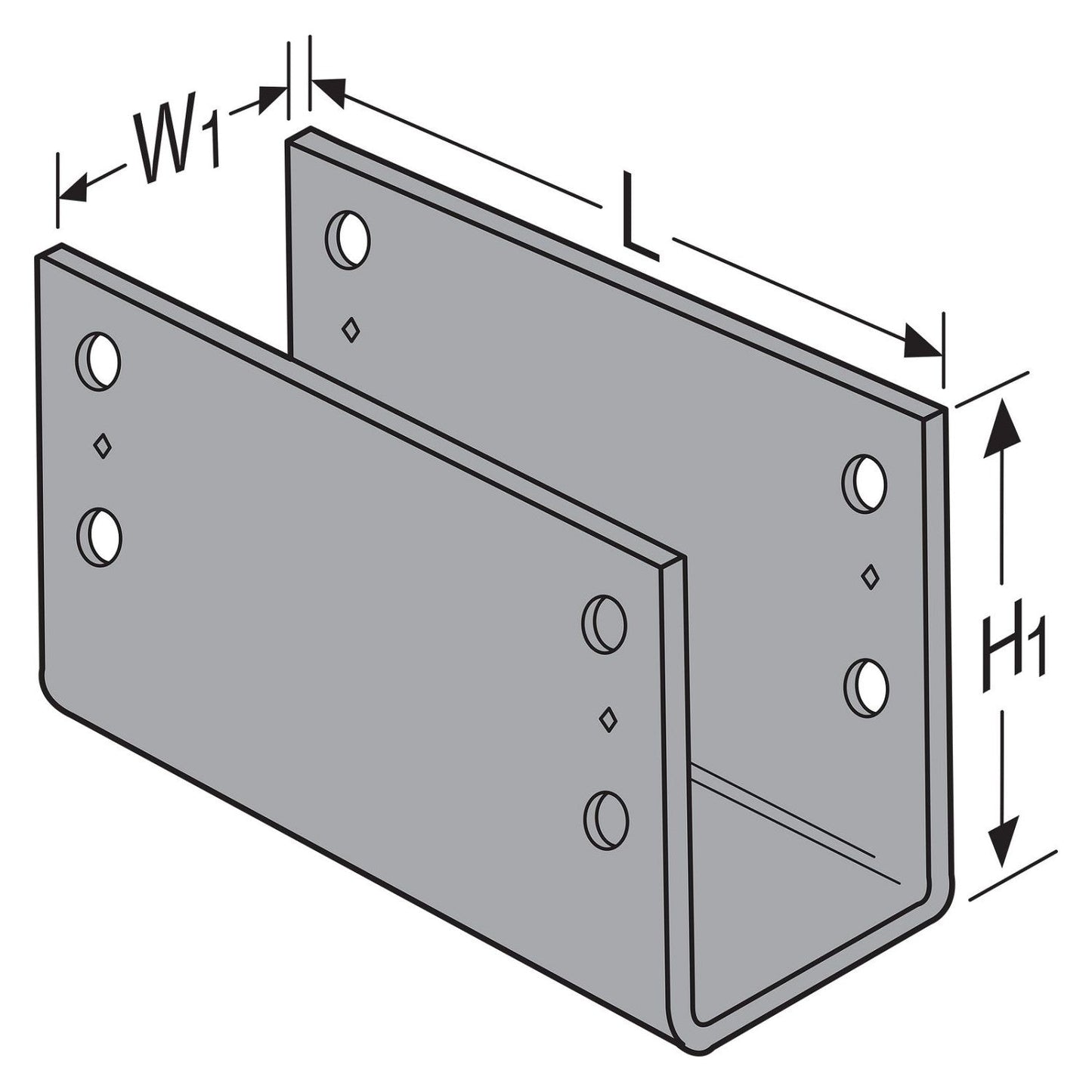

  • CCO Column Cap Only
  • CCO Typical Installation
  • Simpson Platinum DistributorSimpson AC6Z Adjustable Post Cap for 6X Beam - ZMAX
1 4

Continue Browsing

CC Column Caps
SKU: CCO5 1/4

Simpson CCO5 1/4 Column Cap Only 7 Gauge - No Coating

$100.68

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 2 and order in the next 5 hours 4 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: None
Length: 13"
Material: Heavy Gauge Steel
Beam size: 5-1/8x
Fasteners required: See Product Spec Sheet
Height: 8"
Manufacturer name: Simpson Strong-Tie Company Inc
Thickness: 7 Gauge
Width: Beam 5-1/8"
Description

The Simpson CCO5 1/4 Column Cap Only 7 Gauge - No Coating enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.

The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection, while the strapless design was created specifically for field welding to a steel column.

This product is intended for use with 5-1/8x beams but is also available in a wide range of other sizes.

Features:

  • Connection Type: Provides strong column to beam connection while the strapless design is intended for field welding to a steel column.
  • Lumber Size: Intended for use with 5-1/8x beams.
  • Material and Finish: Made from Heavy Gauge Steel for durability and finished with None coating.
  • Performance: Extended surface area of the column seat provides additional bearing distrubtion for the load.
