SKU: CCOB5.50
Simpson CCOB5.50 Column Cap Only, Back-to-Back
Simpson CCOB5.50 Column Cap Only, Back-to-Back
No reviews
Call for Price
Call to Order
Payment methods
Accepted payments:
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

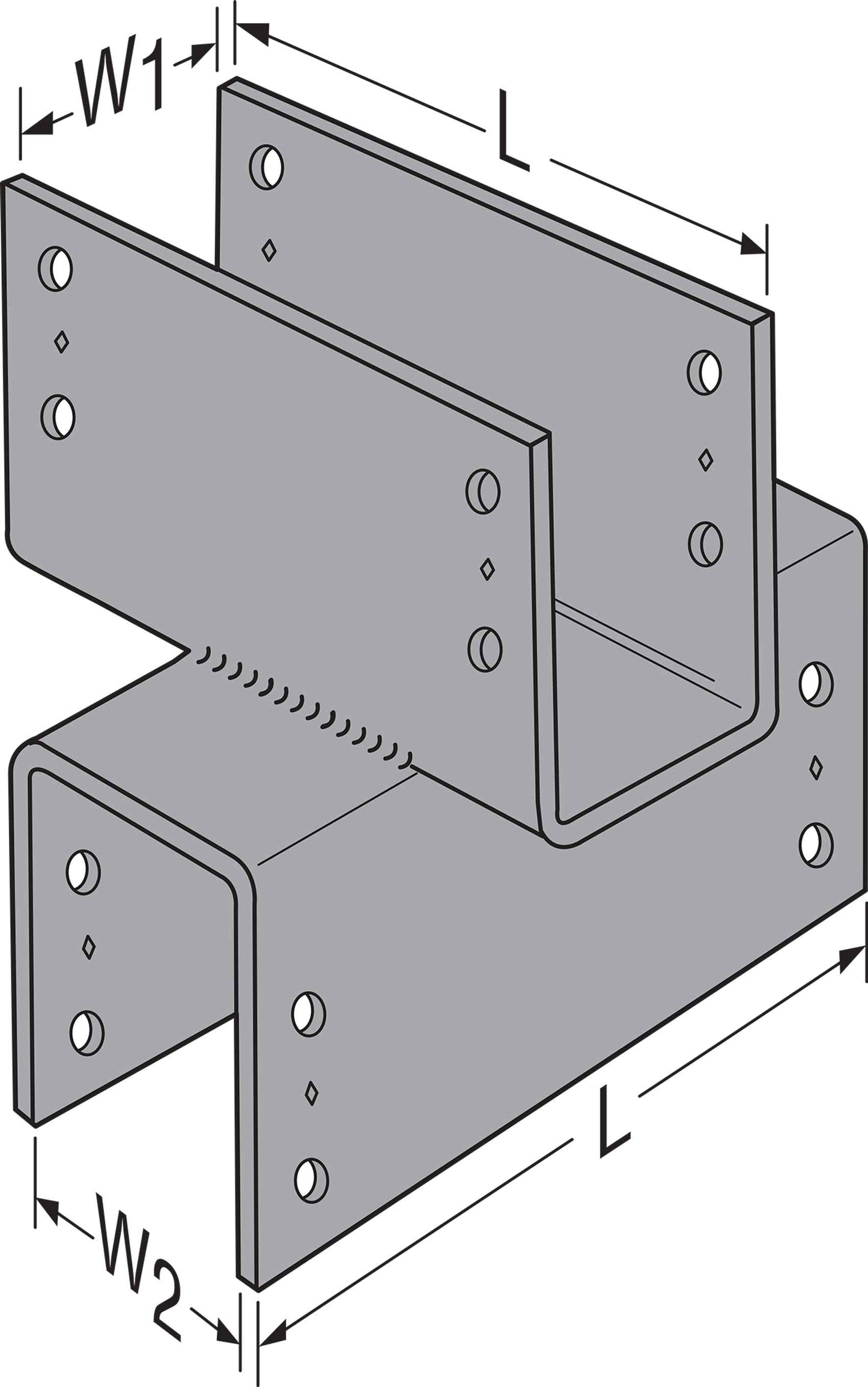

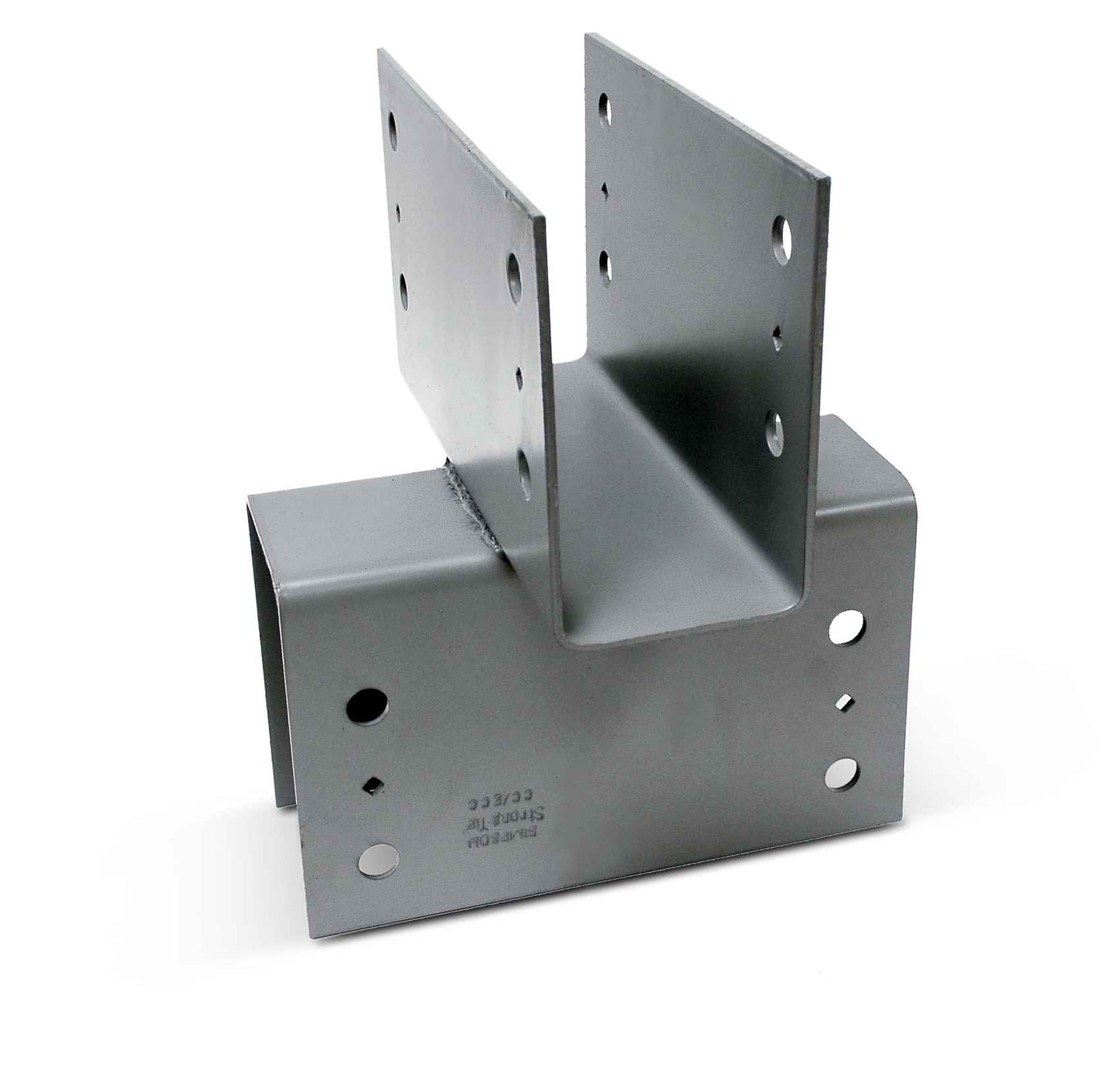

The CCOB Column Cap Only, Back-to-Back is designed to provide a strong connection for the crossing of two beams. The design features two column caps without legs (CCOs) welded together back-to-back to create a cross-beam connector. This back-to-back column cap provides a high-capacity beam-to-beam connection.
Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: Fixed Height H1: 6.5000 (in.)
Fasteners required: See Product Spec Sheet
Thickness: 7 Gauge
Width: Fixed Width W1: 5.5000 (in.)
Finish: No Coating
Product Guide: View Spec Sheet
