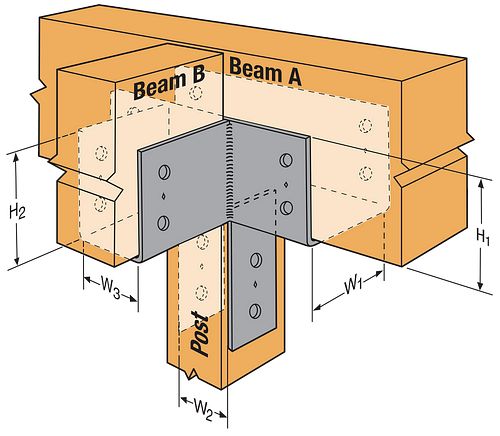

The CCT Column Cap T Configuration is designed to provide strong column-to-beam connections when there are two beams in a “T” formation on top of a column. When properly installed, this column cap helps to distribute the load from a bisecting beam and provides support for the connection. The CCT666 is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

• Certified welds for confidence in strength and loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
