Simpson CCT4X T-Shape Column Cap for 4X Beam, Custom Non-Returnable

Simpson CCT4X T-Shape Column Cap for 4X Beam, Custom Non-Returnable

Call for Price
Call to Order
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


  • This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

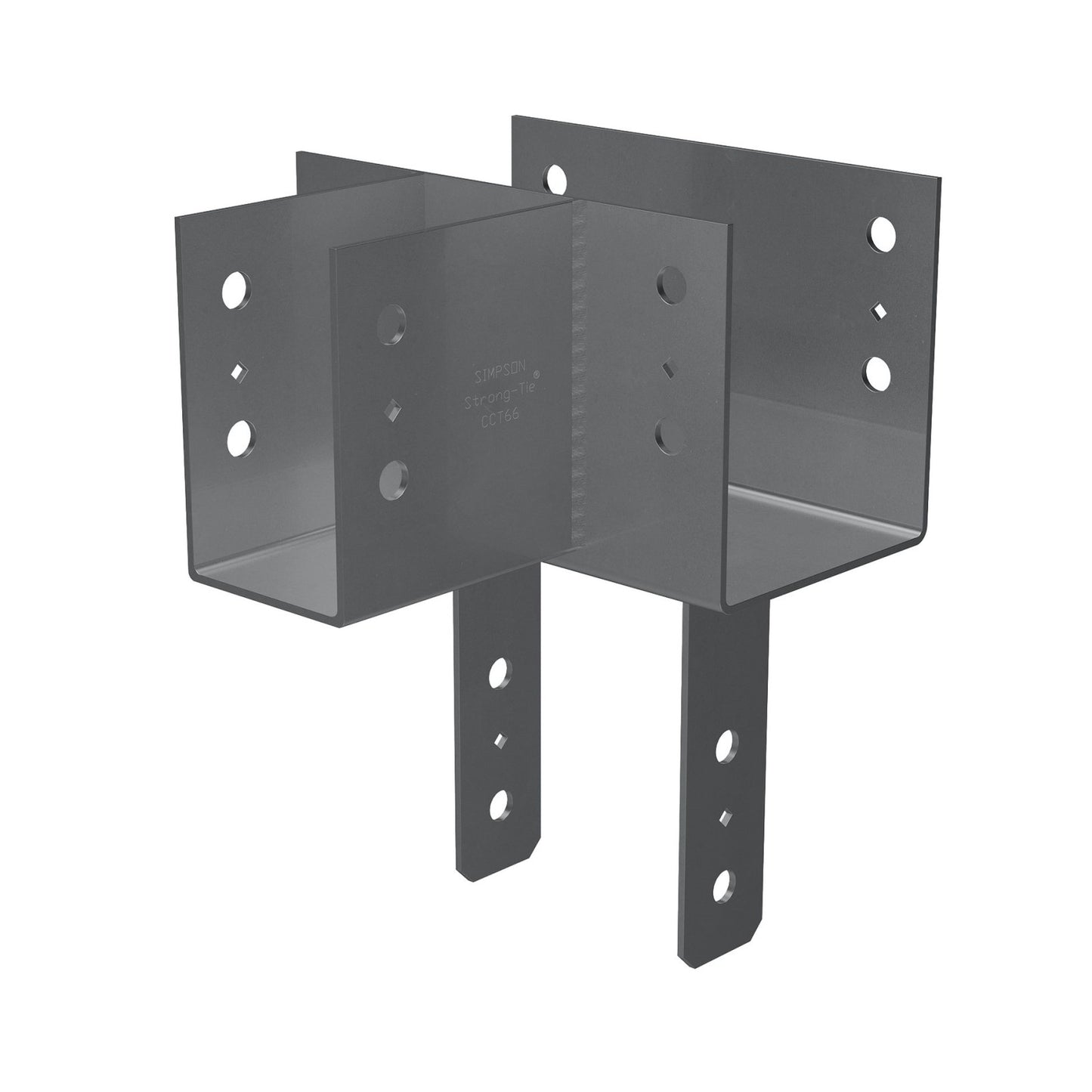

The CCT Column Cap T Configuration is designed to provide strong column-to-beam connections when there are two beams in a “T” formation on top of a column. When properly installed, this column cap helps to distribute the load from a bisecting beam and provides support for the connection. The CCT4X is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

  • Certified welds for confidence in strength and loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening
  • Also available in HDG, please indicate when ordering.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

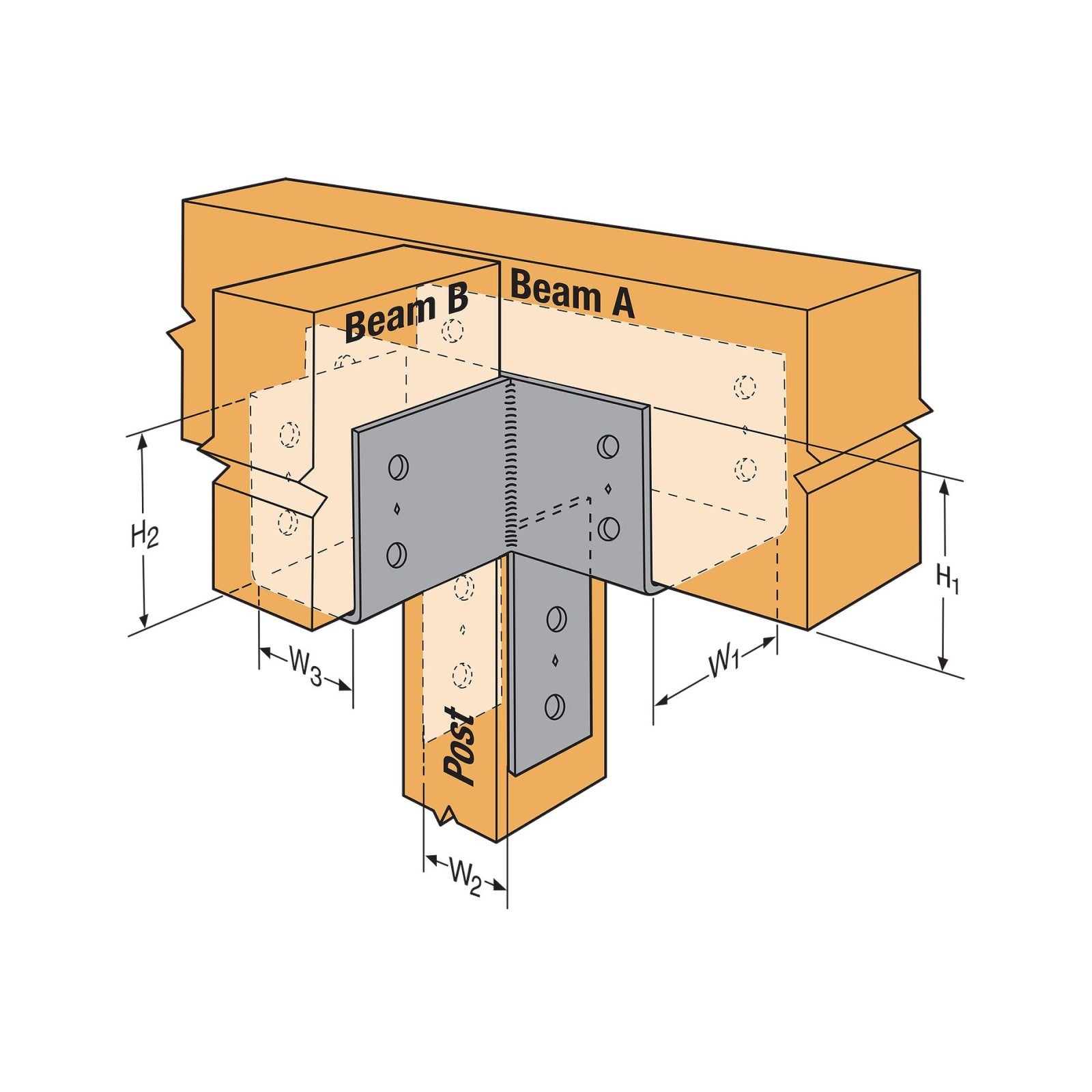

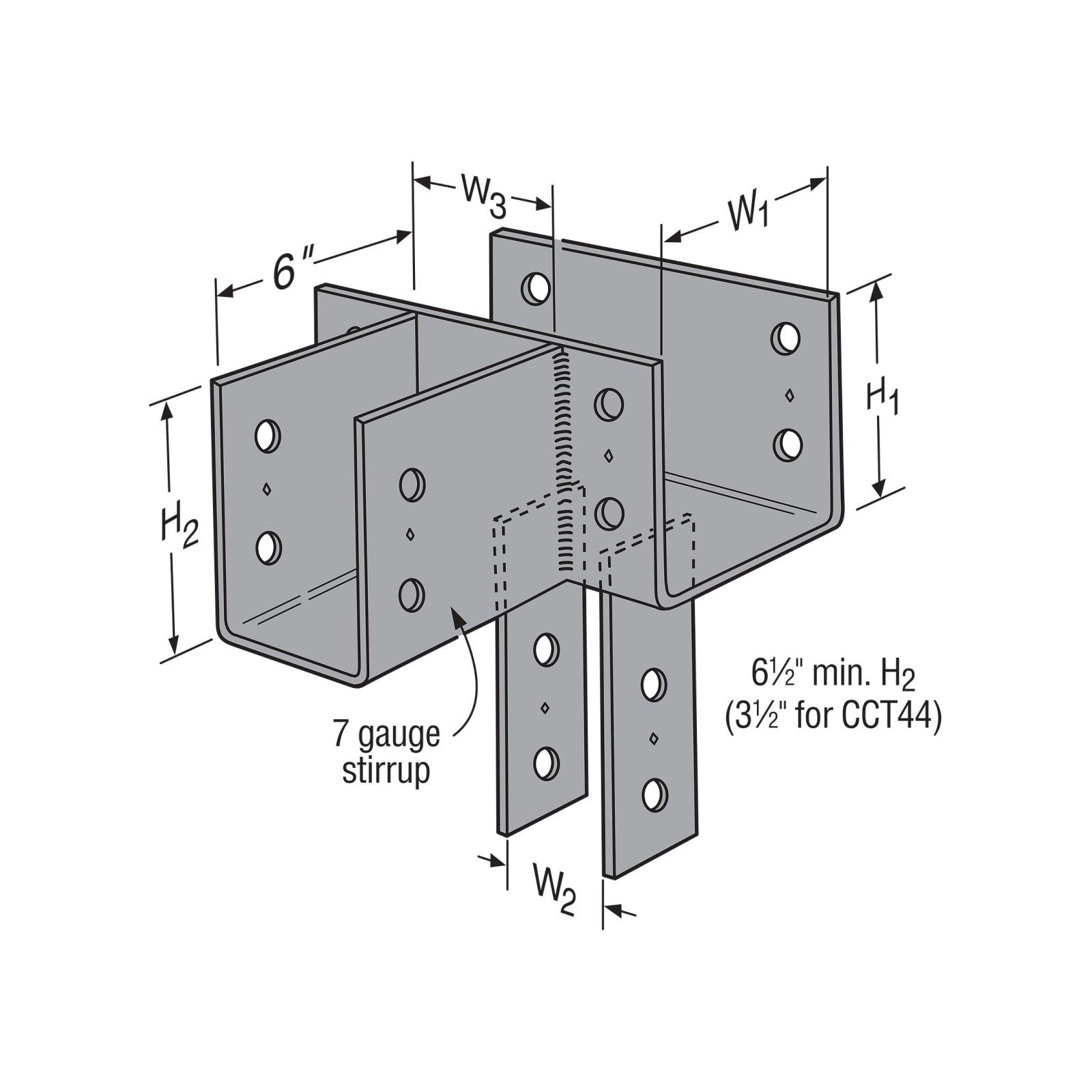

Height: (See Image 2) H1: 6.5"; H2: 6.5" - 15"
Width: (See Image 2) W1: 3.625" - 4.0625"; W2: 3.25" - 8"; W3: 3.25" - 8"
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
Beam size: 4X
Product Guide: View Spec Sheet
