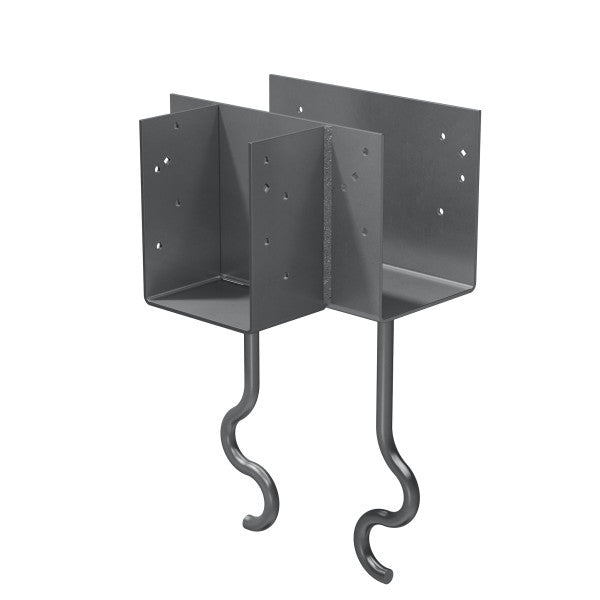

Simpson CCTQM5.50-SDSG T-Shape Column Cap for GFCMU & Concrete Piers 5.5" W/SDS Screws - Hot Dip Galvanized, Made to Order Non-Returnable

Name: Simpson CCTQM5.50-SDSG T-Shape Column Cap for GFCMU & Concrete Piers 5.5" W/SDS Screws - Hot Dip Galvanized, Made to Order Non-Returnable
SKU: CCTQM5.50-SDSG
Price: 529.00 USD
Availability: InStock

$529⁰⁰

Ships FREE in 21-28 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

The CCTQM5.50-SDSG column cap is ideal for raised pier foundations and situations where large beams are supported by concrete or concrete block columns. Featuring a robust beam seat and Simpson Strong-Tie SSTB anchor bolts, it offers exceptional uplift and lateral resistance to withstand strong wind conditions. This product is suitable for floor support beams and can also be used in non-corner areas with a side stirrup to support intermediate beams at 90° angles.

Screws are configured to provide high uplift design values
Certified welds for confidence in strength and loading
SSTB offset allows flush installation to edge of pier
SSTBs spaced to fit standard CMU cells

California Residents: WARNING

Specifications

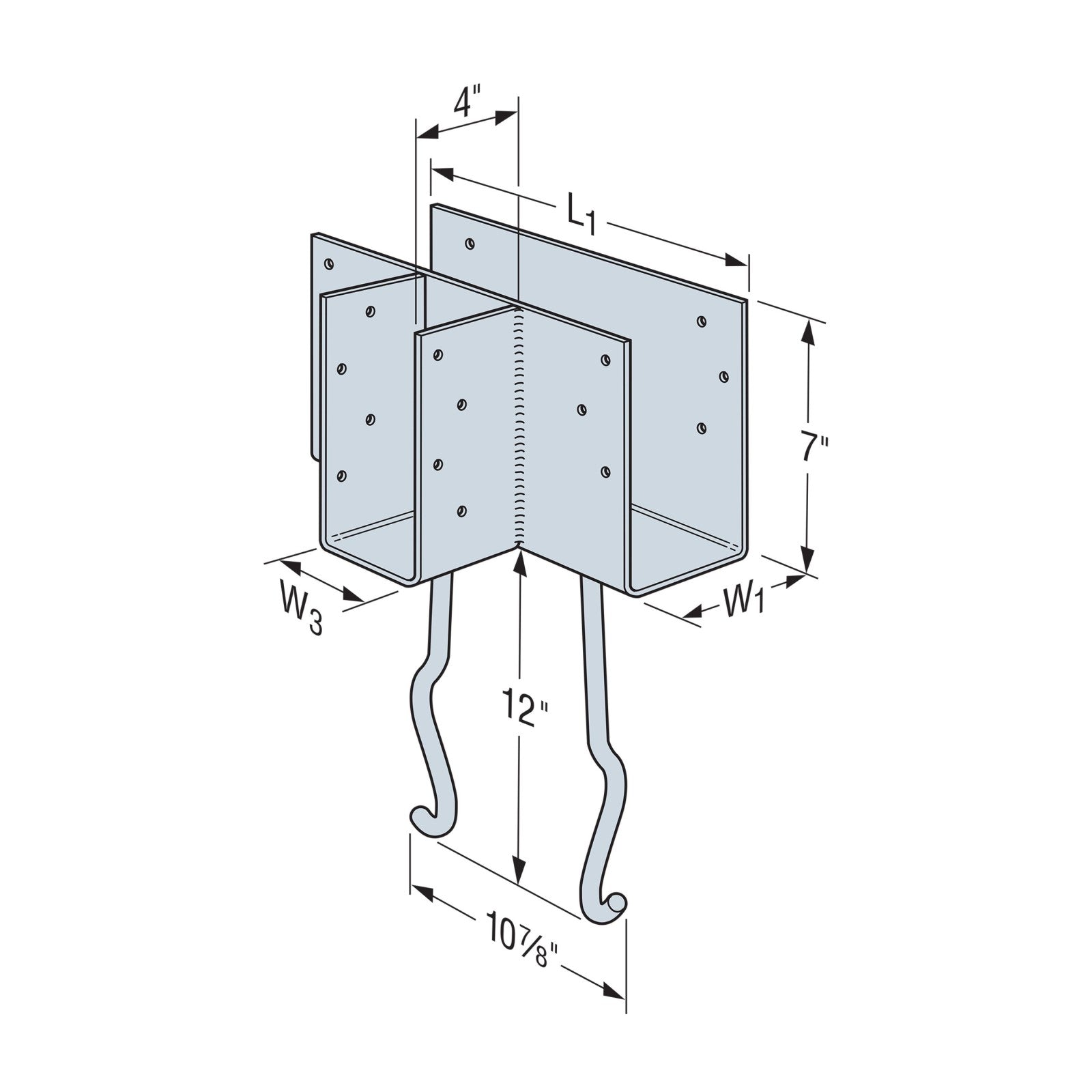

Width: (See Image 2) W1: 5-1/2"; W3: 5-1/2"; W4: 5-1/2"

Length: (See Image 2) L1: 13-1/2"; L2: 4"

Height: 7"

Thickness: 7 Gauge

Finish: Hot Dip Galvanized

Manufacturer Name: Simpson Strong-Tie

View Spec Sheet

Simpson Strong-Tie Limited Warranty
