Simpson CMSTC16 16 Gauge 54 ft. Coiled Strap

SKU: CMSTC16
$197.79

The Simpson Strong-Tie CMSTC16 strap provides nail slots for easy installation and can be cut to length on the job site for maximum versatility.


Installation:
  • Use all specified fasteners.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them.

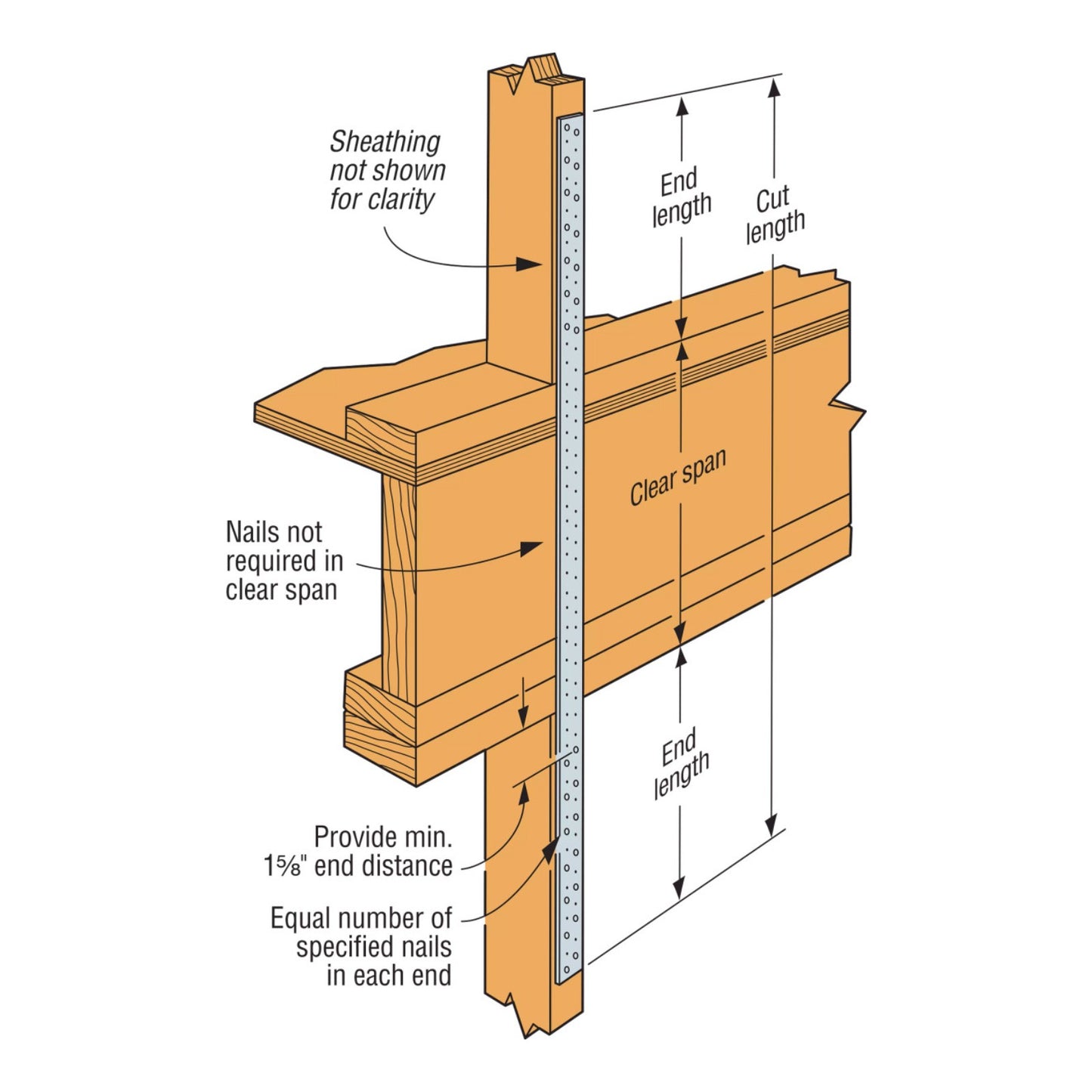

  • The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.
  • CMST only - Use every other triangle hole if the wood tends to split. Use round and triangle holes for comparable MST loads, providing wood does not tend to split.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie CMSTC16 strap provides nail slots for easy installation and can be cut to length on the job site for maximum versatility.Read More

The Simpson Strong-Tie CMSTC16 strap provides nail slots for easy installation and can be cut to length on the job site for maximum versatility.


Installation:
  • Use all specified fasteners.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them.
  • The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.
  • CMST only - Use every other triangle hole if the wood tends to split. Use round and triangle holes for comparable MST loads, providing wood does not tend to split.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

length spec:
54'

manufacturer name:
Simpson Strong-Tie

fasteners required:
SEE PRODUCT GUIDE DOCUMENT

for treated lumber:
no

thickness:
16 Gauge

Product Spec Sheet:
