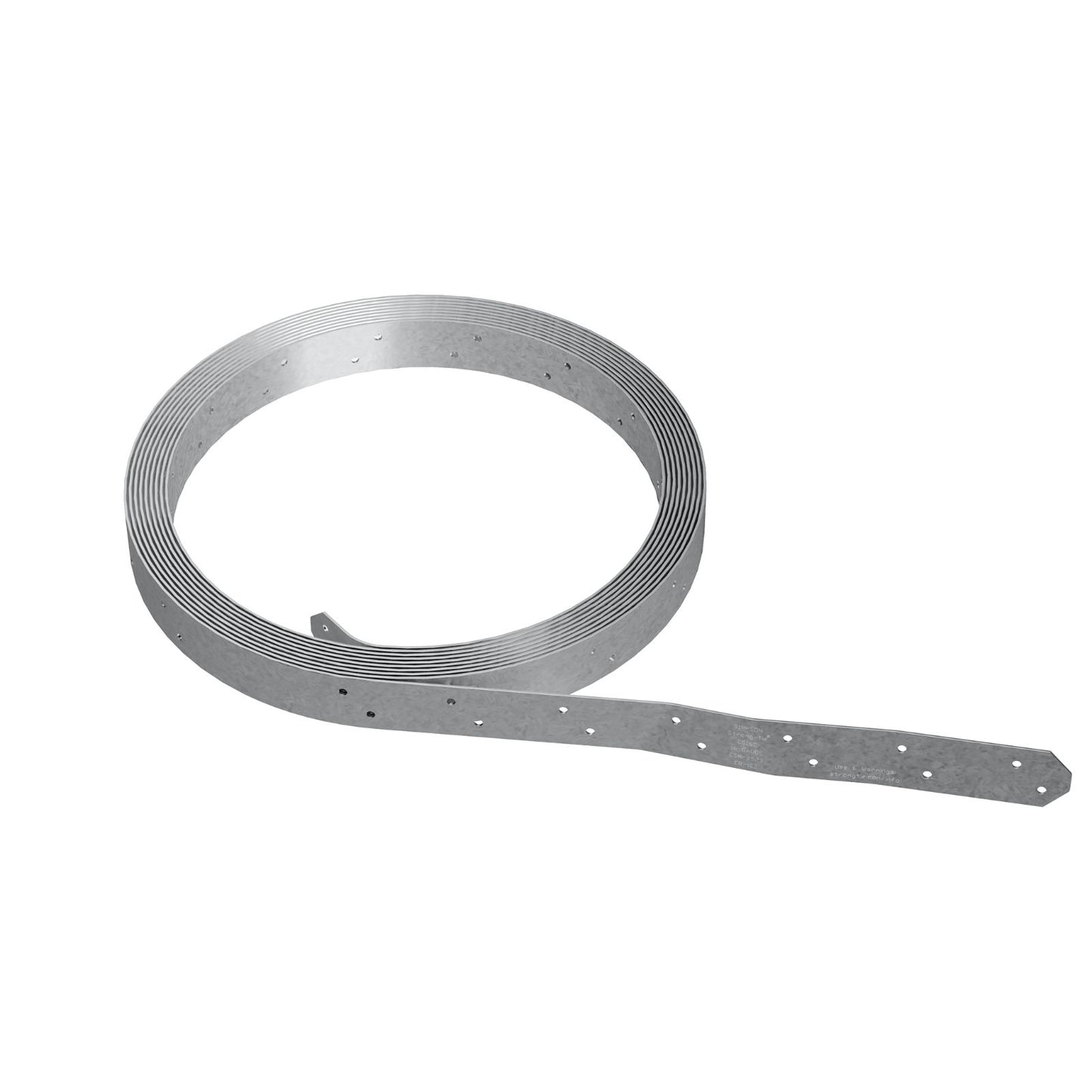

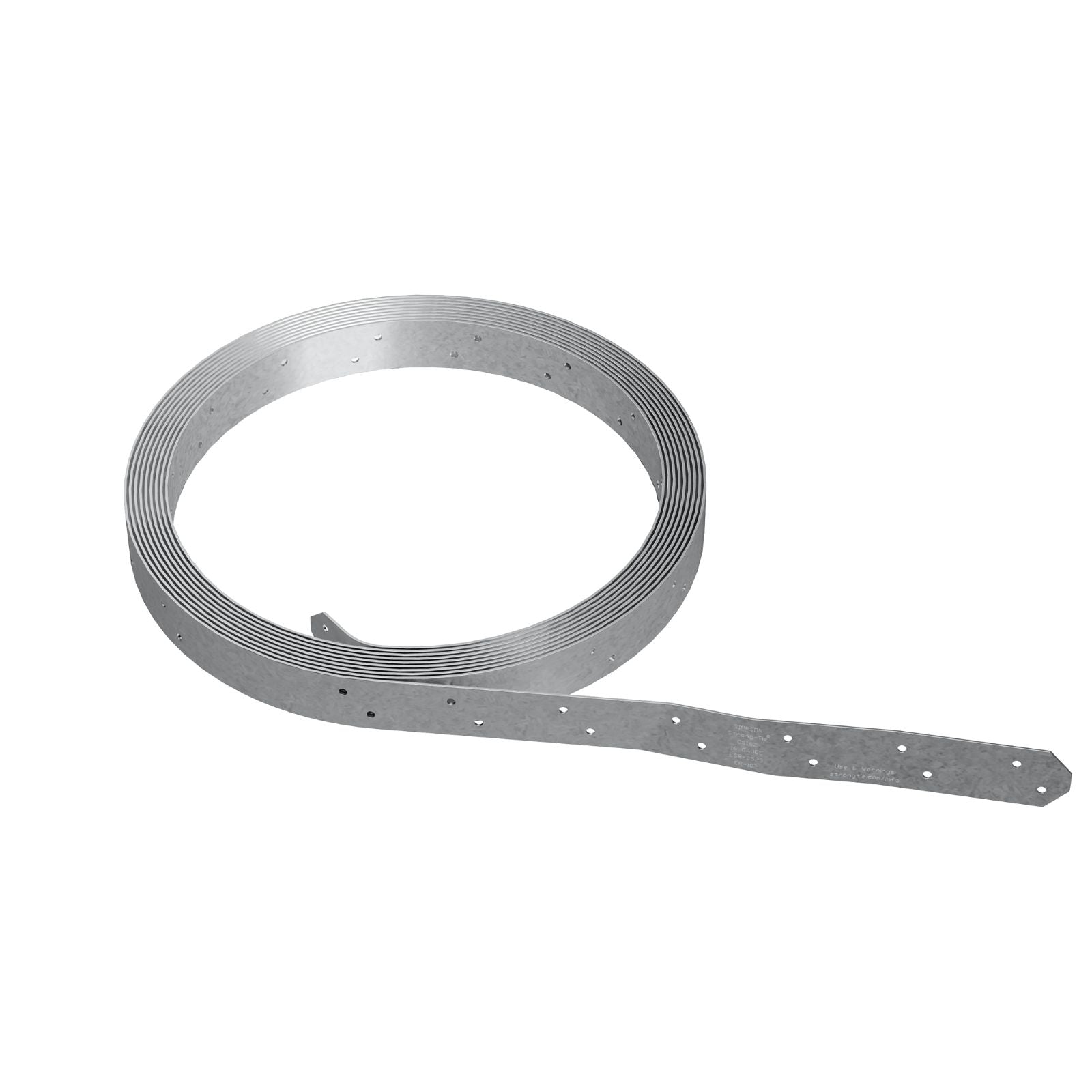

Simpson CS16Z 16 Gauge 150 ft. Coiled Strap - ZMAX Finish

SKU: CS16Z

$292.23
Free Shipping

The Simpson Strong-Tie CS16Z strap is a continuous utility strap that can be cut to length on the job site for maximum versatility. It comes packaged in a lightweight carton (about 40 lbs) for easy handling. The CS16Z features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them.
  • The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie CS16Z strap is a continuous utility strap that can be cut to length on the job site for maximum versatility. It comes packaged ...

Read More

The Simpson Strong-Tie CS16Z strap is a continuous utility strap that can be cut to length on the job site for maximum versatility. It comes packaged in a lightweight carton (about 40 lbs) for easy handling. The CS16Z features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
  • Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
  • The table shows the maximum allowable loads and the nails required to obtain them.
  • The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
SEE PRODUCT GUIDE DOCUMENT

Finish Spec:
ZMAX

Length Spec:
150'

Manufacturer Name:
Simpson Strong-Tie

Thickness:
16 Gauge

Product Guide:

Read More

Show Less
