Shop more CPTZ Concealed Post Ties
SKU: CPT88Z

Simpson CPT88Z Concealed Post Tie For 8x8 Posts - Zmax Finish

Simpson CPT88Z Concealed Post Tie For 8x8 Posts - Zmax Finish

Regular price $90.39
Sale price $90.39 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 12 hours 13 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

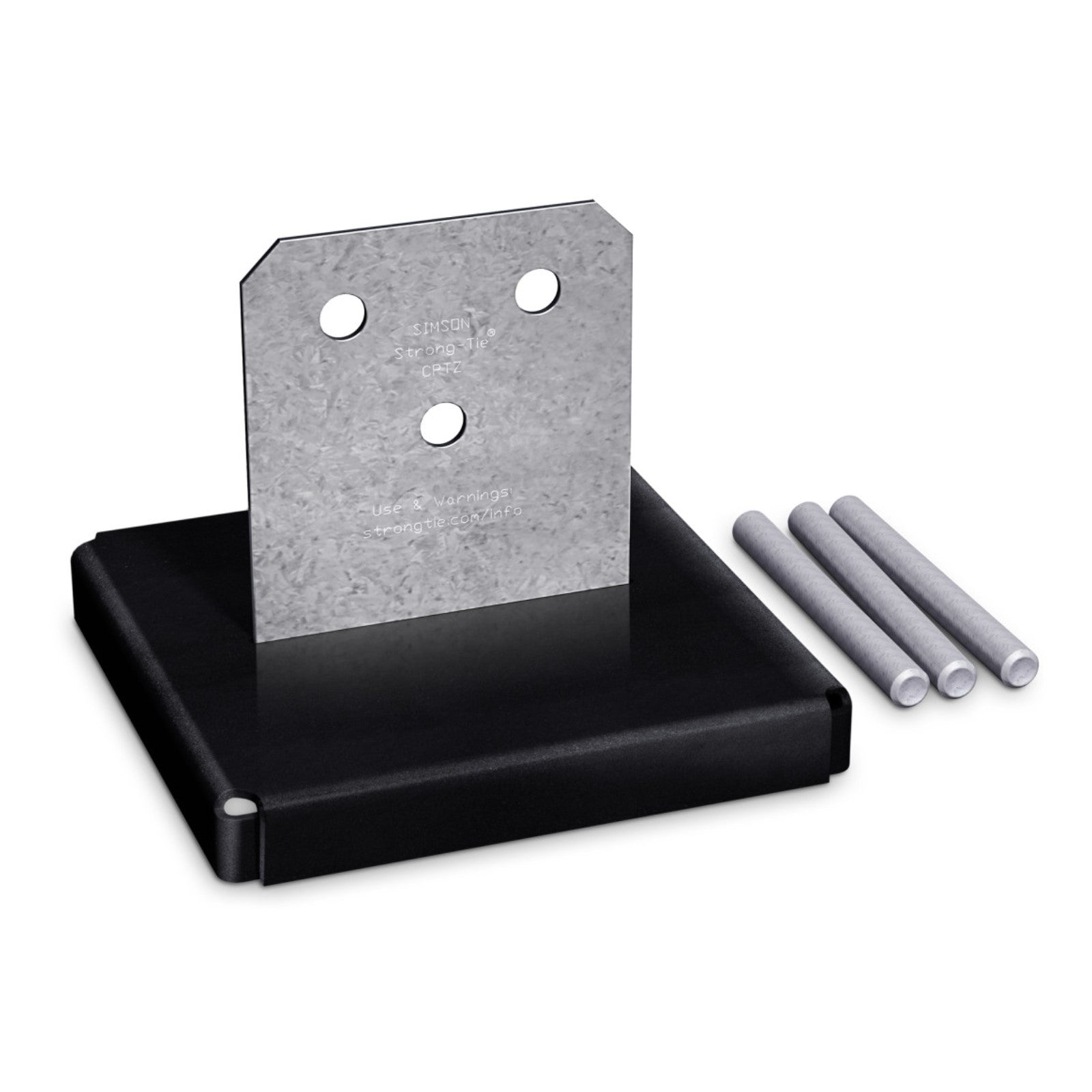

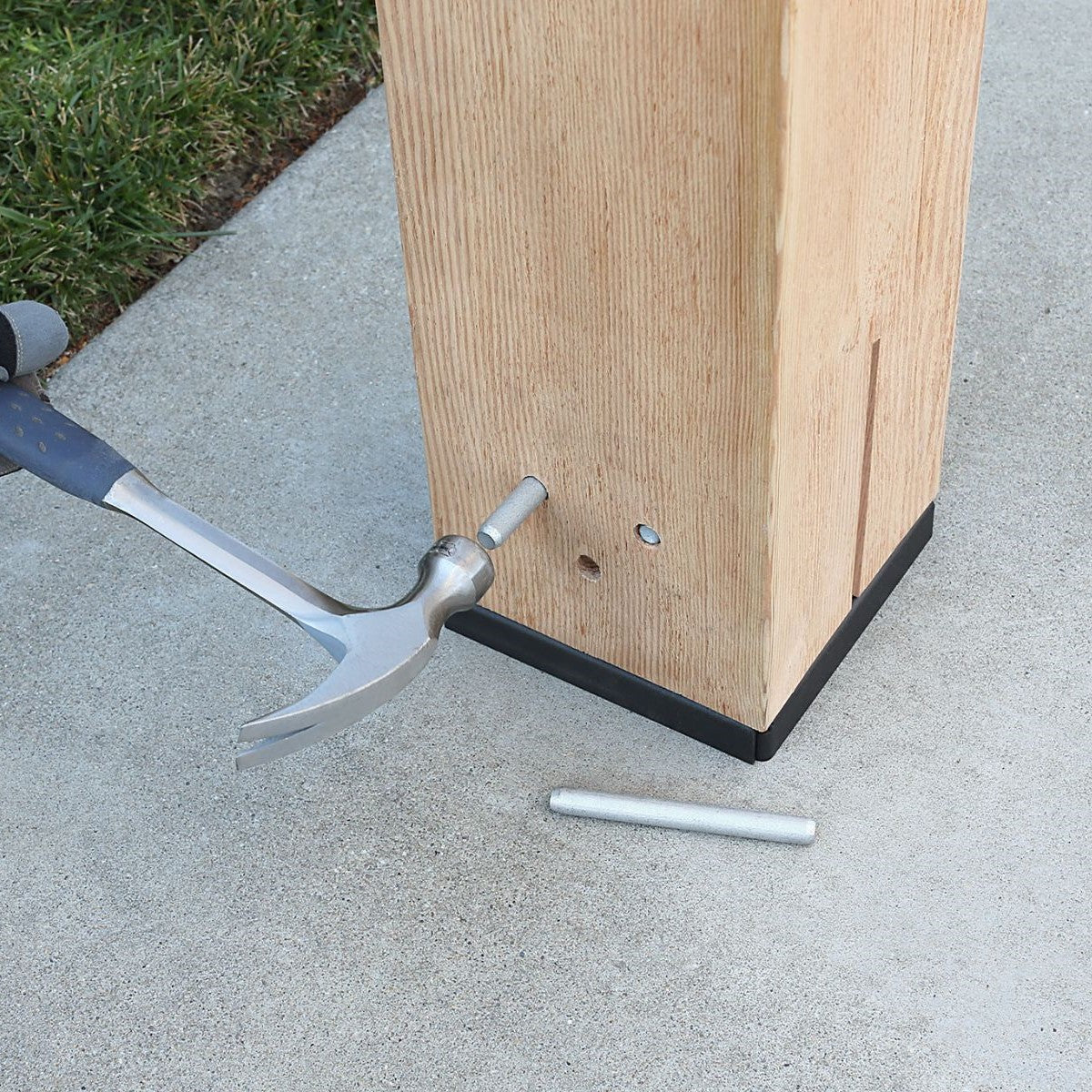

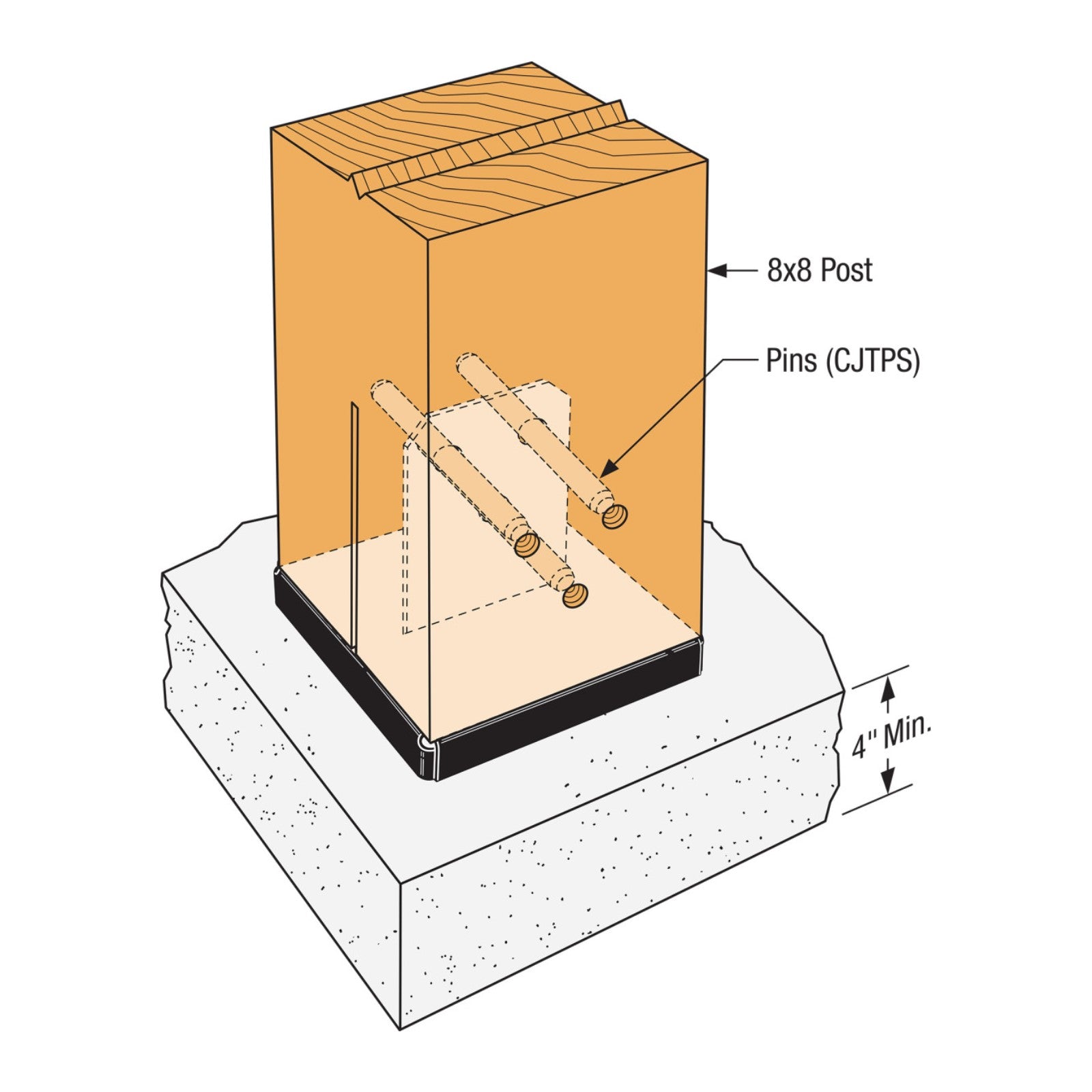

Build a solid foundation without having to look at an exposed post base when you’re finished. The Simpson Strong-Tie CPT88Z is an 8x8 concealed post tie that installs by cutting a slot in your post, which hides most of the connector out of sight and provides your deck, pergola or patio with the cleanest look you will find anywhere. Not only does the 1” standoff provide you with the height needed to keep your post from absorbing standing water, but it’s finished with a sleek black powder coat that will really make your project pop. If you’re looking to build your entire structure with concealed connectors, check out our CBTZ Concealed Beam Ties and CJTZ Concealed Joist Ties.

Looking for a different size CPTZ post base? We also stock CPT44Z 4x4 concealed post ties and CPT66Z 6x6 concealed post ties .


Features:
  • The CPT88Z has been tested and load-rated for uplift, download and lateral load.

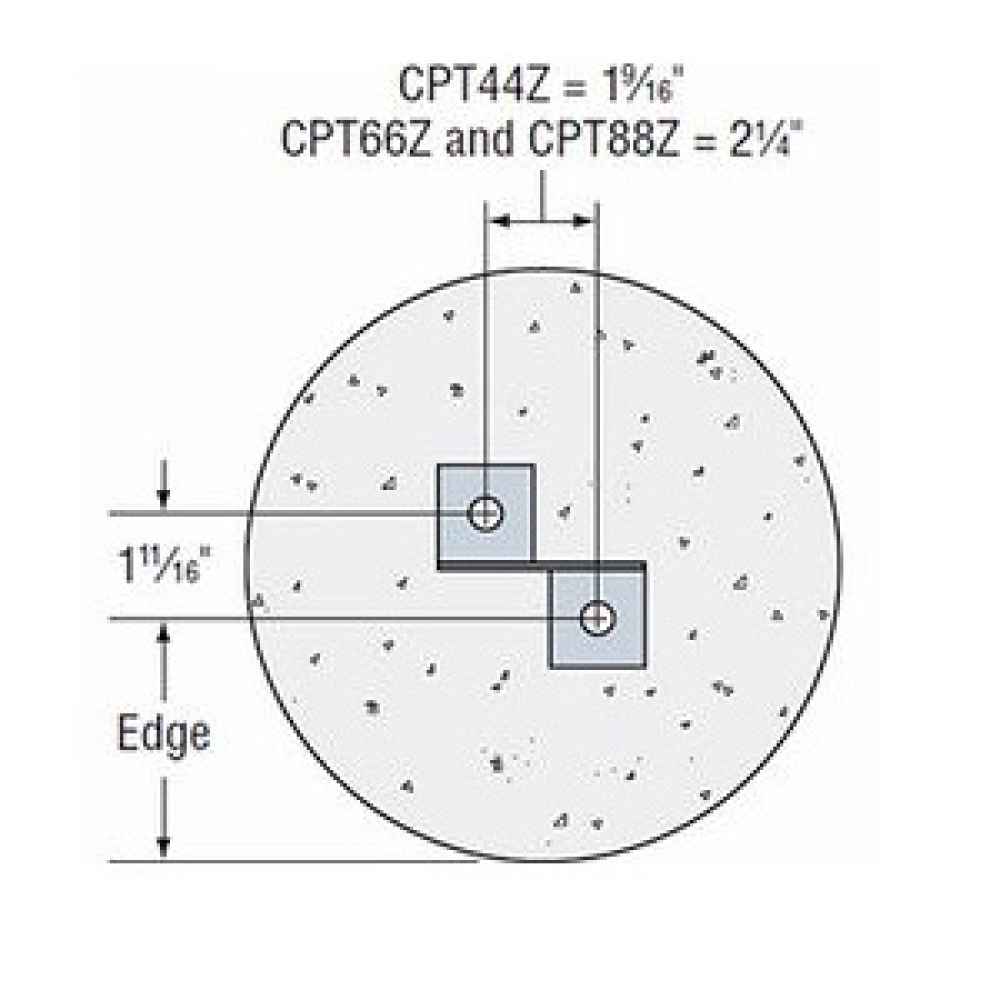

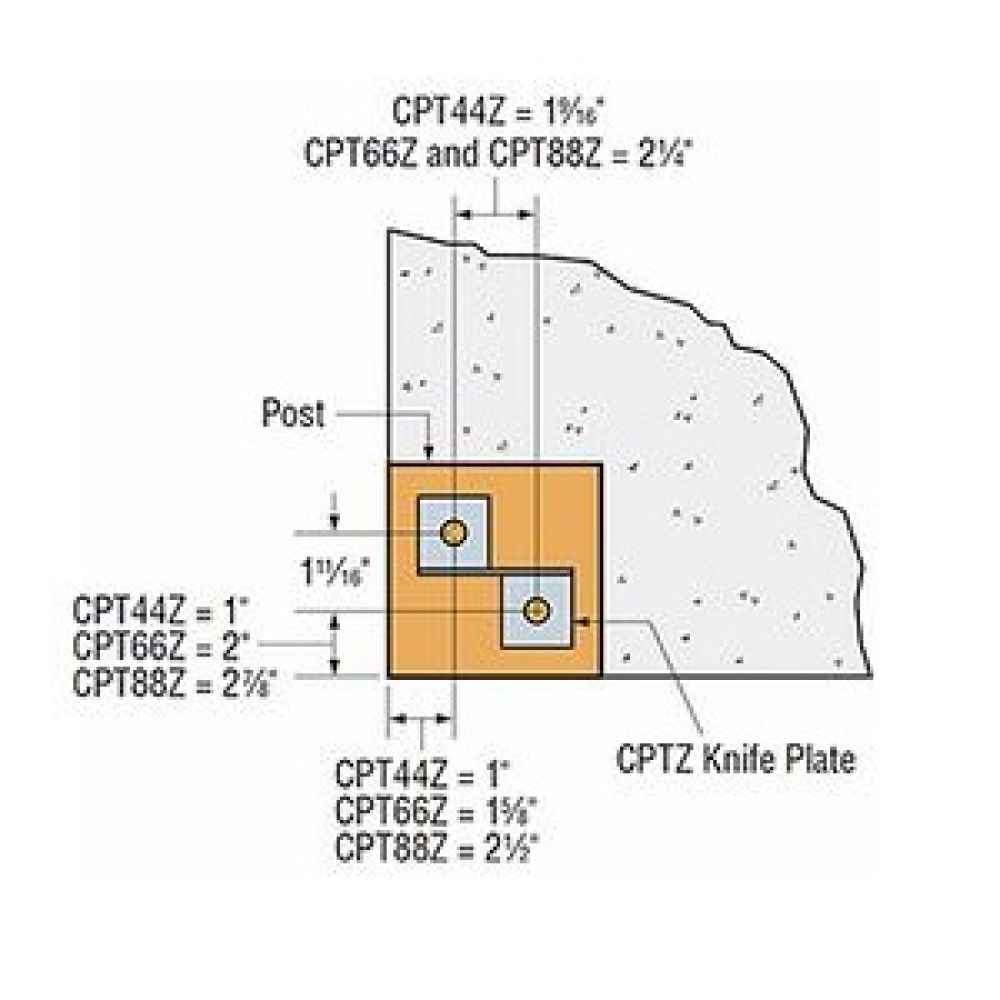

  • The CPTZ anchorage can either be cast-in-place or retrofitted with adhesive or mechanical anchors.

Installation:

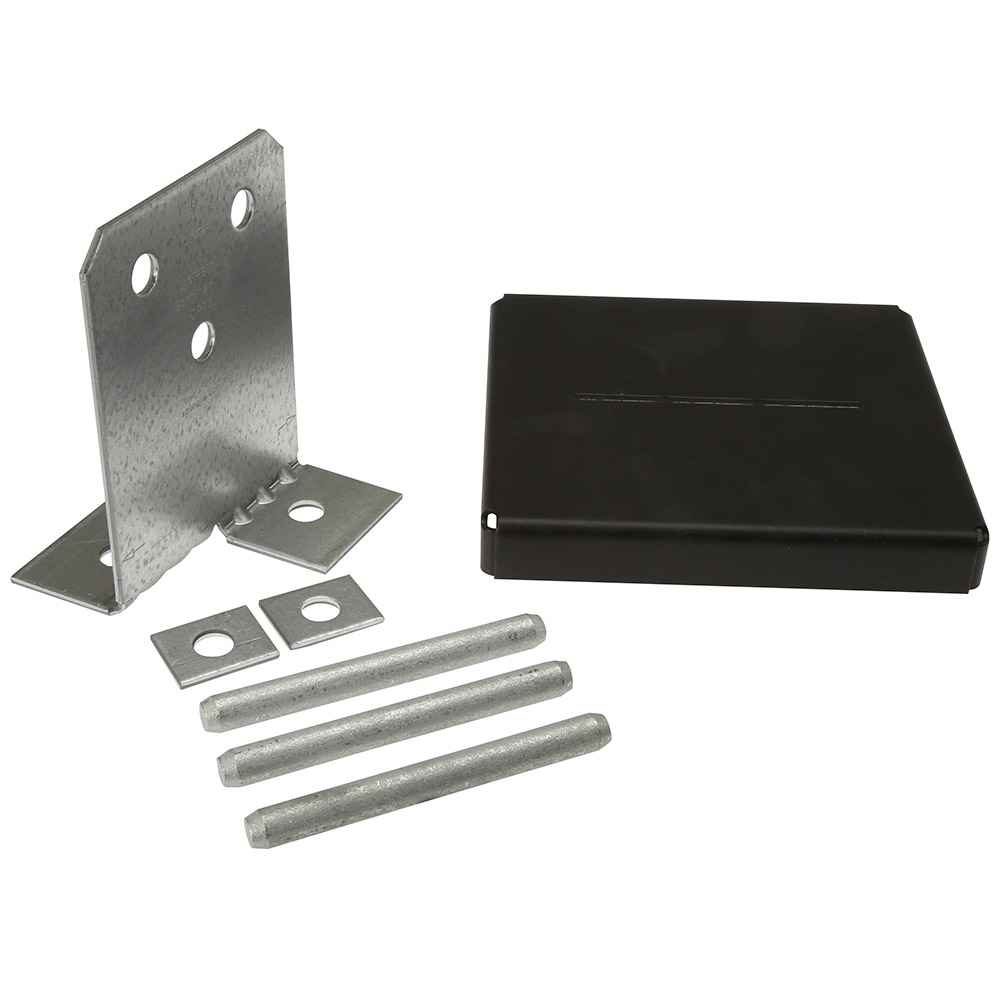

  • Use all specified fasteners. (all hardware in the photo is included)
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-braced, or non-top-supported installations.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Post Size: 8X8
Fasteners required: (2) 1/2" Concrete Anchors
Length: 7-1/4"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Features

-The CPT88Z has been tested and load-rated for uplift, download and lateral load.
-The CPTZ anchorage can either be cast-in-place or retrofitted with adhesive or mechanical anchors.

Installation

-Use all specified fasteners. (all hardware in the photo is included)
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-braced, or non-top-supported installations.
