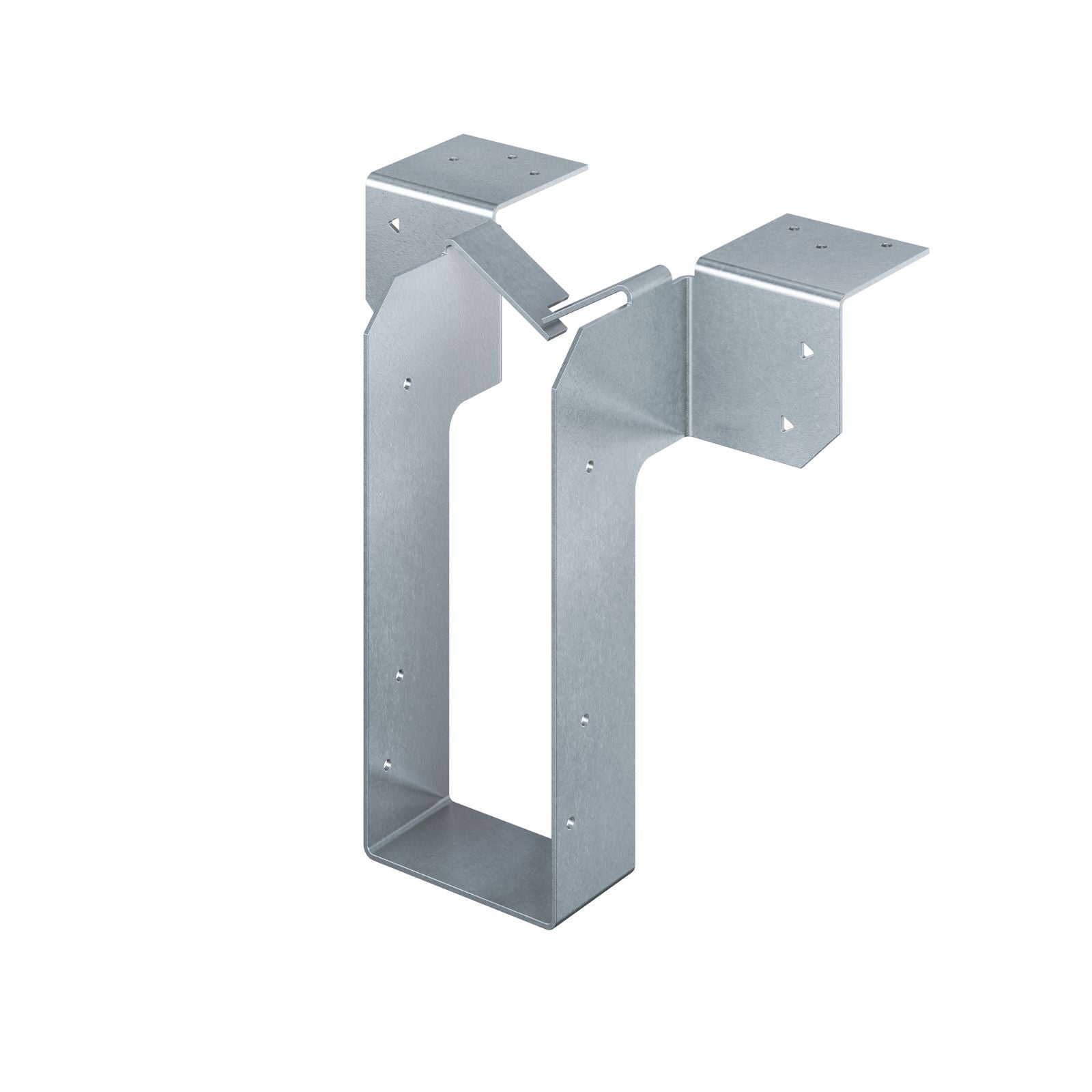

Name: Simpson DGF2.56/22 Fire Wall Hanger - G90 Galvanized, Made to Order Non-Returnable
SKU: DGF2.56/22
Price: 69.99 USD
Availability: InStock

The Simpson Strong-Tie DGF fire wall hangers are a great time saving solution for multi-level building construction. These hangers are easily installed on either 2x4 or 2x6 two-hour wood stud fire walls while framing. These hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall. These ratings verify that the hangers do not reduce the two-hour fire wall assembly rating. The DGF is a top-flange hanger that connects floor trusses and joists to wood stud walls. The hanger has a v-shaped joist stop at the top that prevents the joist from seating too far back in the stirrup, creating space for the drywall to be installed between the joist and the wall after framing. This economical hanger provides joist support for the majority of Type III construction projects.

Installation:

Use all specified fasteners.
Hangers are mounted like a standard top-flange hanger.
I-joists require web stiffeners to achieve full table loads. I-joists without web stiffeners have reduced loads as shown in the table.
When welded to a steel header, the hanger requires four 2" fillet welds along the sides of the top flanges and (6) joist nails to achieve a download of 1,650 lb.; the weld size needs to match the hanger’s thickness.
Table uplift loads apply to welded applications.
Stud wall–plate splices must occur at a stud location.
