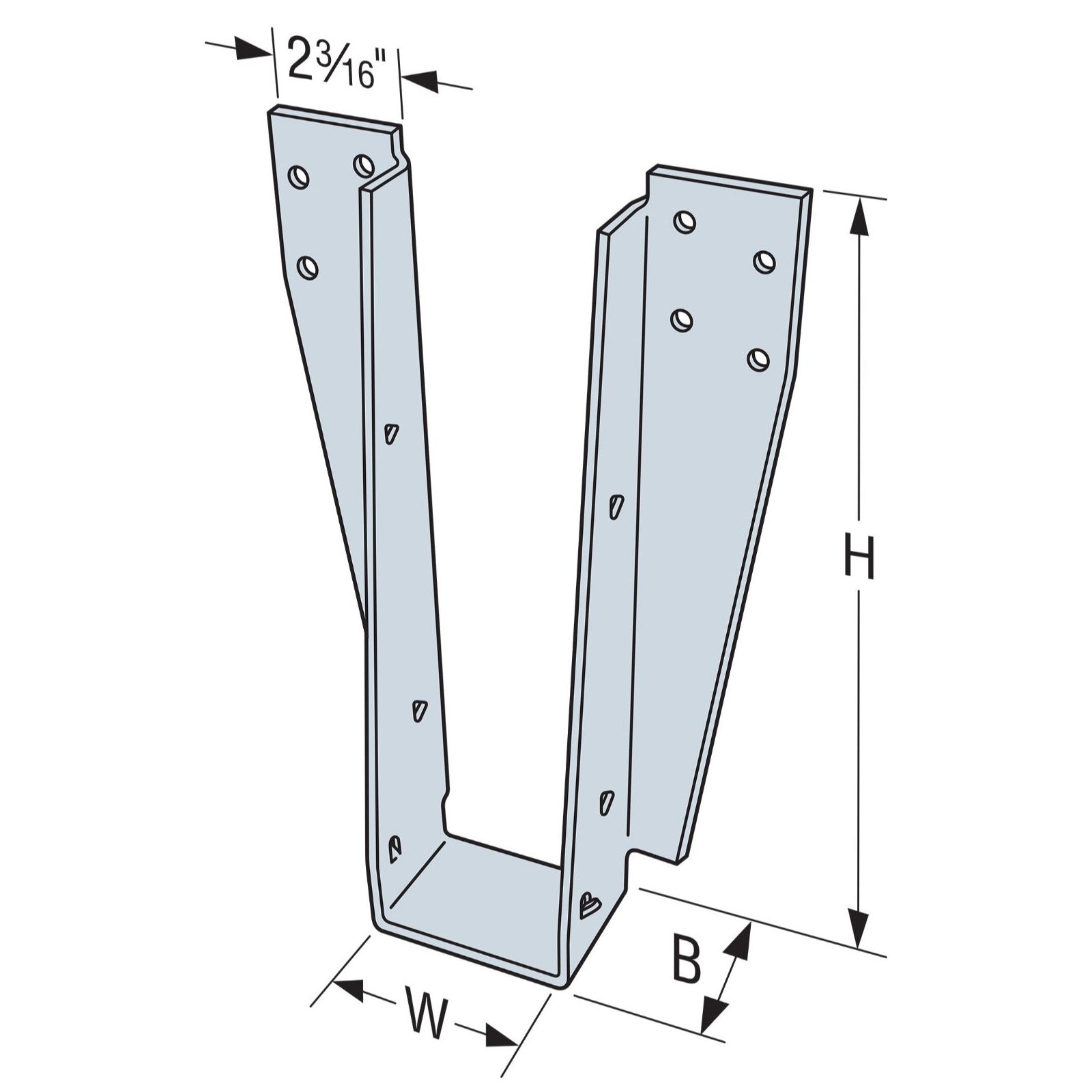

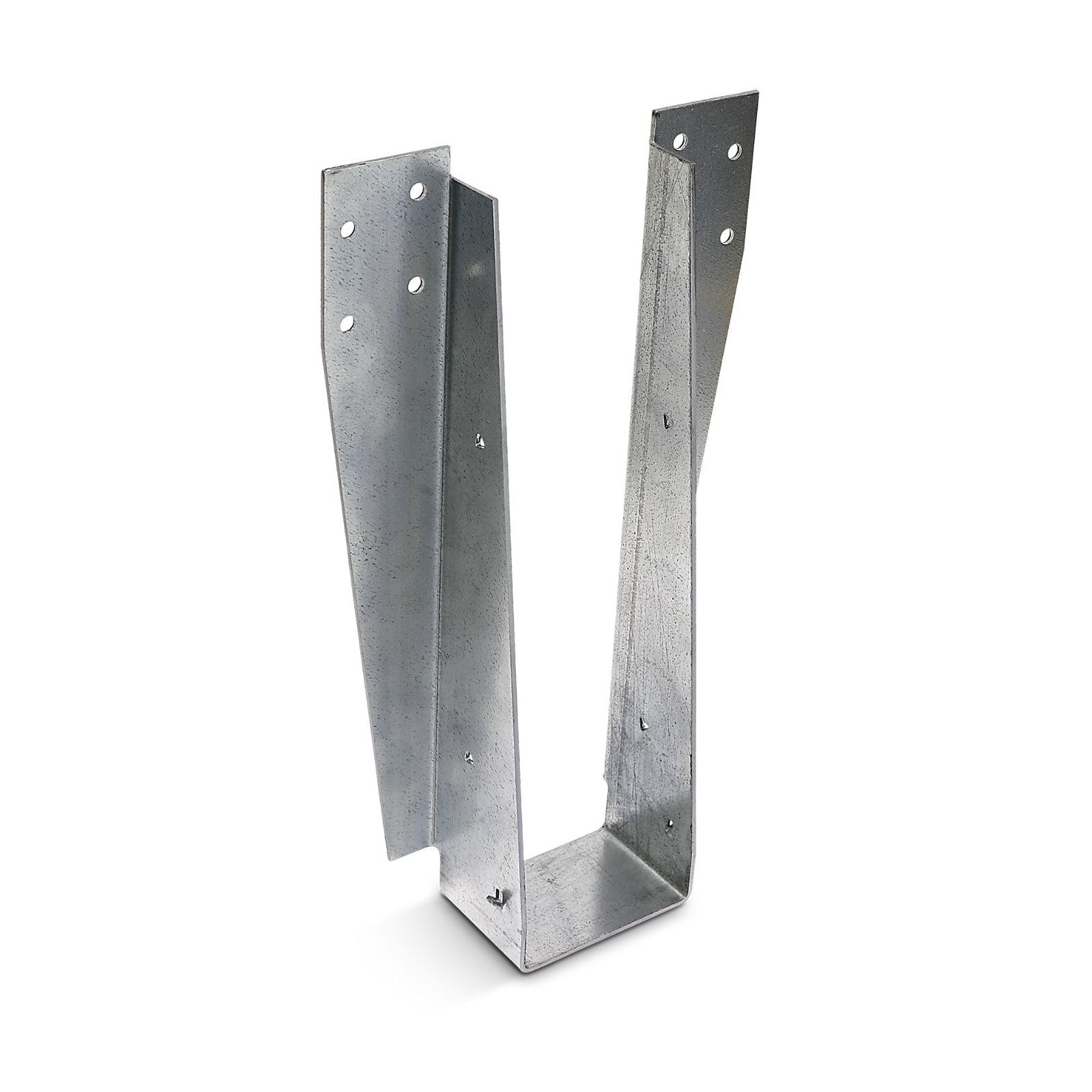

The Simpson Strong-Tie DHU Face-Mount Fire Wall Hanger is designed for structurally supporting joist floor loads that bear on wood stud walls with two layers of 5/8" gypsum board. It’s a smart solution for framing situations that require a fire-rated assembly—especially in multi-family or light commercial projects. Installed after the drywall is in place, the DHU saves time while ensuring fire-resistance compliance without compromising structural integrity.

This hanger is available in multiple widths and can be ordered with one concealed flange or skewed up to 45°, giving contractors the flexibility to meet project-specific layout needs. Whether you're working with plated trusses, solid sawn lumber, or engineered wood, the DHU delivers versatile, code-compliant performance in demanding construction environments.

Key Features:

• Fire-Rated Performance: Designed for use on two-hour fire-rated wall assemblies, tested for use with both 2x4 and 2x6 wall construction.
• Flexible Installation: Can be installed after drywall, and configured with concealed flanges or skewed up to 45° as needed.
• Material Versatility: Compatible with plated trusses, solid sawn lumber, and engineered wood joists.

Installation:

• Hanger must be installed after drywall is applied to the wall assembly.
• Fasten using Strong-Drive SDS Heavy-Duty Connector screws as specified per application.
• Top of hanger should be flush with the top of the wood wall and tight to the drywall face.
• Ensure wall top plates are restrained to resist rotation. For gravity loads under 150 plf, use a stud-plate tie connector or equivalent restraint.
• Position top plate splices over studs for maximum structural performance.

Applications:

• Multi-Family Residential Construction: Ideal for joist-to-wall connections in fire-rated assemblies within apartments, condos, and townhomes.
• Commercial Buildings: Suitable for light commercial structures requiring two-hour fire wall designs.
• Retrofits and Remodels: Perfect for upgrading wall assemblies to current fire-resistance requirements without complete re-framing.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
