SKU: DHU3.56/18TF

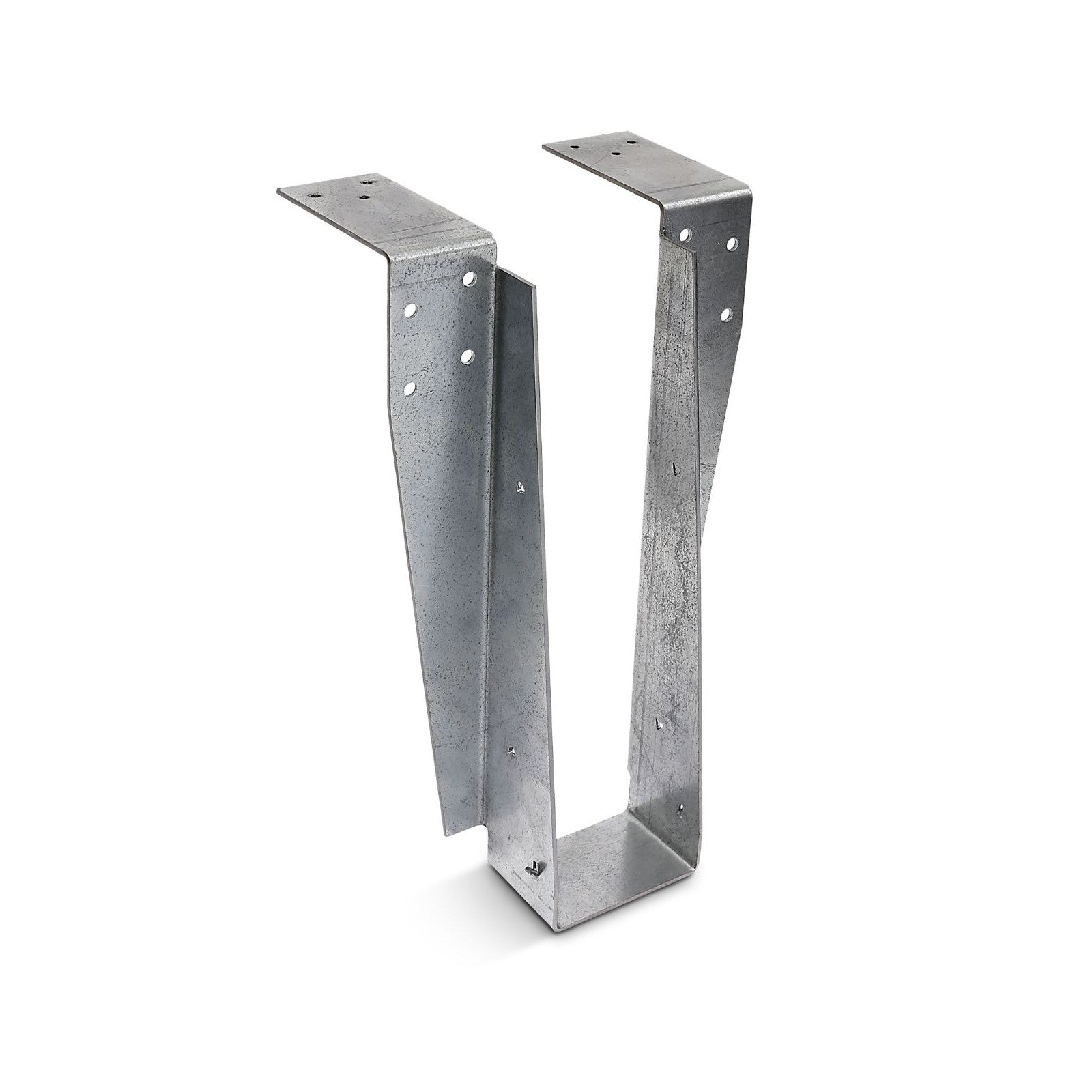

Simpson DHU3.56/18TF Drywall Top Flange Hanger w/SDS Screws - G90 Galvanized

Simpson DHU3.56/18TF Drywall Top Flange Hanger w/SDS Screws - G90 Galvanized!

Skip to product information
1 of 2
$65.07

Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

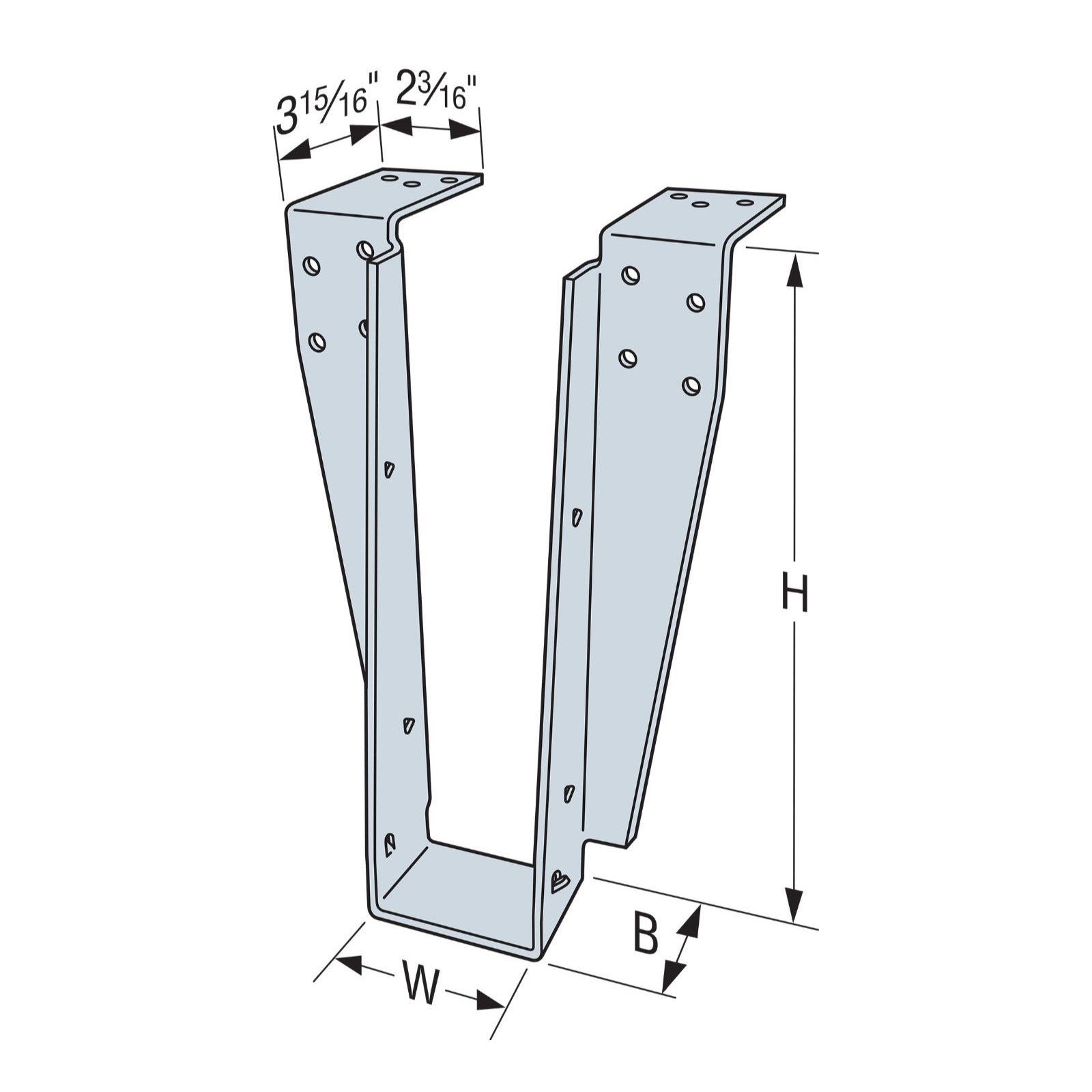

Specifications

Finish: G90 Galvanized
Fasteners required: Joist - (2) 0.148" x 1-1/2" Nails Face - (8) 1/4" x 3-1/2" SDS25312 Screws (Included) Top - (6) 0.148 x 1-1/2" Nails
For Treated Lumber: No
Height: 17-15/16"
Joist size: 3-1/2" X 18"
Manufacturer name: Simpson Strong-Tie
Description

The Simpson Strong-Tie DHUTF top flange hangers are designed to carry joist floor loads to a wood stud wall through two layers of 5/8" gypsum board (drywall). These hangers install after the drywall is in place. The hangers come in sizes that accommodate most joists used in multi-family construction including I-joists and trusses. The Strong-Tie DHU3.56/18TF face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws are provided with the hanger.
  • Drywall is installed first.
  • Wall top plates must be restrained to prevent rotation. Use an SSP stud plate tie connector at the back of each stud or provide equivalent restraint by another method as determined by Designer.
  • Upper plate splices must occur at a stud location.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
