SKU: ECC7 1/8X

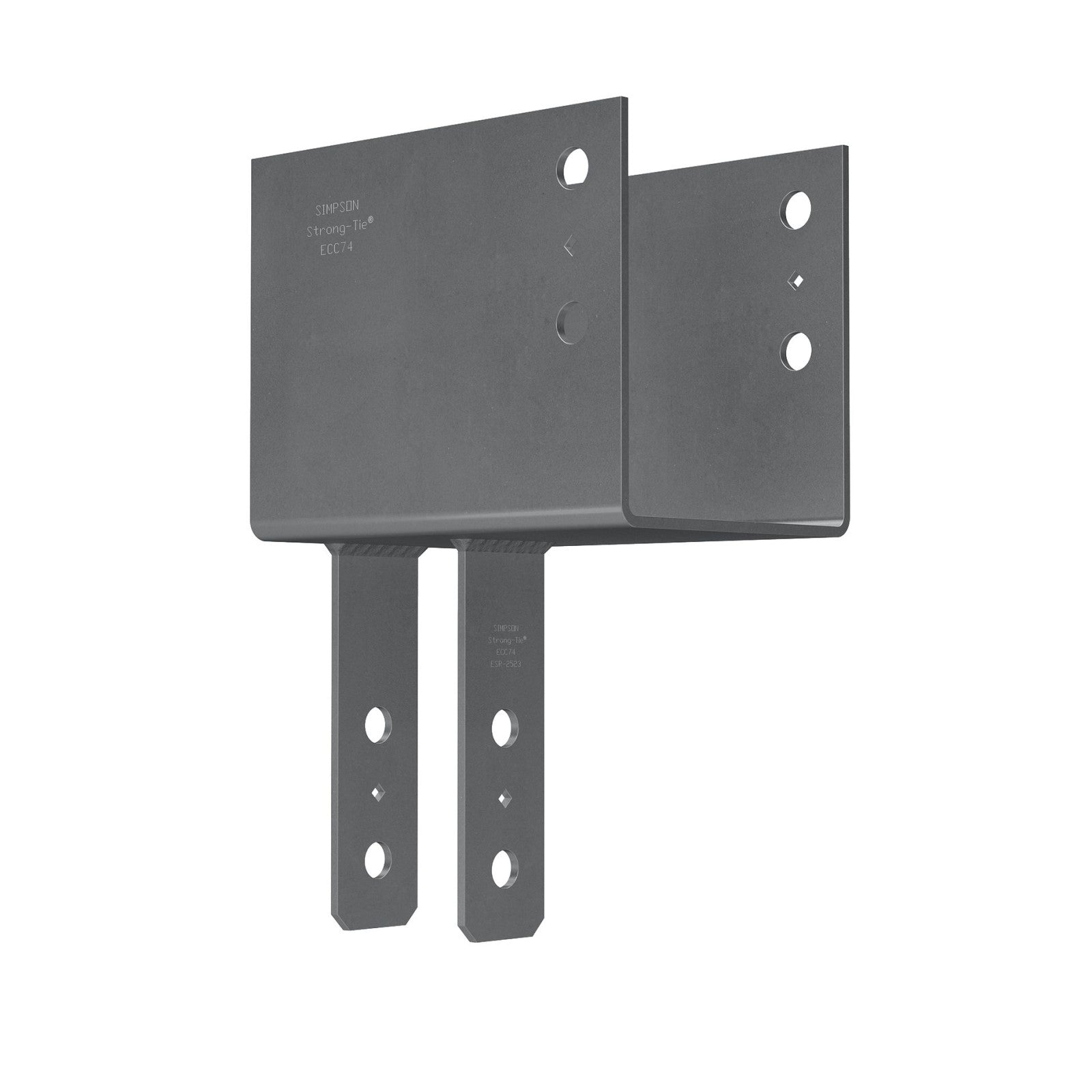

Simpson ECC7 1/8X End Column Cap for 7" Beam, Variable Post, Made to Order Non-Returnable

Name: Simpson ECC7 1/8X End Column Cap for 7" Beam, Variable Post, Made to Order Non-Returnable
SKU: ECC7 1/8X
Availability: InStock

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product.

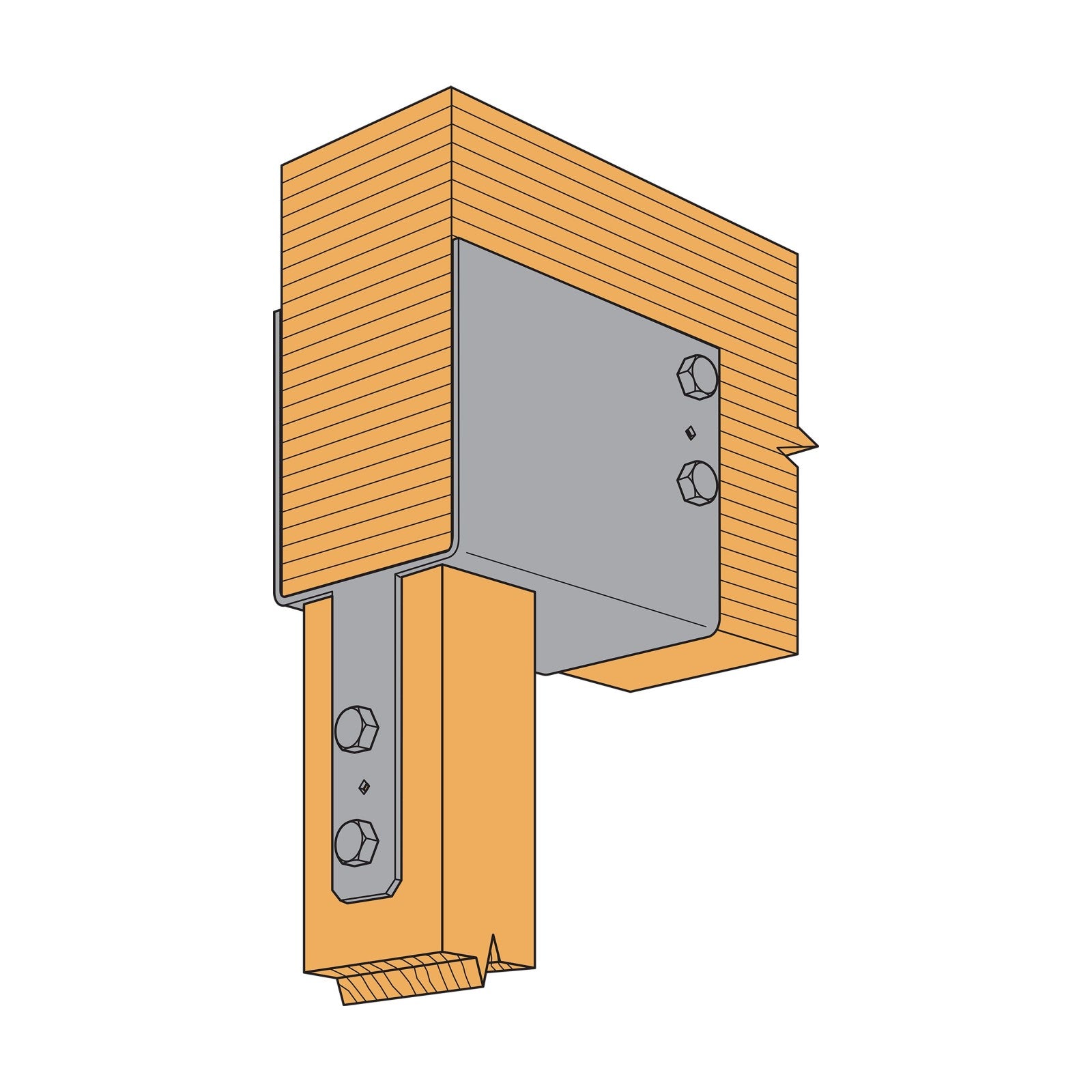

Simpson Strong-Tie ECC7 1/8X end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. This post base features a black powder coat finish for a high aesthetic and added corrosion resistance.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

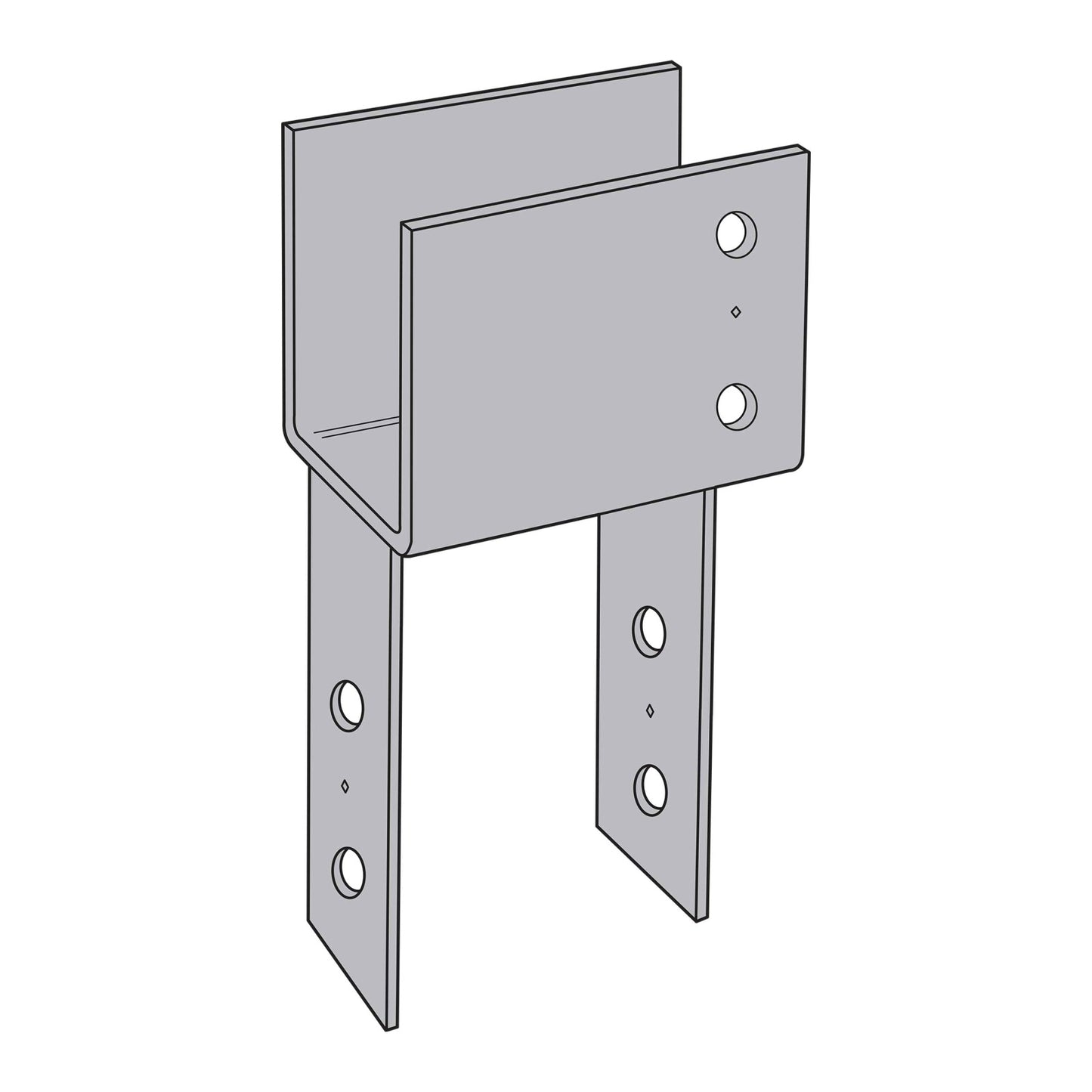

Width: (See Image 2) W1: 6.8751" - 7.125"; W2: 3.25" - 9.688"

Height: 8"

Thickness: 7 Gauge

Beam Size: 7"

Finish: Gray Paint

Manufacturer Name: Simpson Strong-Tie

Fasteners Required: Beam - (2) 3/4" Machine Bolts; Post - (2) 3/4" Machine Bolts

View Spec Sheet

Simpson Strong-Tie Limited Warranty
